Exclamation series 1 to series 2 swap

hello , im new to the site , i have a question . i have a 95 ssei with some issues, i was wondering if possible what all do i need to do a series 2 swap?
santos1jz is offline   Reply With Quote
Old 10-02-2008, 10:01 AM   #2
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by santos1jz View Post
hello , im new to the site , i have a question . i have a 95 ssei with some issues, i was wondering if possible what all do i need to do a series 2 swap?
A series 2 L67 from a H-body will drop right in and bolt up. But, the the torque converter bolt pattern is different. You'll either have to use the stock S2 L67 torque converter or drill your flexplate to accept the smaller bolt pattern of the 60e'* converter, or run a L36 flexplate (they have the same size converter bolt pattern).

You can modify the stock harness or modify a 95 L36 harness (less work) to work on the S2 L67 and get a custom chip burned by Sinister Performance (Sinister Performance, LLC.).

There is also some nickel and dime stuff like: The throttle cables are different, A/C lines are different, heater hoses have to be trimmed, and maybe something else I'm not thinking about.

FWIW I swapped a L36 into a S1 L67 car.
95naSTA is offline   Reply With Quote
Old 10-02-2008, 12:04 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I helped swap a S2 into a 90. However we did the entire drive train from a donor and had everything ever desired.

A converting connector was made for the firewall items and the S2 wiring harness/pcm was used. Overall it was fairly easy noting the items 95NASTA metnioned and add to it the cruise control was vacuum controlled in the 95 SSEi and electronic in 96+ S2'*. Overall an easy swap though when the entire drivetrain was done. .
BillBoost37 is offline   Reply With Quote
Old 10-02-2008, 02:36 PM   #4
Junior Member
Thread Starter

Join Date: Oct 2008
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
santos1jz is on a distinguished road
Default

im looking at using the motor and tranny from the s2 since my tranny has a bad case of tcc

can some one show me a pic of the traction control relay? my relay box in the engine bay has on diagram on it
santos1jz is offline   Reply With Quote
Old 10-10-2008, 09:37 PM   #5
Senior Member
Posts like a 4 Banger

gtpsuprchrgd03's Avatar

Join Date: Sep 2008
Location: Montgomery County MD
Posts: 121
Thanks: 0
Thanked 0 Times in 0 Posts
gtpsuprchrgd03 is on a distinguished road
Default

What year is the car? I can try and see if i can get you a diagram for the traction control relay. If you want, send me a email at [email protected].

Paul
gtpsuprchrgd03 is offline   Reply With Quote
Old 10-12-2008, 08:29 PM   #6
Junior Member
Thread Starter

Join Date: Oct 2008
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
santos1jz is on a distinguished road
Default

Quote:
Originally Posted by gtpsuprchrgd03 View Post
What year is the car? I can try and see if i can get you a diagram for the traction control relay. If you want, send me a email at [email protected].

Paul
Its a 95 ssei, i just need to know which one it is, so i can pull it out

Last edited by santos1jz; 10-12-2008 at 08:30 PM.
santos1jz is offline   Reply With Quote
Old 10-13-2008, 05:25 AM   #7
Senior Member
Posts like a 4 Banger

gtpsuprchrgd03's Avatar

Join Date: Sep 2008
Location: Montgomery County MD
Posts: 121
Thanks: 0
Thanked 0 Times in 0 Posts
gtpsuprchrgd03 is on a distinguished road
Default

Quote:
Originally Posted by santos1jz View Post
Its a 95 ssei, i just need to know which one it is, so i can pull it out
I hope these help put. Let me know if you need anything else.... Good luck!
Attached Thumbnails

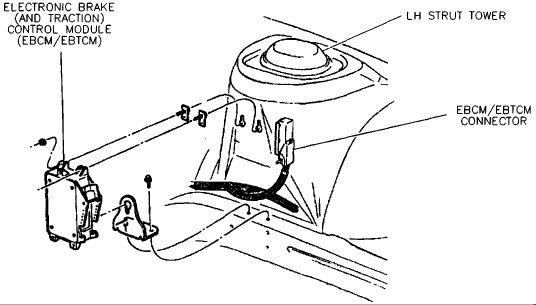

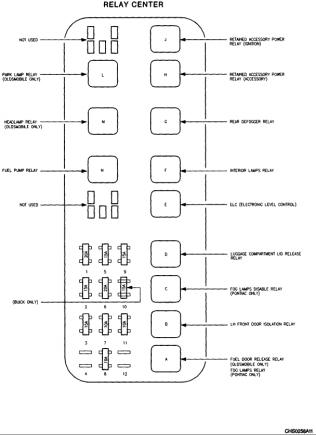

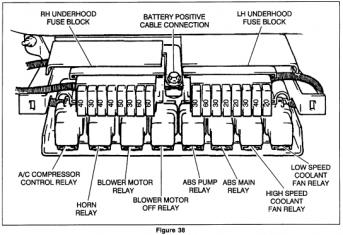

series 1 to series 2 swap-under-hood.jpg   series 1 to series 2 swap-traction.gif   series 1 to series 2 swap-inside.jpg
gtpsuprchrgd03 is offline   Reply With Quote
Old 10-21-2008, 09:00 PM   #8
Junior Member
Thread Starter

Join Date: Oct 2008
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
santos1jz is on a distinguished road
Default

Quote:
Originally Posted by gtpsuprchrgd03 View Post
I hope these help put. Let me know if you need anything else.... Good luck!

thanks that helps alot!

now my series 1 supercharged is done so is the tranny, i was thinking of making the car track only with a series 2 or series 3, gut the hole car and stuff , i need a new tank , so i was thinking of running a fuel cell, problem solved, now to the question at hand


If i rip out the tranny and motor what do i need to do to convert

series 2 or 3 motor
tranny
engine harness series 2-3 ?
engine ecu from the same motor
tranny ecu from the same donnor

keep in mind i dont need anything to work inside the car but a aftermarket tach
does it just all plug in or do i need to cut and splice wires?
santos1jz is offline   Reply With Quote
Old 10-22-2008, 08:35 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Easiest and most cost effective will be a Series 2 motor and it'* trans. Get the axles, wiring harness for the engine bay, pcm. You will want to pay attention on the transmission that it has 3 or 4 bolt bosses on the back of it where the rear trans mount (driver side) hooks up. If those bolts are not there..the case will crack if trying to use only one bolt.
BillBoost37 is offline   Reply With Quote
Old 10-24-2008, 09:20 AM   #10
Junior Member
Thread Starter

Join Date: Oct 2008
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
santos1jz is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Easiest and most cost effective will be a Series 2 motor and it'* trans. Get the axles, wiring harness for the engine bay, pcm. You will want to pay attention on the transmission that it has 3 or 4 bolt bosses on the back of it where the rear trans mount (driver side) hooks up. If those bolts are not there..the case will crack if trying to use only one bolt.
do i have to change any wires or is it all plug and play?
