Default Performance Build Up

Before I go ahead and start ordering things, I just thought I would run this by to see if it all sounds good and ask a couple of questions.

Currently my car is very lightly modded, which includes:

cold air intake with a K&N RX-4750
high-flow magnaflow cat.
magnaflow f-body muffler
drilled 180 thermostat
aeroforce scan gauge

Once I get a hold of a pulley puller I plan on doing an upgrade which includes:

3.4 MPS
oversized tensioner pulley (so I can keep my stock belt)
Autolite 104'* (I beleive this is the choice for reducing KR? and if so, at what gap?)

Shortly after that upgrade I plan on getting:

a powerlog exhaust manifold from ZZP (Is the ceramic coating worth it? should I opt to get the ported rear or is that not really neccessary?)

DHP 1.0 PCM (I know I need some special programming if I got with the P-log. What exactly do I need?)

Is there anything I am missing here? Anything I should change? I would like to be mid-14'*...and I think rockers would be a possibility in the future.

I am open to any suggestions and comments. This is all fairly new ground for me.
captainmiller is offline   Reply With Quote
Old 05-16-2007, 09:12 PM   #2
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Are you planning to skew for the p-log? Personally I'd just get regular PEM'*. There seem to be way too many issues with the p-log to make it worth the difference between regular PEM'*.
dillcc is offline   Reply With Quote
Old 05-16-2007, 10:05 PM   #3
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2004
Location: Winnipeg, Manitoba, Canada
Posts: 1,445
Thanks: 0
Thanked 0 Times in 0 Posts
captainmiller is on a distinguished road
Default

Is this skew thing PCM related? What exactly does it mean?

Ported mani'* sound just fine...but I don't have the tools or the knowledge to do it right. Is there I vendor I can buy a ported front and rear from?
captainmiller is offline   Reply With Quote
Old 05-16-2007, 10:38 PM   #4
Member
Posts like a V-Tak

Join Date: Mar 2007
Location: ATL
Posts: 76
Thanks: 0
Thanked 0 Times in 0 Posts
91parkave is on a distinguished road
Default

im not trying to dis but ported exaust manifold are good for the rear but the front for the p-log is worth it in everyway put it like this a front manifold is exausting all 3 cylinders into a pipe with almost the same internal diamter that causes excessive Knock, higher CC temps they just suck The log has no issues whatsoever and you dont need an array of tools to do it the log has breen dynoed compared to a SLP header with stock rear mani and the log actually made more HP to the wheels! for hundreds of dollars cheaper
91parkave is offline   Reply With Quote
Old 05-17-2007, 12:39 AM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The Plog is only for the guy with 300 more bucks to spend on a tuner to skew his injectors.

PROPER PEM'* and Headers MATCH the flow from front to rear. The Plog mis-matches it.
willwren is offline   Reply With Quote
Old 05-17-2007, 12:56 AM   #6
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

FYI with just a CAI and a 3.4 i did a 14.5 in 90F
SSEimatt93 is offline   Reply With Quote
Old 05-17-2007, 01:17 AM   #7
Member
Posts like a V-Tak

Join Date: Mar 2007
Location: ATL
Posts: 76
Thanks: 0
Thanked 0 Times in 0 Posts
91parkave is on a distinguished road
Default

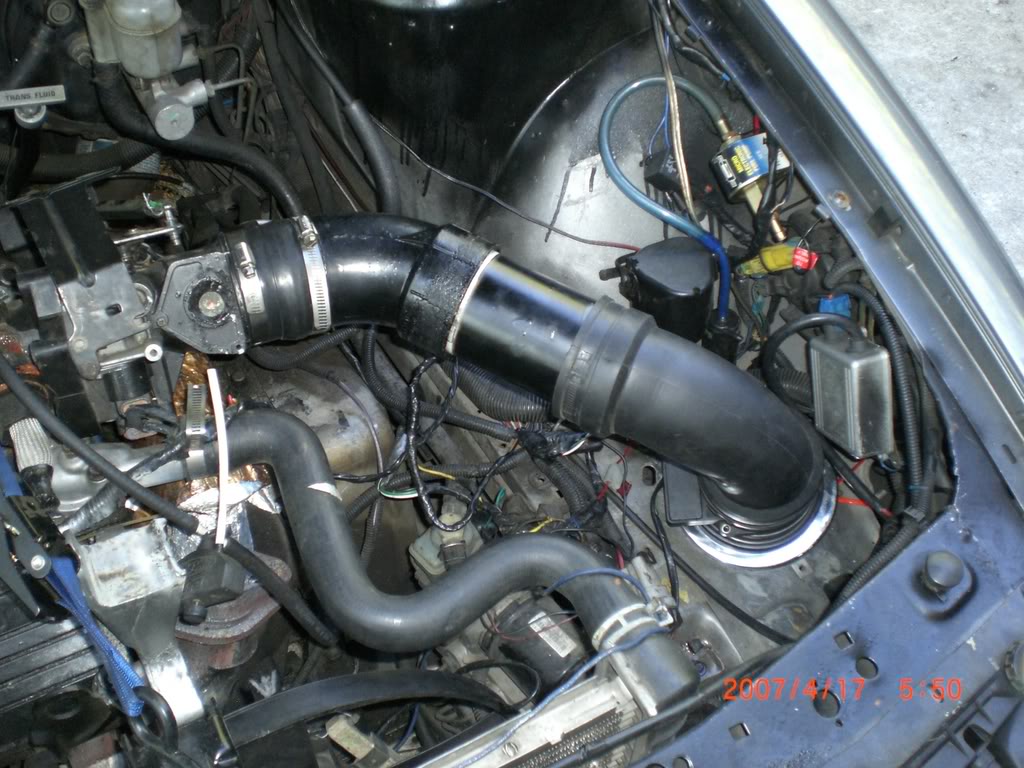

here is a pic of mine courtesy of home depot and a afternoon with my labor of love
i have a tru FWI setup its perfect
the secon pic is a little vauge but thats the camer looking off the pavement
Name:  CIMG0156.jpg
Views: 3
Size:  172.1 KB
Name:  CIMG0163.jpg
Views: 3
Size:  125.7 KB[/img]
91parkave is offline   Reply With Quote
Old 05-17-2007, 01:30 AM   #8
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

What brand filter is that? Is that spray painted black PVC?
dillcc is offline   Reply With Quote
Old 05-17-2007, 01:39 AM   #9
Member
Posts like a V-Tak

Join Date: Mar 2007
Location: ATL
Posts: 76
Thanks: 0
Thanked 0 Times in 0 Posts
91parkave is on a distinguished road
Default

yea that was my ugly mock up piece but yea my AEM dryflo filter was lost due to me not tightening the clamp yea i kno dumb a** but thats a autozone rice filter on there right now but i use nothing but PVC on my intakes there alot more heat resistant than aluminum and offer smoother air flow
91parkave is offline   Reply With Quote
Old 05-17-2007, 01:45 AM   #10
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

I'd hate to see what happens in the rain to that ricer paper filter with no splash sheild in your fenderwell.
