Old 09-18-2007, 11:07 AM   #21
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Mods...


Can this be moved to P&B.


Also who else has run headers on the 4T60E? I think 95nasta had TOGS on his... I am curious to see if this is only with pacesetter headers or not.
OLDsman105 is offline   Reply With Quote
Old 09-18-2007, 06:22 PM   #22
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Pictures of the carnage


Name:  IMG_1517.jpg
Views: 1
Size:  44.3 KB
Name:  IMG_1518.jpg
Views: 1
Size:  57.9 KB
Name:  IMG_1519.jpg
Views: 1
Size:  44.2 KB
Name:  IMG_1520.jpg
Views: 0
Size:  46.5 KB
Name:  IMG_1522.jpg
Views: 3
Size:  50.5 KB
Name:  IMG_1523.jpg
Views: 2
Size:  47.6 KB

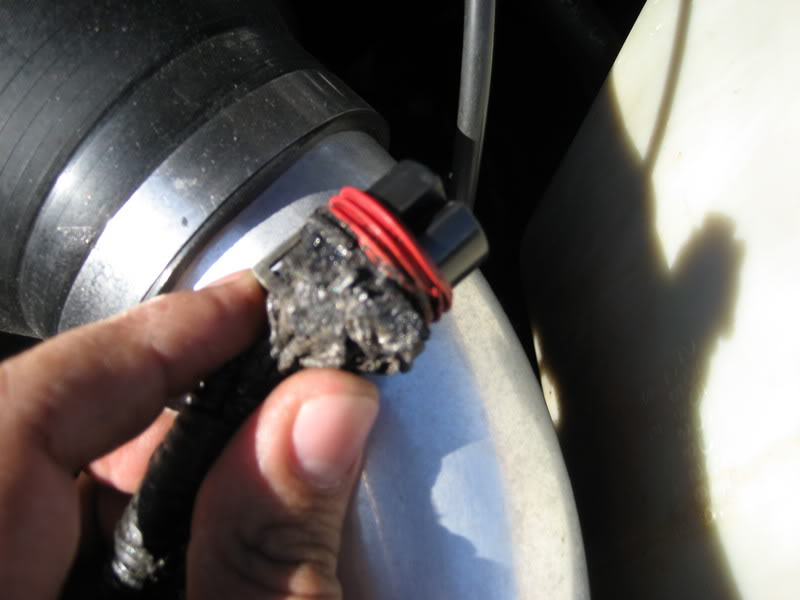

Connector came out easily in my hand. I think the clip melted too.

As for the headers I don't see how then can be modified. Any and all ideas will be very appreicated. And I am enteraning the idea of buying used tog headers if it will give me more clearence with the connector if nothing can be done to these.
OLDsman105 is offline   Reply With Quote
Old 09-19-2007, 09:46 AM   #23
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Does it appear that a modifed connector or maybe specifically the pins only could be used and still supply some space?
BillBoost37 is offline   Reply With Quote
Old 09-19-2007, 10:19 AM   #24
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

How about making a dollar coin size dent in the header to make more clearance too?
OLDsman105 is offline   Reply With Quote
Old 09-19-2007, 11:38 AM   #25
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

That is another method. however that would create a restriction and being at the flange...it may bend and cause a leak.
BillBoost37 is offline   Reply With Quote
Old 09-21-2007, 02:09 AM   #26
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

Thats a hell of a spot right near the flanges. I can't think of anything that doesn't require major modification of those headers And I thought I was in a pickle with my TOGs a few weeks ago.

Ed
McGrath is offline   Reply With Quote
Old 09-22-2007, 05:26 PM   #27
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Heres a pic of how close the flange comes to the connector on the 60-e. It might look like it'* touching, but there is a little room there and could be more. It'* just matter of rotating the flanges.
Name:  IMG_0918.jpg
Views: 1
Size:  84.3 KB
95naSTA is offline   Reply With Quote
Old 09-22-2007, 05:47 PM   #28
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The flanges on the pacesetter'* don't rotate.

They'll have to be cut off and re-welded at a different rotation angle.
willwren is offline   Reply With Quote
Old 09-22-2007, 07:32 PM   #29
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Yep. They don't rotate. The welds are pretty visible in the pics.

The OP had pmed me asking to post pics of my TOGs with the 60e.
95naSTA is offline   Reply With Quote
