Default New idea for solid front trans mount....

I just replaced my leaky front trans mount last night on my 01 SSEi. I def wasnt gonna shell out the cash for a stocker, so the solid mount was it. I read all the pros and cons (well really only one con, the lil vibration you get) and wanted to find a middle ground. I work for a company that builds hydraulic power units. And some electric motors we use can create vibrations that customers dont wanna here or feel when they walk by the machine, so we use these vibration bars....

Name:  IMG_5414.jpg
Views: 1
Size:  49.7 KB

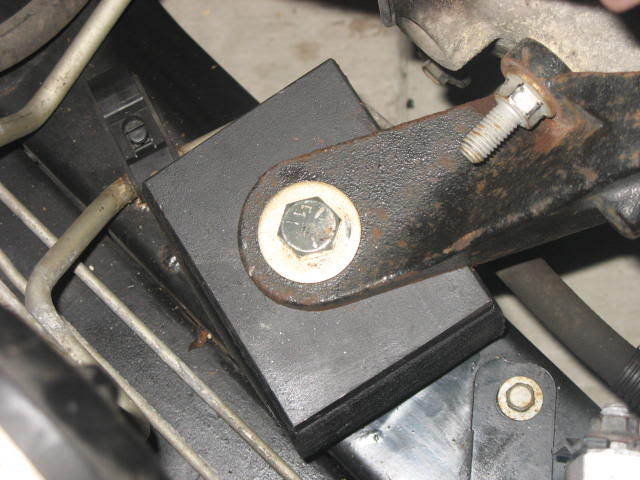

this is a 4"(L) by 3 1/2"(W) piece I cut off a bigger piece. I need to grind the bracket a little bit so I can square up the mount with the car, I'll do that when I change out the bolt for one an inch longer, needs to be 7" or longer(the nut is on there...it is.... with lock wash and loctite...plus it started to rain...ugh)

Name:  IMG_5410.jpg
Views: 2
Size:  6.8 KB
The block is made up of 2 pieces of 1/4" x 3 1/2" flat stock glued,or however you permantly bond rubber to metal, to a 3 1/2" sqre piece of industrial rubber. We get em in varying lengths but I cut off a 4 inch chunk.(seemed stout enough). I rattle canned it flat black for rusts sake, so its hard to see the diff parts.
Name:  IMG_5411.jpg
Views: 3
Size:  24.1 KB

Here is a video of the rubber-isness of the middle. Im pushing pretty hard and I dont have chicken arms..
http://s182.photobucket.com/albums/x...t=45dc881a.flv

Just replace as you would with the hocky pucks and tighten her down

Here is video of before with leaky mount..
http://s182.photobucket.com/albums/x...t=79020f32.flv

and after with the new and improved mount...
http://s182.photobucket.com/albums/x...t=79e059b9.flv

The only vibration I get is like when you upshift a man trans and the revs are too low and it gets that low frequency vibe until it gets up to speed. It only does it in overdrive while in town, I just shift the trans down to third like you should for in town anyways.

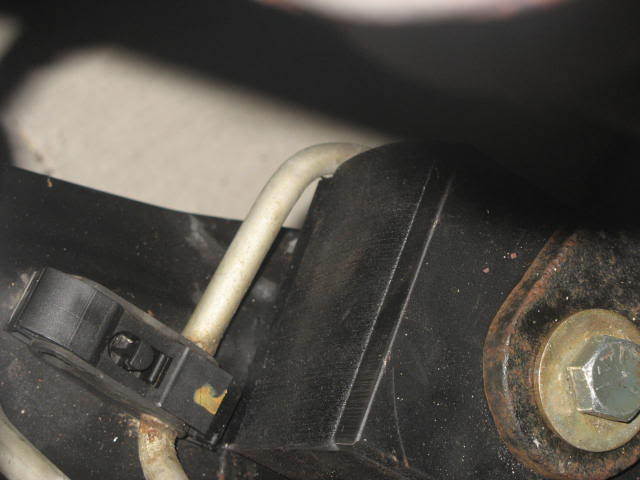

One part that might be a problem is a tube behind the mount that touches it but a lil spin or a 3 1/2" chuck would solve that problem...
Name:  IMG_5422.jpg
Views: 1
Size:  33.0 KB

No more rubber band effect when the trans shifts and it feels more like a car when you can feel things more with a solid mount, plus it put the torque down better!!!!!
01BonneSC is offline   Reply With Quote
Old 07-19-2007, 11:14 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

nice write up!

would you be willing to sell me one of those? I like the look of that much better than the hocket pucks I have
harofreak00 is offline   Reply With Quote
Old 07-20-2007, 11:25 AM   #3
Member
Posts like a V-Tak

Join Date: Apr 2007
Location: Rapid City South Dakota
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
blackbuick1987 is on a distinguished road
Default

+1, if I can't get my Solid Mount to work I would be interested in what you have there!
blackbuick1987 is offline   Reply With Quote
Old 07-20-2007, 01:10 PM   #4
Senior Member
Posts like a Supercharger

Join Date: Dec 2005
Location: Fresno, California
Posts: 163
Thanks: 0
Thanked 0 Times in 0 Posts
mac077 is on a distinguished road
Default

+2 - I would be interested as well. This was going to be a project in my near future but this does look better than the hocky pucks!!

Mac
mac077 is offline   Reply With Quote
Old 07-20-2007, 04:20 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2007
Location: Sycamore, IL (ILRt. 64 and ILRt. 23)
Posts: 303
Thanks: 0
Thanked 0 Times in 0 Posts
01BonneSC is on a distinguished road
Default

OK, hows about $20, includes shipping and handling, per mount? I'll buy a few bars from my work and cut to size(3 1/2" length, so it wont rub on that tube I talked about), I'll drill the hole also, paint it black, or if you have a specific color you want it (im the painter at my work). Send me an email to [email protected] with the subject "trans mount order" with your shipping addy and quantity if you want one. I'll contact you back with my paypal info.
01BonneSC is offline   Reply With Quote
Old 07-21-2007, 11:30 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2007
Location: Sycamore, IL (ILRt. 64 and ILRt. 23)
Posts: 303
Thanks: 0
Thanked 0 Times in 0 Posts
01BonneSC is on a distinguished road
Default

Tells ya'll what. I just make em till I run outta scrap at work. No charge. THe whole paypal thing is too complicatedand I dont wanna be responsible in a law suit for selling it if it causes an accident or something crazy like that... Just send me a shipping address and I send em when I can..
01BonneSC is offline   Reply With Quote
Old 07-22-2007, 12:26 AM   #7
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by 01BonneSC
Tells ya'll what. I just make em till I run outta scrap at work. No charge. THe whole paypal thing is too complicatedand I dont wanna be responsible in a law suit for selling it if it causes an accident or something crazy like that... Just send me a shipping address and I send em when I can..
sent...ill try this
1993 SLE is offline   Reply With Quote
Old 07-22-2007, 12:16 PM   #8
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

email sent.
How about a paypal so we can at least cover shipping?
popatim is offline   Reply With Quote
Old 07-22-2007, 03:38 PM   #9
Senior Member
Posts like a Supercharger

Join Date: Dec 2005
Location: Fresno, California
Posts: 163
Thanks: 0
Thanked 0 Times in 0 Posts
mac077 is on a distinguished road
Default

PM sent...
mac077 is offline   Reply With Quote
Old 07-22-2007, 03:42 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by popatim
email sent.
How about a paypal so we can at least cover shipping?
Tim, that won't fit your car. You don't have the same mount as the 2k'*. You have the mount that we H/C bodies have. Totally different.
willwren is offline   Reply With Quote
