Default MSD #8224 Installation Tips?

Don't know how she managed, but the little woman got me a set of coils for my L27 this X-Mas
Since I don't want to hurt her feelings, I'm gonna be forced to put them in this weekend
I had done the plugs/wires a couple of months ago: perhaps she heard me cussin' as I cut myself getting the old parts out & felt sorry for me...
Of course I'll be saving the stockers as back-up [just in case], but I was wondering: is there anything I should watch out for/check for or any additional things I should do while I swap the old for the new?
ukie eagle is offline   Reply With Quote
Old 01-02-2007, 07:14 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

5.5mm socket. Mark your wires and the coil post number sequences. Or take a pic before you start. Put dielectric grease on the 6 contacts coming out of the ICM, and on all 6 coil posts.

You're not likely to notice a difference. Perhaps a slightly smoother idle.
willwren is offline   Reply With Quote
Old 01-02-2007, 09:59 PM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Dec 2004
Location: Rochester, NY
Posts: 113
Thanks: 0
Thanked 0 Times in 0 Posts
ukie eagle is on a distinguished road
Default

Kewl, thanx...I wasn't expecting any massive performanceimprovement, but it certainly can't hurt & hopefully won't be any worse [especially for free!]

Should I bother taking out/putting back the ICM [just for the sake of cleaning up/making better contact]?
ukie eagle is offline   Reply With Quote
Old 01-02-2007, 10:06 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Absolutely. Clean the underside of the ICM and the top of the bracket. The ICM needs to ground through there.

You'll like the coils, even if you barely notice the difference. A little hotter spark never hurt anyone.
willwren is offline   Reply With Quote
Old 01-03-2007, 12:50 PM   #5
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Dec 2004
Location: Rochester, NY
Posts: 113
Thanks: 0
Thanked 0 Times in 0 Posts
ukie eagle is on a distinguished road
Default

I'm sure I'll be pleased with the new coils...
One last question though: Do ya think there'* any way I could color them blue [without harming them, of course]?...My CAI pipe is blue & in a perfect world, I'd like the coils to match
ukie eagle is offline   Reply With Quote
Old 01-03-2007, 12:54 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Mask off the posts and the bottoms. I wouldn't think paint would hurt them. Just make sure you de-grease/oil them well first, and use a primer designed for plastic adhesion.
willwren is offline   Reply With Quote
Old 01-03-2007, 12:56 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

And take it to the next level:



You can get the vinyl transfer numbers from craft and fabric stores. These are laser-engraved.
willwren is offline   Reply With Quote
Old 01-03-2007, 02:06 PM   #8
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Dec 2004
Location: Rochester, NY
Posts: 113
Thanks: 0
Thanked 0 Times in 0 Posts
ukie eagle is on a distinguished road
Default

As the French Knight in Monty Python'* Holy Grail said:

"It'* ah verry nice-ah!"
ukie eagle is offline   Reply With Quote
Old 03-17-2007, 03:40 PM   #9
Senior Member
Posts like a Supercharger

Join Date: Apr 2006
Location: Schaumburg, IL
Posts: 185
Thanks: 0
Thanked 0 Times in 0 Posts
99SSEI is on a distinguished road
Default

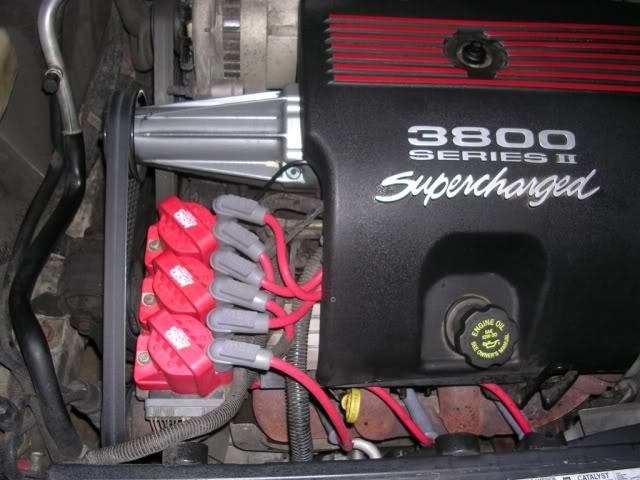

Just finished installing my MSD coils and 8.5 mm wires.
Check it out!!

Name:  DSCN0744.jpg
Views: 2
Size:  54.5 KB
99SSEI is offline   Reply With Quote
Old 03-17-2007, 03:45 PM   #10
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

A little off topic here... But whats with the mark on the belt? Start checking for worn pulley or pullies
