Didn't even think of seals. umm don't you need to take off the heads?
Nighthwk12 is offline   Reply With Quote
Old 12-17-2009, 08:06 PM   #12
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

No need to remove heads. They simply cover the combustion chambers.
radomirthegreat is offline   Reply With Quote
Old 12-17-2009, 08:10 PM   #13
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

To change a cam you need to pull the UIM and LIM, and the timing chain cover. You will need to pull the valve covers and rockers, pull the push rods and the lifter holders. That'* in a nut shell. To remove the timing chain cover involves removing water pump, harmonic balancer and part of the oil pan.
Danthurs is offline   Reply With Quote
Old 12-17-2009, 08:25 PM   #14
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Yeah I I new the routine for the cam and such. Planning on pulling the engine doing my last mount. The water pump and power steering pump. But I am unfamiliar with valve seals.
Nighthwk12 is offline   Reply With Quote
Old 12-17-2009, 08:28 PM   #15
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

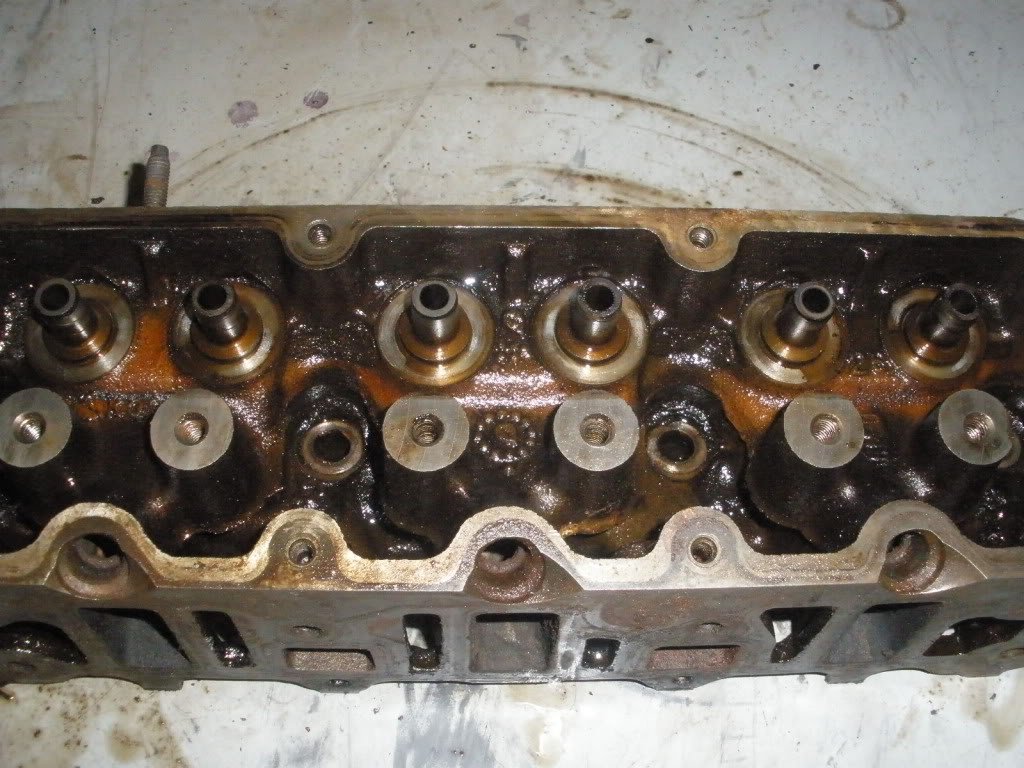

They just push over the valve guide. Here'* the guides with the seals removed.
Name:  PB080173.jpg
Views: 0
Size:  169.6 KB
Danthurs is offline   Reply With Quote
Old 12-17-2009, 08:29 PM   #16
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Valve seals are like little caps that sit on the valve stems, under the springs, to keep the oil from the valve cover area from getting into the engine. The procedure is that you pressurize your combustion chamber so that your valve doesn't fall in, and then you can remove the spring to put in a new one. Before you put on the new spring, take off the old valve seal that you will then see and put on a new one.

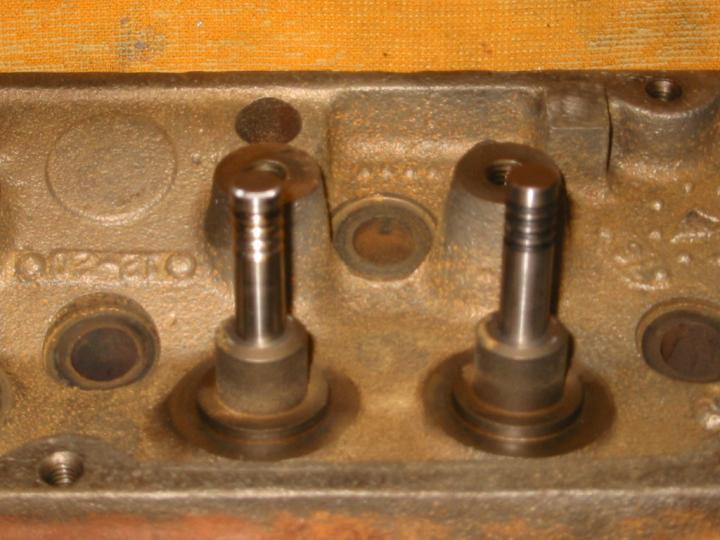

Here are some valve seals on valve stems. For this picture, there are no springs installed.
http://www.jedi.com/obiwan/jeep/wago...orig01_720.jpg

EDIT: Ah, didn't get in before Dan.
radomirthegreat is offline   Reply With Quote
Old 12-17-2009, 11:39 PM   #17
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

ah sweet you guys are get. I was thinking of the valve guilds you need to press out
Nighthwk12 is offline   Reply With Quote
Old 12-18-2009, 08:20 AM   #18
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I think we should begin a "Send boxes to Rad" campaign.
BillBoost37 is offline   Reply With Quote
Old 12-18-2009, 06:51 PM   #19
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Rad where are you getting this timing chain so cheep?
Nighthwk12 is offline   Reply With Quote
Old 12-18-2009, 07:16 PM   #20
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

what are the stock rockers on a L36. are they rollers?
