Default A light porting of a M62 promotes SII whooping power

No races, so sorry to disappoint you all, but last night I pulled the SC off my 95 to replace the noisy coupler. I ended up pulling the whole SC apart, cleaning the inside of the rotors department, cleaned the inlet of a lot of crud, took some 120 grit sand paper, then some 300 grit sand paper to the inlet....she'* not perfect (fingers can only get in 3-4, maybe 5 inches), but she'* definitely flowing more air smoothly.
Then I did the same to the TB. I only used 300 grit on here... again, a quick job, but after a bit it started to have an almost mirror finish.

Then I tackled the SC outlet.

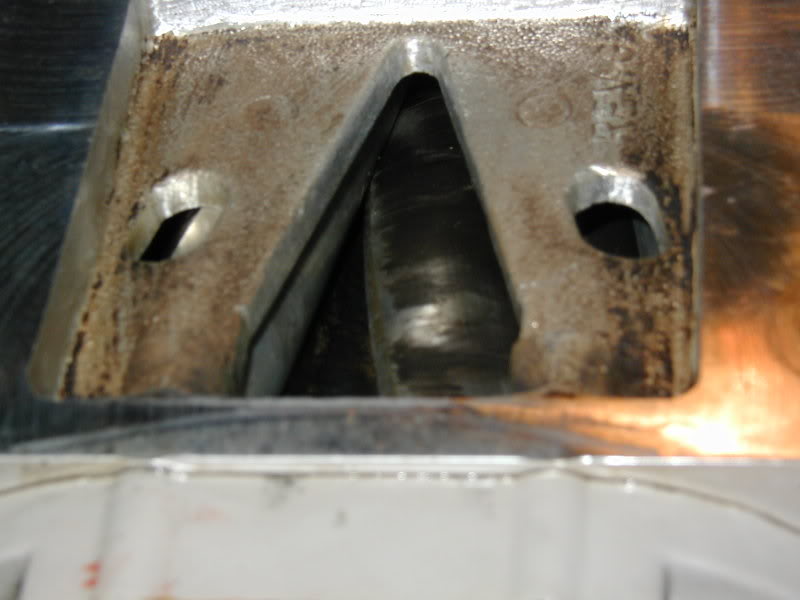

Basically took the dremel and a diamond bit and smoothed the tiny 'V' and the '0'*. Again, not perfect, but a big improvement over the rough casting from the factory.

THEN I PUT THE SC GASKET IN SO AS NOT TO BLOCK THE SC OUTLET---> TO LIM INLET.

After it was done I took it for a spin. It idled high (right around 2k), but I thought maybe I'd left too much TB cleaner in the LIM as the SES light came on, but about 3 minutes of running the SES turned off, but the idle continued.
As for runability, the throttle is alot more responsive, the idle was a bit loapy, but the difference was in driving the car.
1st gear remained about the same power wise.
2nd gear definitely is smoother and a little more power, but WOAH, the real gain I noticed came after the shift into 3rd.
3rd gear is INSANE compared to before. I swear it feels like another 30-40 HP in 3rd gear. It is SOOO much more smooth (the engine really feels as smooth as a Series II L67 now) and the pull is crazy.
I had forgot the camera in my parents garage and this morning when I returned I found I'd left it on and the batteries are dead. But I have them in the charger now and later this afternoon I'll go get some vids.

All-in-all I wish I'd done this sooner. It was actually pretty damn simple now that I've pulled 4 SC'* in the past month and this is the 2 SC I've done light porting too (Travis got more porting and a better job).
I really can't wait to get the ported LIM and ported GEN III on my 99 with the other mods... I can hardly imagine. :o Then in the spring, to go from the ported GEN III setup to the ported GEN V.........

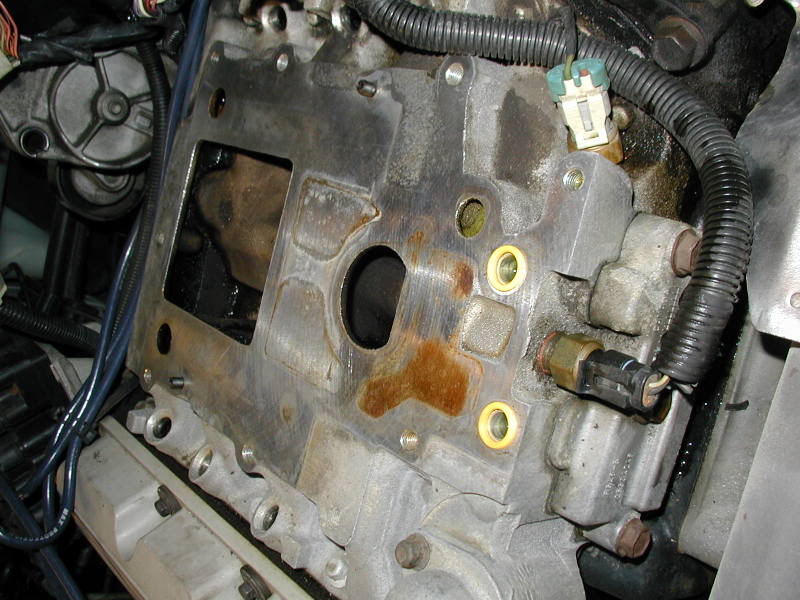

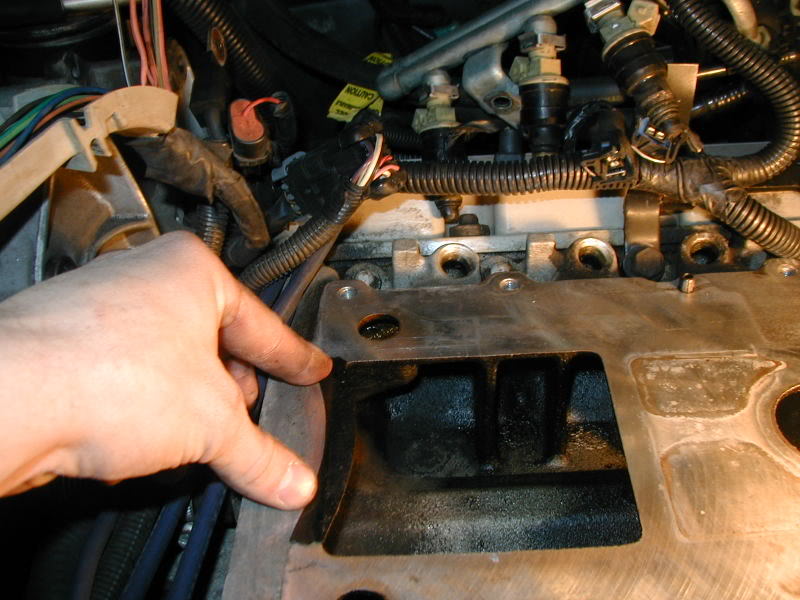

Here are a couple pics... it was late and I didn't want to get done @ 5.30 AM again. (I ended up putting the last tool away @ 12:10 AM, so not too bad IMO, but I didn't remove or do anything to the LIM except clean a bit of the residue out of the bottom of it).

Name:  P1011312.jpg
Views: 17
Size:  80.2 KB
Name:  P1011313-1.jpg
Views: 15
Size:  75.5 KB

Name:  P1011319.jpg
Views: 11
Size:  46.3 KB
Name:  P1011320.jpg
Views: 16
Size:  83.7 KB
OLBlueEyesBonne is offline   Reply With Quote
Old 10-28-2006, 06:07 PM   #2
Senior Member
True Car Nut
Thread Starter

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Found my high idle culprit... missed one vacuum line when I reconnected them last night. Idle is now around 1000 rpm, but is still a little rough. Not sure, but I wonder if it had anthing to do with taking the caps off the tip of the injectors as there were 3 cracked (saw 2 when I first pulled the rail with injectors, then I saw a 3rd when I was putting the new O-rings on) so I took all the caps off.
I'll run it like this for the rest of the week, but next weekend I may put the Series II injectors in if they'll fit.
OLBlueEyesBonne is offline   Reply With Quote
Old 10-28-2006, 07:07 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Glad to see more people having positive results with DIY stuff. It doesn't take much to get more power out of these things in non-traditional ways.
willwren is offline   Reply With Quote
Old 10-29-2006, 01:04 AM   #4
Senior Member
Posts like a Camaro

Join Date: Dec 2005
Location: Clovis, CA
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
MACDRIVE is on a distinguished road
Default

Forgive me for asking, but what the h*ll is an M62 ?
MACDRIVE is offline   Reply With Quote
Old 10-29-2006, 01:43 AM   #5
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Quote:
Originally Posted by MACDRIVE
Forgive me for asking, but what the h*ll is an M62 ?

its the super charger found on the 92-95 SSEi'* and some SLE'* and SSE'*
Peterg22000 is offline   Reply With Quote
Old 10-30-2006, 02:23 AM   #6
Senior Member
Posts like a Northstar

Join Date: Apr 2006
Location: Dimondale, MI
Posts: 549
Thanks: 0
Thanked 0 Times in 0 Posts
F14CRAZY is on a distinguished road
Default

Maybe I'll have to do this during winter storage. Sounds like it made a crazy difference.
F14CRAZY is offline   Reply With Quote
Old 10-30-2006, 10:12 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

F14, you should be running a non-ported, non-polished Gen2 M62 with a Gen3 pulley and not pushing it. You don't have the bottom end or trans to support it. This is the same advice I'm giving two other members. Both based on L27'*.
willwren is offline   Reply With Quote
Old 10-30-2006, 11:04 AM   #8
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

It looks like Ol' Blue is running that walled intake...if you are going to work on that lower, get one from a 92-93 as those are non-walled and should provide a bit more flow than what you got in there now.

On a side note, I noticed that when Boosty ported my intake, the injector spray path opened up too...instead of some of the spray hitting the upper portion of the intake port, it now should not be affected going into the cylinder head. I am not sure how much this will affect power or idle, but I am sure it has to be for the better
sandrock is offline   Reply With Quote
Old 10-30-2006, 12:00 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

it looks like you cleaned the casting on the outlet of the sc to a straight edge and 90 degree turn for the air?

On the inlet side..I'd suggest getting a dremel flexible shaft and flapwheels. Opening and cleaning the first few inches will only help so much with the next restriction being where you could not reach.

On your S2 whooping comment.. lol My S2 beat your S1 to a porting.
BillBoost37 is offline   Reply With Quote
Old 10-30-2006, 07:08 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

And my S1 beat your S2 to a porting.

He'* selling the car guys. I doubt any more work will be done. It was a get the feet wet kinda thing for him.
willwren is offline   Reply With Quote
