Which intake suits us better? - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Performance, Brainstorming & Tuning Talk about modifications, or anything else associated with performance enhancements. Have a new idea for performance/reliability? Post it here. No idea is stupid! (please use Detailing and Appearance for cosmetic ideas)

View Poll Results: Which Intake Setup is better for our cars?
Twist 6 85.71%
97b 1 14.29%
Both 0 0%
Voters: 7. You may not vote on this poll

Reply



Thread Tools Search this Thread
Old 05-14-2004, 12:03 PM   #1
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Pennsylvania
Posts: 5,177
Thanks: 0
Thanked 0 Times in 0 Posts
Twister97 is on a distinguished road
Default Which intake suits us better?

Which smooth metal pipe is better for our engines in the long/short run?



97bonnevillextreme

or


Twister97
Twister97 is offline   Reply With Quote
Old 05-14-2004, 12:19 PM   #2
Senior Member
Posts like a Turbo

Join Date: Apr 2004
Location: Central IL
Posts: 272
Thanks: 0
Thanked 0 Times in 0 Posts
97bonnevillextreme is on a distinguished road
Default

Bonnevilles are restricted to air flow due to the radiator. We need to find out which pipe will help the car perform better! The long Pipe made for a Civic, etc. or the short Pipe made for 4 GM cars including Bonneville. Let us know what you have and how it has perfected performance! Thanks! Vote! and let us know what YOU think!
97bonnevillextreme is offline   Reply With Quote
Old 05-14-2004, 12:44 PM   #3
Senior Member
Expert Gearhead

Join Date: Dec 2002
Location: Mississauga, Ontario
Posts: 20,892
Thanks: 0
Thanked 1 Time in 1 Post
Jim W is on a distinguished road
Default

Short RAM needs a heat shield or true CAI setup to be effective, the longer RAM gets colder air already, but I would think you should keep the MAF screen in if you have longer RAM pipe to ensure laminar flow.

So..wouldnt both have there pros and cons?
Jim W is offline   Reply With Quote
Old 05-14-2004, 12:48 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Pennsylvania
Posts: 5,177
Thanks: 0
Thanked 0 Times in 0 Posts
Twister97 is on a distinguished road
Default

I think both of us removed the maf screen and no problems. I can say it feels better for me. My maf screen was dented and messed up allready. I will try to get a pic of it up soon.
Twister97 is offline   Reply With Quote
Old 05-14-2004, 12:59 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Pennsylvania
Posts: 5,177
Thanks: 0
Thanked 0 Times in 0 Posts
Twister97 is on a distinguished road
Default

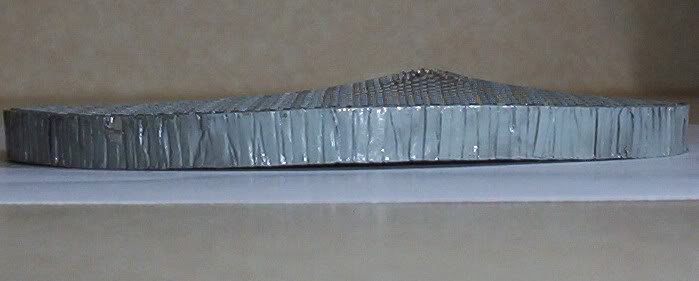

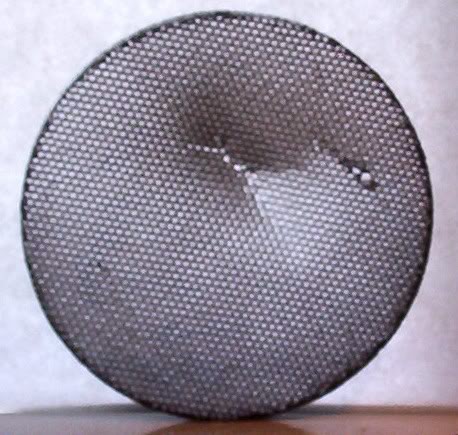

This is what I was talking about...

Name:  SideMaf.jpg
Views: 0
Size:  24.7 KB
Name:  FrontMaf.jpg
Views: 0
Size:  51.2 KB
Twister97 is offline   Reply With Quote
Old 05-14-2004, 02:18 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Feb 2004
Location: Livonia, NY
Posts: 24
Thanks: 0
Thanked 0 Times in 0 Posts
hunter548 is on a distinguished road
Default

I've tried both the short pipe arraingement and the long pipe (I had each set up in there for about two weeks). Didn't have either set up as a true CAI. I haven't found either one to be any better than stock. This is by both seat of the pants feel and G-Tech data.

Reset the PCM in both cases and ran each for about two weeks. Still saw 135-140 HP best case on the G-Tech with the long pipe. I popped the stock intake back in last night and immediately saw 170HP. Seat of the pants feel was there also. G-Tech may not be the most accurate device, but it seems to follow what my seat of the pants feel tells me.

It was mentioned to me that perhaps a low restriction exhaust or 2.5" pipe might improve the response. Haven't had a chance to look into those yet.

Just my two cents.
hunter548 is offline   Reply With Quote
Old 05-14-2004, 02:23 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2003
Location: Westerville, Ohio 2000 Black SSEi
Posts: 6,127
Thanks: 0
Thanked 0 Times in 0 Posts
Rogue is on a distinguished road
Default

The best setup would FWI, followed by CAI, followed by intake tubes, and finally stock airbox.
Rogue is offline   Reply With Quote
Old 05-14-2004, 02:25 PM   #8
Senior Member
True Car Nut

Join Date: Jun 2002
Location: Bedroom, Ontario
Posts: 3,266
Thanks: 0
Thanked 0 Times in 0 Posts
Drifter420 is on a distinguished road
Default

Both would have laminar flow.. flow gets distorted from bends and cinks in the tubing or stock accordian tube.. the length would affect the speed the air goes thru. from start to TB. That part I do not if longer is better. You will always need a heatshield IMO as even with the long pipe, you're still going to get heat as it radiates from the rad and motor.. the only time you don't need heat shield is if you're running FWI. If you want to go a lil more extreme you can also wrap your pipe up
Drifter420 is offline   Reply With Quote
Old 05-14-2004, 04:58 PM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Feb 2004
Location: Livonia, NY
Posts: 24
Thanks: 0
Thanked 0 Times in 0 Posts
hunter548 is on a distinguished road
Default

I was wondering if the placement of my IAT sensor may be more critical than I thought. It was mounted in the rubber coupler between the pipe and the TB on the short pipe and I kept it there when using the long pipe out of convenience.

Do you think there would be a significant difference if I mounted it either in the pipe closer to the filter or in the back of the filter? Would it be noticeable if I moved it without also installing a good heatshield?
hunter548 is offline   Reply With Quote
Old 05-14-2004, 05:52 PM   #10
Senior Member
True Car Nut

Join Date: Jun 2002
Location: Bedroom, Ontario
Posts: 3,266
Thanks: 0
Thanked 0 Times in 0 Posts
Drifter420 is on a distinguished road
Default

Quote:
Originally Posted by hunter548
I was wondering if the placement of my IAT sensor may be more critical than I thought. It was mounted in the rubber coupler between the pipe and the TB on the short pipe and I kept it there when using the long pipe out of convenience.

Do you think there would be a significant difference if I mounted it either in the pipe closer to the filter or in the back of the filter? Would it be noticeable if I moved it without also installing a good heatshield?
I think it would as it senses the tempreture of the air going in.. and having it close the the TB it would be subjected to more heat thus the computer would think the external air temp is hotter then it is. Running a leaner setting.
Drifter420 is offline   Reply With Quote
