Default I put my old LIM back on...

... because ZillaMotorsports ported it for me.

I didn't take any pics because... well... I've seen it all before fairly recently. I'll go get a key shot here in a few minutes.

I'm feeling better mid-range power, the kind that rips the tires loose when you mash it and it downshifts to first. My test drive speeds were pretty limited, so I can't tell you about top end power just yet.
J Wikoff is offline   Reply With Quote
Old 04-28-2008, 11:55 PM   #2
Senior Member
Certified Car Nut
Thread Starter

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Here we go. This was a hard pic to get.

J Wikoff is offline   Reply With Quote
Old 04-28-2008, 11:56 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

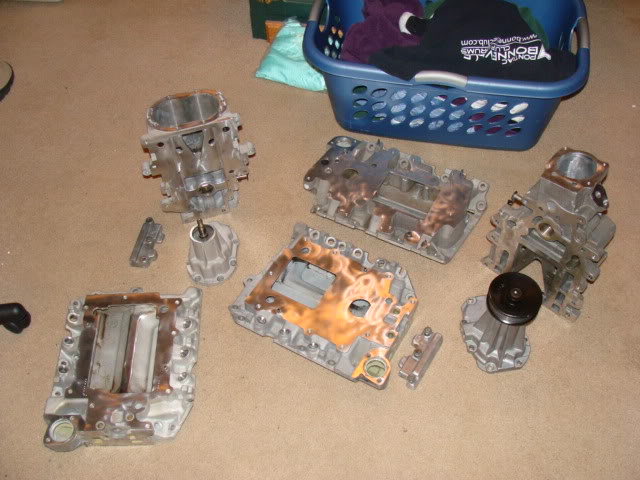

Center of the pic here (between two nosedrives):
Name:  DSC00773.jpg
Views: 2
Size:  69.7 KB

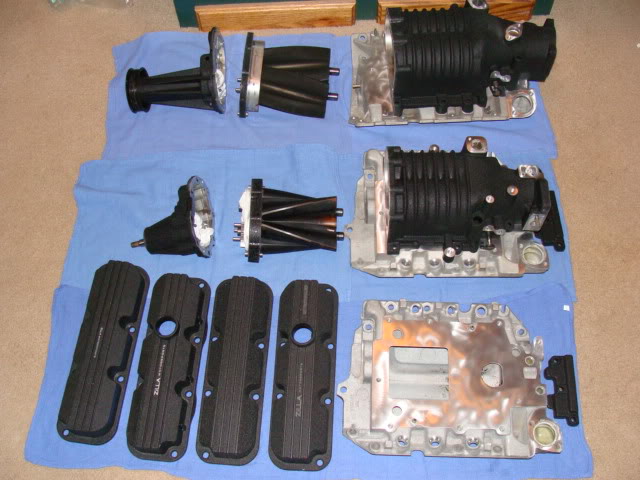

Bottom right here (custom laser engraving on the bypass cover):
Name:  DSC00799.jpg
Views: 3
Size:  70.1 KB

The work included some corrosion pitting repair around the coolant ports. All in all, it was in pretty good shape to begin with.

If history repeats itself, it'll really come into it'* own in about 100 miles as the PCM learns it. Glad you like it, and I wish I'd turned it around quicker.
willwren is offline   Reply With Quote
Old 04-29-2008, 10:09 AM   #4
Member
Posts like a V-Tak

Join Date: Jun 2007
Location: St. Pete Beach, FL
Posts: 30
Thanks: 0
Thanked 0 Times in 0 Posts
PortugalFocus is on a distinguished road
Default

That */C setup looks nasty. Have you ever had it Dyno'd before? It would be interesting to see what you car puts down now.
PortugalFocus is offline   Reply With Quote
Old 04-29-2008, 10:15 AM   #5
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Your PLIM makes me extremely jealous.

I need to get my *** out to the U-pull it to grab the LIM off a 92 PA Ultra there, and get it shipped out to ZiLLA Motorsports!
Bonneville92V688 is offline   Reply With Quote
Old 04-29-2008, 11:02 AM   #6
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

I got one....


Completely useless to me now


But dammitman...that car felt hella quick before it played the tune "pop goes the piston".
sandrock is offline   Reply With Quote
Old 04-29-2008, 11:09 AM   #7
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Quote:
Originally Posted by sandrock
I got one....


Completely useless to me now


But dammitman...that car felt hella quick before it played the tune "pop goes the piston".
Oooh... PM me with more info and pics.
Bonneville92V688 is offline   Reply With Quote
Old 04-29-2008, 11:14 AM   #8
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

I got no pics of the porting...got installed pics left and right though. My OBD2 thread has a few money shots.

But this is now starting to turn into hijack...so to turn it back around...Wren, did you open up just the ports and the coolant passages (I KNOW you did that much), or did you also include the SC inlet area?
sandrock is offline   Reply With Quote
Old 04-29-2008, 11:52 AM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default Re: I put my old LIM back on...

Quote:
Originally Posted by J Wikoff

I'm feeling better mid-range power, the kind that rips the tires loose when you mash it and it downshifts to first.
Every LIM I've ported for myself or others has had the same effect. Including the two we just installed over the weekend. The L36 LIM took me just over two hours, but another hour of 'detail work' in the runners would have been nice. Other work and a tight mod schedule prevented it, but in the long run, would have made little difference:

http://www.bonnevilleclub.com/forum/...ic.php?t=97624

You'll notice in that topic the VERY good alignment of the LIM to the head ports on install. If you don't have your motor opened up during porting, you'll need to rely on very good experience to keep the port spacing right (based on port-port centroids). This is critical to maintain equal port velocity across all 6.

If done correctly, a very noticable midrange pull will be felt. It may or may not raise the HP peak, but it gets into it quicker through the midrange, 'flattening' the HP curve a bit, and provides a much improved throttle snap (response) off the line. This is true for SC or NA LIM'*.

Remember, the WORST from the factory, and gains the most is the L36.
Next is the S1 L67 (and L27).
The best from the factory is the Series 2 L67. This gains the least matching to factory heads, but if you don't mind 30 minutes of cleanup, you will notice it.

There are great variances in match from LIM to LIM of the same type. As well as casting flaws that push one cylinder 'out' a bit compared to the rest on some LIM'*.

There is a little more spooky detail work you can do with the PROPER precautions before installation. AFTER insuring a good port match on the LIM, you'll be left with the ideal dimensions of:

LIM.......0.85x1.85" with corner radius matched to head ports (improved to ~1/8")
Heads...0.90x1.90"

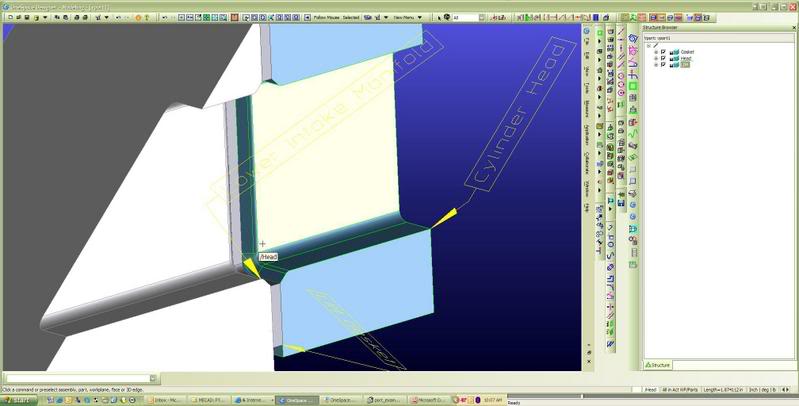

This STILL leaves the gasket cavity at 1.0" by 2.0" (roughly) causing a small mismatched cavity between where the AF mixture can swirl, eddy, and start to expand before necking back down into the head. This can be improved by LIGHTLY chamfering or rounding off the entrance of the cylinder head port. EXTREME caution should be used if this is done with the heads on the car. Stuff the ports, tape everything off, and have a good shopvac and magnet ready for each port. An exaggerated detail I worked up in CAD:

Name:  port_example.jpg
Views: 3
Size:  34.6 KB
This is the original concept I worked up a couple years ago.

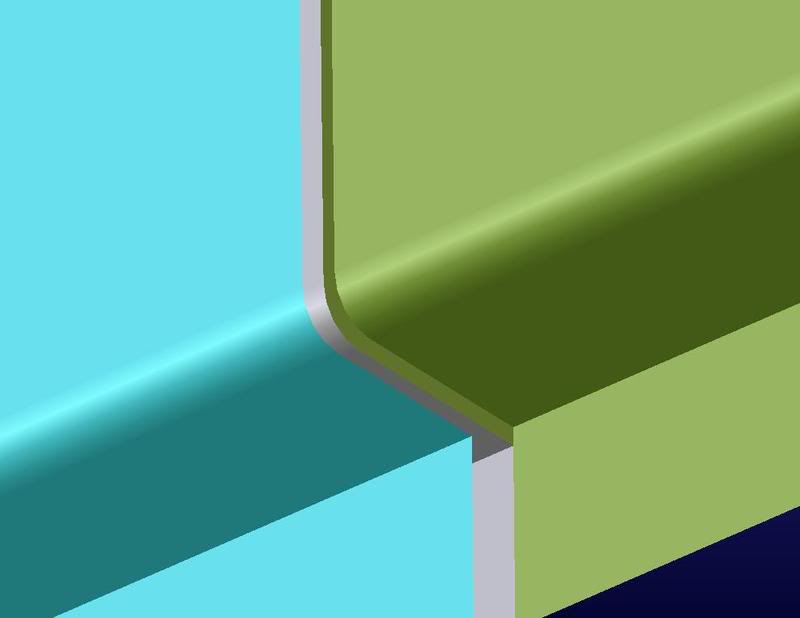

Refined to the dimensions I port to now (and stated in this topic) it would be this AFTER porting BEFORE chamfer:
Name:  before.jpg
Views: 3
Size:  12.6 KB

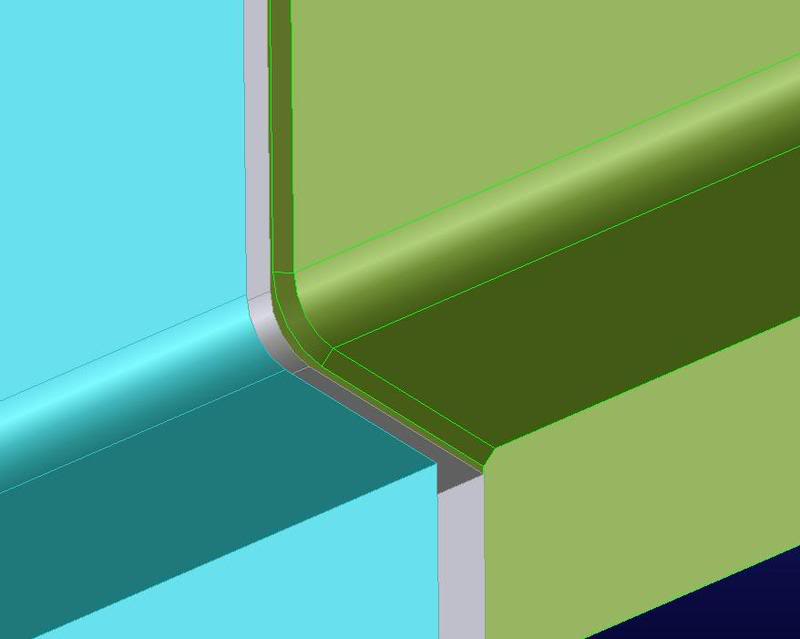

AFTER porting and AFTER chamfer:
Name:  after.jpg
Views: 3
Size:  18.8 KB


Think of it as not much more than smoothing off the sharp entrance to the cylinder head intake port to ease the transition and maintain port velocity. This has been done on several cars with great success, including the two shown in the link above from this weekend'* work at my house.

DISCLAIMER:
I'm not responsible for a anything you screw up on your car, and I'm warning you now that if you've never done this before, do it the first time with someone who HAS, and has also DEMONSTRATED success with it.
willwren is offline   Reply With Quote
