Default Gutting an air box

So I finally gutted my air box. Saw all the cool kids doing it so I figured it was worth the time. So I'll do a write up for it too. Time will probably take between 45mins - 1 1/2 hours.


Start out by finding you air box and unscrew the two pieces apart as you were taking the air filter out

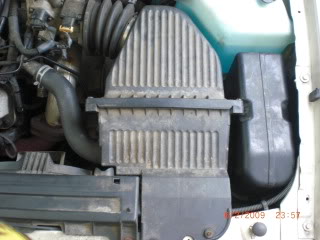

This is it:
Name:  AirBox.jpg
Views: 22
Size:  54.3 KB

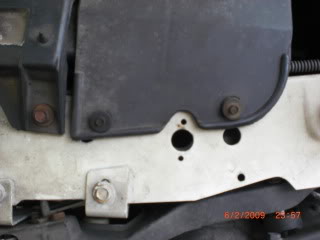

Need to take these two screws out:
Name:  FrontScrews.jpg
Views: 22
Size:  37.6 KB

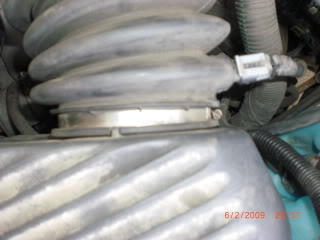

Then disconnect the box from the intake tube by loosening the clamp:
Name:  HoseClamp.jpg
Views: 21
Size:  44.1 KB

At this point pulling the back part off the tube and out of the car is easy.

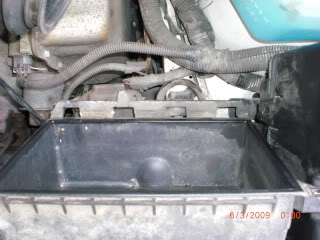

The front part though is stuck that'* because of a stud on the bottom:
Name:  HiddenStud.jpg
Views: 23
Size:  55.6 KB

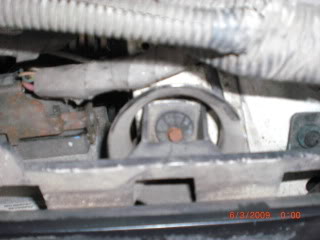

It'* in the circle on the bottom toward the center
Name:  Stud.jpg
Views: 22
Size:  46.2 KB
Can see it clearly here
So time to get the beer (or rootbeer PBF does not condone underage drinking) muscles grab the box firmly and pull it will pop right off.

OK time for the gutting part we'll start with the back part of the box.

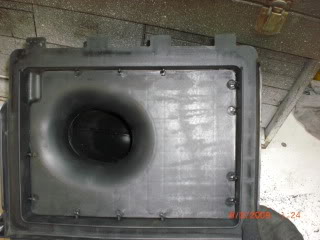

You'll see melted tabs around the edges of the box:
Name:  Rear.jpg
Views: 22
Size:  49.3 KB

I took a dermel tool if a cutting but and cut around and through the tabs. Be careful to not go through the box because this is post air filter and needs to stay sealed.

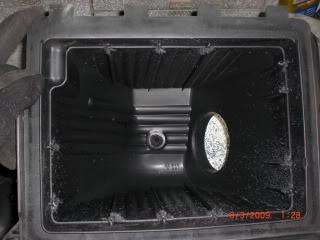

Once you cut all the tabs pull and pry the panel out and this will be your end result:
Name:  RearGutted.jpg
Views: 21
Size:  49.6 KB

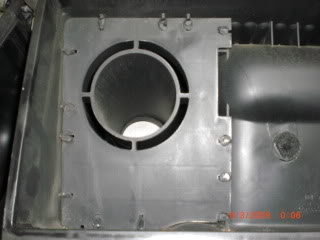

Now on to the front part. Same deal cut around the tabs:
Name:  Front.jpg
Views: 22
Size:  41.8 KB

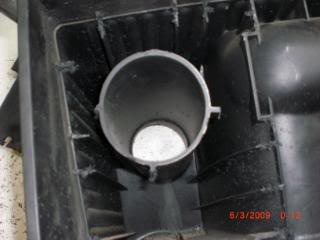

once those are are cut start prying if you are have trouble you can cut the tabs are the tube. If you get it out and the tube is still in the tube pulls out easily it is not formed to the box.
Name:  TubeFront.jpg
Views: 21
Size:  43.2 KB

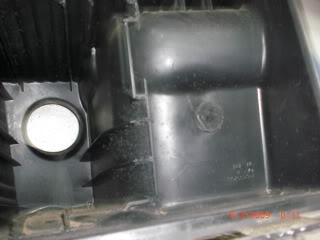

This is your end result:
Name:  GuttedFront.jpg
Views: 24
Size:  41.5 KB

Now you have two gutted pieces of box. Clean up the insides to get rid of all plastic shavings. Put the front part on first by popping it on the stud and screwing in the screws the stock panel filter still fits from fram to K&N remember to put your filter back in you didn't make a magic box.

Attach the back part to the tube and screw the two pieces together and you now have a gutted air box.
Things that will change:
Better throttle response
Front left noise will increase.
Other spec changes are under review I'm assuming gas mileage may increase too and possibly KR will decrease.
Hope this is easy to follow any question can message me Nighthwk12
Nighthwk12 is offline   Reply With Quote
Old 06-04-2009, 08:18 PM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Nicely done Nighthawk!
Purplehazeir is offline   Reply With Quote
Old 06-04-2009, 08:32 PM   #3
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Couple changes I need to make cause I'm a horrible proof reader. You might decrease KR not increase it.
Nighthwk12 is offline   Reply With Quote
Old 06-04-2009, 08:34 PM   #4
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by Nighthwk12 View Post
Couple changes I need to make cause I'm a horrible proof reader. You might decrease KR not increase it.
Edited your post for you Nighthawk!
Purplehazeir is offline   Reply With Quote
Old 06-04-2009, 08:36 PM   #5
Senior Member
Posts like a Turbo

PaulPool's Avatar

Join Date: May 2009
Location: NJ
Posts: 257
Thanks: 0
Thanked 0 Times in 0 Posts
PaulPool is on a distinguished road
Default

Wonderful, good job!

I have a few questions:
Couldn't one just use a knife to cut right on those melted tabs? Are the tabs all that'* holding on the two plastic plates, or is the whole edge melted to the walls?
And also would this allow for the cone filter everyone replaces the stock filter with, and negate the need for making a new air box?

And yeah I noticed that, increase KR that doesn't sound good, lol. Not being able to edit your post later is so annoying.
PaulPool is offline   Reply With Quote
Old 06-04-2009, 08:49 PM   #6
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

You could use a knife I guess I don't know how hard that would be I love my dremel. And it is only the tabs not seal all the way around. If you put a cone filter in you would have to fabricate a tube that runs into the box, and your cone size would be limited. K&N drop in works well after gutting from what I heard. Another thread would have to be started to start that discussion.
Nighthwk12 is offline   Reply With Quote
Old 06-04-2009, 10:05 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Thanks for the write up. I moved a copy over to tech info.
Danthurs is offline   Reply With Quote
Old 06-05-2009, 12:09 AM   #8
Senior Member
Posts like a Turbo

Geforce's Avatar

Join Date: Dec 2008
Location: Mississauga Ontario
Posts: 323
Thanks: 0
Thanked 0 Times in 0 Posts
Geforce is on a distinguished road
Default

in the front part of the box the tube comes out without cutting? sry im misunderstanding what hes saying there

and the stock air filter can be reused without it shifting out of place?

Last edited by Geforce; 06-05-2009 at 12:12 AM.
Geforce is offline   Reply With Quote
Old 06-05-2009, 12:40 AM   #9
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Quote:
Originally Posted by Geforce View Post
in the front part of the box the tube comes out without cutting? sry im misunderstanding what hes saying there

and the stock air filter can be reused without it shifting out of place?
Thanks for the support purple and dan I'm stoked to get into the how to section. Yes the stock filter still sits tight and you do not have to cut the tube out when I did it the tube came out with the panel I showed it like that just in case the tube did not come out.
Nighthwk12 is offline   Reply With Quote
Old 06-05-2009, 09:16 PM   #10
Senior Member
Posts like a Turbo

Geforce's Avatar

Join Date: Dec 2008
Location: Mississauga Ontario
Posts: 323
Thanks: 0
Thanked 0 Times in 0 Posts
Geforce is on a distinguished road
Default

gutted mine after seeing this tutorial , thanks Nighthwk12 !!
Iv notice more throttle responds from 0-60 sweet..., also saves me from buying an after market cold air intake

BTW this should be stickied somewhere as a future reference....
