Default FWI ?

when doing a fwi i have heard that the
canister is removed from the fw...
what is this canister and what does it do..?
SUPRCHRGD is offline   Reply With Quote
Old 11-16-2005, 11:28 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The canister that needs to be relocated is the charcoal or evap canister. It is located in the driverside fender. By moving it, this provides a nice precut whole for the new tubing to pass through and air outside of the engine bay available.
BillBoost37 is offline   Reply With Quote
Old 11-16-2005, 11:32 AM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Oct 2005
Location: Woodbridge, Va
Posts: 263
Thanks: 0
Thanked 0 Times in 0 Posts
SUPRCHRGD is on a distinguished road
Default

where is it usually relocated too!!
this means the pcm will have to be
relocated to.. is there a preferred spot
for this also..
SUPRCHRGD is offline   Reply With Quote
Old 11-16-2005, 11:47 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Many get a PCM tray that mounts close by. Say next ot the hole. The cannister has been relocated to the other side, or merely next to the hole.
BillBoost37 is offline   Reply With Quote
Old 11-16-2005, 03:03 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Oct 2005
Location: Woodbridge, Va
Posts: 263
Thanks: 0
Thanked 0 Times in 0 Posts
SUPRCHRGD is on a distinguished road
Default

hmm, i may have to do a FWI.
it seems like the way to go instead
of building a box around the -hai-
is there a donw side to the FWI?
it seems like the best option...
SUPRCHRGD is offline   Reply With Quote
Old 11-16-2005, 04:13 PM   #6
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

I've always said that a FWI on a bonneville is your best bet.
llBlazin_llLo is offline   Reply With Quote
Old 11-16-2005, 04:18 PM   #7
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Anyone have pics of where they relocated their charcoal canister to?

Of the few 96-99 FWI installs I have seen, I have never seen a good reply to where the charcoal can was moved to.
Echo SSEI is offline   Reply With Quote
Old 11-16-2005, 04:56 PM   #8
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

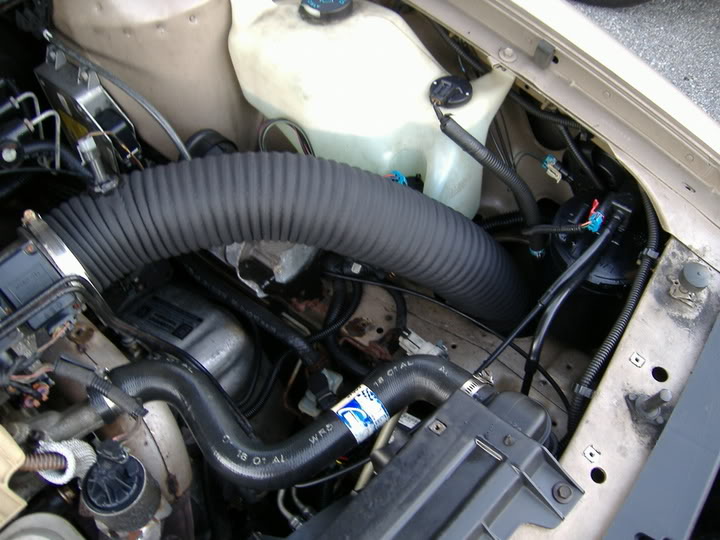

Name:  DSCF0379.jpg
Views: 0
Size:  76.5 KB
Name:  DSCF0380.jpg
Views: 0
Size:  89.9 KB
Name:  DSCF0391.jpg
Views: 0
Size:  54.4 KB
llBlazin_llLo is offline   Reply With Quote
Old 11-16-2005, 05:04 PM   #9
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Thanks Looks like a clean install
Echo SSEI is offline   Reply With Quote
Old 11-16-2005, 05:15 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Clean until the first big puddle.
