Default Fender Well Intake .56k ok .14 pics

Well guys I installed my Intense FWI today. and It only took me 2 hours
by myself. (having never done something like this before)
here is the break down with Pics
Intense supplys all parts and directions.

1 .Remove the stock air box and bellow -3 screws
remove PCM from air box - just slips out-sorry no pic
Name:  DSCN0602.jpg
Views: 8
Size:  38.6 KB
2 .remove IAT sensor from bellow
3 .jack up car and remove LF tire
Name:  DSCN0621.jpg
Views: 10
Size:  44.7 KB

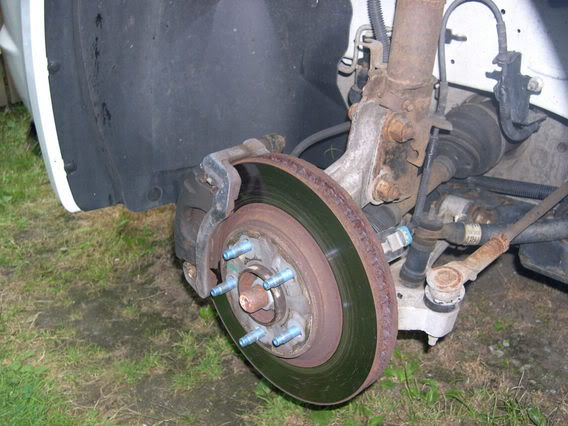

4 .remove about 7 push tabs from inner fender well liner- carefully
Name:  DSCN0622.jpg
Views: 7
Size:  53.1 KB
5 . bend up out of way the fender liner.... hey look theres the horns.
Name:  DSCN0623.jpg
Views: 9
Size:  33.5 KB
6 .after cleaning area where air box was
Install PCM tray from Intense with 3 screws provided (i only used 2)
Name:  DSCN0629.jpg
Views: 7
Size:  25.5 KB
7 .snap PCM into tray
Name:  DSCN0628.jpg
Views: 7
Size:  34.6 KB
.Now on to the filter

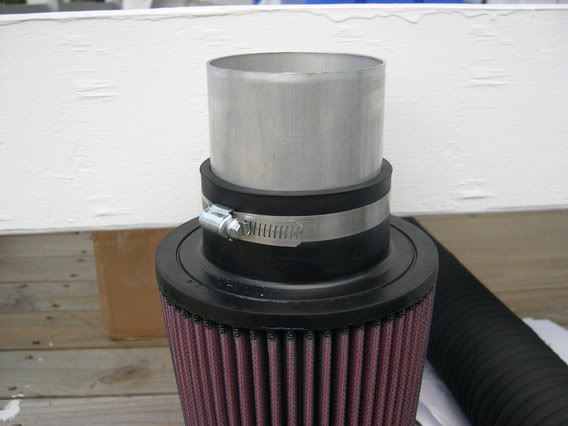

8 . connect K&N filter to fender well hose
Name:  DSCN0626.jpg
Views: 5
Size:  28.1 KB
Name:  DSCN0627.jpg
Views: 7
Size:  33.3 KB
by the way the hose looks ruff/bumpy on the outside but is smooth on the inside.
Name:  DSCN0625.jpg
Views: 5
Size:  33.2 KB

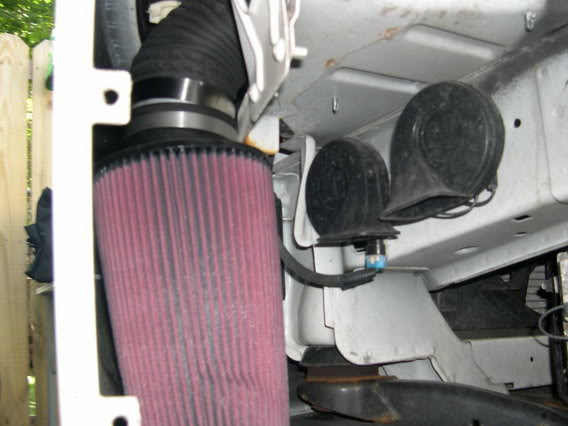

9 .slide hose up the inside fender well and out through the hole
Name:  DSCN0631.jpg
Views: 7
Size:  36.2 KB
Name:  DSCN0630.jpg
Views: 9
Size:  37.1 KB
10. connect rubber coupler to the throttle body and connect IAT sensor the the coupling
Name:  DSCN0633.jpg
Views: 6
Size:  47.0 KB
11. connect hose to the coupling
Name:  DSCN0634.jpg
Views: 5
Size:  42.2 KB
connect IAT wire
I may cut it down as i think its a tad to long. but we'll see
Name:  DSCN0636.jpg
Views: 5
Size:  42.2 KB
replace inner fender well lining
replace tire
start car and you can hear the air going through the tubing.
Take for a test drive.
Gumball is offline   Reply With Quote
Old 07-23-2005, 05:59 PM   #2
Senior Member
Posts like a 4 Banger

00indyssei's Avatar

Join Date: Feb 2005
Location: Indianapolis, IN
Posts: 148
Thanks: 0
Thanked 0 Times in 0 Posts
00indyssei is on a distinguished road
Default

Nice install!
00indyssei is offline   Reply With Quote
Old 07-23-2005, 07:19 PM   #3
Senior Member
Certified GM nut

Join Date: Jun 2004
Location: Grand Haven, Michigan
Posts: 1,719
Thanks: 0
Thanked 0 Times in 0 Posts
beckstyle is on a distinguished road
Default

Quote:
Originally Posted by 00indyssei
Nice install!
X2.

But I have a question. Is that filter waterproof? Would it be able to hold up to the elements of driving on the road? What prevents it from being destroyed with little rocks, possibly dirt, and water?
beckstyle is offline   Reply With Quote
Old 07-23-2005, 07:41 PM   #4
Senior Member
Certified Car Nut
Thread Starter

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

Quote:
Originally Posted by beckstyle
Quote:
Originally Posted by 00indyssei
Nice install!
X2.

But I have a question. Is that filter waterproof? Would it be able to hold up to the elements of driving on the road? What prevents it from being destroyed with little rocks, possibly dirt, and water?
I didnt take a pic of it but there is a flat plastic piece the thickness of say.. the inner fender well. that is protecting it. it has some "air holes" in it.
Gumball is offline   Reply With Quote
Old 07-23-2005, 09:54 PM   #5
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

You noticed the extra 'volume' of the intake, sounds great doesnt it

Good job and nice pic series.

I have had mine for a few months now and the filter is still clean living under there, it is pretty well protected with the valance tray.
PontiacDad is offline   Reply With Quote
Old 07-23-2005, 10:20 PM   #6
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Maryland, USA
Posts: 3,089
Thanks: 0
Thanked 0 Times in 0 Posts
95SLE is on a distinguished road
Default

Gumball:
Nice write up with Pics. This mod is coming but I want to do the strut tower brace first.
95SLE is offline   Reply With Quote
Old 07-24-2005, 12:09 AM   #7
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Excellent presentation with pics. Real nice install! Have fun with it.
markwb is offline   Reply With Quote
Old 07-24-2005, 03:49 AM   #8
Senior Member
True Car Nut

Join Date: Feb 2003
Location: Bloomington-Normal, IL 1997 SE
Posts: 3,734
Thanks: 0
Thanked 0 Times in 0 Posts
macho_mike21 is on a distinguished road
Default

just dont try to ford any rivers now. Not that you should with any other kind of intake either.
macho_mike21 is offline   Reply With Quote
Old 07-24-2005, 11:38 AM   #9
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

Looks like a good clean install. How much difference did it make????
dbeast420 is offline   Reply With Quote
Old 07-24-2005, 06:04 PM   #10
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Lakeville, MN
Posts: 4,328
Thanks: 0
Thanked 1 Time in 1 Post
fantastic88 is on a distinguished road
Default

Nice. You'll really feel that on a cool 50* day.
