Old 10-01-2006, 10:12 PM   #1
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default Exhaust Work

Back in the past I added a Magnaflow highflow catalytic. Having a Series 2, there was some concern about the rear O2 sensor having a mounting location and I ordered the cat with a rear bung. As you can see from the picture the Magnaflow'* are much smaller than our originals and there'* no need to cut anywhere near the stock O2 location. We can also see the hole in the catalytic.


Seeing that there is something missing in front of the cat we see the studs that are part of the flange usually welded to the cat. Four small nuts and off comes the down pipe where it mounts to the catalytic.

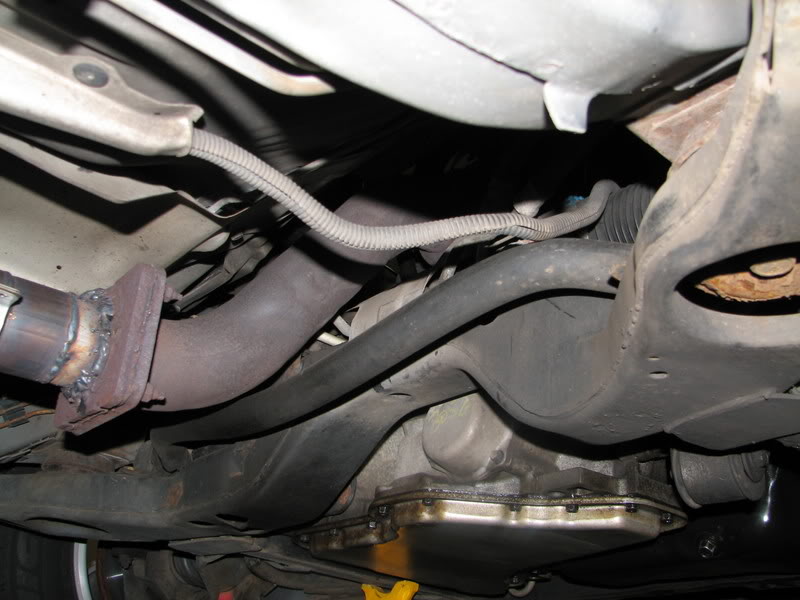

Original down pipe
Name:  IMG_0627.jpg
Views: 1
Size:  69.8 KB

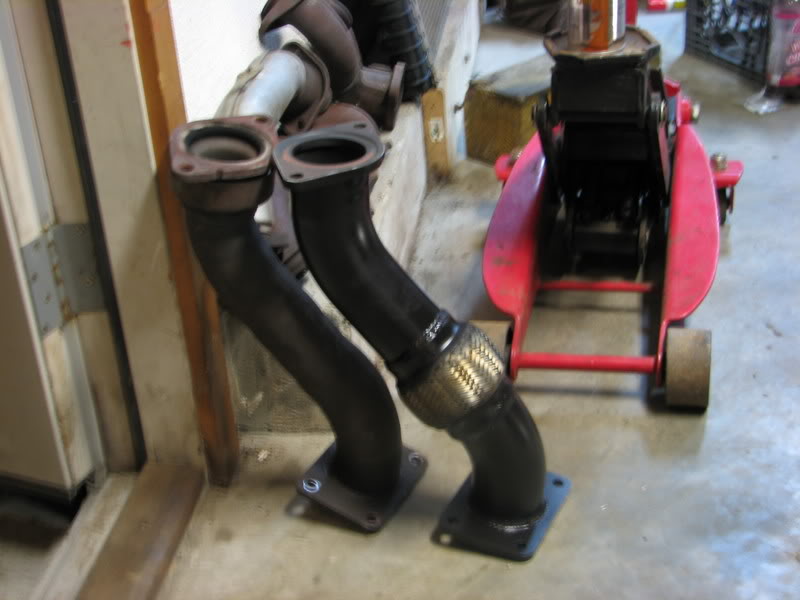

Stock and 3" downpipe side by side.
Name:  IMG_0632.jpg
Views: 1
Size:  55.1 KB

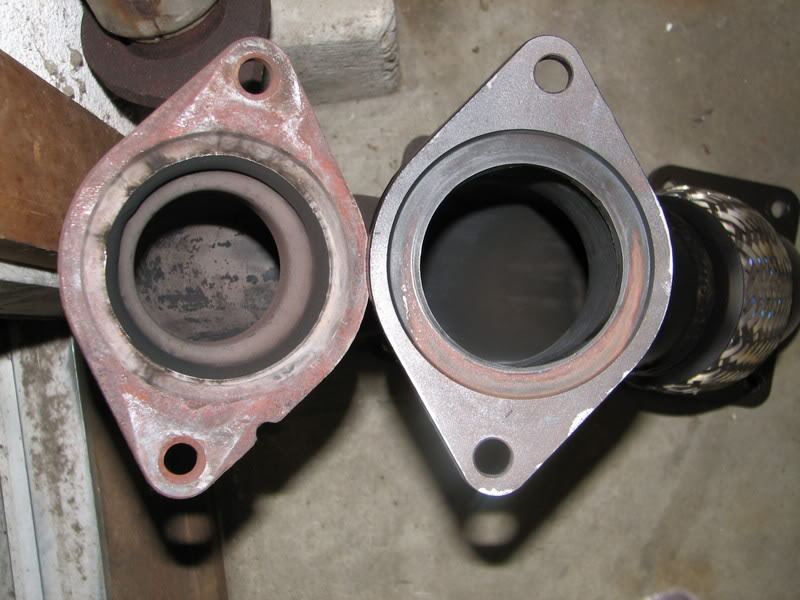

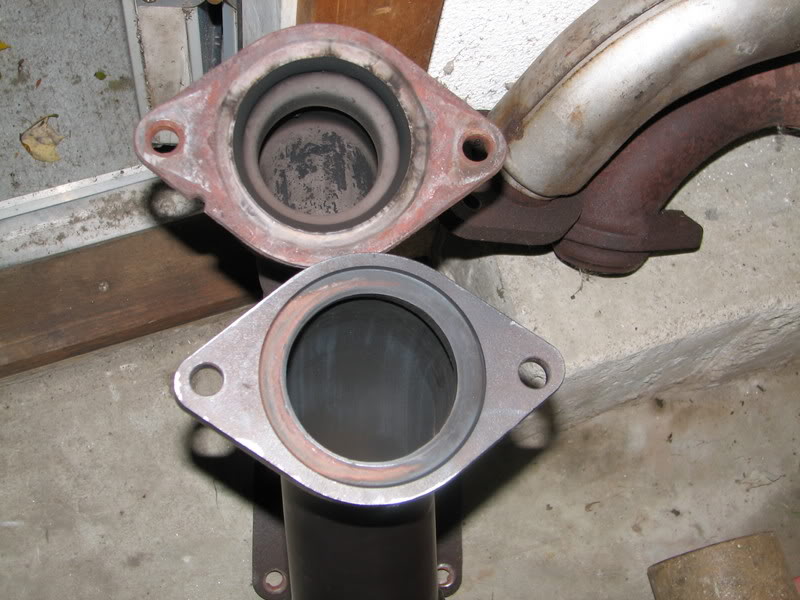

Inside the down pipes, stock is 2" and 3" is just that..3"
Name:  IMG_0633.jpg
Views: 1
Size:  77.5 KB
Name:  IMG_06341.jpg
Views: 1
Size:  82.6 KB

Thanks again Tom..
BillBoost37 is offline   Reply With Quote
Old 10-01-2006, 10:14 PM   #2
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

alright....more flow for boosty.
corvettecrazy is offline   Reply With Quote
Old 10-01-2006, 10:19 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

is that a hogan? nice
harofreak00 is offline   Reply With Quote
Old 10-01-2006, 10:49 PM   #4
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

GREAT...........

Now something else for me to want and need
dbeast420 is offline   Reply With Quote
Old 10-01-2006, 10:53 PM   #5
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

Quote:
Originally Posted by dbeast420
GREAT...........

Now something else for me to want and need
How you think I feel, Scott? I'm missing a supercharger plus all those mods he did...so you're luckier than I am...
PRD2BDF is offline   Reply With Quote
Old 10-01-2006, 10:54 PM   #6
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Quote:
Originally Posted by dbeast420
GREAT...........

Now something else for me to want and need
x2


Bill what does the butt dyno read. I have friends who can get me a good deal on exhaust work and I am considering going with a 3" down pipe. (with some new mufflers )
OLDsman105 is offline   Reply With Quote
Old 10-02-2006, 08:35 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The butt dyno didn't get a lot of runs. Things aren't fully seated yet, meaning I need to take care of one or two small rub spots.

Also.. let'* remember, we don't all need to run out and do the same mods. I'm starting to see it, Willwren has seen it a lot due to the uniqueness of the S1. Don't do something because I do it, do it because you can determine and justify it'* something you want/need to do.

I didn't change my pcm until very recently. Why? It wasn't hurting or holding me back enough to justify it. Don't be a sheep, look for new things..be willing to be different than the herd. You also want to give a mod enough time to prove itself over the long run.

My car is in a sense like Willwren'*.. it'* a test in progress, that is still running a gutted factory airbox with a 3.2 pulley and tons of other low cost mods. However...I'm doing things a little differently. Willwren'* car was down and he dd a bunch of stuff at one time, with my car.. it'* a daily driver and running at the end of each day. I'm testing stuff, one part at a time. This provides great data on a part by part basis....it'* compounded for each mod that stays on my car.
BillBoost37 is offline   Reply With Quote
Old 10-07-2006, 11:18 PM   #8
Senior Member
True Car Nut

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

how much for the downpipe
GAMEOVER is offline   Reply With Quote
Old 10-08-2006, 11:32 AM   #9
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by GAMEOVER
how much for the downpipe
$175

http://hoganperformance.com/DP8S.htm
harofreak00 is offline   Reply With Quote
Old 10-10-2006, 03:44 AM   #10
Senior Member
True Car Nut

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

im thinkin about buyin a D/p and cat from hogan
GAMEOVER is offline   Reply With Quote
