Default Exhaust pics requested by a few members:

This is the 93 SSEi:

Inlet and outlet, driver'* side:
Name:  exhaust1.jpg
Views: 0
Size:  24.5 KB

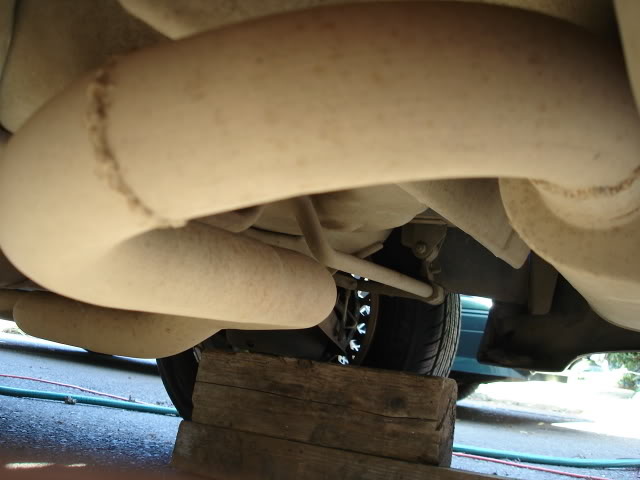

Same side, showing the cut and weld to fit the stock intermediate pipe to the inlet:
Name:  exhaust2.jpg
Views: 0
Size:  39.0 KB

Passenger side showing how the stock 2.25" outlet was sleeved to the 2.5" muffler:
Name:  exhaust3.jpg
Views: 0
Size:  36.7 KB

Inside the last bend of the intermediate pipe before entering the muffler inlet:
Name:  exhaust4.jpg
Views: 0
Size:  44.0 KB

OEM hanger still attached to the OEM outlet at the top of the pic:


One BIG ARSE RESONATOR :
Name:  exhaust6.jpg
Views: 0
Size:  54.0 KB
willwren is offline   Reply With Quote
Old 08-23-2005, 04:07 PM   #2
Senior Member
Certified GM nut

Join Date: Jun 2004
Location: Grand Haven, Michigan
Posts: 1,719
Thanks: 0
Thanked 0 Times in 0 Posts
beckstyle is on a distinguished road
Default

Holy crap, that is a big res.
beckstyle is offline   Reply With Quote
Old 08-23-2005, 04:11 PM   #3
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

I thought all Bonnes utilized mandrel bends on the whole exhaust.
sonoma_zr2 is offline   Reply With Quote
Old 08-23-2005, 04:20 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

yes except the outlets from the mufflers
1993 SLE is offline   Reply With Quote
Old 08-23-2005, 05:07 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It doesn't matter at the outlets. They're both 2.25" and have more than sufficient flow. You'd gain nothing changing those to mandrel.

That'* a 3" resonator slipped over the OEM intermediate pipe. I don't recall how long it is, but it barely fits between the cat and the first jog in the intermediate pipe.
willwren is offline   Reply With Quote
Old 08-23-2005, 05:37 PM   #6
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Thanks Bill
