Default EGR block off plate

I decided to keep busy today. So I went out and got some aluminum bar stock

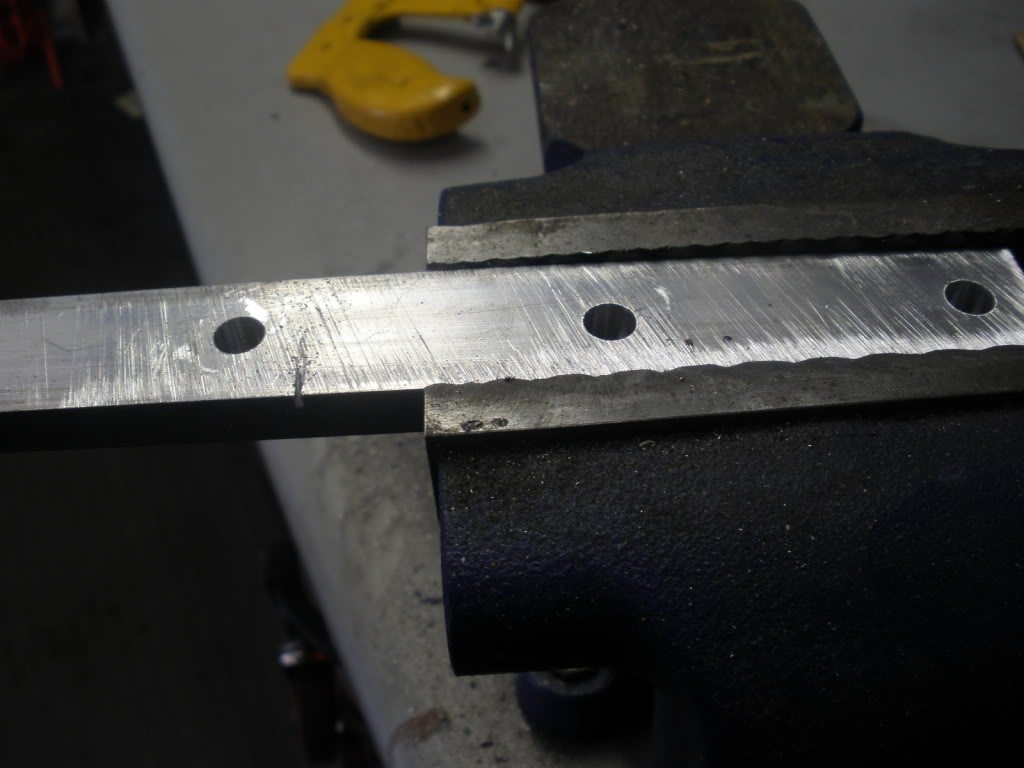

Then I drilled a few holes in it.
Name:  P4200012.jpg
Views: 1
Size:  81.4 KB

Got out the hack saw. OK, so I don't have a power tool for everything
Name:  P4200013.jpg
Views: 1
Size:  111.4 KB

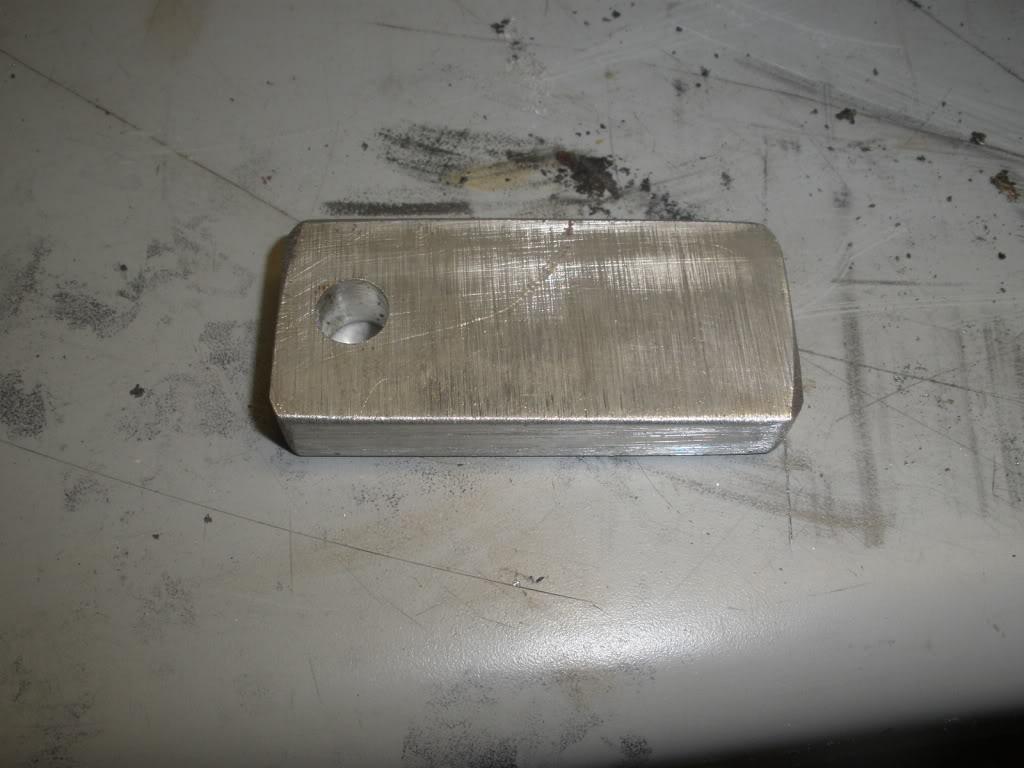

After a little clean up sanding, here'* what I have.
Name:  P4200014.jpg
Views: 1
Size:  92.0 KB

Tried it on for size. Fits like I made it that way.
Name:  P4200015.jpg
Views: 1
Size:  163.2 KB

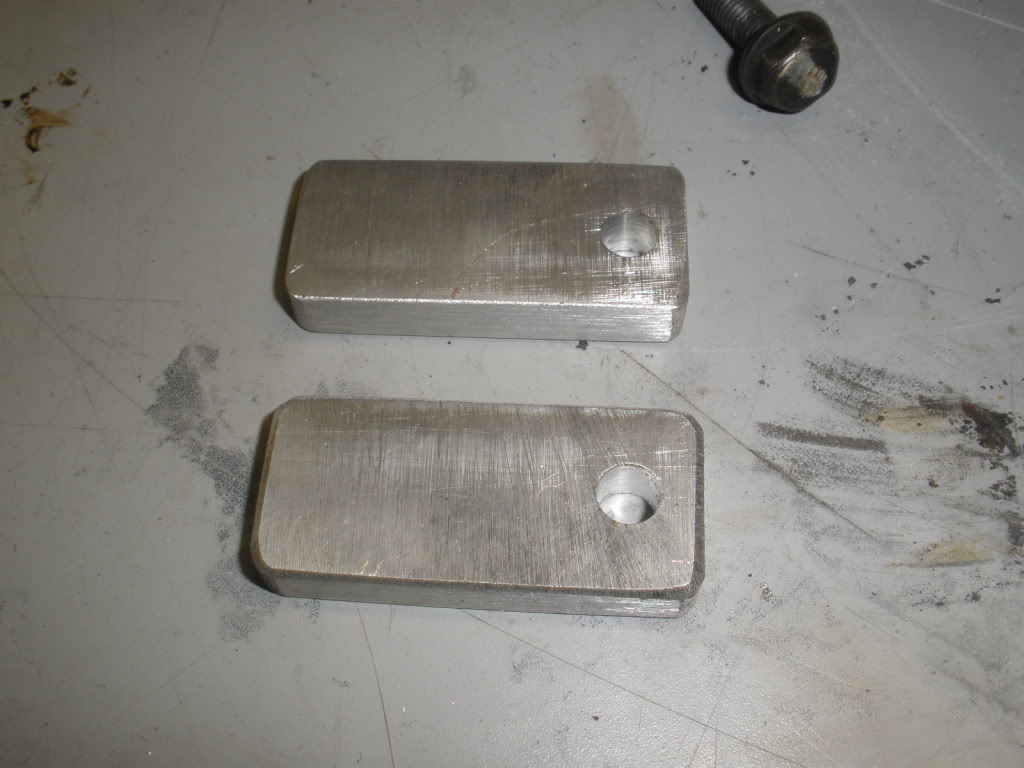

And after a bit more work, I had two.
Name:  P4200016.jpg
Views: 1
Size:  91.5 KB

Now I just need to go out and put them on and remove that nasty old EGR.

If anyone wants a set of these, just let me know. I'll make you a set for $10 shipped. I have enough stock to make 3 more sets.
Danthurs is offline   Reply With Quote
Old 04-20-2009, 03:56 PM   #2
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

OK, I got them in. The LIM one was easy, went right in. But the header side. I don't know what clown thought it was a good idea to use a bolt that threads in to the holder and comes up from the back bottom would be a good idea, but it'* not. Those TOGs and the huge cross over pipe they have make it impossible to get to that bolt. Oh, I could remove the cross over pipe and get it off easy. But the clamp on the pipe is behind the trans dip stick. Took me 2 hours last time to get that all closed up. Not coming off. I wound up going in with a carbide bit and a die grinder and grinding the clamp away until I was able to brake it off. But I got it.

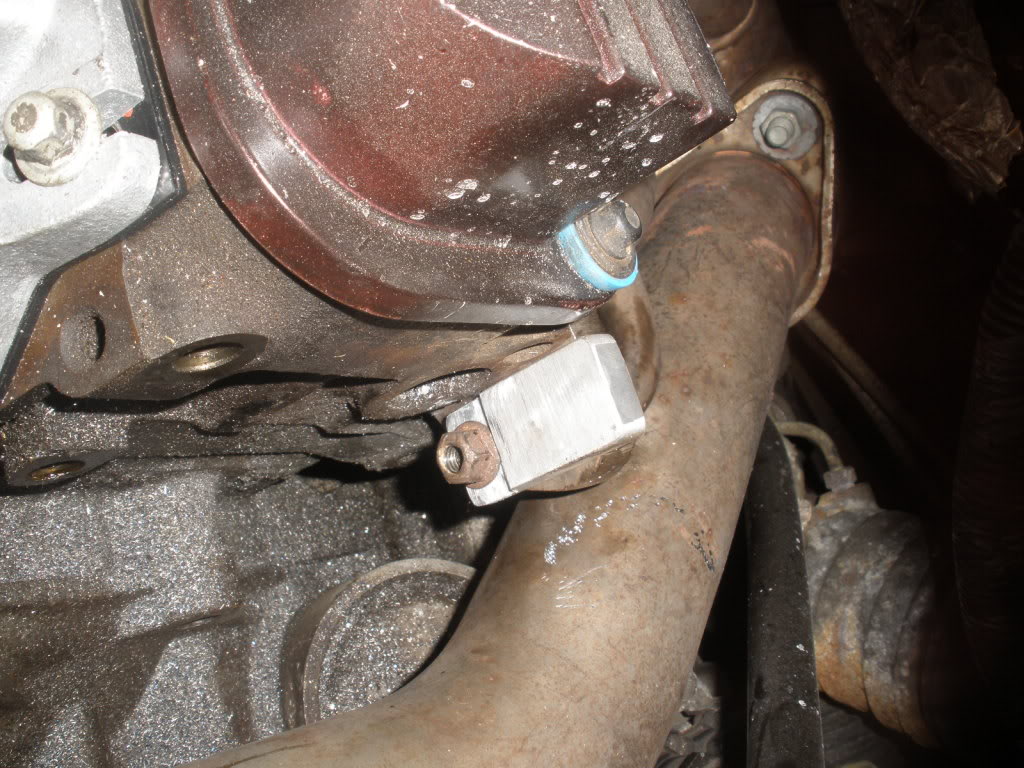

The bolt was a little short so I had to cut part of the plate away, no big deal.
Name:  P4200001.jpg
Views: 1
Size:  170.2 KB

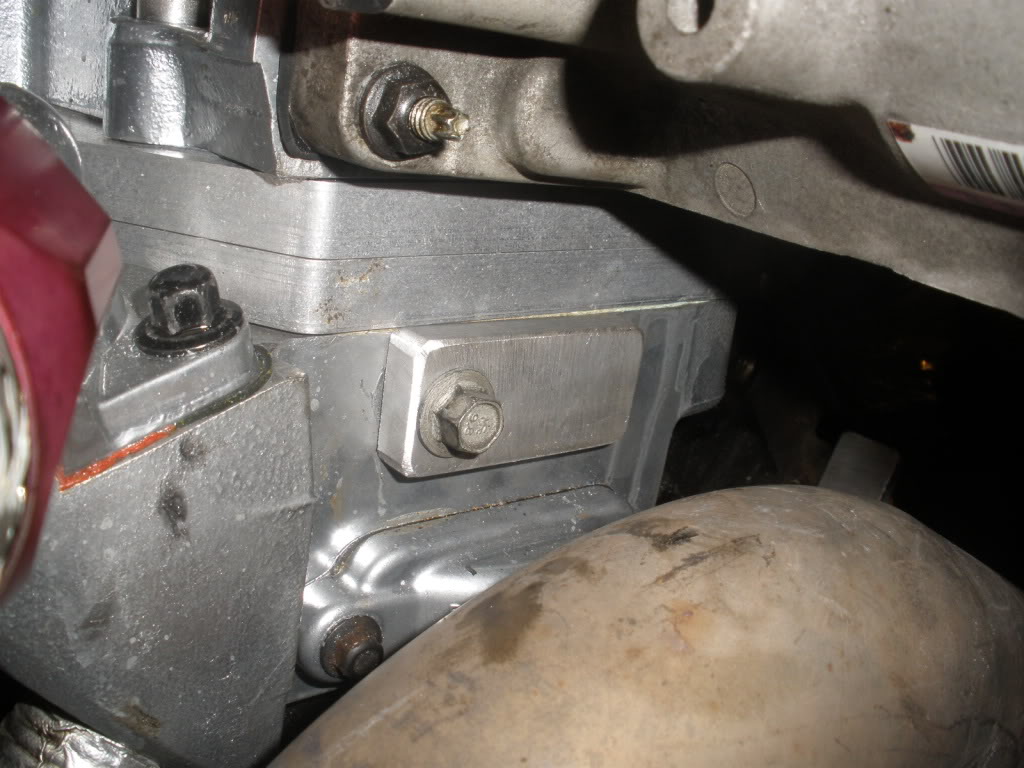

Here'* the plate on the LIM
Name:  P4200002.jpg
Views: 1
Size:  122.3 KB

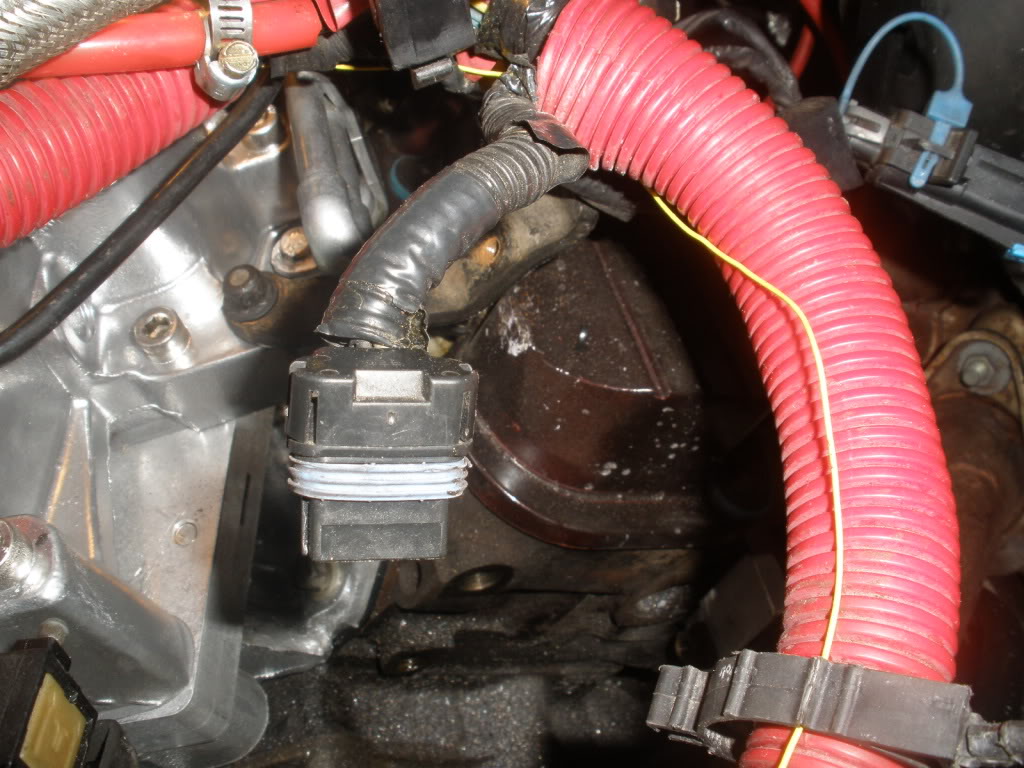

Now I have a sensor wire begging to have something connected to it. I'm thinking a fuel pressure would be nice to have on HP tuner.
Name:  P4200003.jpg
Views: 1
Size:  143.8 KB

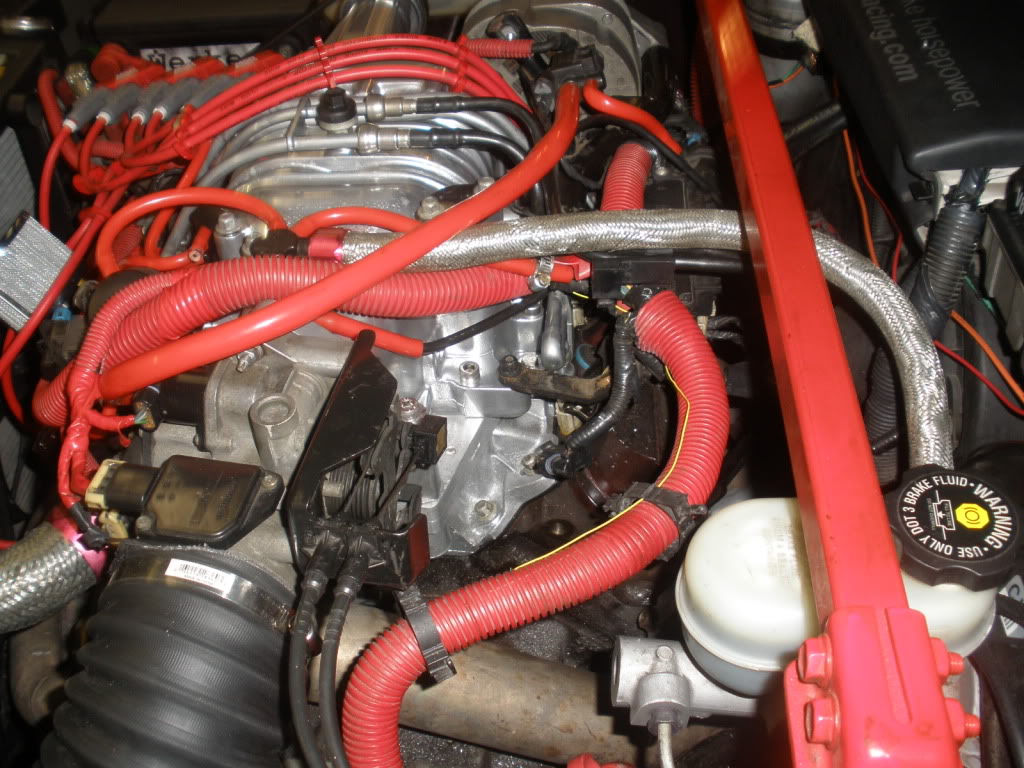

I must say, that really opens up that back corner a lot.
Name:  P4200004.jpg
Views: 1
Size:  171.0 KB
Danthurs is offline   Reply With Quote
Old 04-20-2009, 08:09 PM   #3
Senior Member
Posts like a 4 Banger

Join Date: Sep 2008
Location: orlando fl
Posts: 140
Thanks: 0
Thanked 0 Times in 0 Posts
BADBUICK is on a distinguished road
Default

hey dan what are the advantages or disadvantages of removing the egr seems like a fun thing to do
BADBUICK is offline   Reply With Quote
Old 04-20-2009, 08:57 PM   #4
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You really only need to block it off if you intercool. But blocking it off will keep things cleaner and not carbon up. You will need a tuner or access to a tuner to shut down the SES light. If not your SES light will be on all the time.
Danthurs is offline   Reply With Quote
Old 04-21-2009, 11:46 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by BADBUICK View Post
what are the advantages or disadvantages of removing the egr
The advantages are a cleaner intake tract. And if you are trying to do a lot of tuning it can also prove to eliminate the added airflow that the pcm allows from it.

The disadvantages are that the cylinder temp is higher and fuel mileage should drop off unless you tune for it properly. If you live in an state that tests emissions, you will fail a visual inspection.

The EGR can be turned off with a tuner instead of blocked.
BillBoost37 is offline   Reply With Quote
Old 04-21-2009, 11:50 AM   #6
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hey Bill, with the higher cylinder temps you think a cooler plug is in order? I'm 2 ranges cooler now. Perhaps I should try another range cooler.

I get tested every other year here and have never had my hood opened. Hope it stays that way.
Danthurs is offline   Reply With Quote
Old 04-21-2009, 12:06 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Two ranges, a 104 or equivalent? (I'm not as up on plugs as I should be).

Most of the time you shouldn't have temps much higher. The EGR thing has been debated and talked about for quite some time. Does the inert gas cause a raise in temps or not because it'* exhaust temp gas to begin with...etc etc.
BillBoost37 is offline   Reply With Quote
Old 04-21-2009, 12:08 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

And BTW, I never saw them lift a hood in my state before. Then I heard them close my truck hood and I inquired. They stated that emission testing included a visual.

I used to work for the company that ran your states emilssion program. They are supposed to do visual on emission stuff. That'* why mine is on the car and turned off.
BillBoost37 is offline   Reply With Quote
Old 04-21-2009, 12:24 PM   #9
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Just to be safe I think I'll keep the EGR in a box and put it back on next year when I get tested.
Danthurs is offline   Reply With Quote
Old 04-21-2009, 01:58 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I you have trouble, I'd put a plug in the header and then bolt the EGR back in place for looks.

If you use that return for another sensor, I'd backt out of the harness and no one would ever know if the EGR had 1 wire or 5 wires.
BillBoost37 is offline   Reply With Quote
