Default DIY front mount

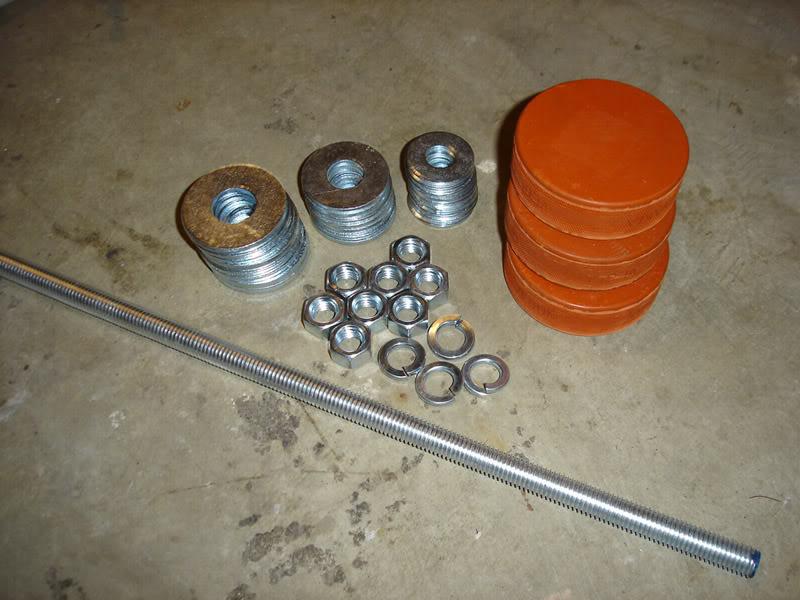

does anyone know the specs of the bolt setup he used? (nuts, bolts,washers,screw)

Last edited by airlife9; 02-16-2010 at 03:18 AM.
airlife9 is offline   Reply With Quote
Old 02-16-2010, 03:19 AM   #2
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

.......
Attached Thumbnails

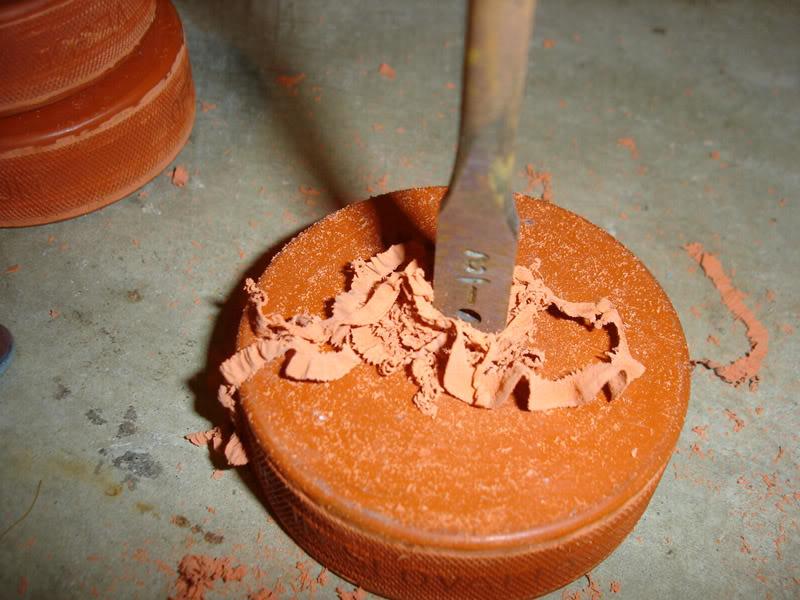

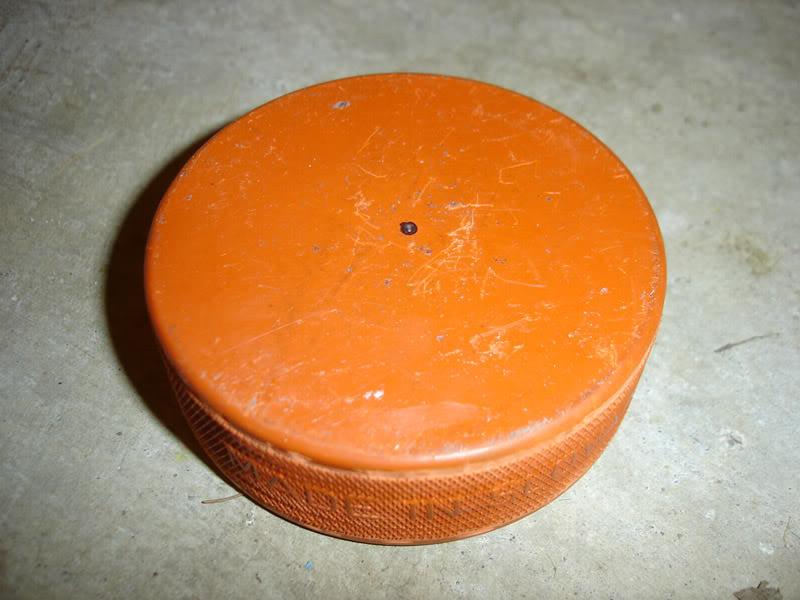

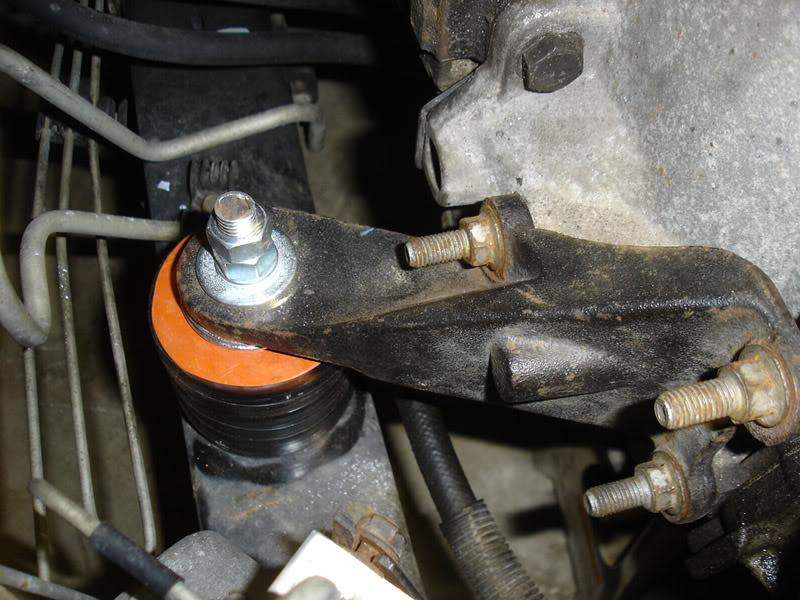

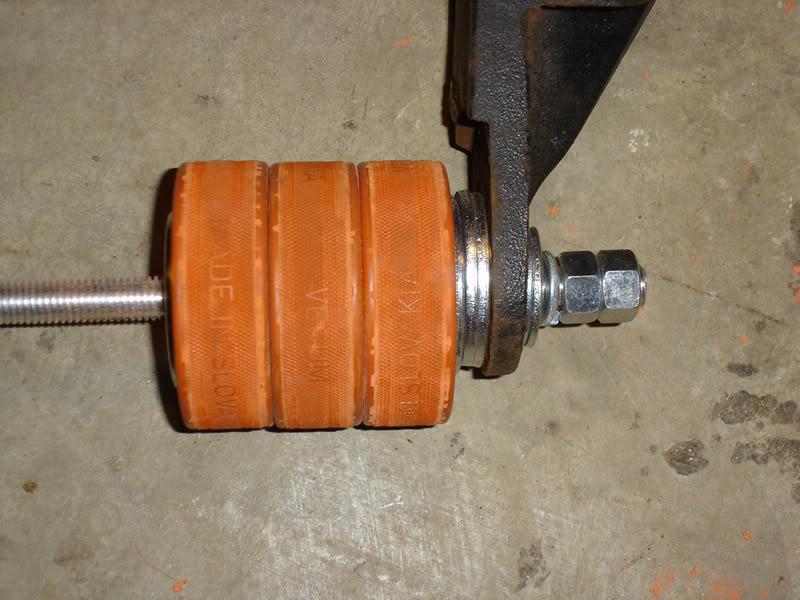

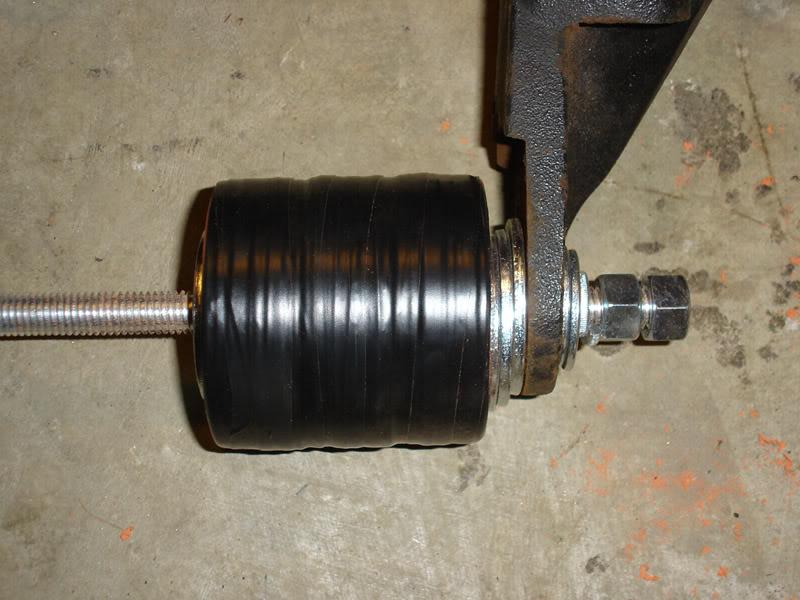

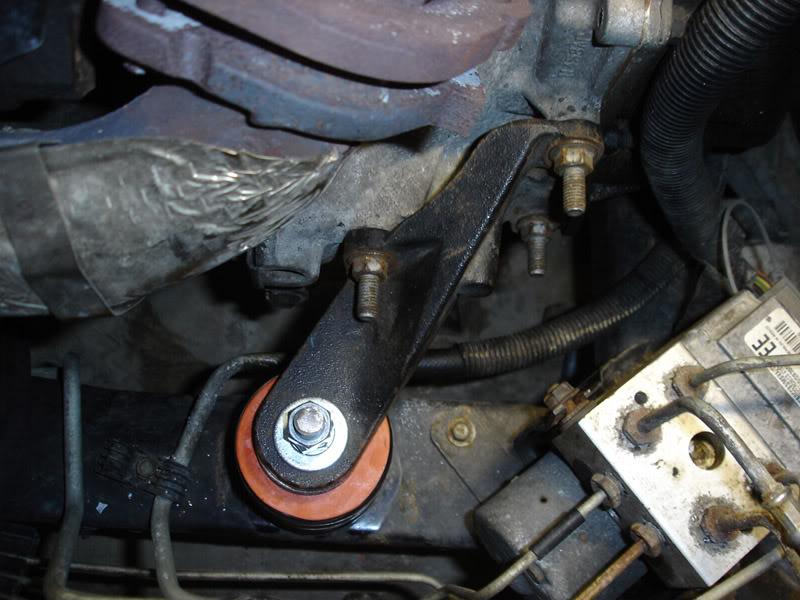

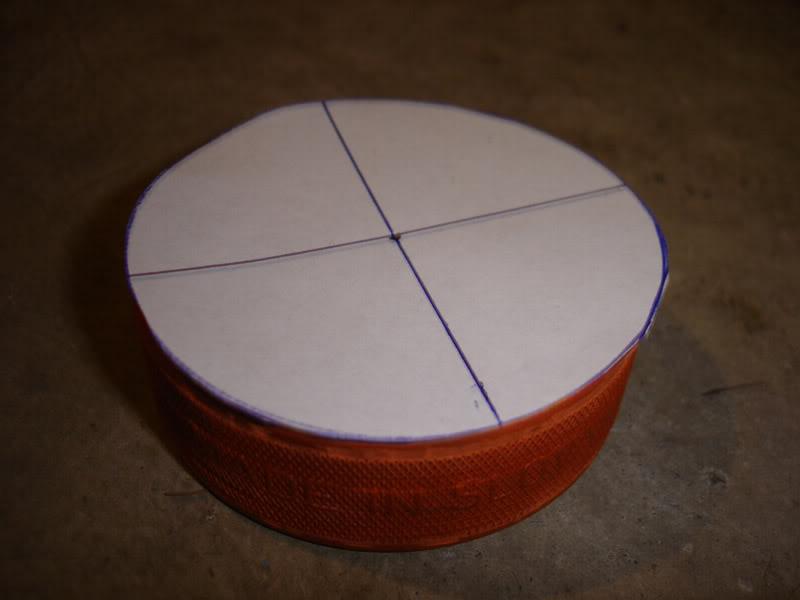

DIY front mount-untitled.jpg   DIY front mount-untitled2.jpg   DIY front mount-untitled3.jpg   DIY front mount-untitled4.jpg   DIY front mount-untitled5.jpg

DIY front mount-untitled6.jpg   DIY front mount-untitled7.jpg   DIY front mount-untitled8.jpg   DIY front mount-untitled9.jpg   DIY front mount-untitled10.jpg

DIY front mount-untitled11.jpg
airlife9 is offline   Reply With Quote
Old 02-16-2010, 10:52 AM   #3
Junior Member
Posts like a Ricer Type-R

NexusCocker's Avatar

Join Date: Mar 2008
Location: GR Michigan
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
NexusCocker is on a distinguished road
Default

I know when i did it i used a 8in Grade 8 bolt, thats all i remember. Im sure if you dig around on the other site you will find out more info
NexusCocker is offline   Reply With Quote
Old 02-16-2010, 11:01 AM   #4
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

The bolt I used was an 8" grade 8 bolt. As far as the amount of spacers and washers, make sure the overall length between the mount bracket and subframe is the same as the oringinal mount. You will have a vibration after you do a solid mount. I took a thin piece of rubber tubing that fit on the bolt and through the subframe, that lessened the vibration a little.
Black Pearl is offline   Reply With Quote
Old 02-16-2010, 12:24 PM   #5
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

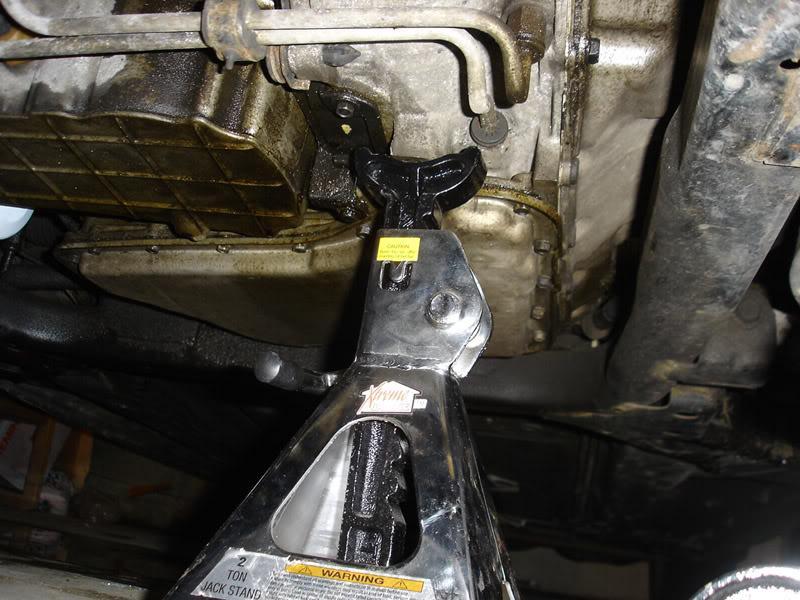

How did you get the weight off the mount? To me it looks like you put a jack stand under the trans near the front left and let the car down on it, is that right?

I had one replaced in the spring and by mid summer it was completely broken again, time for the solid mount
crunkfrunk is offline   Reply With Quote
Old 02-16-2010, 01:04 PM   #6
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

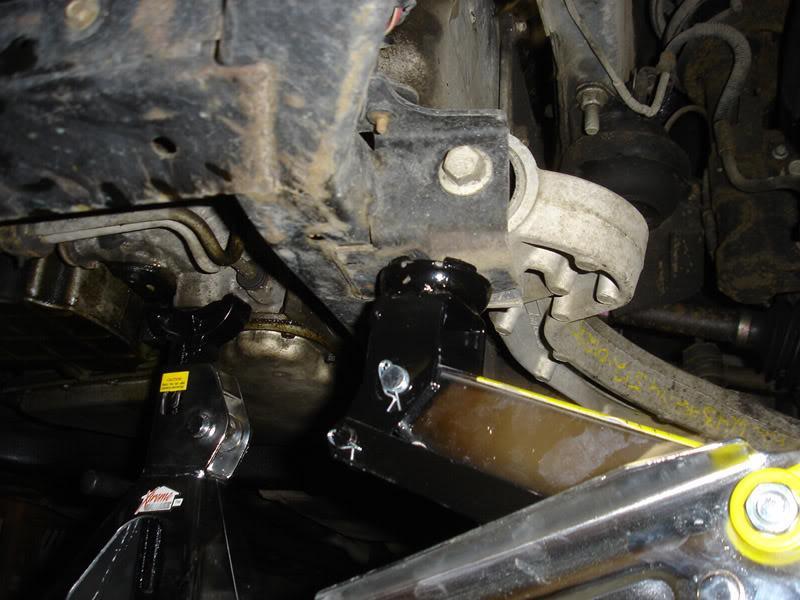

There is a tab on the trans in the front where next to the engine. I used a block and a jack to lift it enough to get the weight off the mount
Black Pearl is offline   Reply With Quote
Old 02-17-2010, 03:25 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

what symptoms would you get of a weakned motor mount?
airlife9 is offline   Reply With Quote
Old 02-17-2010, 07:42 AM   #8
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

What I noticed was when the car was still warming up and I would shift into reverse or drive you can really feel the engine moving aorund, easier way to check would be open the hood and hold the brake and shift into gear, if you see the engine shaking around then your mount is bad
crunkfrunk is offline   Reply With Quote
Old 02-17-2010, 11:40 AM   #9
Senior Member
Posts like a Turbo

LeSabreUltra's Avatar

Join Date: Feb 2007
Location: Alabama
Posts: 494
Thanks: 0
Thanked 0 Times in 0 Posts
LeSabreUltra is on a distinguished road
Default

Sometimes you'll get harsh shifts too. That'* how I noticed mine was originally borked.
.
.
.
LeSabreUltra is offline   Reply With Quote
Old 02-17-2010, 11:09 PM   #10
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Sounds like an item for TEch Info w/pics. Anybody up for a writeup?

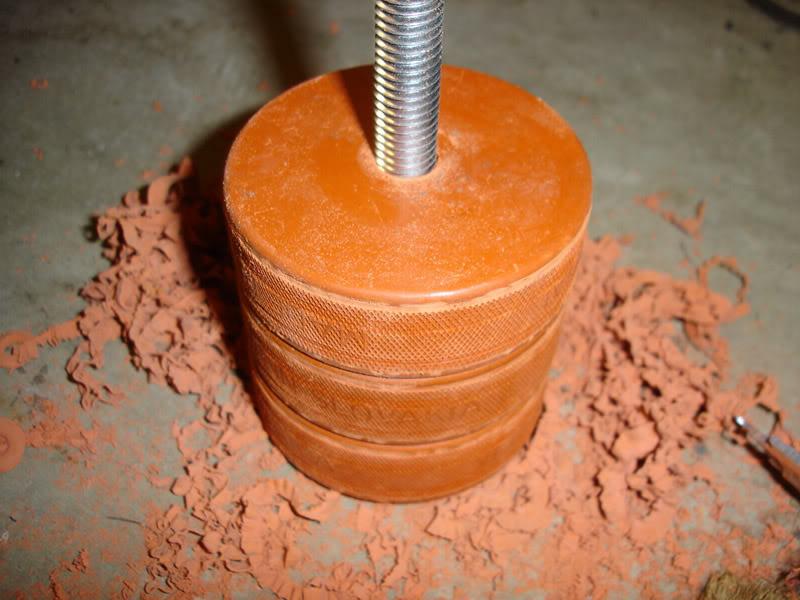

Being Slovak, Airlife, I like your choice of Pucks!
