Default Custom CAI Fabrication

I'm looking to make a custom CAI for my 1998 SSEi, but I am unsure whether to use the premade rice pipe from AutoZone and use a K&N filter...etc, or to use PVC tubing or any other type of material? I've read the posts on CAI'* but I didn't find any debating what to use for the pipe, any suggestions on what the best is?
vptruman is offline   Reply With Quote
Old 11-22-2005, 11:53 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I used to have an insulated PVC intake, then I went to the rice pipe and insulated it and it virtually eliminated my heatsoak problem.
J Wikoff is offline   Reply With Quote
Old 11-22-2005, 11:54 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

PVC? Bad news. Scratch that idea right way. It heat soaks too quickly and won't allow for engine flex.

Pick either a CAI or FWI setup, and once you give the direction, we'll get you going.
willwren is offline   Reply With Quote
Old 11-23-2005, 12:05 AM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Oct 2005
Location: Bridgewater, MA
Posts: 343
Thanks: 0
Thanked 0 Times in 0 Posts
vptruman is on a distinguished road
Default

I would be looking towards a CAI in the engine bay.
vptruman is offline   Reply With Quote
Old 11-23-2005, 12:08 AM   #5
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by vptruman
I would be looking towards a CAI in the engine bay.
here is a little idea what you have to do

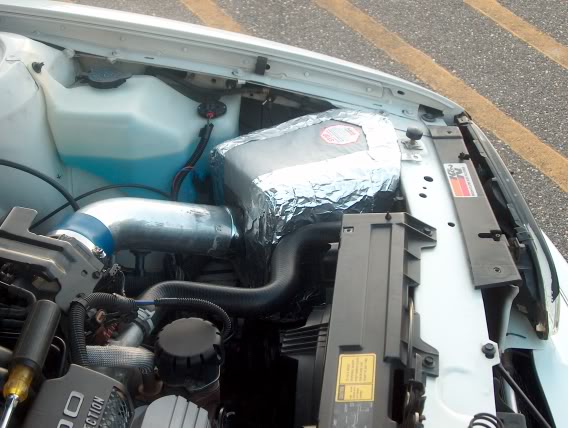

Name:  10-16newintake010.jpg
Views: 0
Size:  68.6 KB

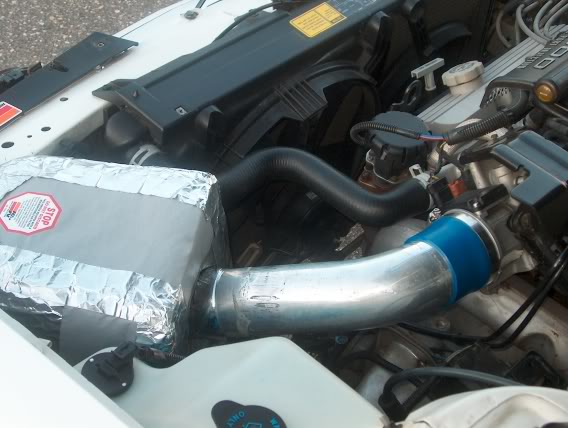

Name:  10-16newintake011.jpg
Views: 0
Size:  58.7 KB

View from inside the box
Name:  10-16newintake013.jpg
Views: 0
Size:  27.9 KB

New pipe wrapped in Reflectx
Name:  10-16newintake014.jpg
Views: 0
Size:  50.6 KB

Pipe and heatshield Wrapped in insulation
Name:  10-16newintake015.jpg
Views: 2
Size:  61.4 KB

Name:  10-16newintake016.jpg
Views: 2
Size:  58.9 KB

Name:  10-16newintake017.jpg
Views: 0
Size:  49.4 KB

Installed on the car

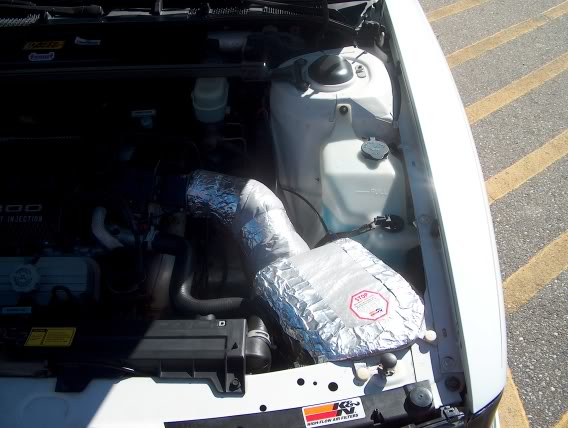

Name:  10-16newintake018.jpg
Views: 0
Size:  61.6 KB

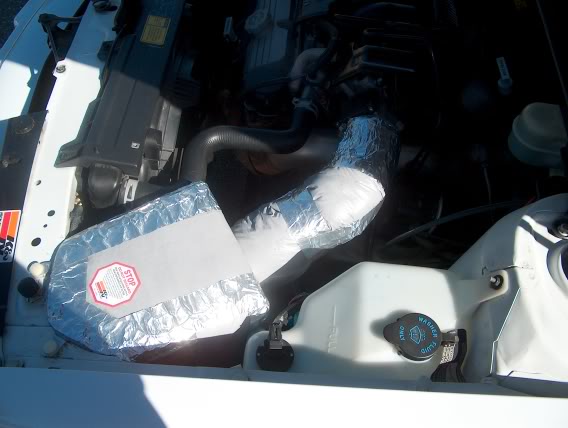

Name:  10-16newintake020.jpg
Views: 1
Size:  51.2 KB


note this is sealed off from ALL engine bay heat and its protected from the heatsoak
1993 SLE is offline   Reply With Quote
Old 11-23-2005, 12:12 AM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Oct 2005
Location: Bridgewater, MA
Posts: 343
Thanks: 0
Thanked 0 Times in 0 Posts
vptruman is on a distinguished road
Default

very nicely done, I'll bet you get +- 3* of ambient temp.
I'm just not so keen on the bulky look of insulation but I suppose to get the performance there is no way around it.
vptruman is offline   Reply With Quote
Old 11-23-2005, 12:16 AM   #7
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by vptruman
very nicely done, I'll bet you get +- 3* of ambient temp.
I'm just not so keen on the bulky look of insulation but I suppose to get the performance there is no way around it.
yes the shiny pipe is really nice...but i wanted the best intake out there
1993 SLE is offline   Reply With Quote
Old 11-23-2005, 12:21 AM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Oct 2005
Location: Bridgewater, MA
Posts: 343
Thanks: 0
Thanked 0 Times in 0 Posts
vptruman is on a distinguished road
Default

right, I think as long as I dress up the insulation with some sort of uniform cover it will still look nice, but as you, I am also looking for good performance, and from what other people have said about this mod, as long as you do it right you will notice a decent "seat of the pants" improvement
vptruman is offline   Reply With Quote
Old 11-23-2005, 12:28 AM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

did this with the TC on, after i revised my previous seutup

1993 SLE is offline   Reply With Quote
Old 11-23-2005, 12:33 AM   #10
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

You could always wrap your pipe, then slide a larger pipe over it all.
J Wikoff is offline   Reply With Quote
