Default CAI but still 20* above ambient?

My old intake was giving me 150* temps so i decided to change it around a little:
Name:  7d101b28.jpg
Views: 0
Size:  122.2 KB
Name:  3add75e8.jpg
Views: 0
Size:  125.6 KB

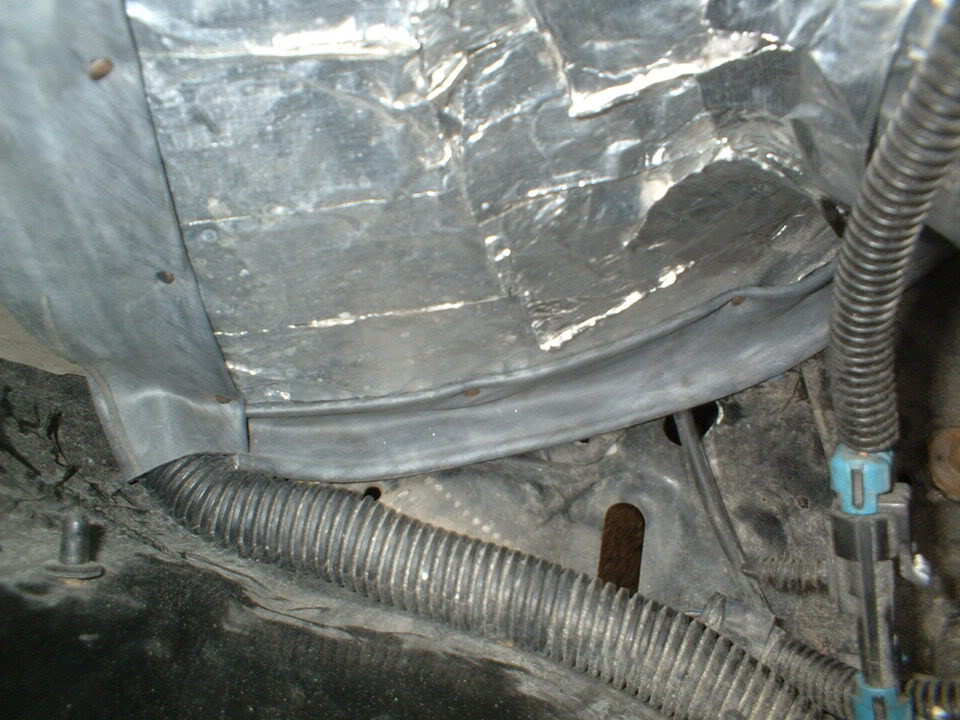

Some rubber and aluminum to seal averything up:
Name:  365876b4.jpg
Views: 0
Size:  108.9 KB
Name:  1cc81431.jpg
Views: 0
Size:  113.4 KB
BUT i'm still getting 20*+ degrees above ambient. wtf?
I mean i've got rubber sealing everything off including from the heat shield to the hood plus insulation & aluminum tape everywhere.
Whats the deal?
95naSTA is offline   Reply With Quote
Old 06-28-2005, 08:55 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Could it be because your IAT is on the engine side of the heat barrier, and being hit with radiant heat?
J Wikoff is offline   Reply With Quote
Old 06-28-2005, 09:03 PM   #3
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

Quote:
Originally Posted by jwikoff99
Could it be because your IAT is on the engine side of the heat barrier, and being hit with radiant heat?
Buy Sol'* extender and tos it in the filter?
BonneMeMN is offline   Reply With Quote
Old 06-28-2005, 10:04 PM   #4
Senior Member
True Car Nut

Join Date: Feb 2003
Location: Bloomington-Normal, IL 1997 SE
Posts: 3,734
Thanks: 0
Thanked 0 Times in 0 Posts
macho_mike21 is on a distinguished road
Default

I made my CAI so that the IAT would be inside the heatshield. You dont want that sensor to be hotter than the air that its supposed to read!

You dont need the extender, you could just add on to your heat shield so its a little larger and fits the IAT inside.
macho_mike21 is offline   Reply With Quote
Old 06-28-2005, 11:32 PM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I used some wire and heat shrink tube w/my soldering iron to extend mine.
BillBoost37 is offline   Reply With Quote
Old 06-29-2005, 12:47 AM   #6
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

I found that even moving the IAT into the shrouded area was not enough. I needed to duct (ram) outside air into that area.
Doing that brought the temp to ambient. Without it, it was 20* higher due to radiant heat gain.



Here you can see my IAT sensor at the end of the filter and the ram duct exiting inside the shrouded area.

2000SilverBullet is offline   Reply With Quote
Old 06-29-2005, 12:52 AM   #7
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

I've already made a detachable extension:
Name:  3283298f.jpg
Views: 0
Size:  213.6 KB
And do you really think it makes that much of a difference if i put the sensor in the filter?
I know that the element in the AIT sensor sees more resistance when it'* colder. But if the wires and sensor (not the element in the sensor) are heated, like they may be right next to the heat sheild, it will create more resistance. This would tell the computer it'* actually colder.
But there could be significant heat transfer to the element....
It could really go either way.
Hmmmm. Maybe the radiating heat from the sheild is heating up everything around where the pipe goes through the sheild............(*edit* crap jwikoff99 said this )(So, yeah that could be it)
Hmmmm.
I guess theres nothing left to do other than try it out in the filter...
Now ya got me thinking.
Thanks guys!
95naSTA is offline   Reply With Quote
Old 06-29-2005, 01:04 AM   #8
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
I found that even moving the IAT into the shrouded area was not enough. I needed to duct (ram) outside air into that area.
Doing that brought the temp to ambient. Without it, it was 20* higher due to radiant heat gain.

Here you can see my IAT sensor at the end of the filter and the ram duct exiting inside the shrouded area.
My temps are within 4-5 degrees tops of ambient when i'm on the highway.
It'* the stop and go traffic that'* really killing me.
I've got a ram air duct under my drivers light and all the metal removed between the light and the filter. But. After a semester of fluids i can't see much flow getting to that ram air duct.
I'm probably going to move my charcoal canister and route dryer ducting from the hole above and in front of my fog light up through the charcoal canister hole to the filter. Might help a little. I would also like to header wrap the crossover on the tog'* but i'm a little weary since they already have minor rust....
95naSTA is offline   Reply With Quote
Old 06-29-2005, 01:49 AM   #9
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

Your biggest problem is the cold box not being sealed from the radiator. Close up that gap.
Damemorder is offline   Reply With Quote
Old 06-29-2005, 01:53 AM   #10
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by Damemorder
Your biggest problem is the cold box not being sealed from the radiator. Close up that gap.
Ya think?
Right past that hole is outside air behind the grill.
Are you thinking radiating heat from the side of the radiator?
