Default adjustable modulator Question.

Ok just a quick question before i put it in.




ummm Witch way do i turn it for Firmer



bandit is offline   Reply With Quote
Old 02-04-2007, 05:09 PM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

I believe it'* counterclockwise for firmer, not sure.
Bonneville92V688 is offline   Reply With Quote
Old 02-04-2007, 05:14 PM   #3
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I thought it was clockwise for firmer. But put it in before adjusting it, drive it, and see where you want it to go from there.
J Wikoff is offline   Reply With Quote
Old 02-04-2007, 05:21 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

yeah after doing allot of searching i found a post on it...
There was like only one i found it in

http://www.bonnevilleclub.com/forum/...ator+clockwise
bandit is offline   Reply With Quote
Old 02-04-2007, 06:32 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Ok i replaced mine.

Its better now, i says its faster, firmer shifts then it was before i did my Pan drop that started it to not shift as nice.

you can feel it now and the RPMs drop way quicker now to the next gear






Just a FYI for if someone wants to know where it is and how to change it

In Pic #2 you can see the bolt on the top left, you remove that bolt that holds in the clip and then you twist and pull the old part out.
(makes sure you remove the Vac lines before you pull it out so you dont brake them)

next make sure the old O-Ring is out, then put in the new Modulator

Connect Vac lines and done

I turned mine 3 times Clockwise. it has more witch i may do after more driving.



bandit is offline   Reply With Quote
Old 02-05-2007, 09:43 PM   #6
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Nice pics, thanks!
dillcc is offline   Reply With Quote
Old 02-07-2007, 09:47 PM   #7
Senior Member
Posts like a Northstar

Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road
Default

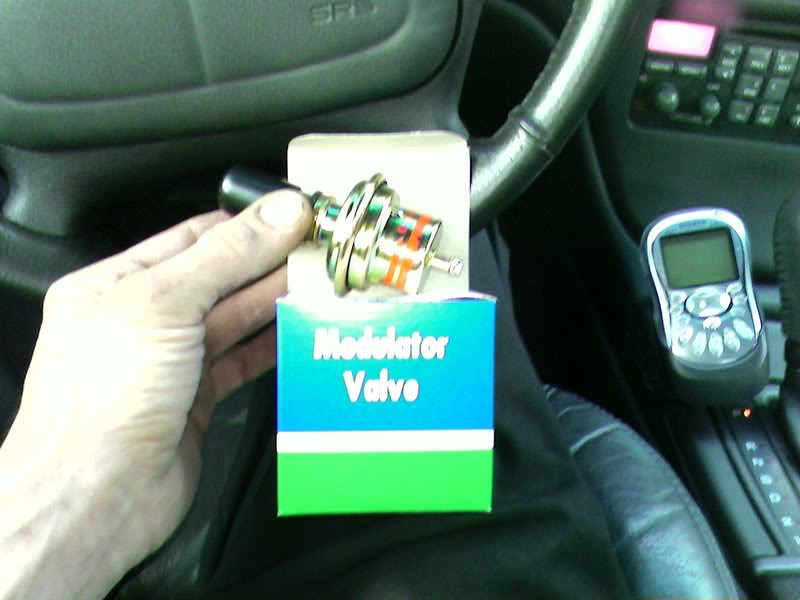

When in Rome (bought one today)
Name:  zj1.jpg
Views: 8
Size:  54.6 KB
PEARL_JAM is offline   Reply With Quote
Old 02-07-2007, 09:49 PM   #8
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Nice

Get it in, you'll like it, do like 3 turns clockwise, see how u like it. then do more if need be. i did a total of 4 i think
i like it now
bandit is offline   Reply With Quote
Old 02-07-2007, 10:23 PM   #9
Senior Member
Posts like a Northstar

Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road
Default

Should I turn it counter-clockwise till it stops, then count 3 turns clockwise, or clockwise 3 turns right out the box?
PEARL_JAM is offline   Reply With Quote
Old 02-07-2007, 11:16 PM   #10
Senior Member
True Car Nut
Thread Starter

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Quote:
Originally Posted by PEARL_JAM
Should I turn it counter-clockwise till it stops, then count 3 turns clockwise, or clockwise 3 turns right out the box?
3 turns clockwise right out of the box, they all should be similar out of the box,
bandit is offline   Reply With Quote
