Default AC Compressor Bypass Pulley too short?

Ill take pics around lunchtime and upload them, still at work awaiting the boss to return lol

I bought one of the Auto Parts AC Compressor Bypass Pulleys, didnt have the 300bux to replace the compressor and the clutches were messing up and felt like it was gonna lock down soon... but after putting it on ive noticed that its short... i guess... the pulley doesnt stick out as far as the compressor did... so the belts running right next to the motor mount bracket... ALMOST touching it... actually under load might be touching...

any way to fix this???
tlsheff is offline   Reply With Quote
Old 04-16-2009, 02:16 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I didn't think they made one for your year. Pics will be key.
BillBoost37 is offline   Reply With Quote
Old 04-16-2009, 03:08 PM   #3
Okie Hokie
Posts like a Camaro
Thread Starter

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

it was listed for 92-99 but prolly technically for the 96-99 series II... it worked... bolted in place... has worked well so far but i have to fix the tensioner this weekend and while the belts were off i was going to straighten that one out too

i was thinking some flat washers or something to just move it out more but i want something solid and reliable so i dont have to worry about it breaking later on down the road lol

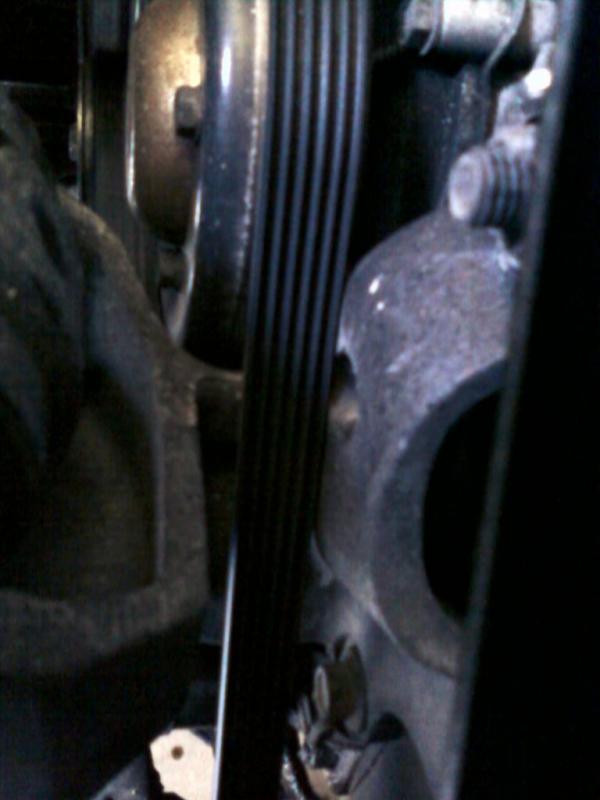

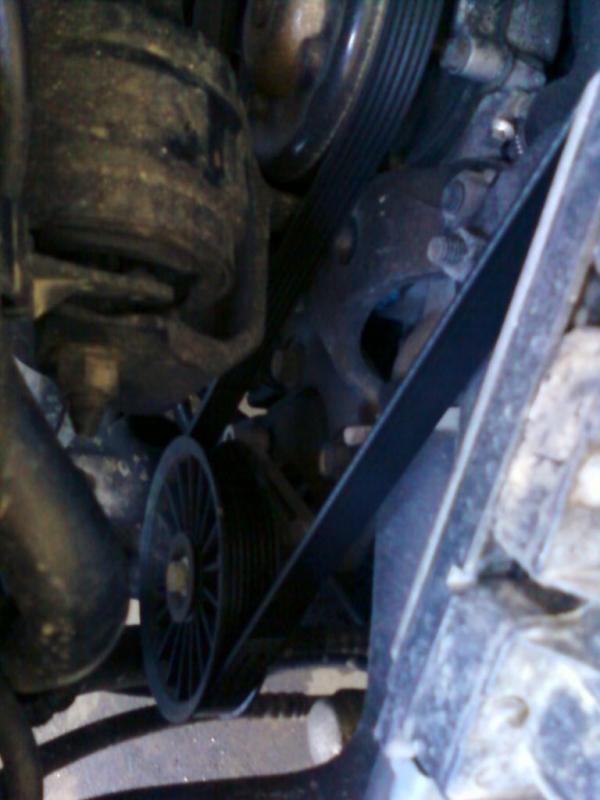

Attached Thumbnails
AC Compressor Bypass Pulley too short?-sspx0388.jpg   AC Compressor Bypass Pulley too short?-sspx0389.jpg   AC Compressor Bypass Pulley too short?-sspx0390.jpg   AC Compressor Bypass Pulley too short?-sspx0391.jpg
tlsheff is offline   Reply With Quote
Old 04-16-2009, 03:30 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looks like you just need to shim it out a bit. Check the mounts on the compressor and compaire them to the bypass.
Danthurs is offline   Reply With Quote
Old 04-16-2009, 06:00 PM   #5
Okie Hokie
Posts like a Camaro
Thread Starter

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Looks like you just need to shim it out a bit. Check the mounts on the compressor and compaire them to the bypass.
i did when i got the compressor off ... theres about 1/2 inch difference *guessing* ... it worked and the belt didnt rub so i put off shimming til later, then forgot... when at idle the motor started surging a lil and i got to looking and the tensioner is bouncing with every surge... and all the pulleys turn smoothly so i think its just the spring going, but that made me remember i need to fix the ac delete pulley too... so ya

what would be the best way to go about shimming it out???
tlsheff is offline   Reply With Quote
Old 04-16-2009, 06:29 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Longer bolts and washers I guess.
Danthurs is offline   Reply With Quote
Old 05-27-2009, 06:42 AM   #7
Member
Posts like a V-Tak

Join Date: Feb 2008
Location: superior wi,
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
streetfreak is on a distinguished road
Default

does that give us some more torque with no compressor?
streetfreak is offline   Reply With Quote
Old 05-27-2009, 08:43 AM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

They say it'* a few extra horses and about 20 or so less pounds.
Danthurs is offline   Reply With Quote
Old 05-27-2009, 09:10 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Not sure if I buy into the HP gain because typically if the compressor isn't on, it'* a pulley like the bypass setup.

There is some nice weight savings though.
BillBoost37 is offline   Reply With Quote
Old 05-27-2009, 09:16 AM   #10
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I looked it up and the total weight of the AC system is 32 pounds. 9 pounds just for the compressor.
