97 Park Avenue to gut or not gut airbox? - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Performance, Brainstorming & Tuning Talk about modifications, or anything else associated with performance enhancements. Have a new idea for performance/reliability? Post it here. No idea is stupid! (please use Detailing and Appearance for cosmetic ideas)

Reply



Thread Tools Search this Thread
Old 01-28-2008, 11:08 PM   #11
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Illinois
Posts: 691
Thanks: 0
Thanked 1 Time in 1 Post
*B2* is on a distinguished road
Default

Quote:
Gutting my air box completely woke the sound up for me.
Airbox whistle or exhaust note?
*B2* is offline   Reply With Quote
Old 01-28-2008, 11:37 PM   #12
Senior Member
Posts like a Camaro

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

Note, and a new found whistle when you hold throttle at a certain position, mainly right before the car shifts which is odd. 5 transmissions do it, so I'm convinced its just from pcm cutting timing and sucking more air.
putertopia is offline   Reply With Quote
Old 01-29-2008, 01:29 AM   #13
Senior Member
Posts like a Northstar

Join Date: Jan 2008
Posts: 513
Thanks: 0
Thanked 0 Times in 0 Posts
erics00ls is on a distinguished road
Default

Quote:
Originally Posted by putertopia
Note, and a new found whistle when you hold throttle at a certain position, mainly right before the car shifts which is odd. 5 transmissions do it, so I'm convinced its just from pcm cutting timing and sucking more air.
If it'* arond 3500RPM, my '95 SLE did it. Also had a 60 transmission.. and it wasn't gutted either (airbox)
erics00ls is offline   Reply With Quote
Old 01-29-2008, 11:26 AM   #14
Senior Member
Posts like a Camaro

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

It'* not really RPM specific... but it does get a bit louder around 3500 RPM
putertopia is offline   Reply With Quote
Old 02-18-2008, 05:01 PM   #15
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2002
Location: Riverton, Wyoming
Posts: 740
Thanks: 0
Thanked 0 Times in 0 Posts
egladman is on a distinguished road
Default

Ok I now have the airbox out of the buick and was wondering how does it come apart? I took it out it one big piece and need to know how to seperate it now.
egladman is offline   Reply With Quote
Old 02-18-2008, 06:30 PM   #16
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

Don't know what yours looks like, but if it is like ours, schroll down this link and see pics I posted.
http://www.bonnevilleclub.com/forum/...408&highlight=
Barry is offline   Reply With Quote
Old 02-18-2008, 07:42 PM   #17
Senior Member
True Car Nut

Join Date: Apr 2004
Posts: 4,816
Thanks: 0
Thanked 0 Times in 0 Posts
GonneVille is on a distinguished road
Default

Quote:
Originally Posted by egladman
Ok I now have the airbox out of the buick and was wondering how does it come apart? I took it out it one big piece and need to know how to seperate it now.
I'll fish mine up from the garage after dinner and post pics of how to take it apart...
GonneVille is offline   Reply With Quote
Old 02-19-2008, 08:28 PM   #18
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Lakeville, MN
Posts: 4,328
Thanks: 0
Thanked 1 Time in 1 Post
fantastic88 is on a distinguished road
Default

My car started to whine like crazy after I gutted the box.
fantastic88 is offline   Reply With Quote
Old 02-19-2008, 10:21 PM   #19
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

thats because its SC... it wont be quite as pronounced on a NA engine, but still will sound better.
Bonnevillan is offline   Reply With Quote
Old 02-19-2008, 11:36 PM   #20
Senior Member
True Car Nut

Join Date: Apr 2004
Posts: 4,816
Thanks: 0
Thanked 0 Times in 0 Posts
GonneVille is on a distinguished road
Default

OK, assuming you have the same airbox as I do...

You need to remove the airbox from the car, as the plenum opens on the bottom. Don't bother disconnecting the battery.

Follow the arrows....

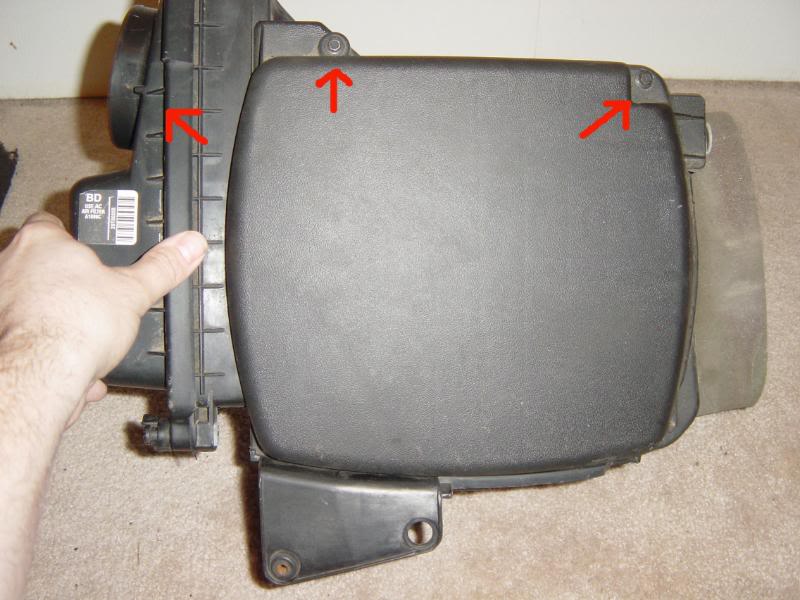

Step 1, Undo the accordion tube from the box, then open the PCM compartment by removing the top two screws. The lid will hinge forward on tabs at the front. Set it aside.

Name:  DSC00080.jpg
Views: 8
Size:  64.1 KB

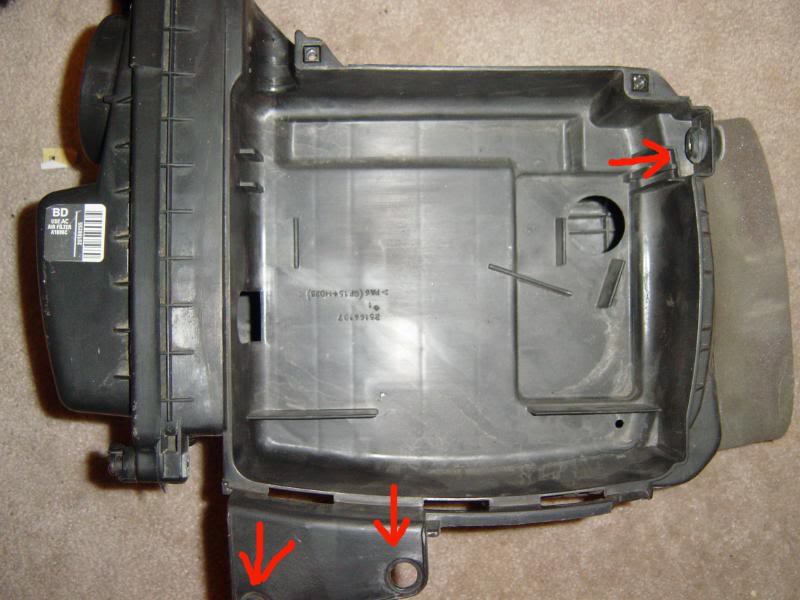

Step 2, remove the PCM. It will simply lift out, then set it aside. DO NOT REMOVE THE CABLES FROM THE PCM.
Next, unscrew the 2 screws the core support mount, and the bolt at the top right, insisde the PCM compartment. Lift out the box.

Name:  DSC00081.jpg
Views: 9
Size:  61.4 KB

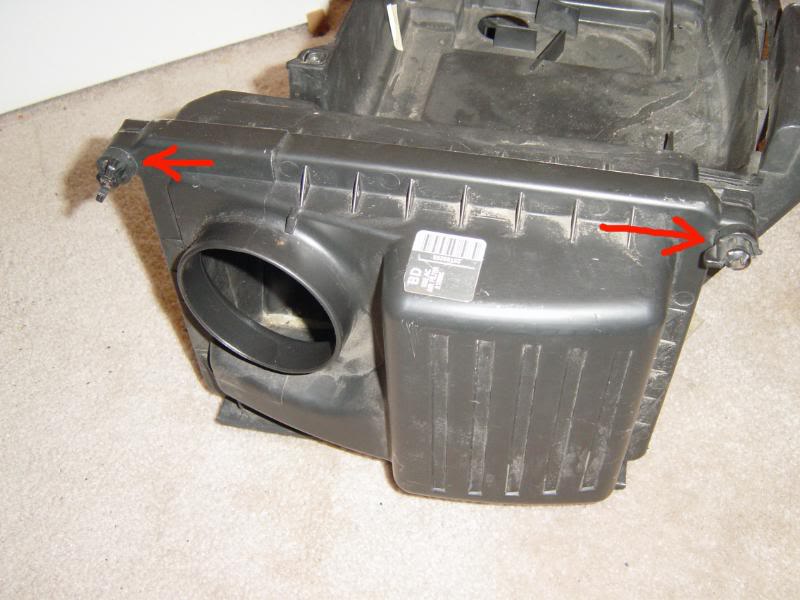

Step 3, undo the filter wing-bolts, and remove the cover, and the filter inside.

Name:  DSC00072.jpg
Views: 8
Size:  60.0 KB

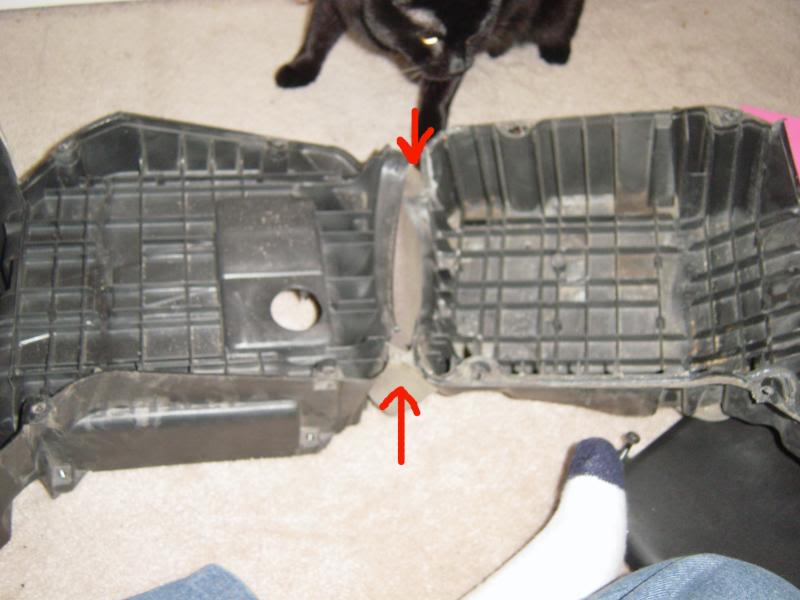

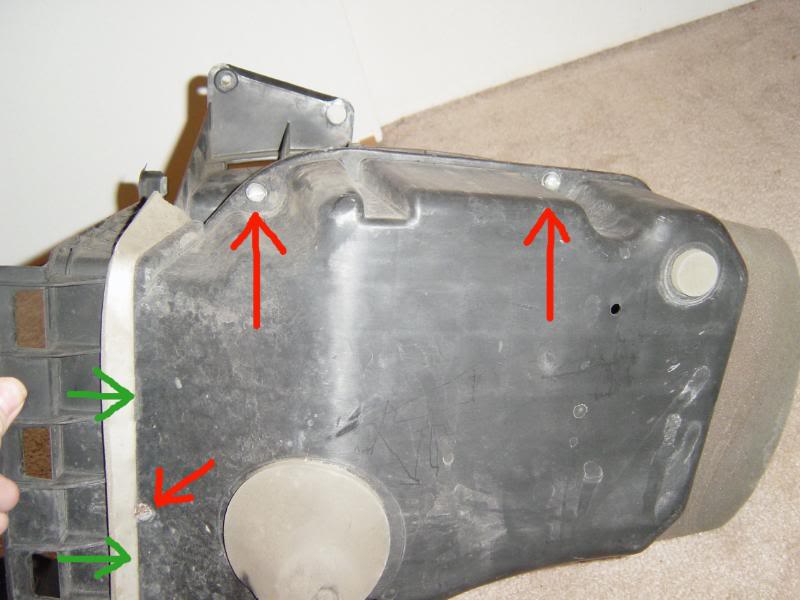

Step 4, flip the box over and undo the five bolts that hold it together(red arrows), then pull the box open from the green arrows. Make sure to open it from the filter side, as the other end has a foam ring that attaches to both halves. Also, the foam seal at the filter end is attached to the filter side of the two halves, make sure not to pull it off with the lower half.


Name:  DSC00076.jpg
Views: 8
Size:  52.1 KB
Name:  DSC00078.jpg
Views: 9
Size:  50.7 KB

Step 5, there will be two white plastic baffles inside, simply pull them out.

Step 6, reverse the disassembly process to put the box back together. Make sure that the strip of foam at the filter side of the bottom is properly in place.

Step 7, enjoy your new-found whine.
GonneVille is offline   Reply With Quote
