Default 96-99 Transmission Mount (Updated)

I've been toying around with some ideas since putting on the SLP headers. Problem with the SLP'* is that the #3 cylinder tube comes way down and make it necessary (at least for me) to remove the strut part and bracket of the front transmission mount.

This leaves only the rubber, which dies quickly. (Especially under harsh conditions).

I thought over how the 00+ guys do it with hockey pucks and thought.. this may work for me too. A bit of cutting, grinding and a little more work to go. Here'* what I have so far. (Still need to grind more and then weld) Since I have the big rubber part already, I'm not concerned with overall thickness of hockey puck. My concern is more of a solid mounting for torquing backwards.


Brand new mount from Napa, excess glue was there when I got it.

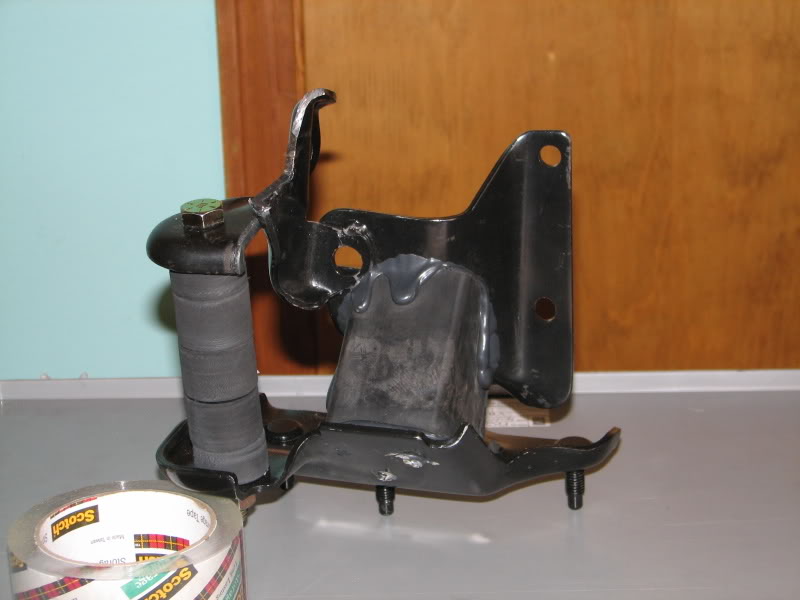

Name:  IMG_1322.jpg
Views: 9
Size:  47.3 KB

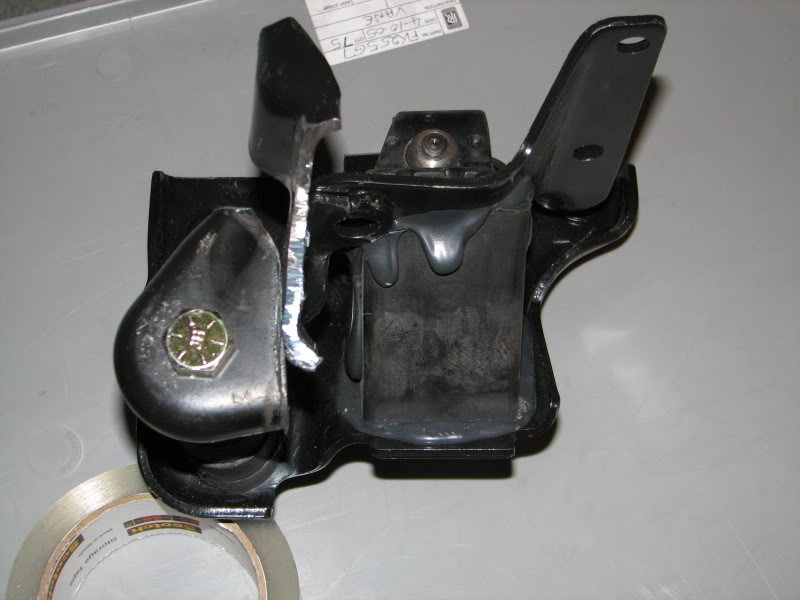

Name:  IMG_1321.jpg
Views: 9
Size:  51.3 KB

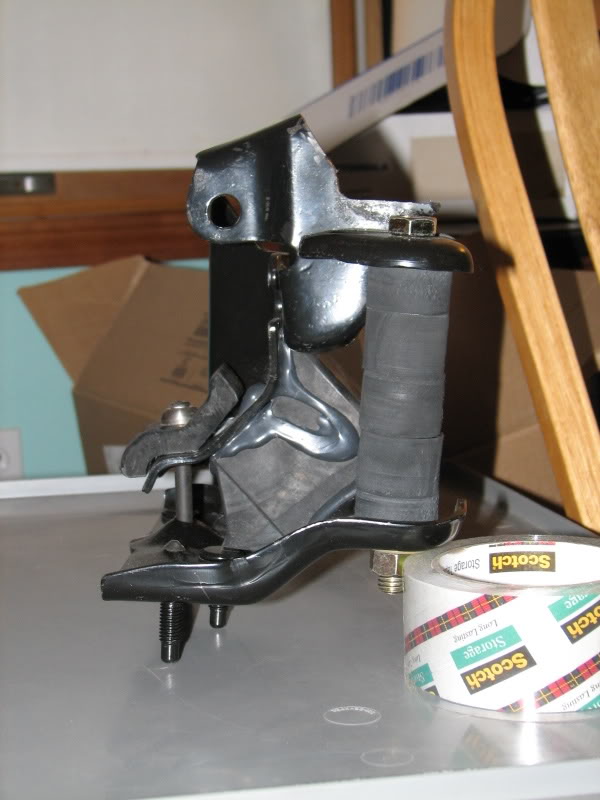

Name:  IMG_1320.jpg
Views: 10
Size:  61.7 KB

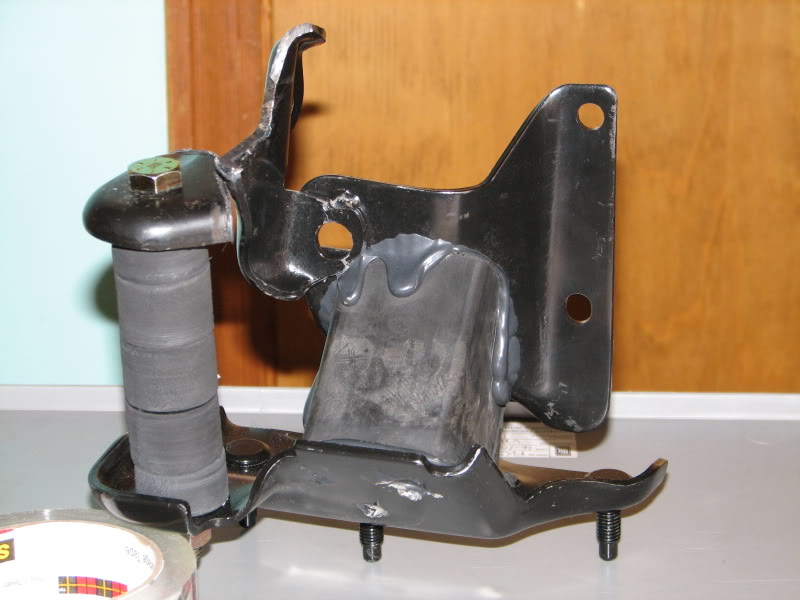

Name:  IMG_1319.jpg
Views: 7
Size:  58.5 KB
BillBoost37 is offline   Reply With Quote
Old 02-05-2007, 11:05 PM   #2
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

Good, But. I'd try to get a bit of shock absorption just under the head of the bolt if you're going to stay with that setup.

I think if you simply strengthened the center pin the problem of losing the strut is moot. The strut is simply to lower the shock loads on the center pin, Which as you can see is some sort of "press-on" style. Every one of the mounts I've broken has had that center pin broken for about a week before the rubber popped.
Damemorder is offline   Reply With Quote
Old 02-05-2007, 11:06 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Ahhh Master Dame..... I like it! Off to make another Absorber...lol
BillBoost37 is offline   Reply With Quote
Old 02-07-2007, 01:43 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Bump, Looking for opinons, ideas and viewpoints on this puppy.

The pin Dame is talking about is in a slightly different location. With it still in place, w/o the strut..there'* simply too much movement.
BillBoost37 is offline   Reply With Quote
Old 02-07-2007, 02:01 PM   #5
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

I was thinking, maybe put a small triangular brace under the piece you cut off to strengthen it up?
95naSTA is offline   Reply With Quote
Old 02-07-2007, 02:09 PM   #6
Senior Member
Posts like a Northstar

Join Date: Jun 2005
Location: Yulee , FL ___ SEBF Survivor
Posts: 700
Thanks: 0
Thanked 0 Times in 0 Posts
ChaseSmith is on a distinguished road
Default

I like the idea, the rubber was seperated from the metal on both of my cars. I wonder if that would adversely affect anything, because I reinstalled it the way it was. Boosty I like where you are going with the idea.
ChaseSmith is offline   Reply With Quote
Old 02-07-2007, 06:42 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I too had concerns about it being solid. Although.. our newer gens are doing this with solid mounts. (And where I got the idea.)

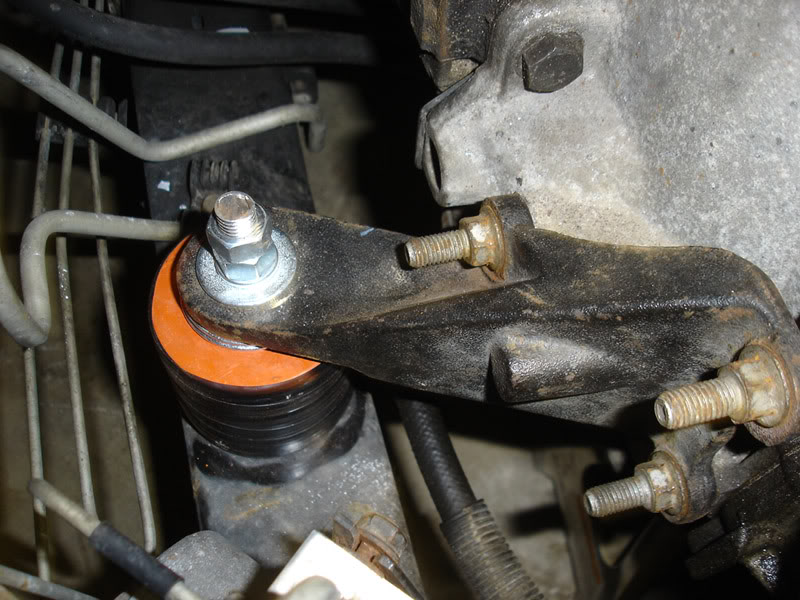

Name:  DSC09174.jpg
Views: 6
Size:  105.6 KB
Picture is from Harofreak'* install. Metal lower bracket, hockey pucks and metal upper bracket. All solid.

Knowing that, I'm less fearful and do plan to add as much support as possible, like mentioned by 95NASTA.

Almost thinking about trying to get a solid bracket from an 00 to use on the top from the trans.
BillBoost37 is offline   Reply With Quote
Old 02-08-2007, 10:02 AM   #8
Member
Posts like a V-Tak

Join Date: Feb 2007
Location: Saint Amant, LA Southern tip of Hell where it floods.
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
68w46 is on a distinguished road
Default

From what I've been reading I'll assume no aftermarket resources make poly mounts for our cars. My 96 L36 is stock with 138K and I need to replace some for the second time.
68w46 is offline   Reply With Quote
Old 02-08-2007, 10:21 PM   #9
Senior Member
Posts like a Northstar

Join Date: Jun 2005
Location: Yulee , FL ___ SEBF Survivor
Posts: 700
Thanks: 0
Thanked 0 Times in 0 Posts
ChaseSmith is on a distinguished road
Default

Could you use a 00+ tranny mount on a 96-99?? I wonder if the tranny bracket would center over the subframe on the 96-99?? I would rather have a solid mount than the glued together metal and rubber mount, if it cleared the headers.
ChaseSmith is offline   Reply With Quote
Old 02-09-2007, 08:32 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I've actually started to source one.
