Default Wiring Issues

About a year ago, I had my motor replaced in my car. Everything is going good, however, there is a wire running from the engine to the fuse box and is connected to the AC/ HEATER fuse. Everything works just fine that is until I turn on the AC. As soon as the fan for the AC comes on the fuse blows and my main fan that keeps the engine cool (I guess) goes off, which means I have to replace the fuse. So I just don't use the AC at all and the fuse never blows. I really need help with this issue please.
ShakemiaTowns is offline   Reply With Quote
Old 04-26-2015, 12:57 AM   #2
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,580
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

If you idle/allow the car to get hot, does the fan still work to cool the engine?
Ever seen the fan go high speed, without blowing the fuse?
I'm wondering if it is a fan problem or high speed relay, could be an exposed wire touching metal, causing a short somewhere?
Soft Ride is offline   Reply With Quote
Old 04-26-2015, 01:19 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2015
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
ShakemiaTowns is on a distinguished road
Default

The fan works just fine. Its just when I turn on the AC the AC/ HEATER fuse blows and the main fan shuts off. I think it has something to do with this wire that I believe is connected to the main fan which runs to the AC/ HEATER fuse.
ShakemiaTowns is offline   Reply With Quote
Old 04-26-2015, 01:43 AM   #4
Senior Member
Posts like a Supercharger

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

I've heard of a compressor clutch with a short causing the fuse to blow.
John01 is offline   Reply With Quote
Old 04-26-2015, 02:04 AM   #5
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,580
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

When you turn on the A/C it commands the engine cooling fan to run at high speed.
At the same time the blower motor interior fan can go to full high speed as well.
That is quite the draw. What is the Amp rating of the fuse that is blowing?
Can you check your owners manual to confirm it is the right Amp fuse for application?
Soft Ride is offline   Reply With Quote
Old 04-26-2015, 03:20 AM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2015
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
ShakemiaTowns is on a distinguished road
Default

It has a number 10 on it, and I looked in the manual and its the right one for the AC/HEATER.
ShakemiaTowns is offline   Reply With Quote
Old 04-26-2015, 09:29 AM   #7
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

WTF, by the way, please don't start multiple threads with the same question.
Mike is offline   Reply With Quote
Old 04-26-2015, 12:11 PM   #8
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,580
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Ok I just downloaded the owners manual for a 2002 Oldsmobile Alero.
There are 3 fuse panels. #1-under the hood #2 Interior drivers side #3 passenger side.
Using your manual can you tell us which fuse block and what number fuse it is.
I do not see anything specifically listed as the AC/ HEATER fuse.
Soft Ride is offline   Reply With Quote
Old 04-26-2015, 02:36 PM   #9
Senior Member
Posts like a Supercharger

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

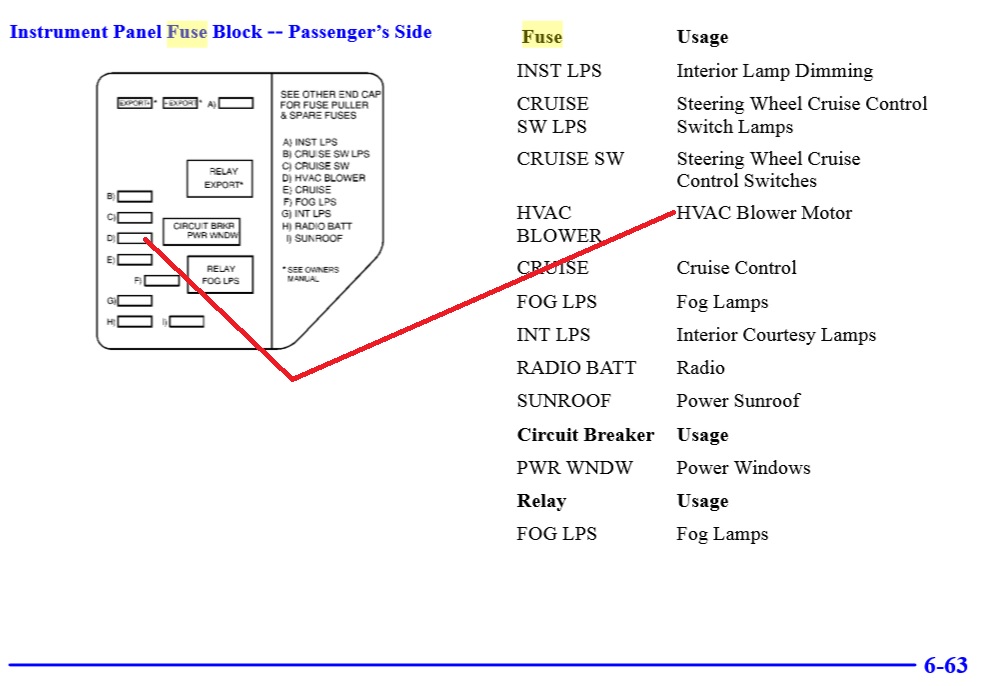

Here'* the location of the HVAC Blower Motor fuse. There'* another for the HVAC Head in the driver'* side panel.
Attached Thumbnails
Wiring Issues-fuse.jpg

Last edited by John01; 04-26-2015 at 02:38 PM.
John01 is offline   Reply With Quote
Old 04-26-2015, 04:13 PM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2015
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
ShakemiaTowns is on a distinguished road
Default

This wire is running to minifuse number 46 which under the fuse box under the hood is labeled as HTR-A/C (10A). This is the fuse that blows when the AC is turned on and also causes the main fan to turn and does not come on until the minifuse is replaced. So I believed that wire is running from the main fan to this minifuse, in which I think it should not.
ShakemiaTowns is offline   Reply With Quote
