Default engine removal

toady iam hopefully going to get the engineout of my 96olds LSS,now my question is in the write up on engine removal it says you need to support the trans. i am pulling it from the top and leaing the trans in place, i am using a chain lift to pull the engine so once its out i need to back up the car so i can lower the engine, so how do i support it ? do i really need to ?

thanks in advance
oldsmobile99 is offline   Reply With Quote
Old 01-06-2011, 02:10 PM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

I would say as long as the axles and rear mount are still in place you should be okay...I would still put a chain or strap from the bell housing up to the body somewheres...
sseidriver97 is offline   Reply With Quote
Old 01-06-2011, 02:20 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

the LSS being a 96 is an H body between 96-99, which is good.

Those years have a dogbone holding the trans up on the passenger side and two mounts front and rear on the driver side. You have no need to support the trans from anyplace in your year.

Beauty of those is that when you pull then engine the trans sits there perfectly level and able to have the car moved around w/o any worries or issues.
BillBoost37 is offline   Reply With Quote
Old 01-06-2011, 02:26 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

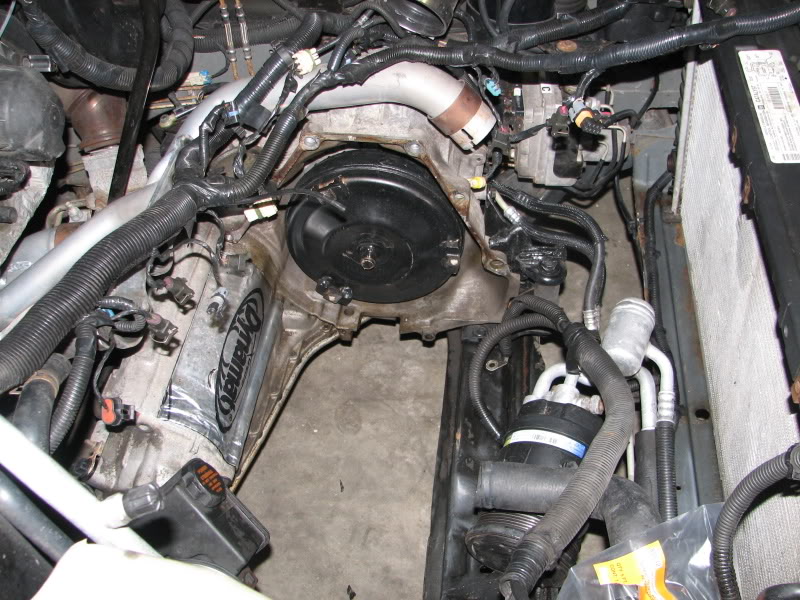

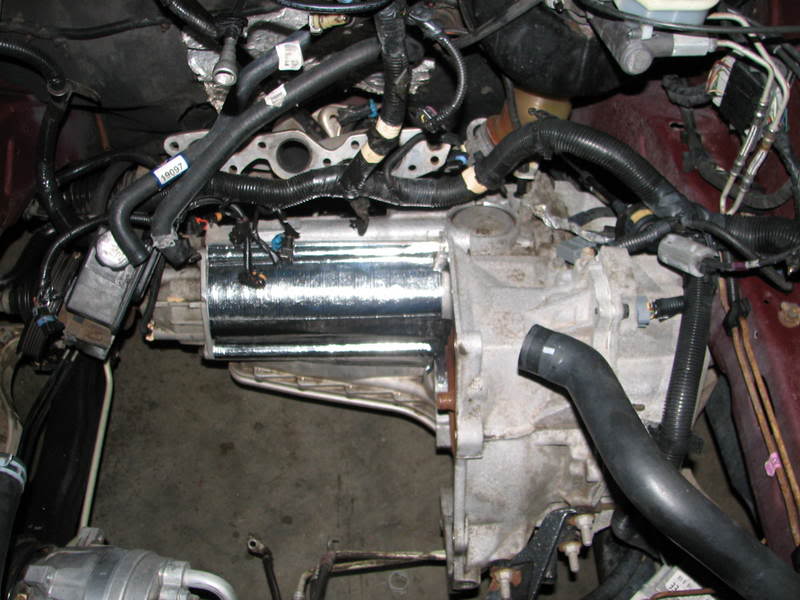

Here'* a couple pics to show how nice it sits.

Name:  IMG_1617.jpg
Views: 4
Size:  130.0 KB

Name:  IMG_2437.jpg
Views: 15
Size:  72.9 KB
BillBoost37 is offline   Reply With Quote
Old 01-06-2011, 02:46 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

oldsmobile99's Avatar

Join Date: Jan 2010
Location: Murray, Ky
Posts: 349
Thanks: 0
Thanked 0 Times in 0 Posts
oldsmobile99 is on a distinguished road
Default

okay great, thanks you very much guys
oldsmobile99 is offline   Reply With Quote
Old 01-06-2011, 02:53 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

dont' forget the backwards bolt...
BillBoost37 is offline   Reply With Quote
Old 01-06-2011, 03:12 PM   #7
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

yeah i broke alot of stuff trying to figure why the trans wouldnt seperate in my ssei...Then i rememberd the ole backwards bolt lol
sseidriver97 is offline   Reply With Quote
Old 01-06-2011, 03:21 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

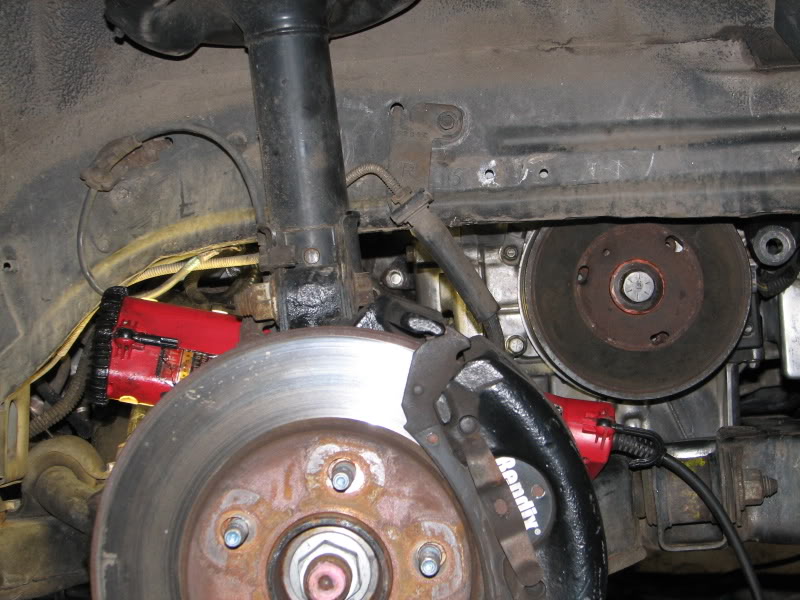

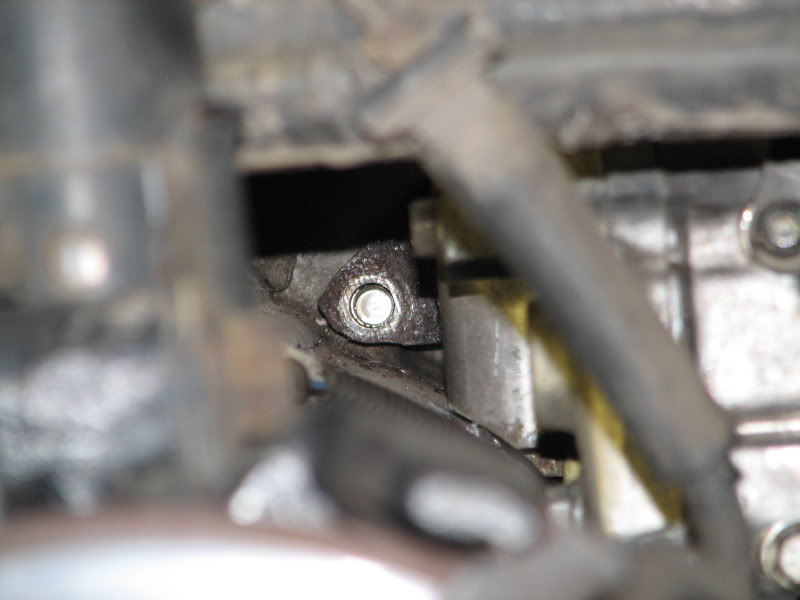

Just for the heck of it and we can't post it too much.. Here'* the backwards bolt hole. Look for the silver dot, that'* the bolt hole.

Name:  IMG_1673.jpg
Views: 5
Size:  39.4 KB

Name:  IMG_1674.jpg
Views: 4
Size:  58.7 KB

Name:  IMG_1675.jpg
Views: 4
Size:  95.0 KB

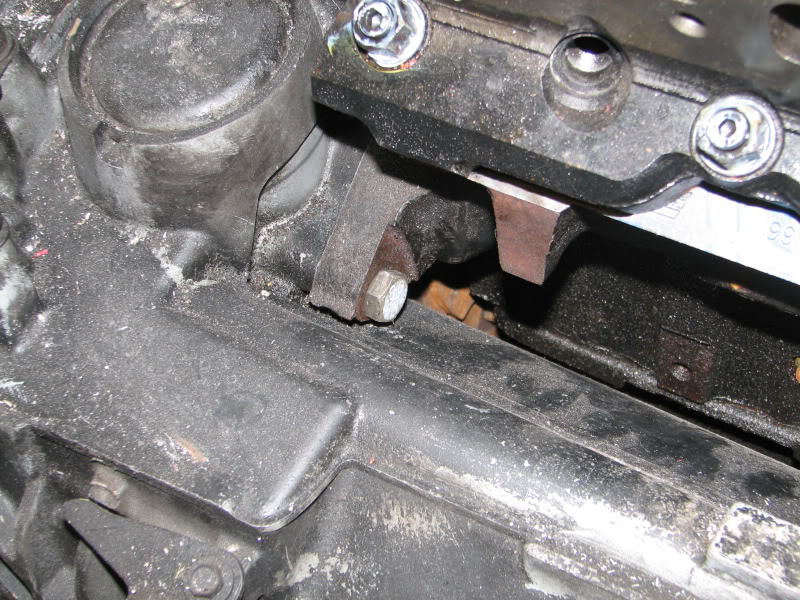

Here'* a different shot..drive train out of car.
Name:  IMG_5449.jpg
Views: 4
Size:  163.4 KB

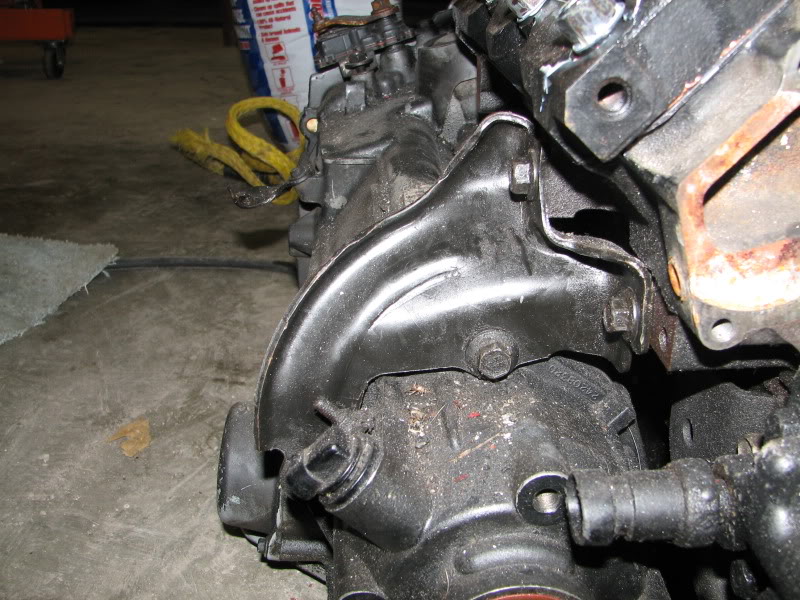

And then here'* a shot at the diff to engine bracket


Name:  IMG_5451.jpg
Views: 8
Size:  130.6 KB
BillBoost37 is offline   Reply With Quote
Old 01-06-2011, 04:14 PM   #9
Senior Member
Posts like a Turbo
Thread Starter

oldsmobile99's Avatar

Join Date: Jan 2010
Location: Murray, Ky
Posts: 349
Thanks: 0
Thanked 0 Times in 0 Posts
oldsmobile99 is on a distinguished road
Default

wow im really glad ya'll told me that, you saved me a lot of time, thanks again
oldsmobile99 is offline   Reply With Quote
Old 01-06-2011, 06:45 PM   #10
Senior Member
Posts like a Turbo
Thread Starter

oldsmobile99's Avatar

Join Date: Jan 2010
Location: Murray, Ky
Posts: 349
Thanks: 0
Thanked 0 Times in 0 Posts
oldsmobile99 is on a distinguished road
Default

okay well ive got all the bolts out everything disconected, ive doublechecked. but where the block and tranny meet it does not want to come apart , are there any tricks ?

thanks
oldsmobile99 is offline   Reply With Quote
