I don't know how much the key was (my son got it) but i don't think it was too much.

Can someone help me identify these boxes? I bought a vats bypass chip that hooks into the blue wire comming from the BCM going to the PCM.
Attached Thumbnails
99 88 ignition switch replacment-box1.jpg   99 88 ignition switch replacment-box2.jpg   99 88 ignition switch replacment-box3.jpg   99 88 ignition switch replacment-box4a.jpg
fheckro is offline   Reply With Quote
Old 01-02-2011, 09:41 PM   #12
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2010
Location: SC
Posts: 22
Thanks: 0
Thanked 0 Times in 0 Posts
fheckro is on a distinguished road
Default

that should read " between the anti theft module and the BCM"
fheckro is offline   Reply With Quote
Old 01-03-2011, 09:06 PM   #13
Member
Posts like a V-Tak

99bonnefan's Avatar

Join Date: Sep 2009
Posts: 61
Thanks: 0
Thanked 0 Times in 0 Posts
99bonnefan is on a distinguished road
Default

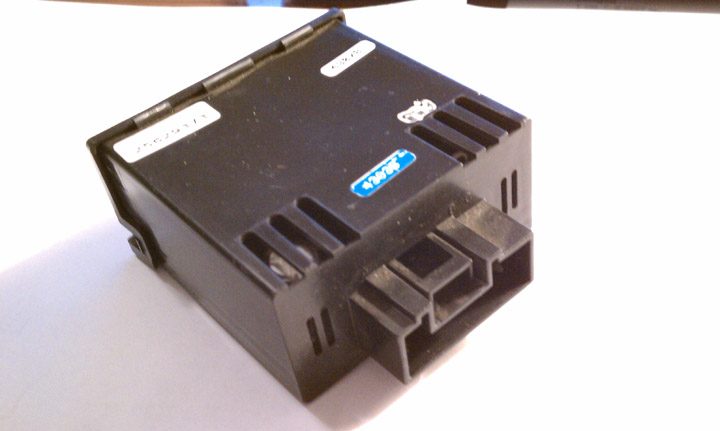

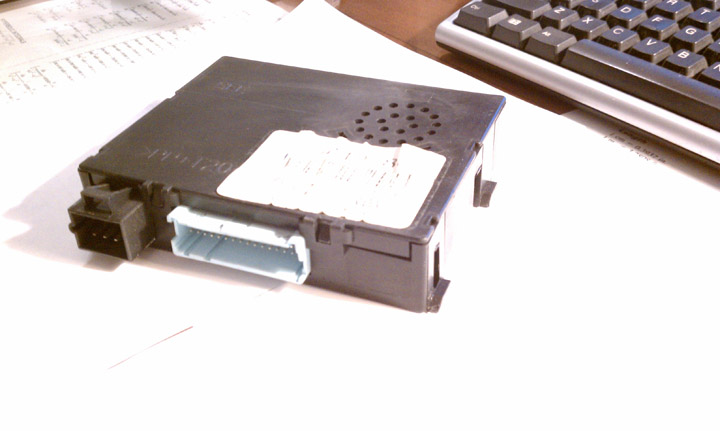

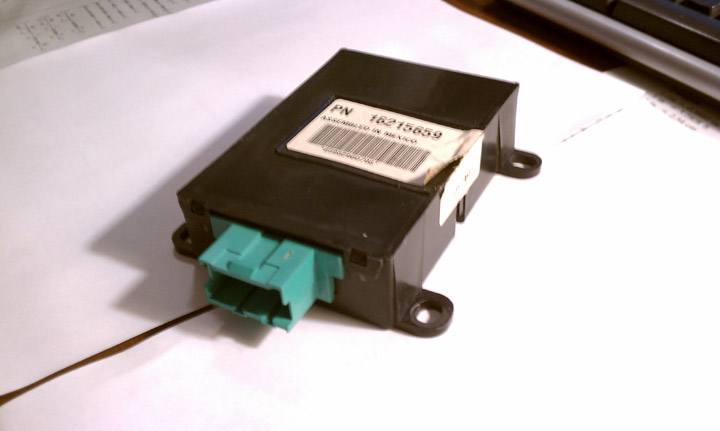

1st one looks like the bcm, 2nd looks like vats module, 3rd looks like keyless entry module, 4th looks like the interior lamp control module. These are based on connector end views from my 1999 fsm. Now I remember why I stopped working on regular cars lol.
99bonnefan is offline   Reply With Quote
Old 01-03-2011, 10:22 PM   #14
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2010
Location: SC
Posts: 22
Thanks: 0
Thanked 0 Times in 0 Posts
fheckro is on a distinguished road
Default

Thanks
Fred
fheckro is offline   Reply With Quote
Old 01-25-2011, 05:57 PM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2010
Location: SC
Posts: 22
Thanks: 0
Thanked 0 Times in 0 Posts
fheckro is on a distinguished road
Default

Problem solved. It was not the VATS system after all, but rather the electrical switch itself. not the key part but the switch located down under the dash mounted to the top of the steering column tube. It is actuated/positioned by the key by a long rod. It was wore slap out and it just didn't make contact in the start position.
A major indicator was the fact that there were no "idiot" lights showing up on the dash with the key in the "run" position. After replacing the switch all lights illuminate; check engine, oil, battery, ect. when the key is turned to the "run" position.

Thanks everyone for the help
fheckro is offline   Reply With Quote
Old 01-25-2011, 07:09 PM   #16
Member
Posts like a V-Tak

99bonnefan's Avatar

Join Date: Sep 2009
Posts: 61
Thanks: 0
Thanked 0 Times in 0 Posts
99bonnefan is on a distinguished road
Default

Thx for posting the follow up... so many others dont.
