Default oil cooler lines

I am replacing the oil cooler lines on my 1992 Chevy truck. I bought new ones from Chevy dealership and they were wrong, twice. Finally after some research the parts found a service bulletin on how to reroute oil cooler lines. GM deletes them after 10 yrs so he couldn't find it, but the bulletin # is EB01-291 I can't find it anywhere does anybody have any suggestions on where to look. thanks
92chev is offline   Reply With Quote
Old 04-29-2014, 08:59 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

alot of guys have issues with leaks and stuff and go and get the filter adapter off a non cooler truck and "delete" it
jwfirebird is offline   Reply With Quote
Old 04-29-2014, 12:39 PM   #3
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Quote:
Originally Posted by jwfirebird View Post
alot of guys have issues with leaks and stuff and go and get the filter adapter off a non cooler truck and "delete" it
Agree

But keep in mind if your pull a loaded trailer alot, it would be a good idea to fix the lines. Helps keep the engine cooler.

Last edited by chevy82; 04-29-2014 at 12:40 PM.
chevy82 is offline   Reply With Quote
Old 04-29-2014, 06:00 PM   #4
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
92chev is on a distinguished road
Default

The oil cooler lines come off the side of the block, not off of oil filter housing. So no need to change that. And I already bought the lines I just wanted to see bulletin to make sure these new lines were the right ones since they have different bends. can still trade them in for right ones of they're not all greasy and out of packaging They seem to be to short when compared to old lines. Thanks for ideas if any more please post
92chev is offline   Reply With Quote
Old 04-29-2014, 10:39 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,648
Thanked 1,000 Times in 776 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Oh, if your up to suggestions, then I say get rid of that OEM crap and go big. Well, kinda big...

http://www.summitracing.com/parts/sum-g4985-1/overview/

and you will need this adapter...(if you have a 350)

http://www.summitracing.com/search/p...rder=Ascending

and might as well get a 1/2" heavy duty cooler...
http://www.summitracing.com/parts/der-15831/overview/

I have all those installed in my truck. The filter adapter gives you the ability to remote install a BIGGER oil filter and with the cooler inline, it extends the life of your oil.
Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
Soft Ride (04-30-2014)
Old 04-30-2014, 07:47 AM   #6
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you would have to live in one of the southern most states and be hauling over 6k for it to matter. i had a tbi 350 with no oil cooler, factory f44 heavy duty. i have a 6500lb camper i towed all the time, got in in fredricksburg, ma and towed it home on a 90deg day through all the hills of pa rt 15 and didnt have to stop once, the temp gauge moved off 200 only once on a hill i was in second and third for about 3 or 4 miles
jwfirebird is offline   Reply With Quote
Old 04-30-2014, 04:45 PM   #7
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

I sort of remember the updated cooler lines GM came out with. I know I installed a ton of them on the 4.3 and 5.7 engines. I don't have the bulletin your looking for but if I remember correctly you need to remove the upper fan shroud and snake the lines around the steering box. If i remember correctly they just added more hard line and less rubber hose to reduce the potential for leaking. I'm sure once you get in there the lines will be pretty self explanatory.
75 racer is offline   Reply With Quote
Old 04-30-2014, 08:16 PM   #8
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

Here is how they are routed on my 91 and I remember using GM lines when I replaced them back in 07 or so.

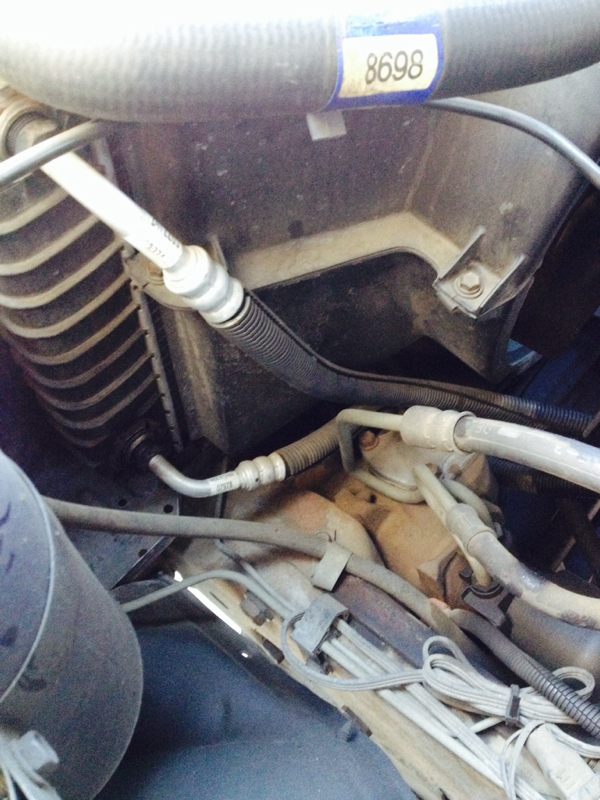

oil cooler lines-image-4078051012.jpg

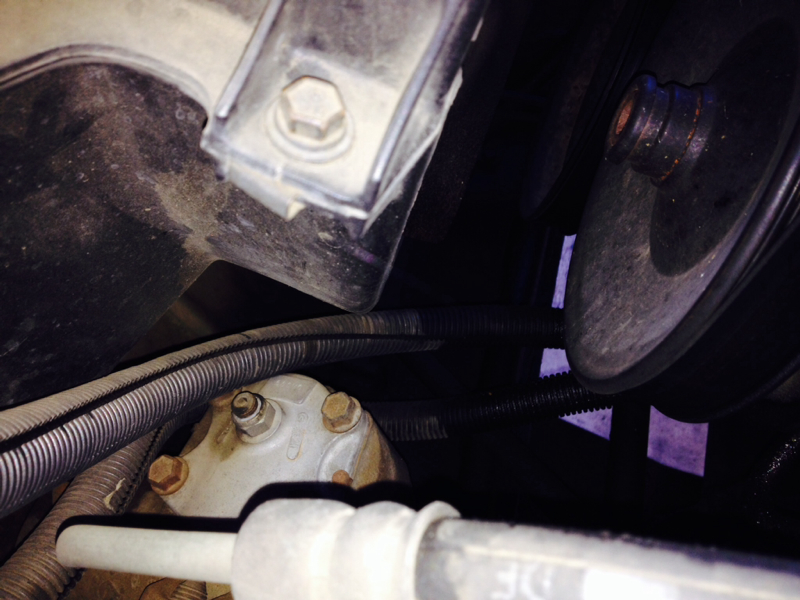

oil cooler lines-image-3630089056.jpg

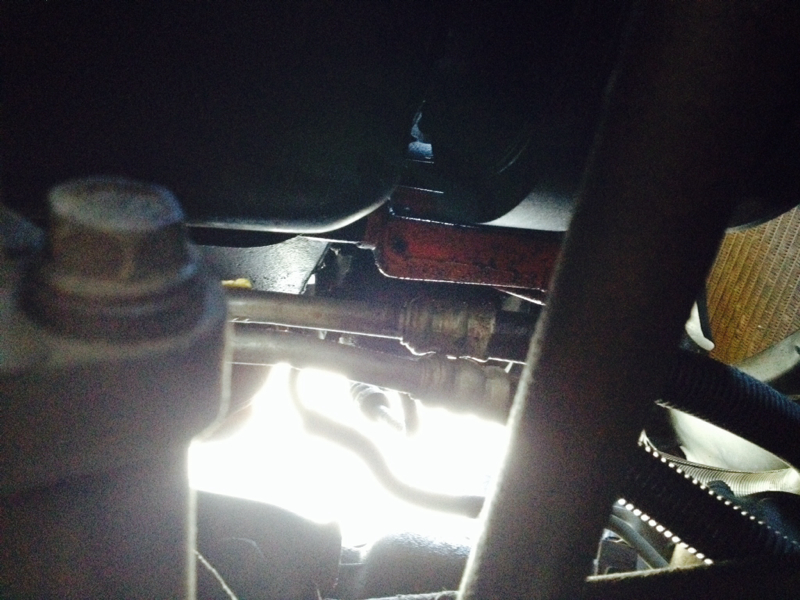

oil cooler lines-image-884558055.jpg

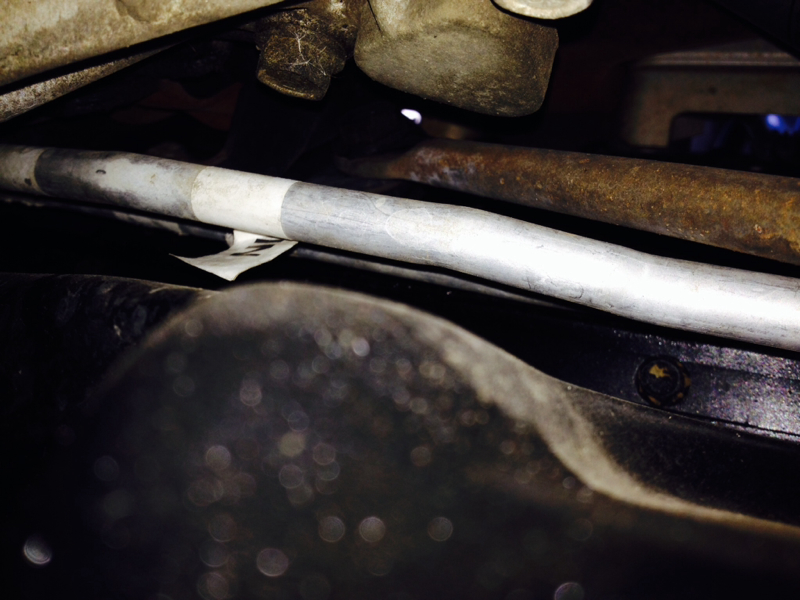

oil cooler lines-image-2243444327.jpg
Attached Thumbnails

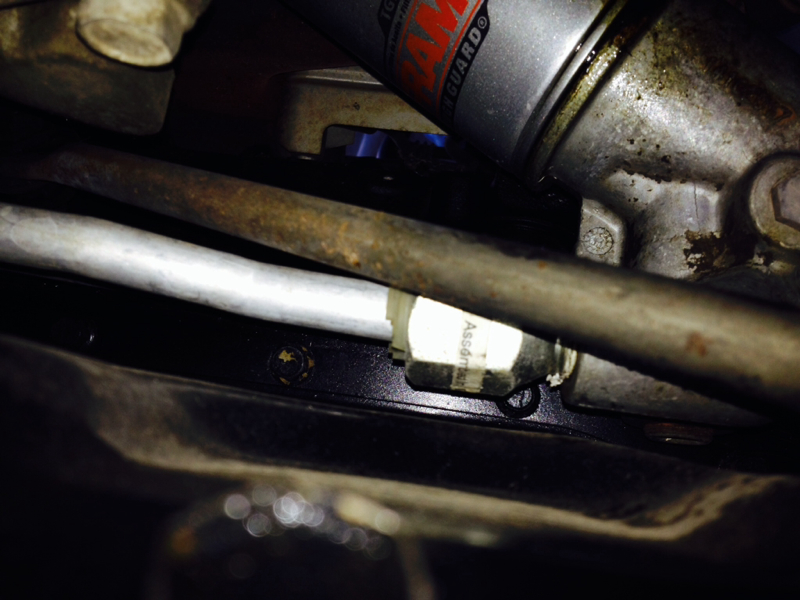

oil cooler lines-image-650893464.jpg
75 racer is offline   Reply With Quote
