Default DRL not working

The DRL in my 99 Yukon are not working, the indicator light on the dash is lit. What might it be? Thanks
woody367 is offline   Reply With Quote
Old 11-07-2013, 03:22 AM   #2
Senior Member
Posts like a Supercharger

viniepooh's Avatar

Join Date: Dec 2010
Location: MIchigan
Posts: 177
Thanks: 0
Thanked 1 Time in 1 Post
viniepooh is on a distinguished road
Default

DRL daytime running lights? the dash should have a little sensor popping out of it somewhere in near the windshield or sometimes its in the rear view mirror. did u checked it?
viniepooh is offline   Reply With Quote
Old 11-07-2013, 09:11 AM   #3
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

The DRL system will make your headlamps come on at a reduced brightness when:
  • the ignition is on,
  • the headlamp switch is off,
  • the parking brake is released and
  • it is bright enough outside and the automatic headlamps are off.
When the DRL are on, only your headlamps will be on. The taillamps, sidemarker and other lamps won’t be on. Your instrument panel won’t be lit up either. When it begins to get dark, your DRL will turn off. Your headlamps will come on automatically. When it begins to get bright, the regular lamps will go off, and your headlamps will change to the reduced brightness of DRL. To idle your vehicle with the DRL off, set the parking brake. The DRL will stay off until you release the parking brake.



  1. Check to see all the conditions for turning on the DRL'* are met (ignition on, headlamp switch off, park brake released, bright outside, and automatic headlights are off.
  2. Check the outside of the vehicle to see if the headlights are lit (when all the above conditions are met). Need to know if the DRL system is malfunctioning or it is just the DRL indicator light burnt out.
If none of the above leads to a solution, let us know and we will think about next steps.
2kg4u is offline   Reply With Quote
Old 11-07-2013, 09:46 AM   #4
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Check fuse 15 in the IP fuse panel.
2kg4u is offline   Reply With Quote
Old 11-07-2013, 07:52 PM   #5
Junior Member
Thread Starter

Join Date: Nov 2013
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
woody367 is on a distinguished road
Default

Fuse is good, there is no sensor on the dash this year does not have auto lights. Was told the is a relay under the dash somewhere that goes bad?
woody367 is offline   Reply With Quote
Old 11-07-2013, 08:11 PM   #6
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

drawing calls it the conv center. i think thats the one under the hood
jwfirebird is offline   Reply With Quote
Old 11-11-2013, 05:41 PM   #7
Junior Member
Thread Starter

Join Date: Nov 2013
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
woody367 is on a distinguished road
Default

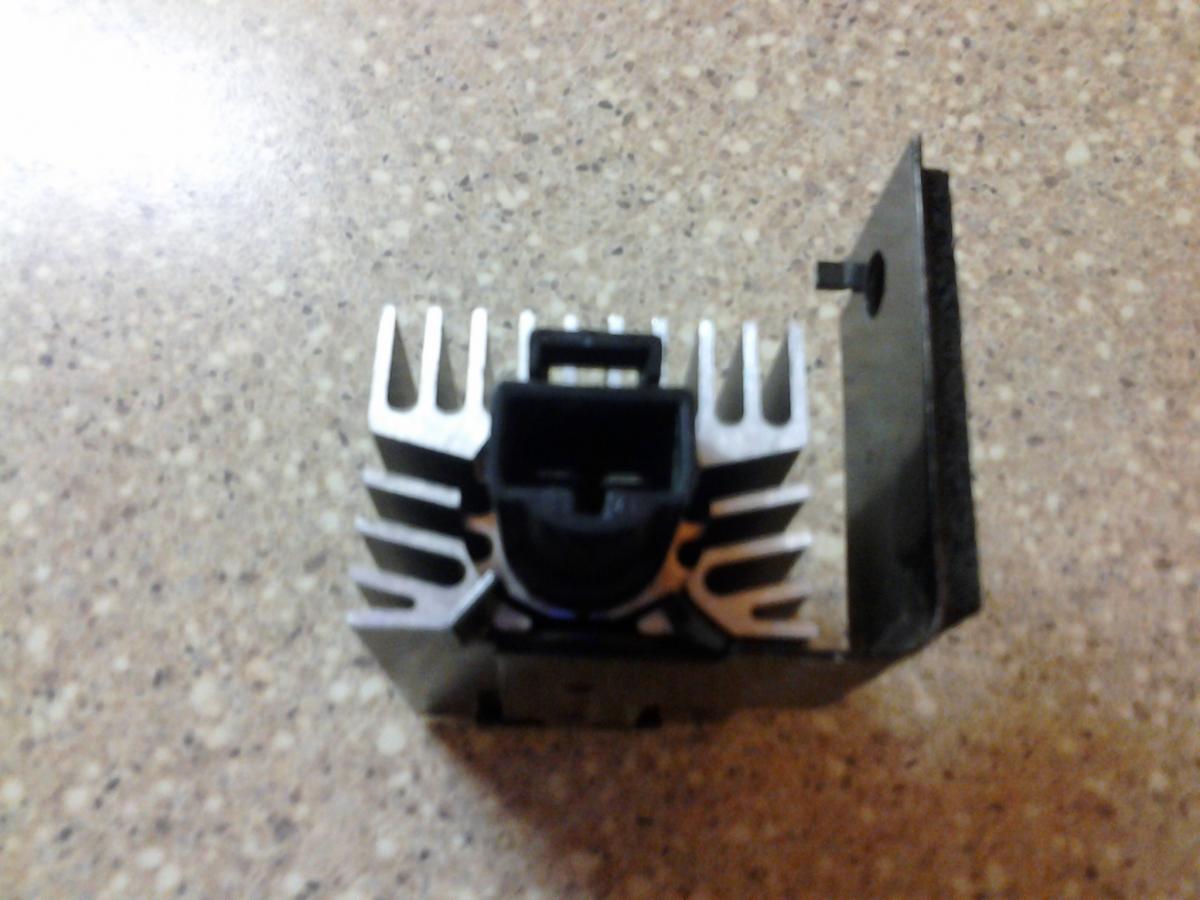

Found the part that was bad. It is under the dash and looks like a big heat sink. Not sure what its call or the part# if someone can help. I am attaching a photo. If you bang it it works, chacked the conections and all is ok so am guessing it is going bad.
Attached Thumbnails
DRL not working-drl1.jpg   DRL not working-drl2.jpg
woody367 is offline   Reply With Quote
Old 11-11-2013, 07:57 PM   #8
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

is there one orange and one yellow wire on it? on the diagram there is a module but it has 8 inputs. there is a diode just called diode 203 though that would only have two pins
jwfirebird is offline   Reply With Quote
Old 11-11-2013, 08:54 PM   #9
Junior Member
Thread Starter

Join Date: Nov 2013
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
woody367 is on a distinguished road
Default

It is just 2 pins, not sure of wire color I took it out and will not have truck back till weeks end. I do have the part on my desk.
woody367 is offline   Reply With Quote
Old 11-12-2013, 07:51 AM   #10
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

see if there is a gm part # on it and google it. the diagram shows a diode but its in the high current side so i can only imagine its a resistor to knock down the light output when the drls are on because diodes dont need big heat sinks like that. but the diagram doesnt show any resistor
