Default 2004 Silverado fuel leak

So, I have a fuel leak. A big one. Found out which line it is, now just need to figure out how to fix it.

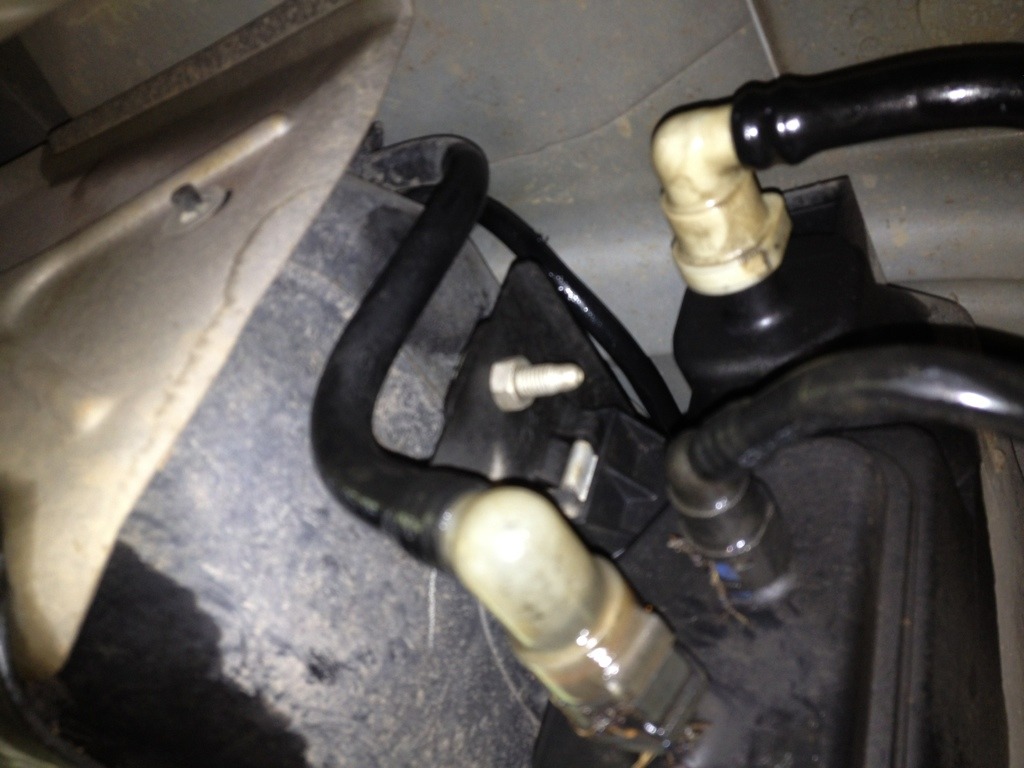

Here are some pictures.





It'* the smallest line closest to the underside of the body. So, top left/the one that'* wet. Anyway, it'* under pressure. I confirmed that by turning the key to "ON" and fuel started spraying everywhere. This is why I need help. How do I get this line off? Does it just pull off? Clamps that I can't see? Anybody know?

It'* got a full tank. I don't wanna pull this line to replace it and have 30 gallons worth of fuel coming at me.
Attached Thumbnails
2004 Silverado fuel leak-e48262de.jpg   2004 Silverado fuel leak-360bfd43.jpg
MouSe is offline   Reply With Quote
Old 06-03-2012, 12:10 PM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,638
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I hate those quick-connect line connectors. Do you see like a locking tab of some sort below the connector? If you have a pair of needle nose you can pinch the tabs and pull the connector right off. You will have some fuel come out. How much, it depends on if it siphons off the tank or if its just residue in the line. Hopefully a couple new o-rings can fix this.
Mike is offline   Reply With Quote
Old 06-03-2012, 12:50 PM   #3
Senior Member
True Car Nut
Thread Starter

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

Its not the quick-disconnect. Look at the small line, it'* got a knick in it. Looks to me that a critter tried to eat it.
MouSe is offline   Reply With Quote
Old 06-03-2012, 01:22 PM   #4
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,638
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

So its not leaking at the connector but up the line further where you think something chewed on it? If so, cut the line where its chewed through, insert a barbed coupler with 2 fuel line clamps.
Mike is offline   Reply With Quote
Old 06-03-2012, 01:44 PM   #5
Senior Member
True Car Nut
Thread Starter

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

Will that work with the hard plastic line?
MouSe is offline   Reply With Quote
Old 06-03-2012, 01:55 PM   #6
Senior Member
True Car Nut
Thread Starter

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

Here, I circled it to make it easier.

Attached Thumbnails
2004 Silverado fuel leak-360bfd43-1.jpg
MouSe is offline   Reply With Quote
Old 06-03-2012, 04:46 PM   #7
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Listening to him yell "oh gasoline" was priceless when I turned the key lmao
yutzybrian is offline   Reply With Quote
Old 06-03-2012, 04:46 PM   #8
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Stupid filter I keep forgetting. Fine "Oh crap gasoline"
yutzybrian is offline   Reply With Quote
Old 06-03-2012, 04:54 PM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i dont think you can just use clamps, there is a barbed connector for that but you have to put each end of the hose in hot water for a while i dont think i needed anything for clamps.
jwfirebird is offline   Reply With Quote
Old 06-03-2012, 05:13 PM   #10
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,638
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

If its the main feed line, then clamps will be needed. If its the return line, you could get away without them.

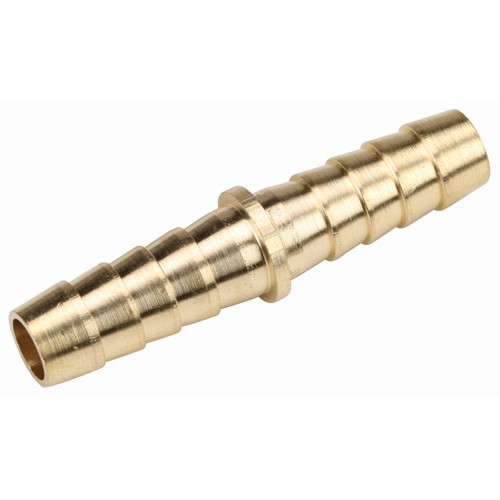

This is the coupler I am talking about.

It doesn't have to be brass. The plastic kind will also work. Should be able to find them at Autozone, Lowes, Home Depot etc.
Attached Thumbnails
2004 Silverado fuel leak-barbed.jpg
