2003 Sonoma question - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


GMC/Chevrolet Truck/SUV When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 05-14-2011, 09:04 PM   #1
Junior Member
Thread Starter

Join Date: May 2011
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Mr. Pixy is on a distinguished road
Default 2003 Sonoma question

Hey guys, new poster, no luck finding answer online. Recently my left rear blinker went out. Not the bulb itself as it was lit when I went to change it, changed anyway and still nothing. Replaced fuses. Still didn't fix. At this point its either bad relay that needs changing or probably wiring. I'm trying to access the turn signal relay so I can replace it but I'm having no luck finding where it is exactly. My vehicle is a 2003 Sonoma ZRX. If anyone could help me I would greatly appreciate it, thanks.
Mr. Pixy is offline   Reply With Quote
Old 05-14-2011, 09:22 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

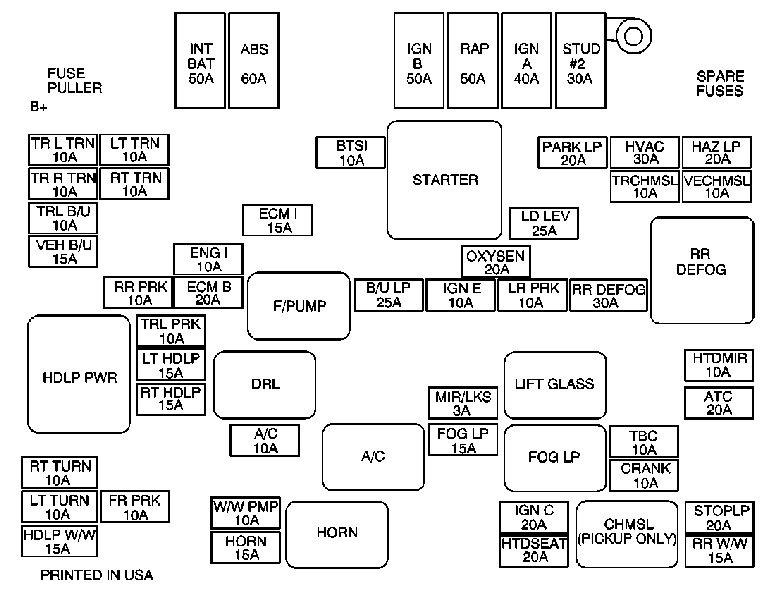

Does this help any?

Attached Thumbnails
2003 Sonoma question-2003-sonoma.jpg
Danthurs is offline   Reply With Quote
Old 05-14-2011, 10:33 PM   #3
Junior Member
Thread Starter

Join Date: May 2011
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Mr. Pixy is on a distinguished road
Default

Not really, I already changed out those two fuses and it didn't correct the problem. I was talking more about those bigger plug-like things that are supposedly hidden somewhere inside the dashboard (or underneath the dash or wherever). Thanks though!
Mr. Pixy is offline   Reply With Quote
Old 05-14-2011, 10:55 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The blinker module? Not sure exactly where that is located on your truck. But generally they are located right near the fuse panel. Mine is under it, or above it depending on how you look at it.
Danthurs is offline   Reply With Quote
Old 05-14-2011, 11:30 PM   #5
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

If your front blinker bulb is bad it will cause this issue..It just stays lit and doesnt blink correct
sseidriver97 is offline   Reply With Quote
Old 05-15-2011, 12:35 AM   #6
Junior Member
Thread Starter

Join Date: May 2011
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Mr. Pixy is on a distinguished road
Default

Its not the front, its the rear driver side thats not working. The bulb itself is lit, I've replaced the bulb and the issue was not resolved.
Mr. Pixy is offline   Reply With Quote
Old 05-15-2011, 07:54 AM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

He'* saying the front bulb will effect the rear as well.
Danthurs is offline   Reply With Quote
Old 05-15-2011, 03:11 PM   #8
Senior Member
Posts like a Supercharger

Badazzgta89's Avatar

Join Date: Dec 2010
Posts: 177
Thanked 2 Times in 2 Posts
Badazzgta89 is on a distinguished road
Default

Do your flashers work?
Badazzgta89 is offline   Reply With Quote
Old 05-15-2011, 03:23 PM   #9
Senior Member
Certified GM nut

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

your flasher relay should be located behind the glove box..its a square relay..

i picked up the one for our 99 s10 for about 15 bucks..you do have to remove the glove box to get to it..but i bet thats your culprit

i had the exact same problem on our s10 left rear wouldnt blink for the life of me..replaced that relay and BAMB she works!...it that was about 2 years ago IIRC
wakefieldl is offline   Reply With Quote
Old 05-15-2011, 07:57 PM   #10
Junior Member
Thread Starter

Join Date: May 2011
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Mr. Pixy is on a distinguished road
Default

Thanks WAKEFIEDL, found the flasher behind the glove box! Its definitely a bit different than what I've seen online though. Its a single block (not metal can) that says both Turn/Hazard Flasher. And DRIVER97, I switched out the front blinker light too, it didn't fix anything other than I found a big fried drgaonfly under the hood of my truck, haha
Mr. Pixy is offline   Reply With Quote
