......you find you need a gasket that you can't find seperate, other than in a top-end gasket kit?

I like to replace these when I port and polish manifolds, and I do more than one at a time typically. This is for the LIM end cap, and seals the cap that is used to re-direct coolant flow throughout the LIM. They get dry and crusty, and the leaks cause the bolts to rust out. There'* no way I'll ship a LIM without pulling this, cleaning the surfaces, and sending it out in good shape. Besides, after I use all the abrasives, it'* nice to be able to clean out these passages, and it'* easier with the cap off:

Name:  DSC00801.jpg
Views: 15
Size:  75.4 KB

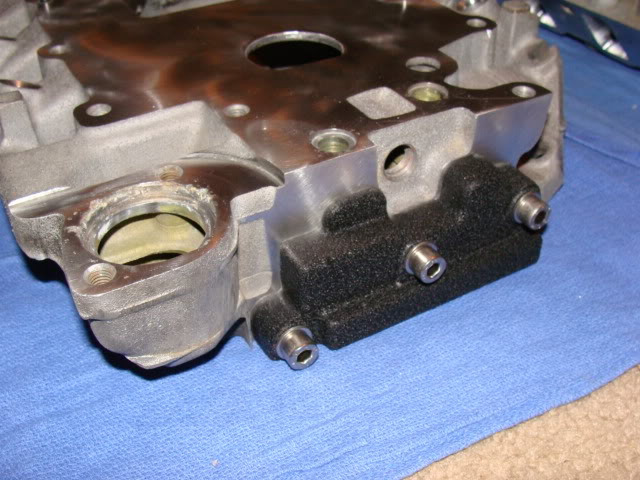

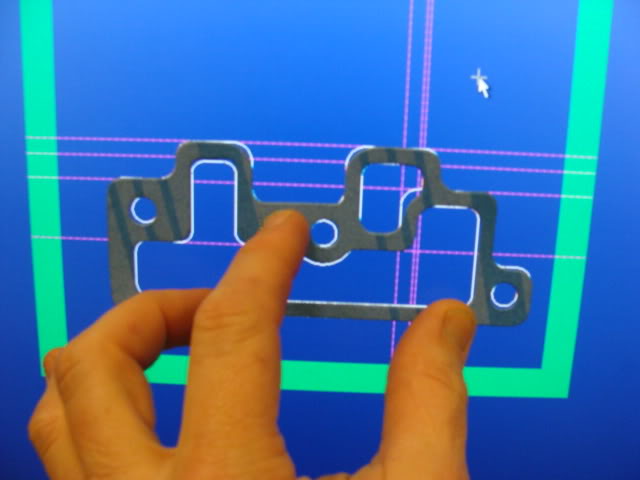

Step 1:
Name:  DSC00806.jpg
Views: 14
Size:  39.4 KB

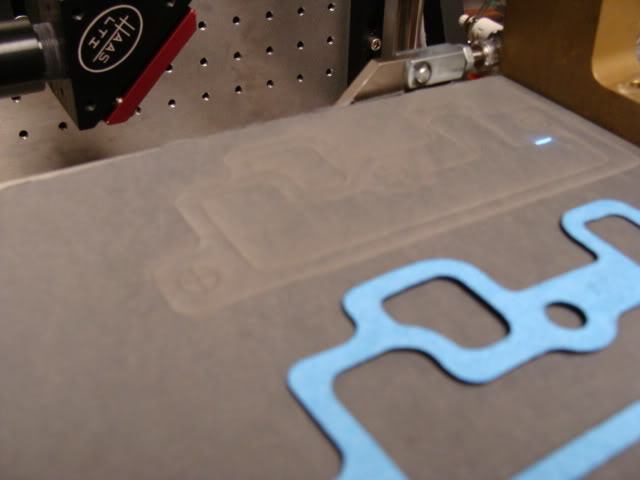

Step 2:
Name:  DSC00808.jpg
Views: 12
Size:  34.0 KB

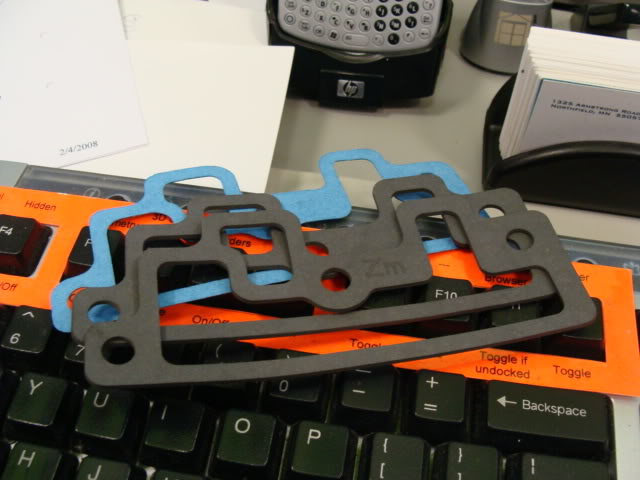

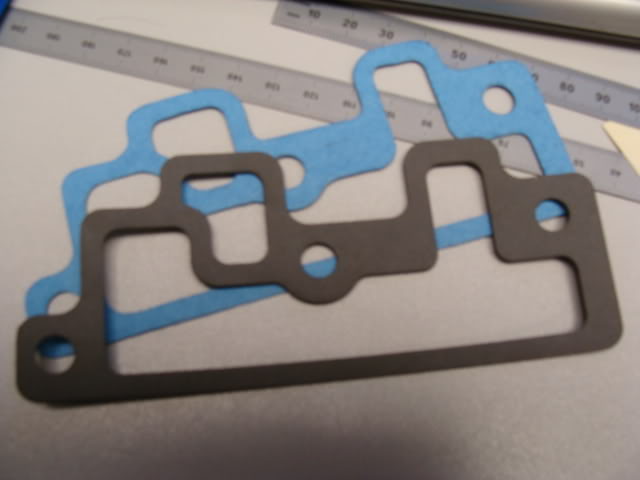

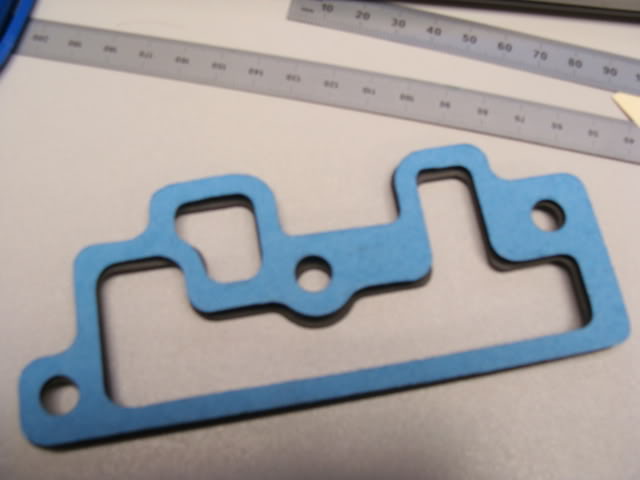

Results:
Name:  DSC00809.jpg
Views: 11
Size:  33.0 KB

Name:  DSC00810.jpg
Views: 13
Size:  32.8 KB

Name:  DSC00811.jpg
Views: 12
Size:  54.3 KB

10 mintues in CAD and file conversion to machine language. 5 minutes to cut each one (made several low-power passes to keep the cut clean). $9 in gasket material (enough to make about 20 of these).

John Wikoff gets a custom gasket installed, and another one riding along in the box for the future (he has another manifold or two). I have a FelPro to install, and a spare for myself, plus the saved file to make more any time.

This gasket material is vastly superior to the fiber OEM gasket. It'* a fiber/rubber composite.
willwren is offline   Reply With Quote
Old 02-05-2008, 08:51 PM   #2
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

Showoff.




I've got a whole roll of that excellent gasket material...just no CAD program and laser to cut it.
wjcollier07 is offline   Reply With Quote
Old 02-05-2008, 08:52 PM   #3
Senior Member
True Car Nut

Join Date: Jul 2006
Location: Granville, Ohio ~NEBF '07 Survivor~
Posts: 5,001
Thanks: 0
Thanked 0 Times in 0 Posts
petraman is on a distinguished road
Default

Says how thorough you are, my lazy arse would have just used GM gasket maker
petraman is offline   Reply With Quote
Old 02-05-2008, 08:53 PM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Only ZillaMotorsports supplies custom laser cut and engraved gaskets.

Now that'* customer service.
J Wikoff is offline   Reply With Quote
Old 02-05-2008, 08:53 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I did this in about the same amount of time as it would take you, and I'll have no chance for leaks.

You can cut your own with an X-acto knife as well, if you have the original parts or the old gasket as a model.
willwren is offline   Reply With Quote
Old 02-05-2008, 08:55 PM   #6
Senior Member
True Car Nut

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

I've got the CAD

Thats so awesome Wren!
93-SSE is offline   Reply With Quote
Old 02-05-2008, 09:14 PM   #7
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

How'* that corner line up with the parts?

J Wikoff is offline   Reply With Quote
Old 02-05-2008, 10:07 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That corner was radiused to match the gasket about 30 seconds after the pic was taken.

The new gasket is a perfect fit compared to the OEM (Fel-Pro), and far better material for contact with coolant. I'll get some pics up later to show the fit.
willwren is offline   Reply With Quote
Old 02-06-2008, 01:11 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You choose.

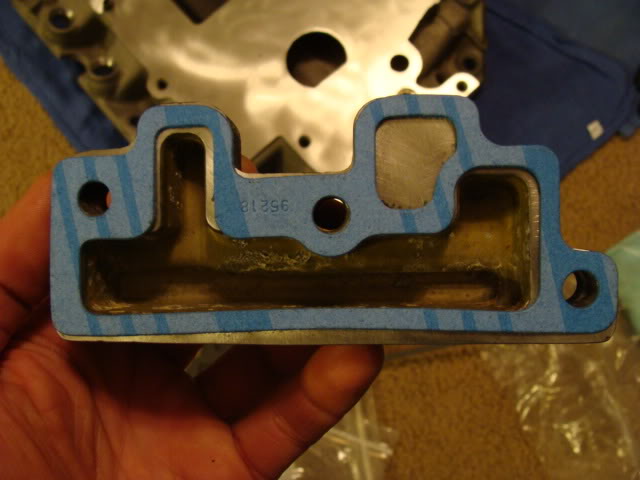

FelPro:
Name:  DSC00812.jpg
Views: 12
Size:  46.9 KB

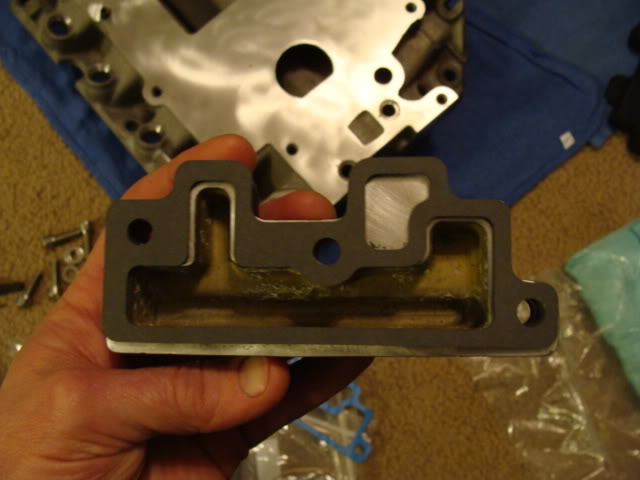

ZM:
