Default Tunned a GTP today

Today a 98 GTP came over for a tune. He said he got a dyno tune, cost him $700. After the tune he called them back and said the cars not running right. That will cost you another $300. He wasn't happy about that. So I took a look.

Name:  scan-05-03-09-01.jpg
Views: 1
Size:  144.5 KB

Why is the timing so low? OK, let'* get started here, unplug the MAF and lets do a VE tune.

Holy cow, that needs some work.

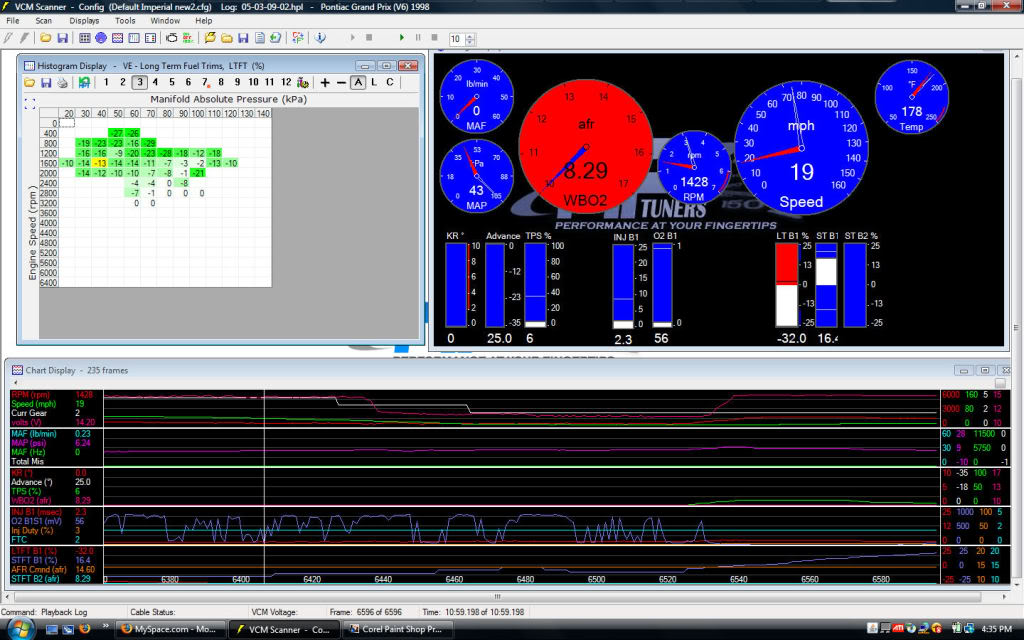

Name:  scan-05-03-09-02.jpg
Views: 2
Size:  135.3 KB

After adjusting the VE table the first thing he said is, wow, it'* running better already.

So I adjust the VE table and then check the MAF table. It seems kind of good but rather lean on the WOT area.

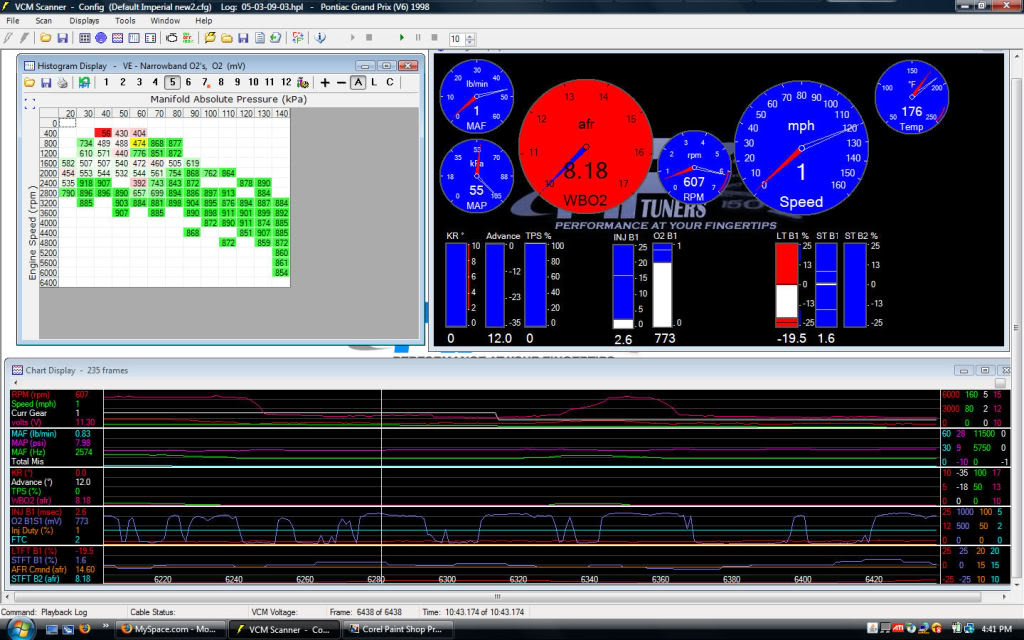

Name:  scan-05-03-09-04.jpg
Views: 0
Size:  139.3 KB

So I pull up the PE table, odd, why is everything at zero? And why is the commanded AFR at 14.1:1? That'* not right at all. So I grab my tables and copy them over to his and add 4* of timing. Then go out again.
Name:  scan-05-03-09-03.jpg
Views: 0
Size:  141.1 KB

Wow, the timing looks much better, the AFR is much better. The car pulls like crazy, no KR. He'* really happy now.

He said the guy that tuned his car last time was canned because he messed up a few cars. Looks like that guy was a real clown. He zeroed out several tables and never put them back. A over site like that could have wrecked a engine. It'* a good thing he watches his car so close. He knew something was wrong right away and didn't get on it to hard. All in all, a good time tuning.
Danthurs is offline   Reply With Quote
Old 05-03-2009, 10:22 PM   #2
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Nice job Dan. I cant believe he paid $700 for someone to garbage his setting that way. Shows that having a Tuner doesnt make you a tuner. Hehehe. It'* amazing what you need, and need to know to get things right in todays engines. When I was a kid, it took a timing light, vacuum gauge, allen wrench, and a slotted screwdriver.
GXP Venom is offline   Reply With Quote
Old 05-03-2009, 10:39 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Tell me about it. I still have a distributer wrench in my tool box. For timing you turned the distributer adjusted the dwell and gap, for mixture you turned a needle valve or two, perhaps change the jets. That was about it. Old school was easy. Now you can adjust one cell covering a small RPM range, and do something different if the throttle is doing one thing or another, and also a different thing if the engine temp is different. Each table works off another. Set the VE table, then the MAF curve, then the PE table. Then you can adjust timing. My head hurts just thinking about it.
Danthurs is offline   Reply With Quote
Old 05-04-2009, 01:39 AM   #4
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Nice going Dan! Soon I will be venturing into this area...I need a sensei.... are ya up to the job?
Purplehazeir is offline   Reply With Quote
Old 05-04-2009, 02:25 PM   #5
Member
Posts like a V-Tak

Join Date: Apr 2009
Posts: 65
Thanks: 0
Thanked 0 Times in 0 Posts
kevinp is on a distinguished road
Default

that stuff is like chinese to me . but good work.
kevinp is offline   Reply With Quote
Old 05-04-2009, 09:49 PM   #6
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

He stopped over again today and we changed his serpentine belt, now that was fun. Why is it a 5 minute job always takes over a hour. Later on Chris came back with Dave. We talked, oggled, and talked some more.

Name:  P5040010.jpg
Views: 0
Size:  101.7 KB
