Welcome to my world. I was actually about to pull the SLE'* motor and drop it in the Zilla when I lost 3rd gear last month.

You'll find a lower-mileage unit. They're out there. Then you'll have a core for rebuild. The good news is that whatever you invest in a rebuild will be a SOLID investment. The car will outlive you at that point.
willwren is offline   Reply With Quote
Old 03-25-2007, 12:20 PM   #12
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

yea, i know. It seems like we have been loosing quite a few trannys lately. I am going to continue to search around for a tranny locally.
TJ'sblackbonne is offline   Reply With Quote
Old 03-25-2007, 02:50 PM   #13
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

Ok, my next question is does anyone have a list of trannys that would fit in my car. I have come across some 4t60es but they are not out of a bonneville. Which ones will fit and what needs to be done to make them fit? thanx guys
TJ'sblackbonne is offline   Reply With Quote
Old 03-25-2007, 03:05 PM   #14
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

If you are looking for a 95 replacement...

5BXW or 5BKW Coded( These are 3.06/31 )
5ACW or 5YZW Coded ( These are 3.06/30 )

I believe from what I see that the 96 is also pinned out the same, and it does use the same axles, so you should be able to use a 96 trans... I need to do more research on the 97 trans...

We also need to know what trans you currently have in the Bonnie now to find all of the right Tranny codes..

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-25-2007, 03:19 PM   #15
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

Where would i find the codes? On the tire cover in the trunk?
TJ'sblackbonne is offline   Reply With Quote
Old 03-25-2007, 03:27 PM   #16
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

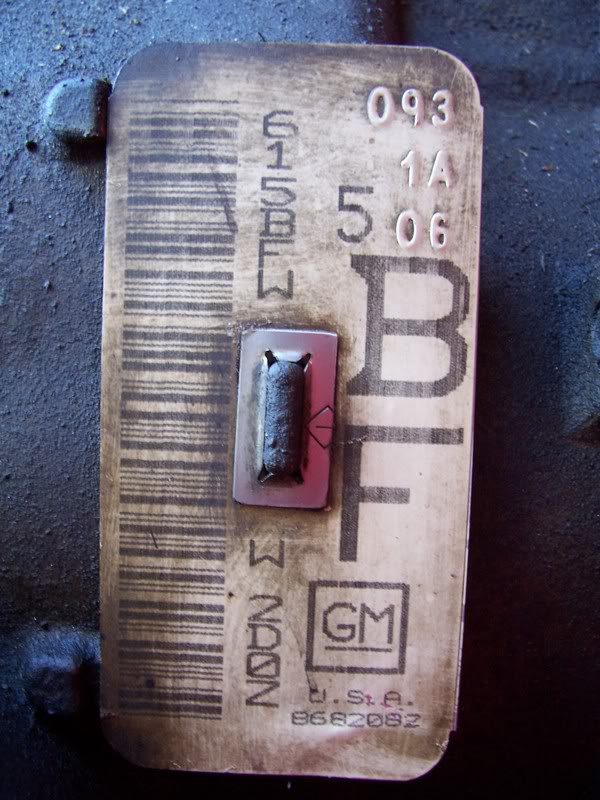

There is a Tag on the firewall side of the trans, up and left of the Diff case/cover.. Should look like a little white Tag..

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-25-2007, 03:31 PM   #17
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

This should help ya

Name:  102_2048.jpg
Views: 0
Size:  95.8 KB

You will have to wipe off a$$loads of grease and roadgrime off of it though
sandrock is offline   Reply With Quote
Old 03-25-2007, 03:34 PM   #18
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Glendale, AZ
Posts: 3,459
Thanks: 0
Thanked 1 Time in 1 Post
big_news_1 is on a distinguished road
Default

Sorry to hear this, TJ. Keep your chin up and make sure to keep an eye toward the bigger picture. You have a long life ahead of you and many more cars to own in the coming decades. If you really want another 92-99 Bonnie, I'm sure you'll find one within the next few years.

This sucks for me, too. First I lost Cooney for competition, and now I lost you! No worries, though. Focus on the stuff that'* important in the long term, and you'll find a way to get another ride.
big_news_1 is offline   Reply With Quote
Old 03-25-2007, 03:42 PM   #19
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

Ohhh no ben, you havent lost my competition yet. A tranny will be in this car and it will be back at the track this summer. And now knowing that the tranny was that close to being gone makes me think that is why my gas milage and probably 60 foot times were so bad. It was probably slipping pretty bad. Also will i be able to see that tag from another neath the car?
TJ'sblackbonne is offline   Reply With Quote
Old 03-25-2007, 03:43 PM   #20
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Find another transmission for the interim. Take yours and rebuild it. I've learned a great deal on how these things work by tearing it apart and semi-assembling it myself. Is it hard? Aside from the weight issue, no...not really.Though you DO have to be comfortable with a ratchet and snapring pliers. Just follow the FSM and the ATSG book, and you too can be a transmission building fiend

edit: WOOHOO....L36!!
