Today I started a transmission swap.

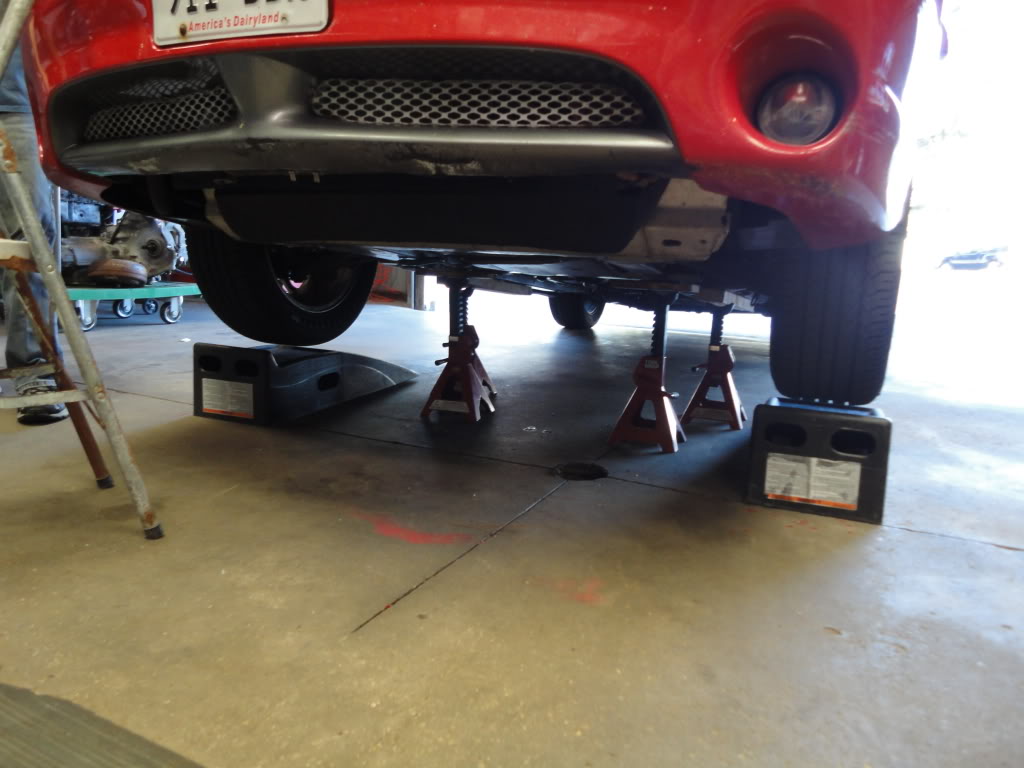

Got started nice and early. Get the car up as high as we possibly could.
Name:  DSC00439.jpg
Views: 4
Size:  102.6 KB

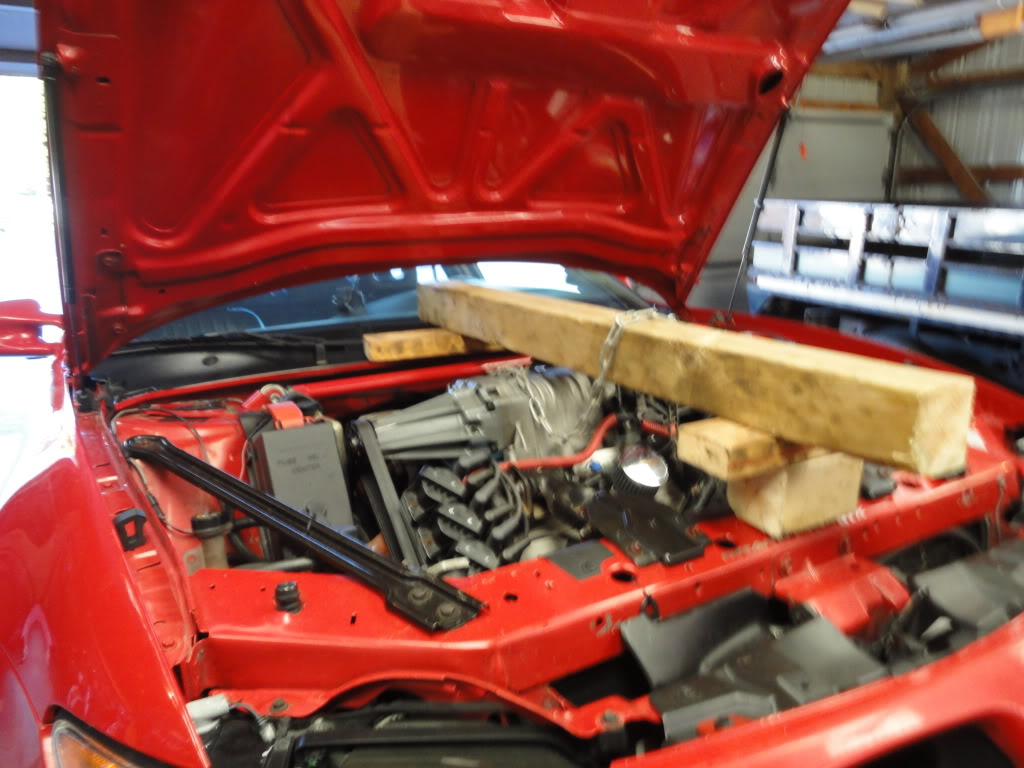

Need to support the engine from above.
Name:  DSC00440.jpg
Views: 2
Size:  145.9 KB

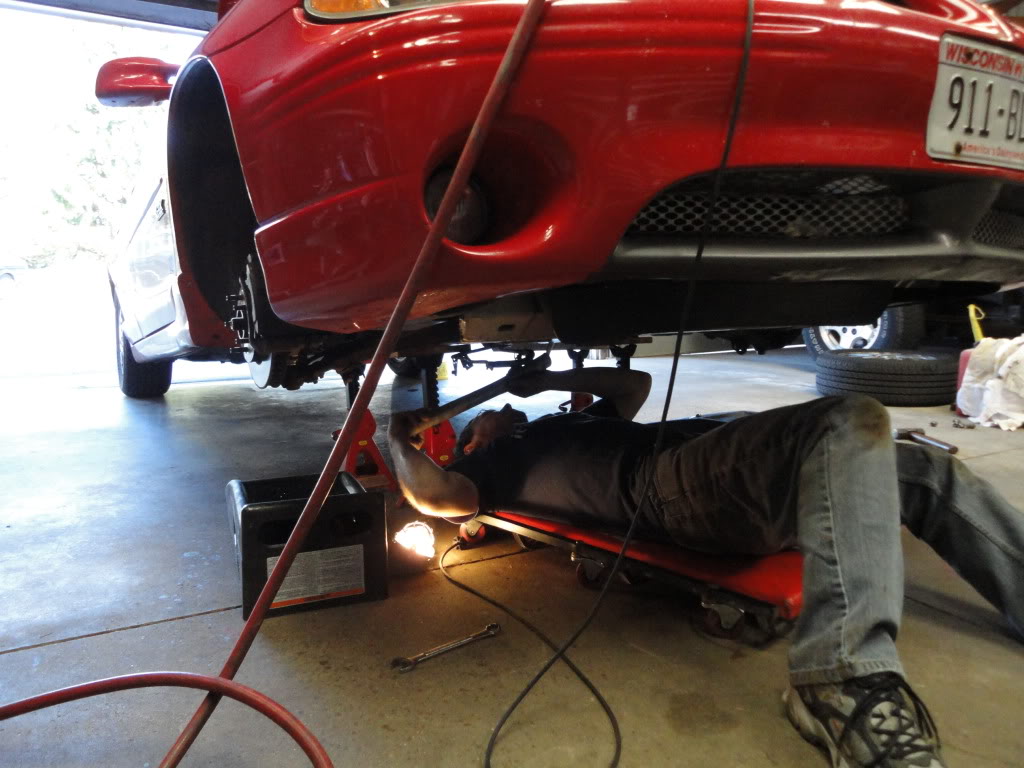

Send Chris under to do the grunt work.
Name:  DSC00441.jpg
Views: 2
Size:  134.9 KB

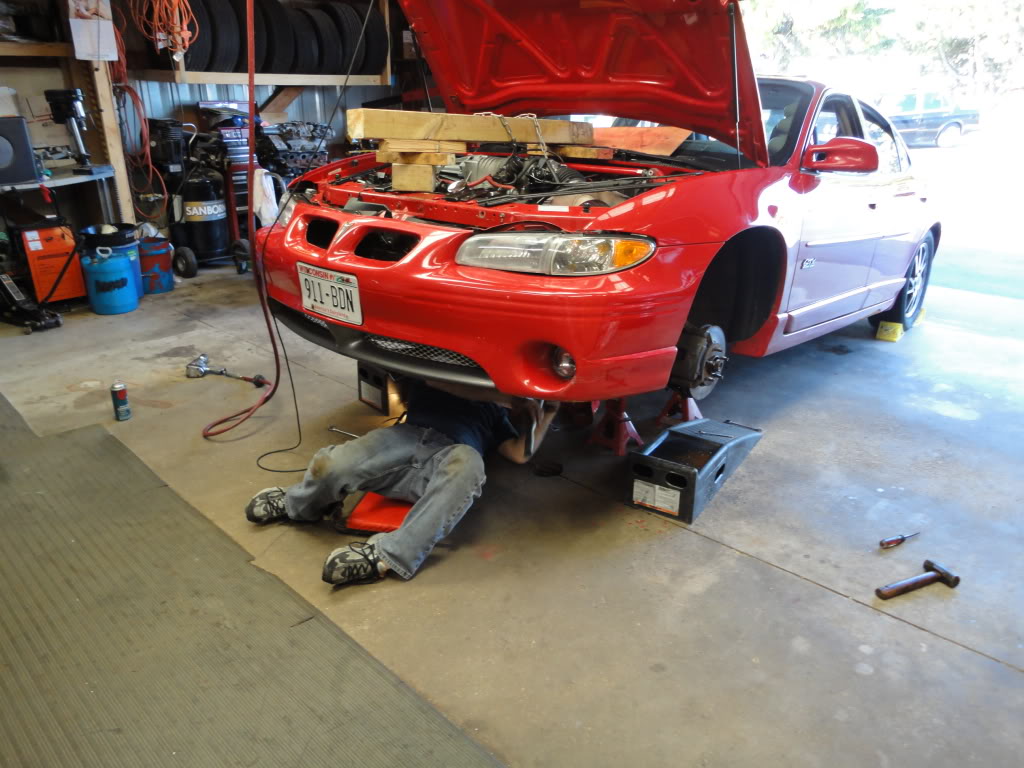

Yep, I've had to do that myself.
Name:  DSC00442.jpg
Views: 4
Size:  149.6 KB

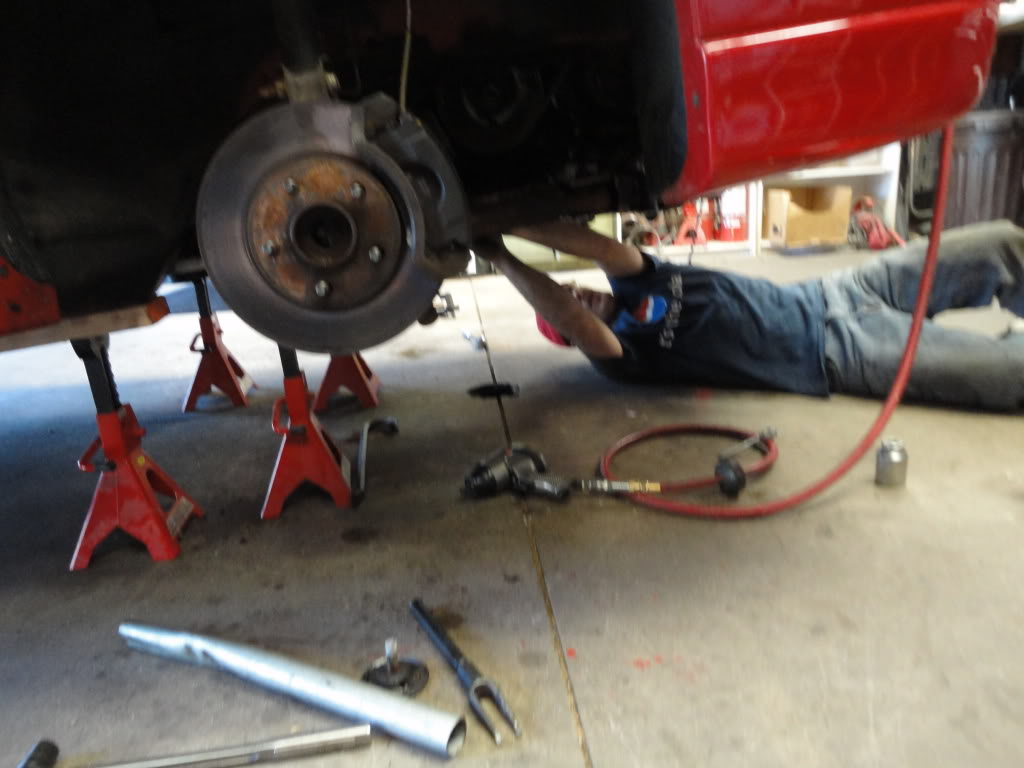

Working on the sub frame bolts
Name:  DSC00443.jpg
Views: 3
Size:  96.5 KB

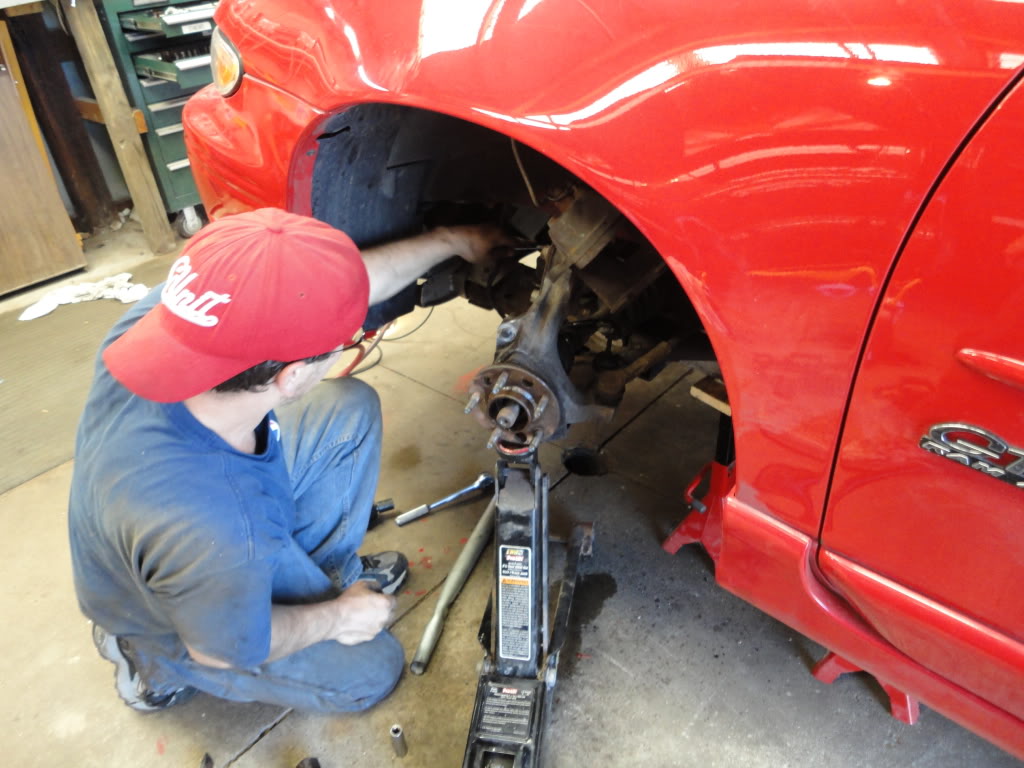

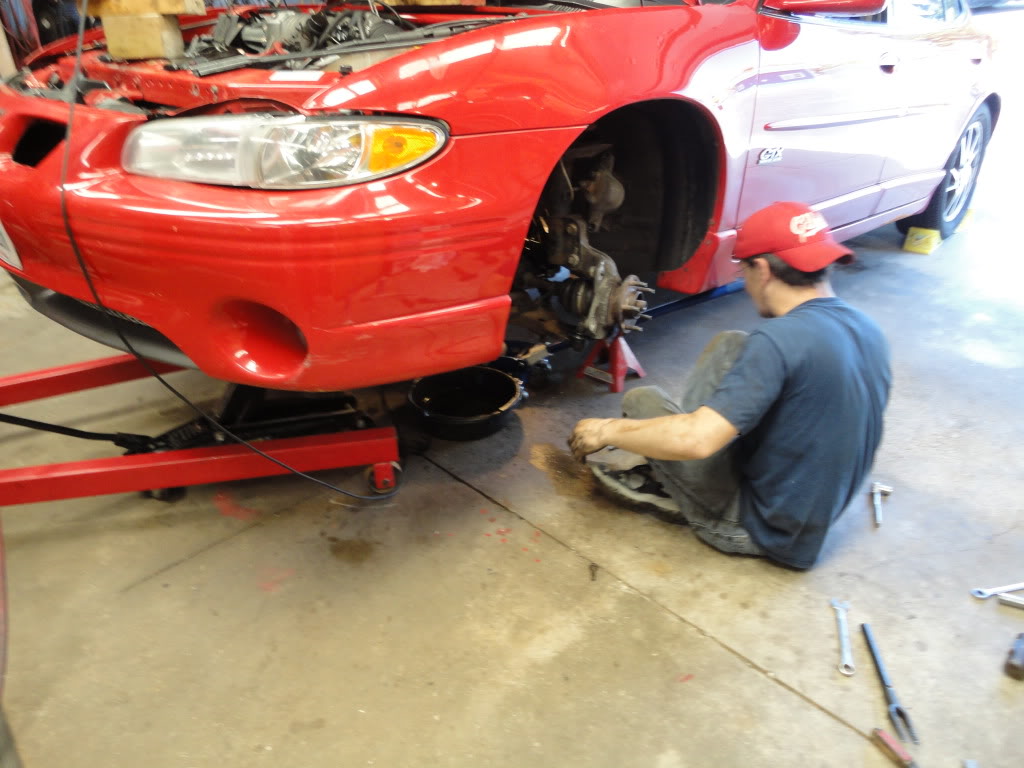

Disconnecting the lower control arms,
Name:  DSC00444.jpg
Views: 5
Size:  146.9 KB

Name:  DSC00445.jpg
Views: 3
Size:  138.6 KB

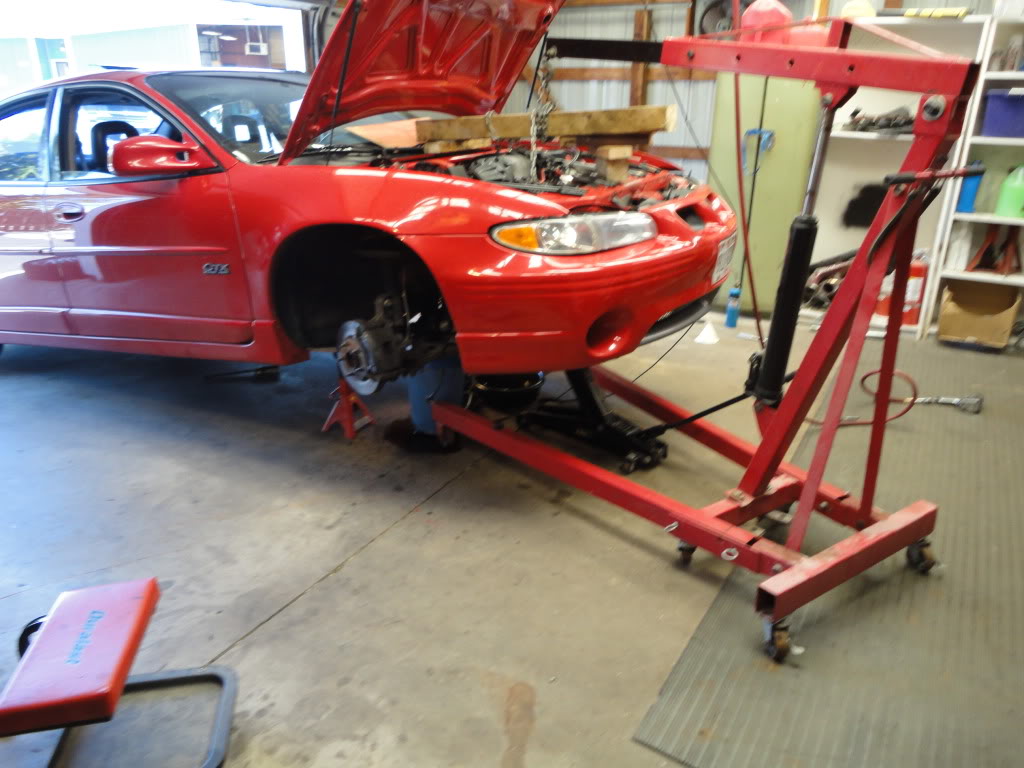

Getting ready to drop the sub frame, so I wanted to support the engine real good.
Name:  DSC00446.jpg
Views: 3
Size:  138.0 KB

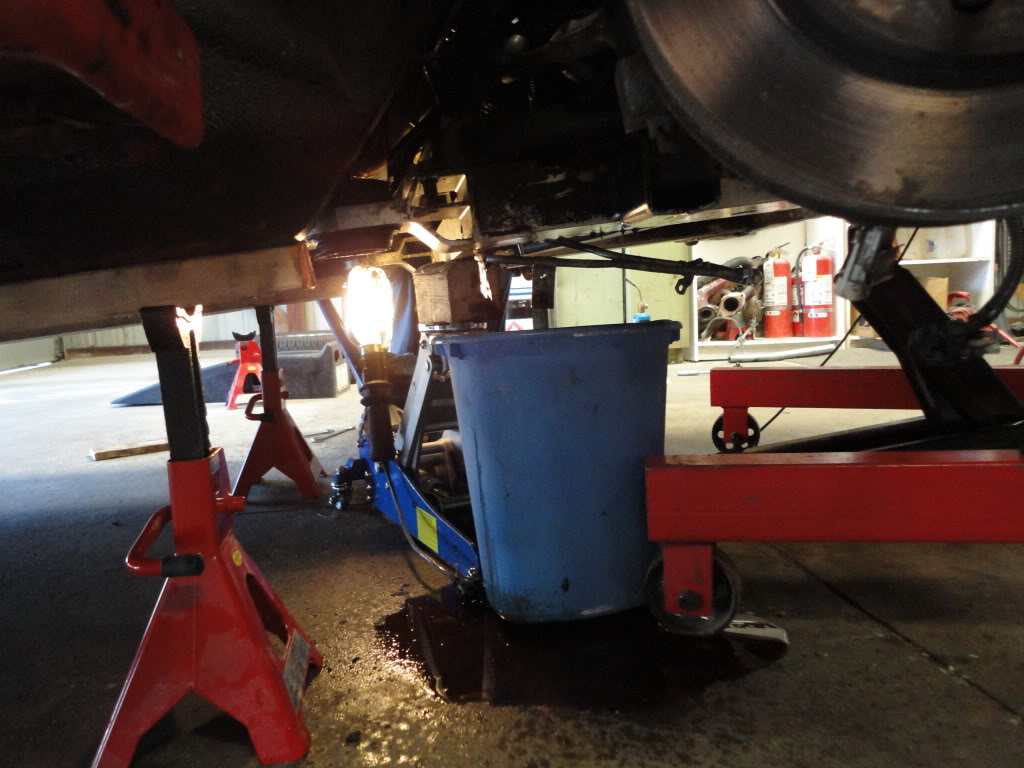

Some dripping going on.
Name:  DSC00447.jpg
Views: 3
Size:  126.2 KB

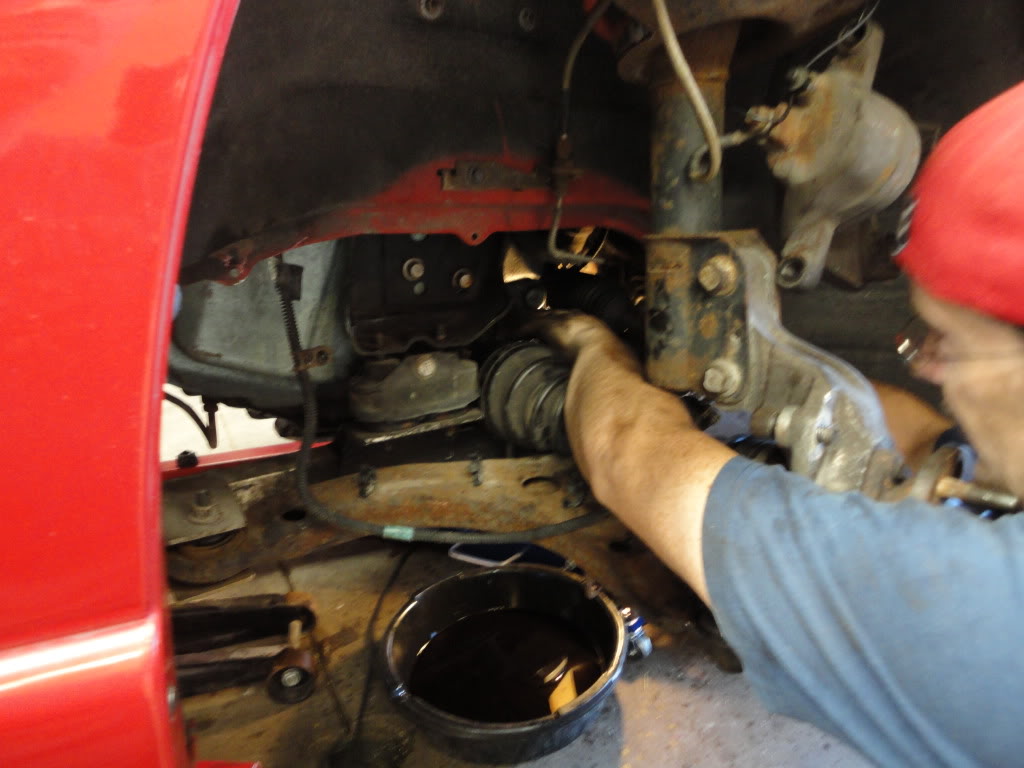

After more then a hour of trying to get the drivers side axle out and failing. I used a ton of PB blaser, I heated the axle, I hit it with a hammer. I went out and bought a 5 ton puller and maxed it out, still nothing. Finally left it in the hub and pulled it from the trans instead. What a pain.
Name:  DSC00448.jpg
Views: 3
Size:  116.1 KB

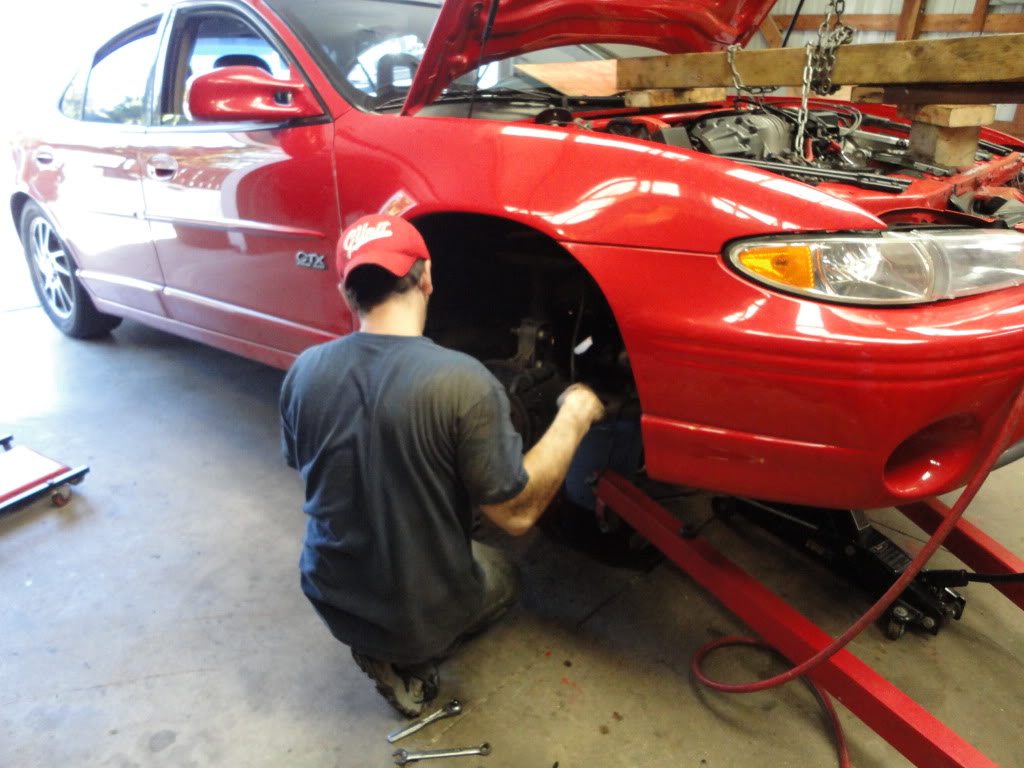

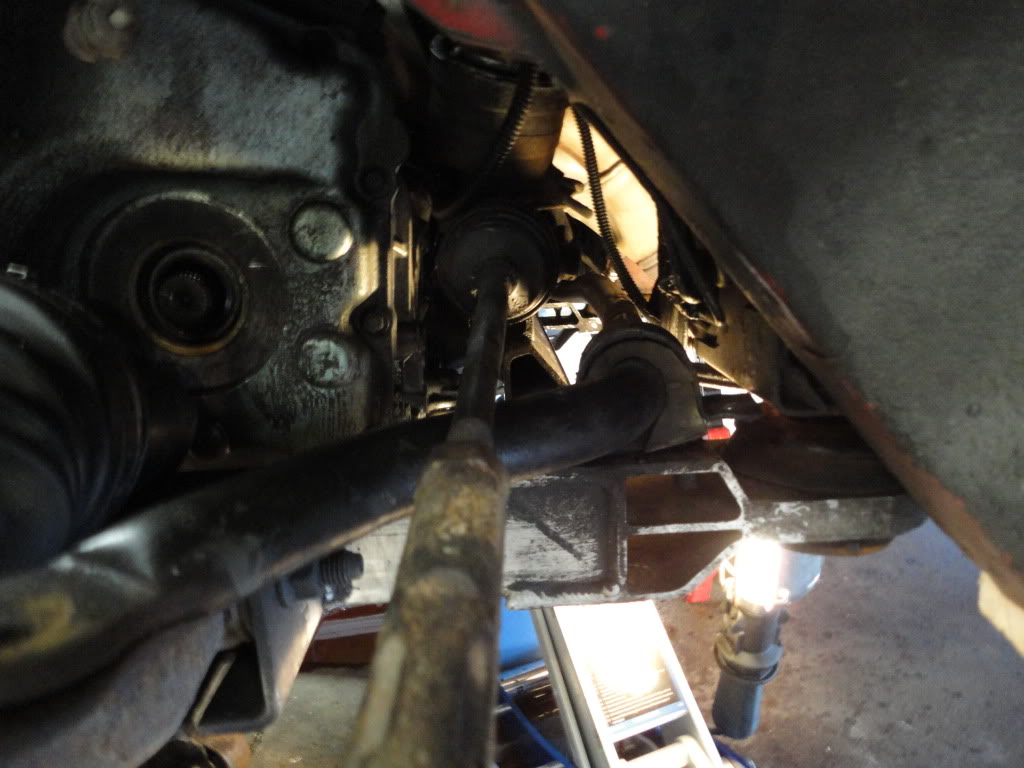

Had to remove the sway bar to get the bolts out of the steering rack.
Name:  DSC00449.jpg
Views: 4
Size:  146.4 KB

Name:  DSC00450.jpg
Views: 3
Size:  111.8 KB

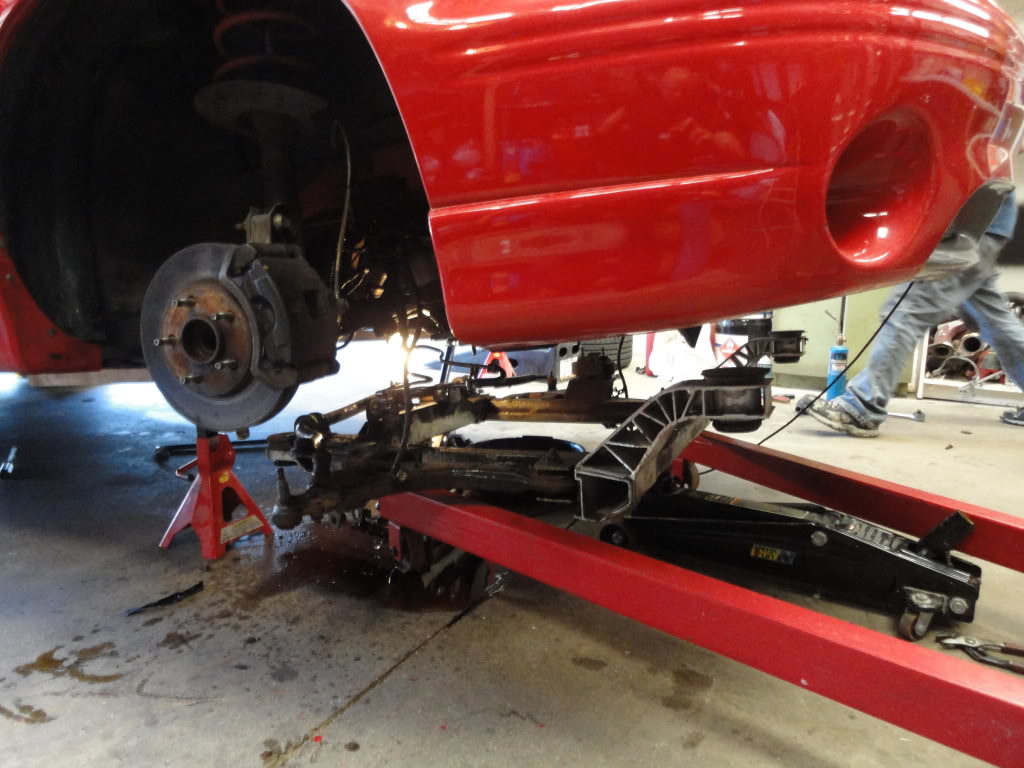

Finally, the sub frame is down. 4 hours to get to this point. Broke 2 of the bolts.
Name:  DSC00451.jpg
Views: 2
Size:  130.7 KB

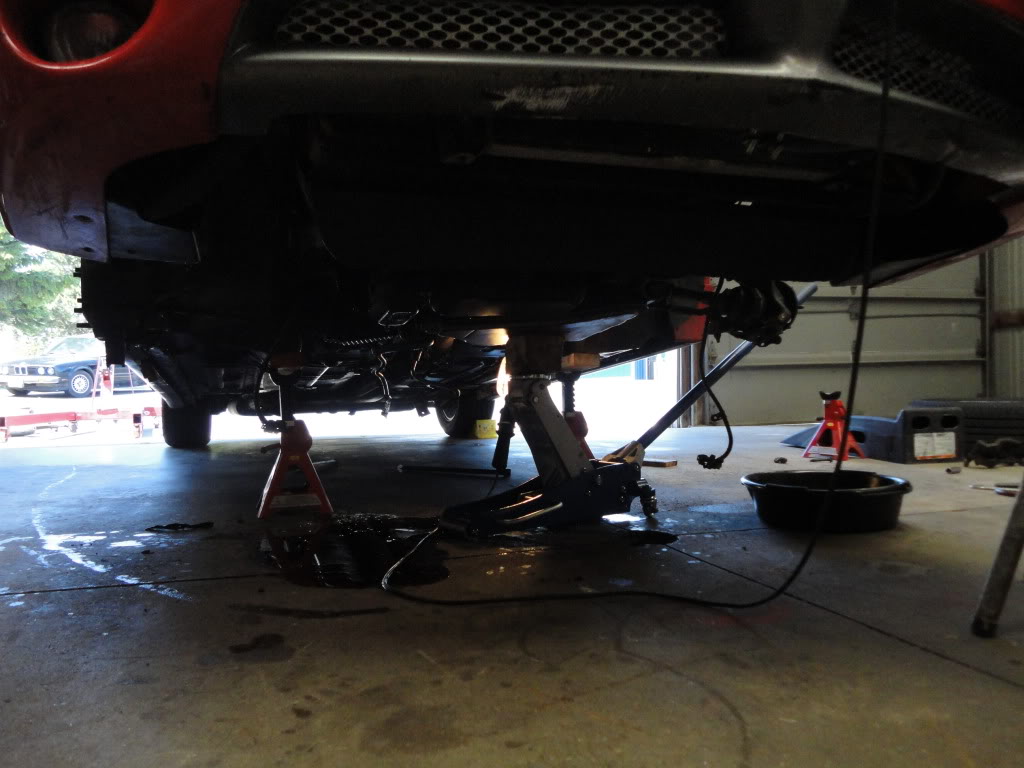

Much more room to work.
Name:  DSC00452.jpg
Views: 4
Size:  111.9 KB

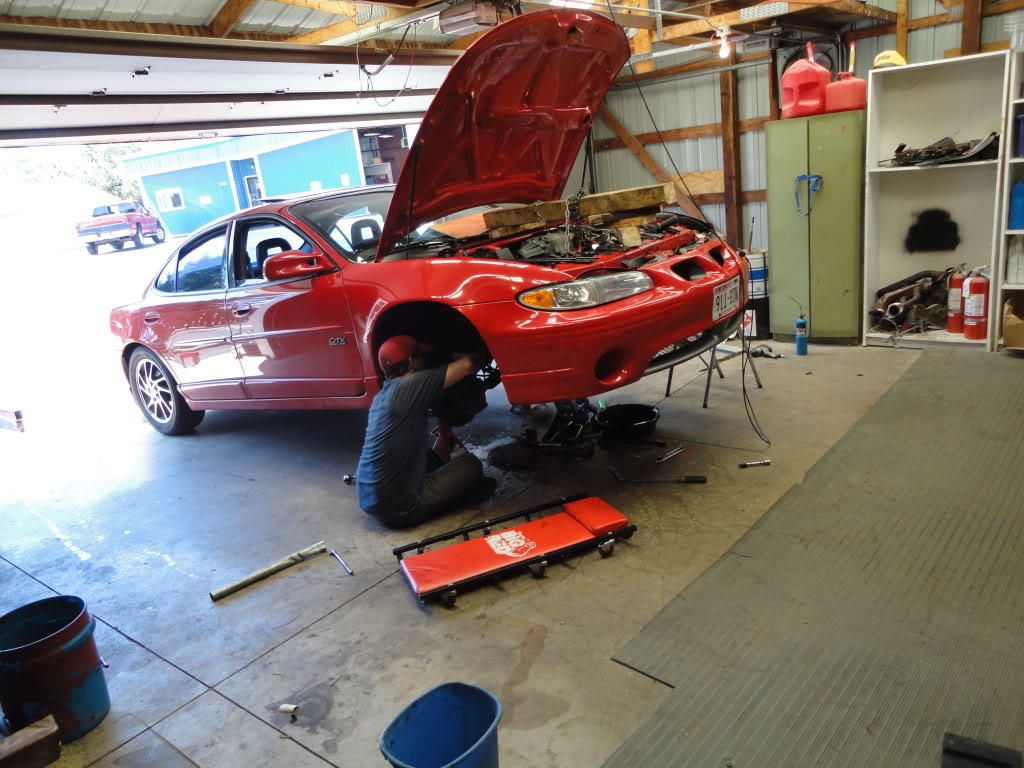

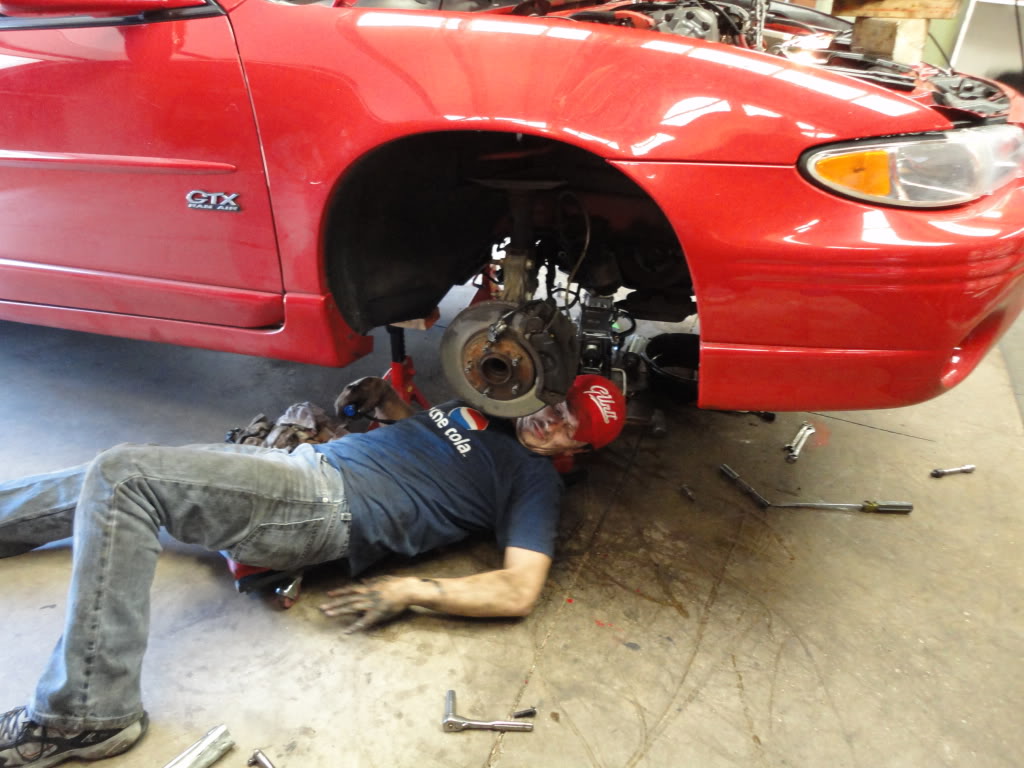

Chris removing the right side diff to motor mount.
Name:  DSC00453.jpg
Views: 3
Size:  142.5 KB

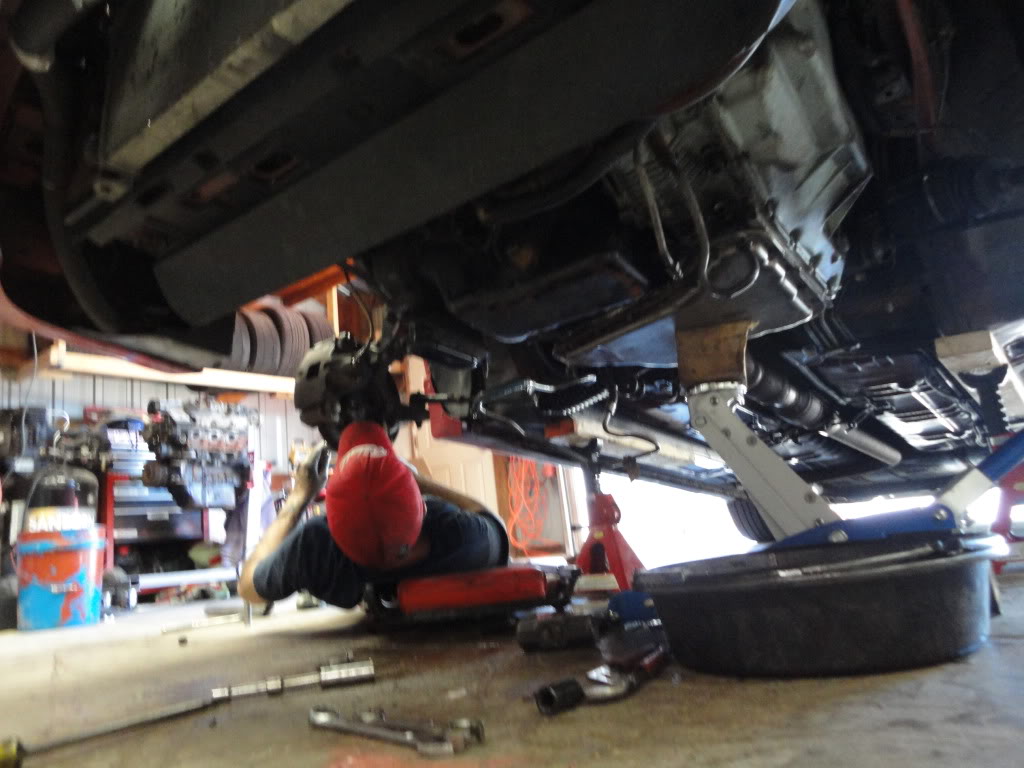

Getting closer
Name:  DSC00454.jpg
Views: 2
Size:  124.0 KB

Come on, one last bolt, that'* all.
Name:  DSC00455.jpg
Views: 3
Size:  167.2 KB

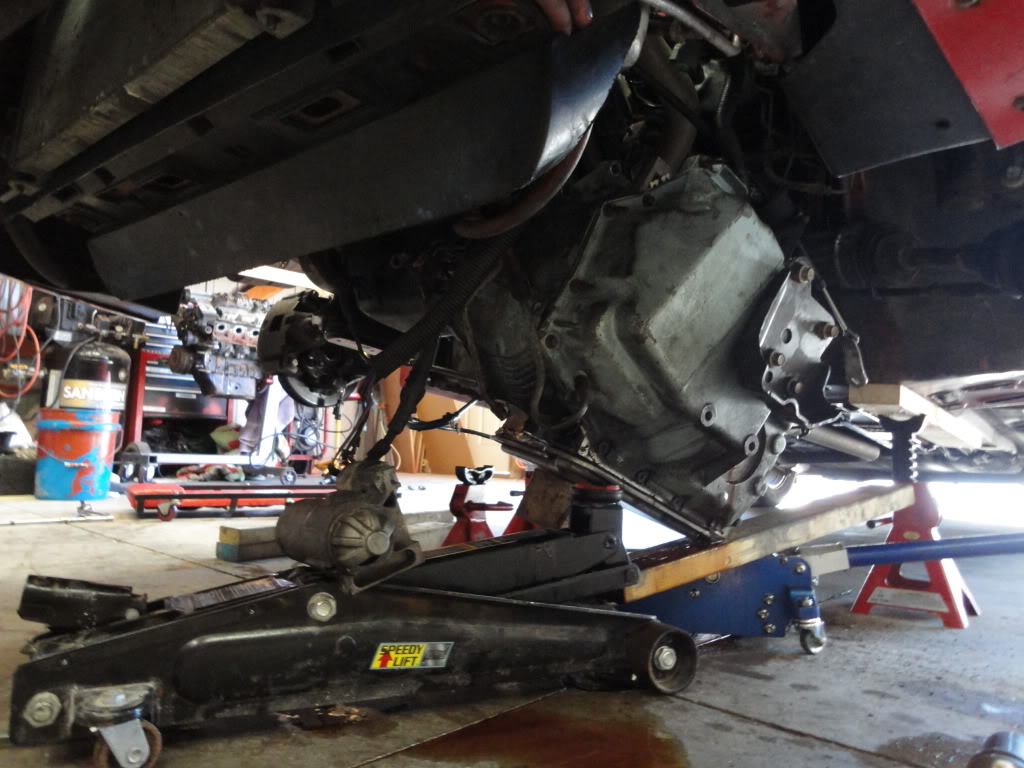

Ta da, it'* out. I so need to get a transmission jack.
Name:  DSC00456.jpg
Views: 3
Size:  141.6 KB

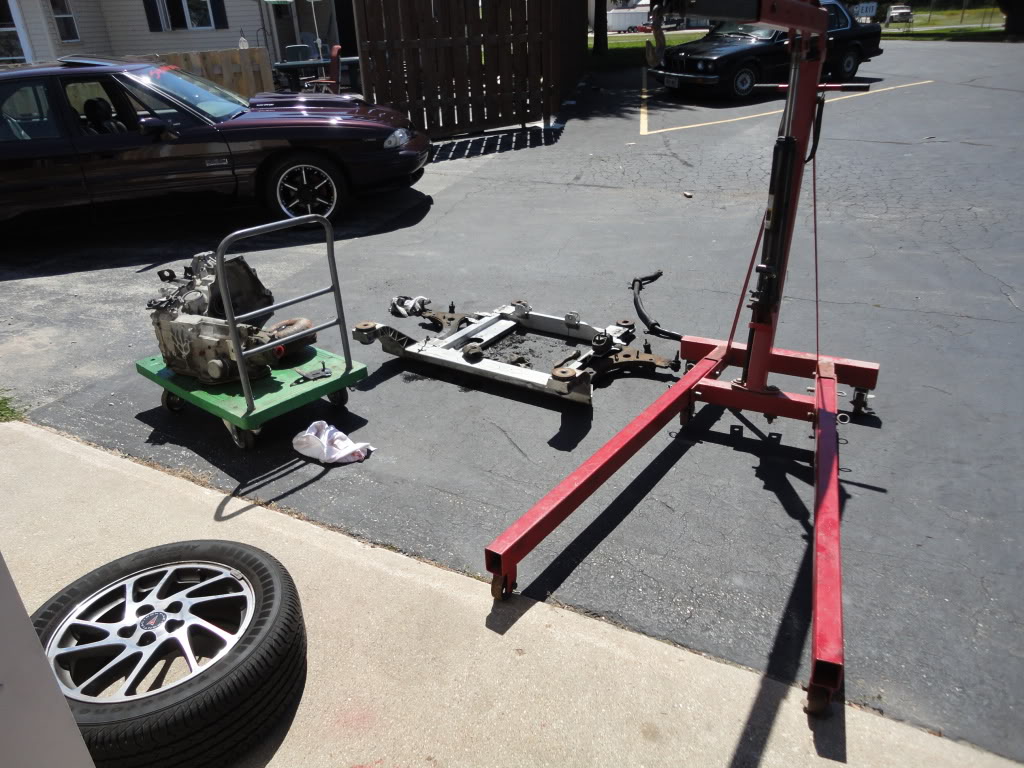

Parts are piling up.
Name:  DSC00457.jpg
Views: 2
Size:  187.2 KB

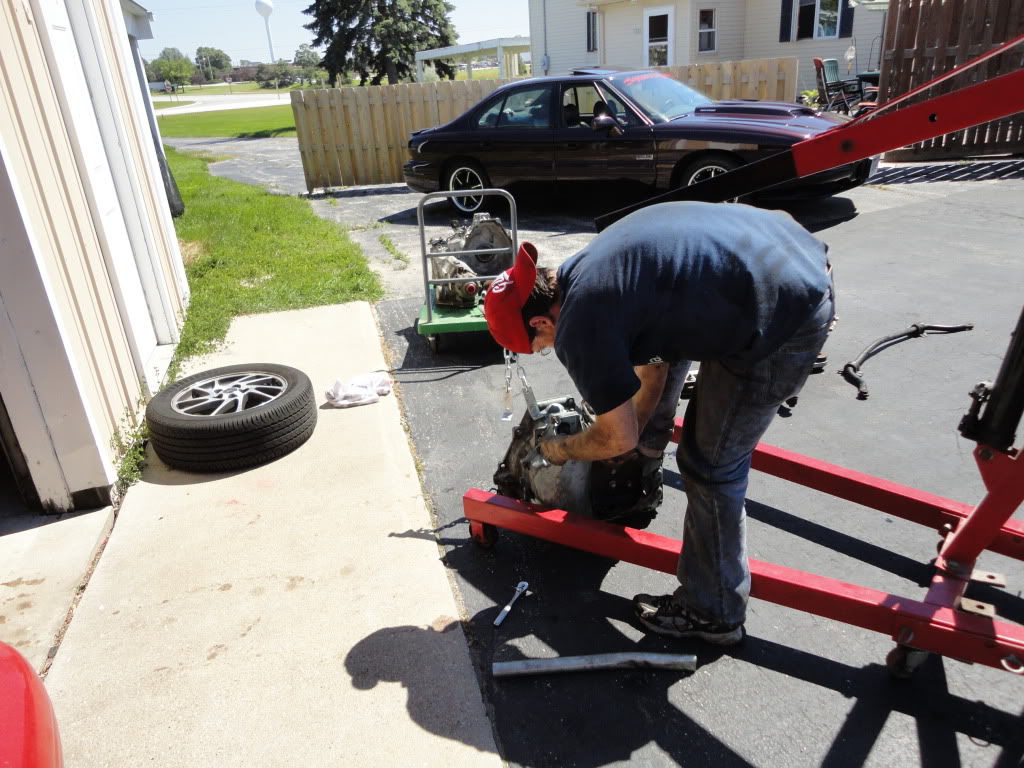

Taking parts off the old trans.
Name:  DSC00458.jpg
Views: 2
Size:  193.4 KB

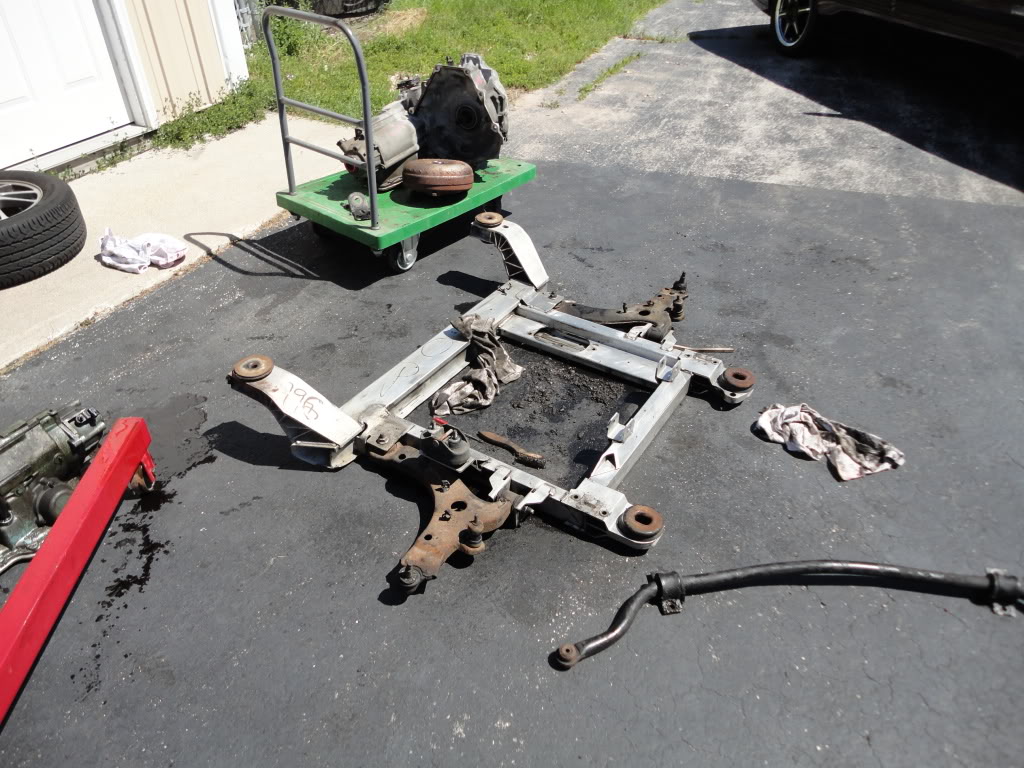

Chris cleaned up the sub frame.
Name:  DSC00459.jpg
Views: 3
Size:  189.7 KB

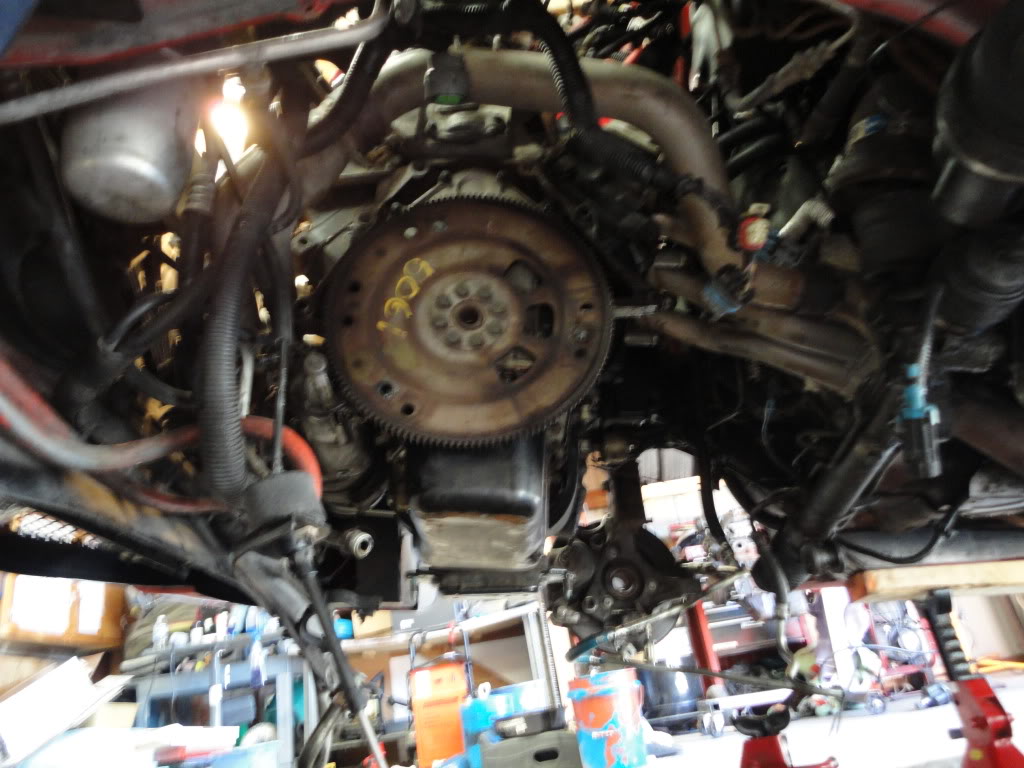

Lots of room now.
Name:  DSC00460.jpg
Views: 2
Size:  143.7 KB

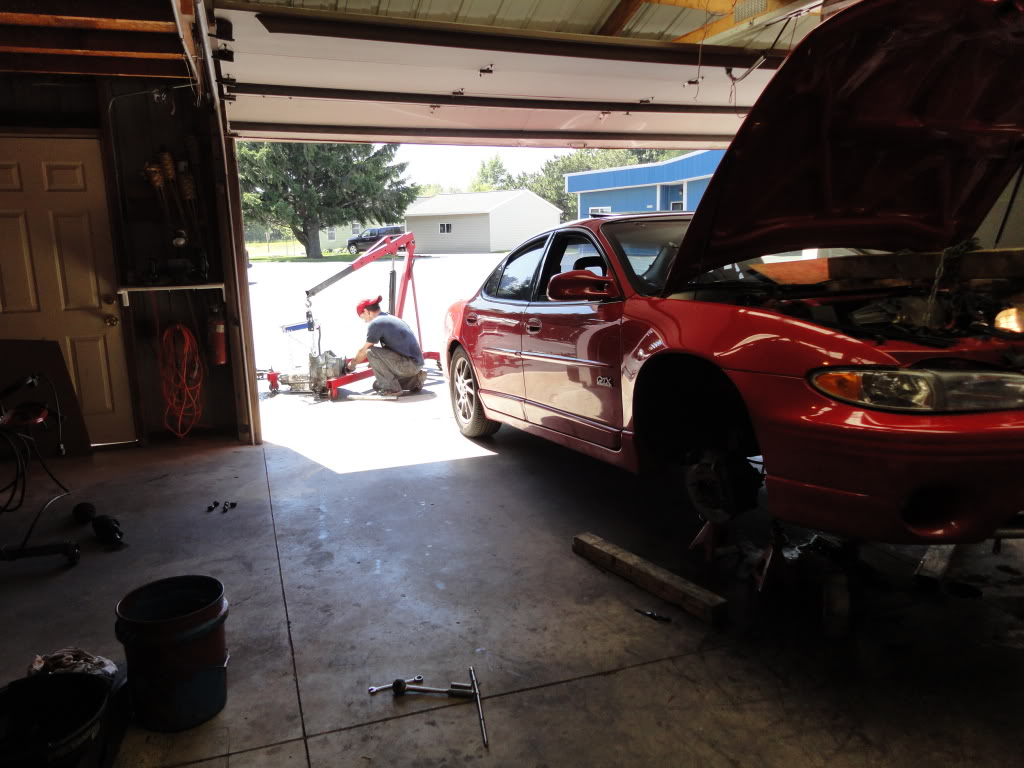

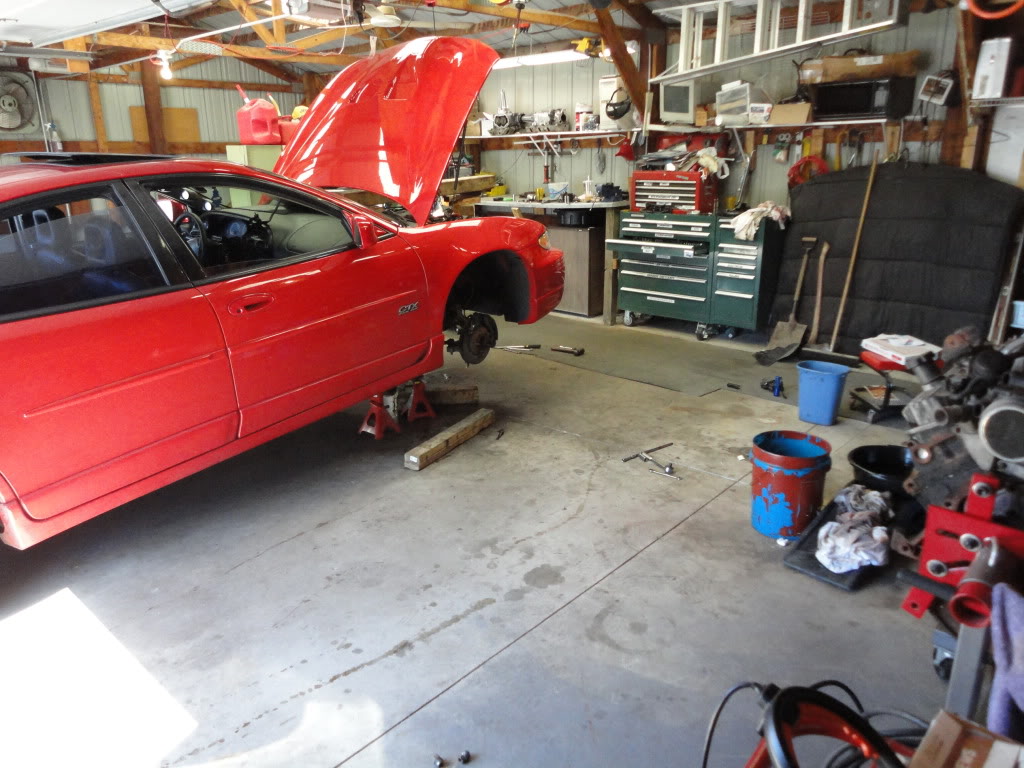

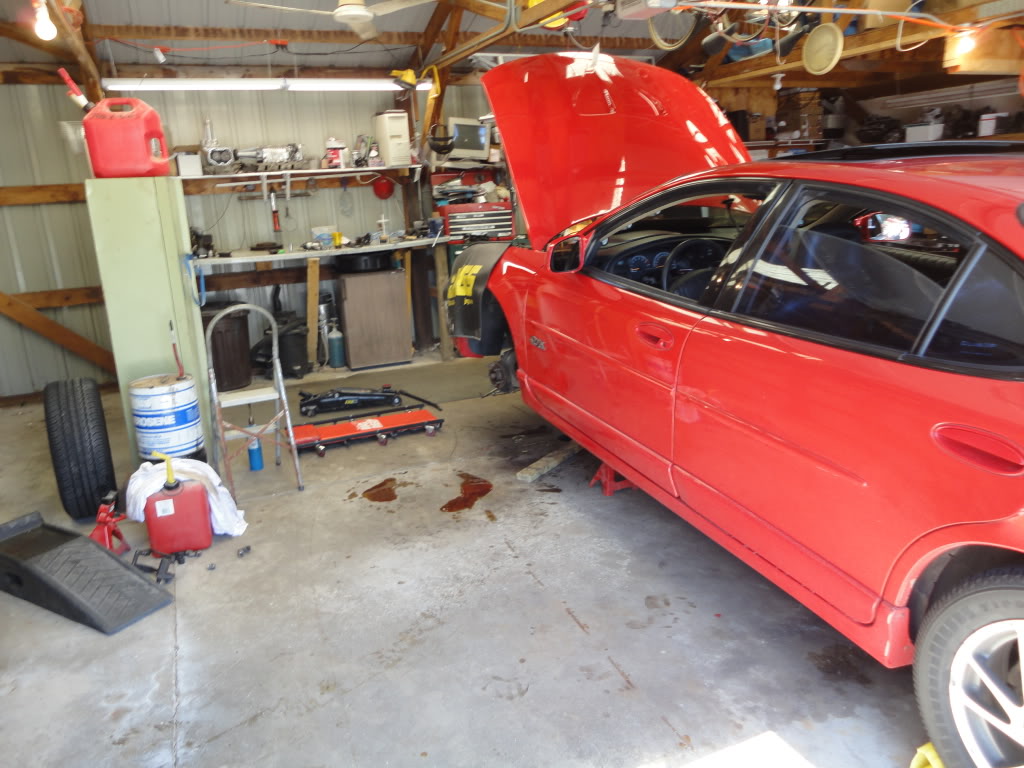

Cleaning up the area.
Name:  DSC00461.jpg
Views: 3
Size:  160.6 KB

Name:  DSC00462.jpg
Views: 2
Size:  132.0 KB

Name:  DSC00463.jpg
Views: 2
Size:  178.9 KB

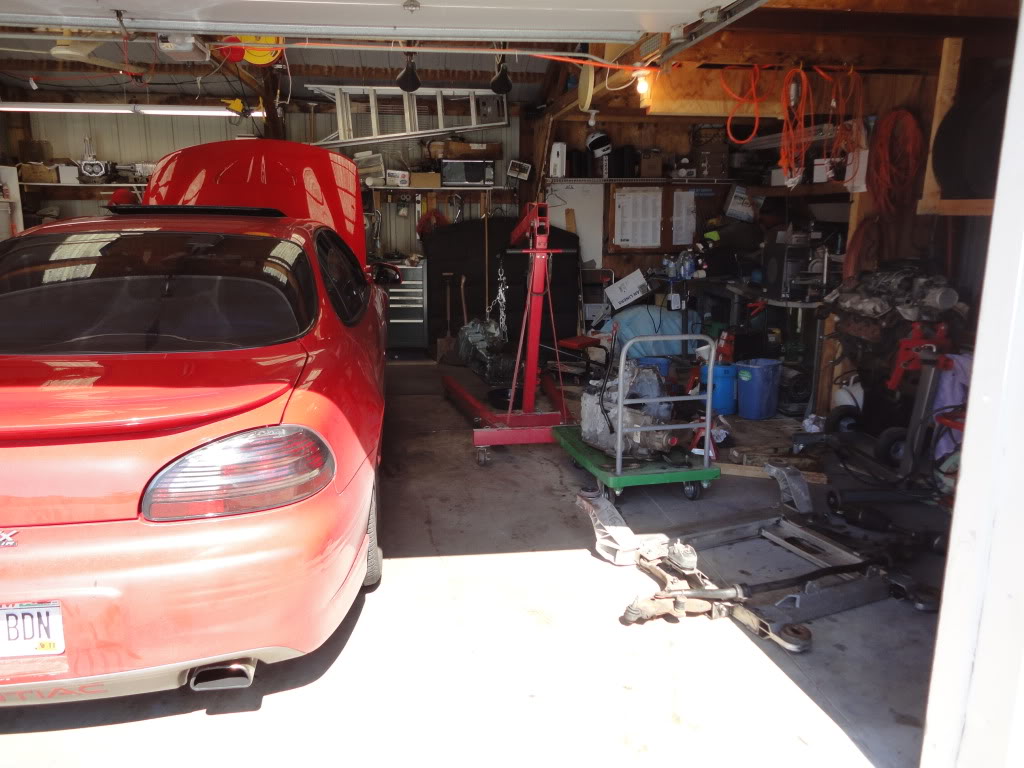

Everything put away for the night.
Name:  DSC00464.jpg
Views: 2
Size:  146.1 KB
Danthurs is offline   Reply With Quote
Old 07-03-2010, 02:30 AM   #2
Senior Member
True Car Nut

raptor660's Avatar

Join Date: Mar 2010
Location: Eaton Rapids MI
Posts: 2,964
Thanks: 0
Thanked 0 Times in 0 Posts
raptor660 is on a distinguished road
Default

Wow.. Great pics.. Time Intensive.
raptor660 is offline   Reply With Quote
Old 07-03-2010, 03:28 AM   #3
Senior Member
Posts like a Turbo

golgo13's Avatar

Join Date: May 2010
Location: Illinois
Posts: 233
Thanks: 0
Thanked 0 Times in 0 Posts
golgo13 is on a distinguished road
Default

nice work!
golgo13 is offline   Reply With Quote
Old 07-03-2010, 09:10 AM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Outstanding Dan!

Wish I was there to give a hand! Looked like fun!
Mike is offline   Reply With Quote
Old 07-03-2010, 09:31 AM   #5
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

oh that'* bringing back memories. heheh good work y'all
sawgunner is offline   Reply With Quote
Old 07-03-2010, 09:54 AM   #6
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'm going to try and open up the old trans today. I need to transfer over his hardened input shaft. I noticed that the oil pump shaft turns very hard on the old trans. I wonder if that'* what failed.
Danthurs is offline   Reply With Quote
Old 07-03-2010, 10:06 AM   #7
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

did he have any slipping? if so i would bet the pump was starting to fail like mine did.
sawgunner is offline   Reply With Quote
Old 07-03-2010, 10:14 AM   #8
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

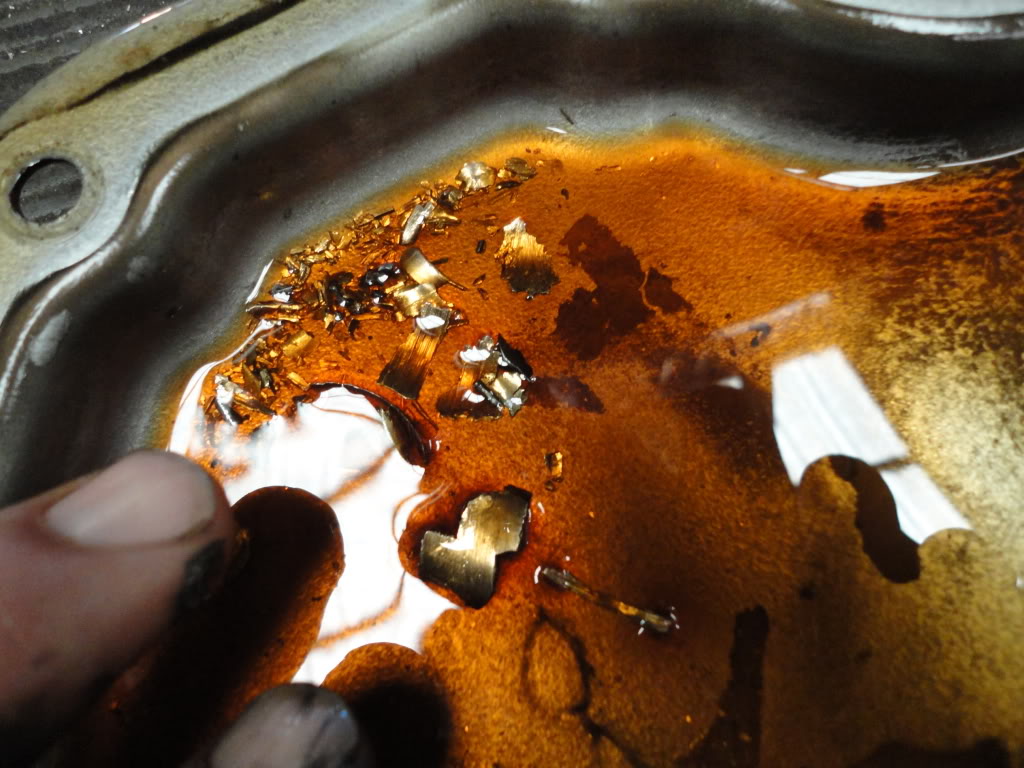

Ya, it was slipping bad, and this is what I found in the bottom pan.

Name:  DSC00407.jpg
Views: 2
Size:  148.8 KB
Danthurs is offline   Reply With Quote
Old 07-03-2010, 10:26 AM   #9
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Open up the filter. I would like to see if its all clogged up.
Mike is offline   Reply With Quote
Old 07-03-2010, 10:32 AM   #10
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

oh nice! i still have to open my pan up on my old one to see what'* there.
