Default SUSPENSION QUESTION

I have a 96 SE. Great car, but rides "Boaty" Which "H" body models, if any, would have stiffer factory sway bars than what I have now? Or are they all pretty much the same? I would imagine the Pontiacs would be more performance oriented than the Buicks. I don't know about the Oldsmobiles, though.
PEARL_JAM is offline   Reply With Quote
Old 11-12-2006, 12:30 PM   #2
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

you rbest bet would be to upgrade to FE2 SSEi springs and swaybars, and use engery endlinks.
toastedoats is offline   Reply With Quote
Old 11-12-2006, 12:39 PM   #3
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road
Default

Just the info I needed. Thanks! I'm going boneyard hopping my next free weekend.
PEARL_JAM is offline   Reply With Quote
Old 11-12-2006, 12:44 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by toastedoats
you rbest bet would be to upgrade to FE2 SSEi springs and swaybars, and use engery endlinks.
Very True....the FE2 suspension, has a higher load rating to the springs...the 1250lbs as apposed to teh 850 with the FE1....you can see the difference right there

and also the sway bars are bigger and thicker...

I recently swaped in the larger springs and the swaybars into my car

here is some pics

Name:  HPIM1572.jpg
Views: 1
Size:  67.5 KB

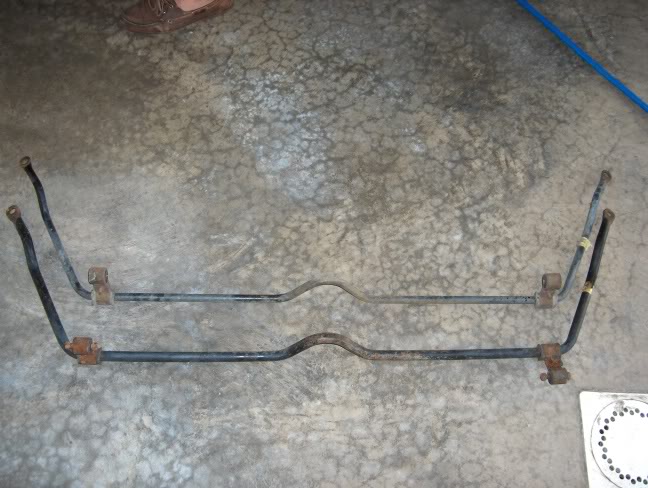

left is the FE1 right is the FE2

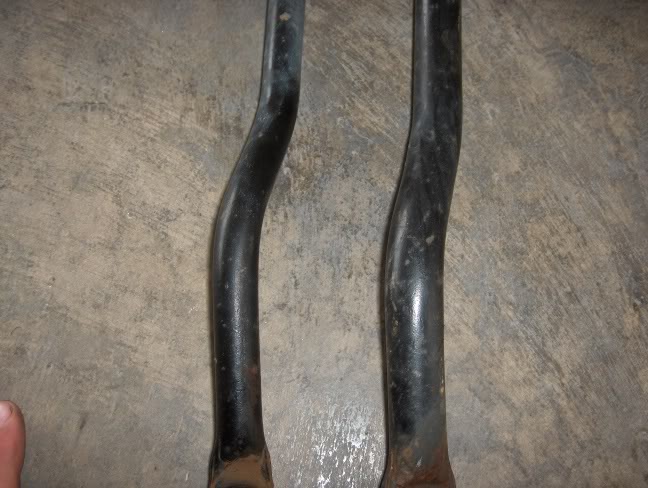

Name:  HPIM1573.jpg
Views: 1
Size:  66.3 KB

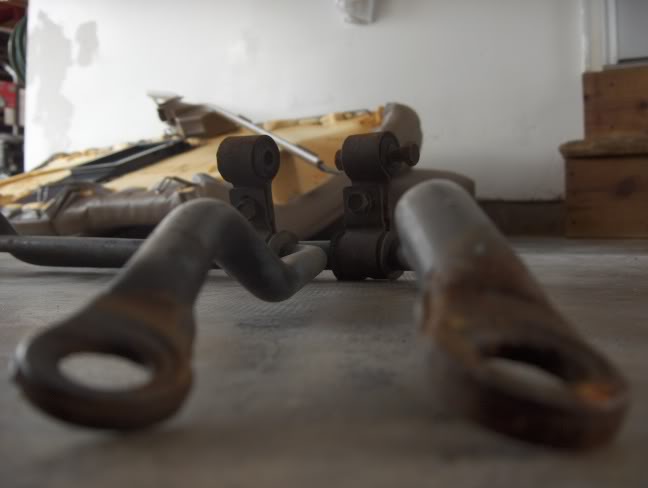

Name:  HPIM1574.jpg
Views: 2
Size:  25.4 KB

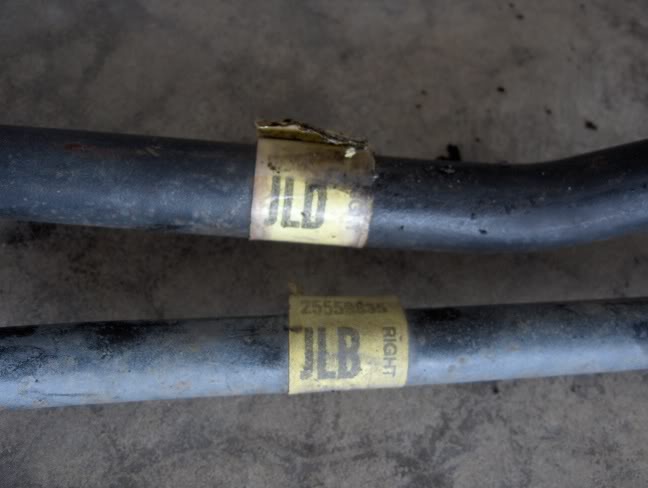

JLD is the FE2 JLB is the FE1
Name:  HPIM1577.jpg
Views: 1
Size:  34.7 KB

FE2 on left FE1 on right
Name:  HPIM1578.jpg
Views: 1
Size:  64.4 KB


now please KEEP IN MIND that the FE2 was desinged to work with the ELC system....i suggest that if you do the FE2 swap that you get rear assist struts and you convert the car to manual ELC
1993 SLE is offline   Reply With Quote
Old 11-12-2006, 01:11 PM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road
Default

Is ELC a type of load leveling system?
PEARL_JAM is offline   Reply With Quote
Old 11-12-2006, 01:12 PM   #6
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by PEARL_JAM
Is ELC a type of load leveling system?
precisely
toastedoats is offline   Reply With Quote
Old 11-12-2006, 01:15 PM   #7
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road
Default

Would any of the 92-96 Park Aves have FE2? I know where some of those are. I'm guessing it'* rare in the Bonnevilles?
PEARL_JAM is offline   Reply With Quote
Old 11-12-2006, 01:21 PM   #8
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by PEARL_JAM
Would any of the 92-96 Park Aves have FE2? I know where some of those are. I'm guessing it'* rare in the Bonnevilles?
SOME SE and SSE'* have it....but ALL of the SSEi'* have FE2

the FE2 is gonna be rare in the Parks...i would say only the Ultras are gonna have the FE2.....you need to check the RPO sticker if available.....

also some of the Parks have the 34mm front sway as apposed to the regular 32mm FE2....
1993 SLE is offline   Reply With Quote
Old 11-12-2006, 01:25 PM   #9
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road
Default

Thank you for all the help. any other (inexpensive) modifications you can suggest?
PEARL_JAM is offline   Reply With Quote
Old 11-12-2006, 01:28 PM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by PEARL_JAM
Thank you for all the help. any other (inexpensive) modifications you can suggest?
the suspension should be pretty cheap from the JY.....when you do the sway bars be sure to install Energy suspension Endlinks.....

oh and BTW is the junkyard that you are going to a u pull??.....i know dbeast420 would be interested in attending
1993 SLE is offline   Reply With Quote
