Default RPO and VIN decoding - carfax anyone?

so im trying to find out all i can about my car. working on decoding my RPO. this is what ive got



AG1 - 6 way power drivers seat, split bench (Split Bench??? Ive got bucket)
AK5 - restraint system,fron seat inflatable, driver & passenger
AL9 - Control Seat, Power Lumbar, Driver
AU0 - lock control, remote entry
A51 - Seat Front Bucket, Driver and Passenger
A80 - adjuster front,seat back,power driver,reclining
B0C -
C67 - hvac system, air conditioner front, electronic controls
DEH -
DG7 - mirror o/*, LH,RH,remote control electric, painted
DH6 - mirror, vanity sunshade, illuminated, driver passenger
D55 - Console, front compartment, floor (huh?)
FE1 - suspension, soft ride
FLT - option (whats that mean?)
FQ3 - ratio, transaxle, final drive 2.86
IB2 -
JL9 - brake system,power,front & RR disk,antilock front W
KCV -
KG9 - generator, 140 amp
L36 - 3.8L V6 MFI 3800 II
MN3 - Transmission Auto 4 speed 4t65-e
MX0 - trans, merchandised, overdrive
NC7 - emissions system override, federal
NP5 - steering wheel, leather wrapped
NU1 -
PDJ -
PF5 - wheel 16x7 alluminum, light metal alloy 5 blade alluminum
QNX - tire, 225/60R16 touring
R6F -
R8M -
T43 - spoiler rear deck lid
UA6 - Theft deterent system
UB3 - cluster,inst,oil,cool temp,volts,trip odometer
UK3 - control, steering wheel accessory
UV7 - Antenna Windshield, Rear Window, Radio
UW6 - speaker system,6,dual F/D tweet & WWF,dual EXT
U1P - Radio - AM/FM stereo, seek/scan, auto-rev, music search cassette, clock, equalizer.
U2J -
VG8 -
VM4 - label information, consumer,contains BPR IMP standard for front
VN9 -
V2G -
V73 - USA/Canada
YF5 - Certication California Emissions
YT1 -
1SB - package, option 02
1SZ - discount, option package
6DK -
68U -
7DK -
8CM -
9CM -
931 - Interior Trim Very Dark Gray
932 -
BC/CC U 931L 932

1G2HX52K74U259808

and the codes i couldnt figure out:
B0C - DEH - IB2 - KCV - MN3 - NU1 - PDJ - R6F - R8M - U1P - U2J - VG8 - VN9 - V2G - YF5 - YT1 - 6DK - 68U - 7DK - 8CM - 9CM - 932 -

paint code is... i dunno.
jwakamud is offline   Reply With Quote
Old 05-05-2006, 09:08 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I can help with a couple

MN3 - Transmission Auto 4 speed 4t65-e

U1P - Radio - AM/FM stereo, seek/scan, auto-rev, music search cassette, clock, equalizer.

YF5 - Certication California Emissions

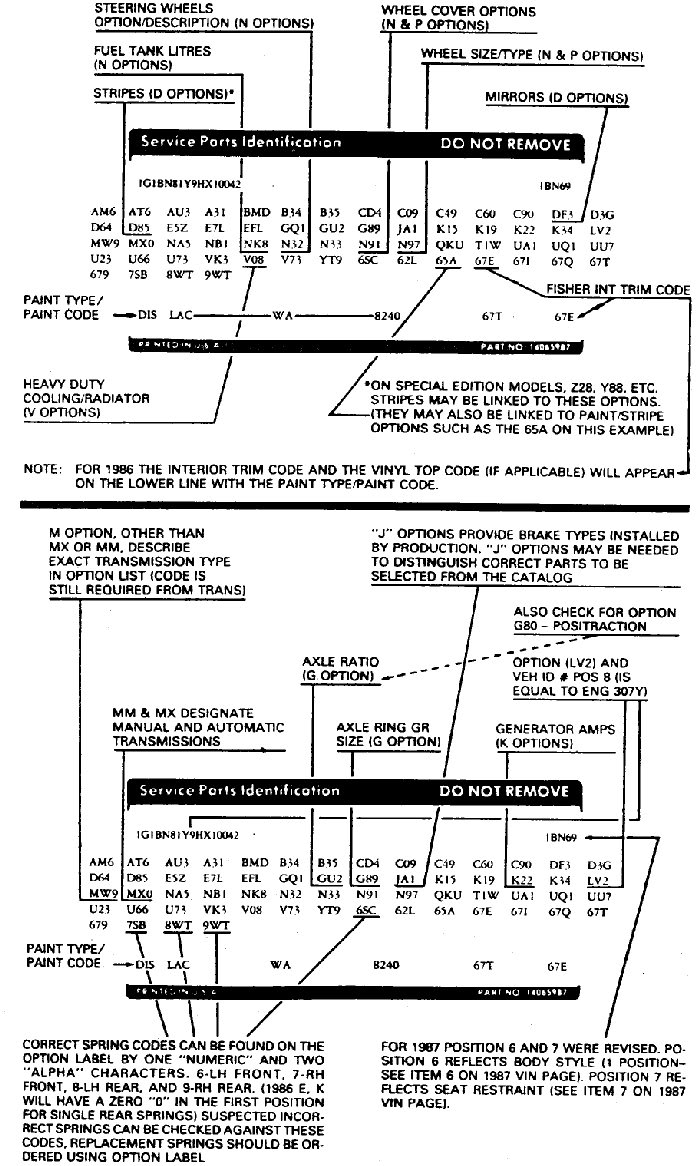

This is label information

Name:  rpolabel.jpg
Views: 144
Size:  193.7 KB

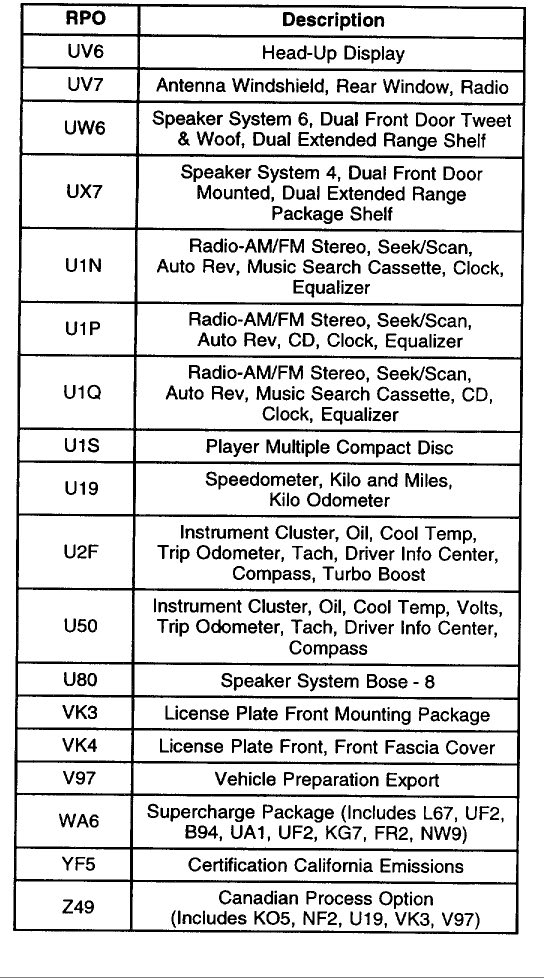

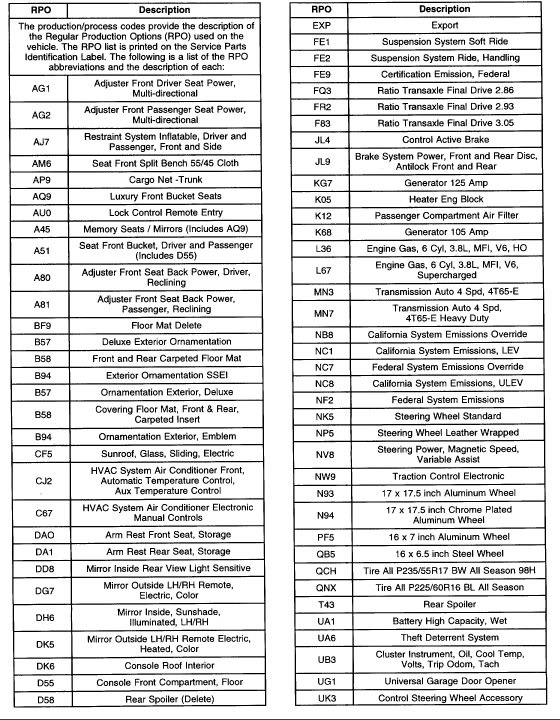

These are the RPO codes for the 2000s

Name:  rpocode1.jpg
Views: 108
Size:  136.7 KB

Name:  rpocode2.jpg
Views: 78
Size:  142.6 KB
Archon is offline   Reply With Quote
Old 05-05-2006, 09:47 PM   #3
Junior Member
Thread Starter

Join Date: Sep 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
jwakamud is on a distinguished road
Default

edited in, thanks
jwakamud is offline   Reply With Quote
Old 05-06-2006, 01:47 PM   #4
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Do me a favor and PM me this link so I can do more work on the RPO'*...

Thanks

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 05-08-2006, 01:12 AM   #5
Senior Member
Posts like a Camaro

Join Date: Nov 2002
Posts: 1,109
Thanks: 0
Thanked 0 Times in 0 Posts
1995BvSSE is on a distinguished road
Default Re: RPO and VIN decoding - carfax anyone?

So you have an old rental car too?

Quote:
Originally Posted by jwakamud
AG1 - 6 way power drivers seat, split bench (Split Bench??? Ive got bucket) POWER, MULTI-DIRECTIONAL, DRIVER
AK5 - restraint system,fron seat inflatable, driver & passenger
AL9 - Control Seat, Power Lumbar, Driver
AU0 - lock control, remote entry
A51 - Seat Front Bucket, Driver and Passenger
A80 - adjuster front,seat back,power driver,reclining
B0C - production week 21
C67 - hvac system, air conditioner front, electronic controls
DEH - Plant CodeETROIT/HAMTRAMCK, MI, USA
DG7 - mirror o/*, LH,RH,remote control electric, painted
DH6 - mirror, vanity sunshade, illuminated, driver passenger
D55 - Console, front compartment, floor (huh?)
FE1 - suspension, soft ride
FLT - option (whats that mean?) Fleet Processing
FQ3 - ratio, transaxle, final drive 2.86
IB2 - Interior trim Design B2
JL9 - brake system,power,front & RR disk,antilock front W
KCV - Fleet vehicle: ALAMO RENT-A-CAR (C/D/E/F/G/H/J/K/M/N/U/W/Z-TRK CKGMLPST)
KG9 - generator, 140 amp
L36 - 3.8L V6 MFI 3800 II
MN3 - Transmission Auto 4 speed 4t65-e
MX0 - trans, merchandised, overdrive
NC7 - emissions system override, federal
NP5 - steering wheel, leather wrapped
NU1 - California Level 2 Emissions
PDJ - Sales Item Control Number #127
PF5 - wheel 16x7 alluminum, light metal alloy 5 blade alluminum
QNX - tire, 225/60R16 touring
R6F - Sales item control number #6
R8M - Sales item control number #63
T43 - spoiler rear deck lid
UA6 - Theft deterent system
UB3 - cluster,inst,oil,cool temp,volts,trip odometer
UK3 - control, steering wheel accessory
UV7 - Antenna Windshield, Rear Window, Radio
UW6 - speaker system,6,dual F/D tweet & WWF,dual EXT
U1P - Radio - AM/FM stereo, seek/scan, auto-rev, music search cassette, clock, equalizer.
U2J - Remove XM Satellite Radio option
VG8 - label, notice to buyer
VM4 - label information, consumer,contains BPR IMP standard for front
VN9 - Program car buyback guarantee
V2G - Credit in lieu of fuel
V73 - USA/Canada
YF5 - Certication California Emissions
YT1 - Fleet program: FALL/WINTER/SPRING REPURCHASE (B/C/D/F/G/H/J/K/M/NS/U/V/W/Z-TRK CKGJMPST
1SB - package, option 02
1SZ - discount, option package
6DK - COMPONENT FRT LH COMPUT SEL SUS
68U - EXTERIOR, BEIGE GOLD (02) OPEL
7DK - COMPONENT FRT RH COMPUT SEL SUS
8CM - COMPONENT RR LH COMPUT SEL SUS
9CM - COMPONENT RR RH COMPUT SEL SUS
931 - Interior Trim Very Dark Gray That'* 93I, not 931
932 - LEATHER, VERY DK GRAY (2) (97) (CLCD PONT "H")
BC/CC U 931L 932

1G2HX52K74U259808

and the codes i couldnt figure out:
B0C - DEH - IB2 - KCV - MN3 - NU1 - PDJ - R6F - R8M - U1P - U2J - VG8 - VN9 - V2G - YF5 - YT1 - 6DK - 68U - 7DK - 8CM - 9CM - 932 -

paint code is... i dunno.
1995BvSSE is offline   Reply With Quote
Old 05-08-2006, 02:16 AM   #6
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default Re: RPO and VIN decoding - carfax anyone?

Quote:
Originally Posted by jwakamud

paint code is... i dunno.

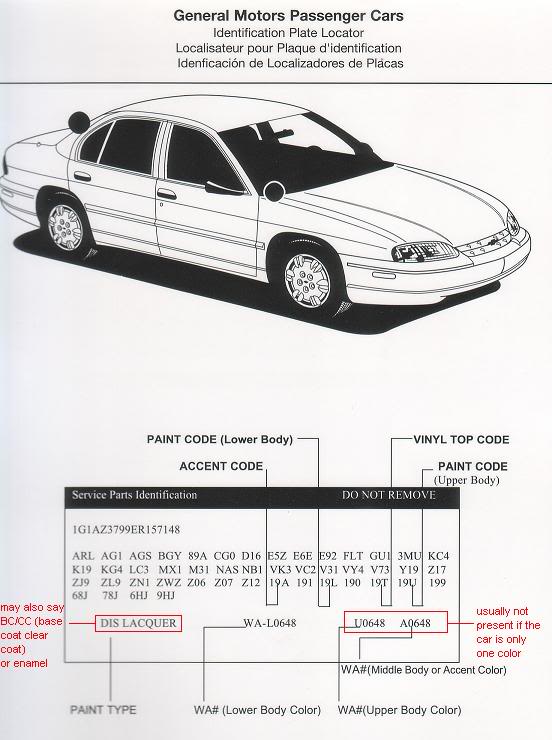

Name:  Untitled-Scanned-01.jpg
Views: 78
Size:  60.9 KB

that will at least tell where the TWO paint codes are (both for the same colour, dont let the multiple codes confuse you)
Peterg22000 is offline   Reply With Quote
Old 05-08-2006, 09:58 AM   #7
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

This will definitely help you out (and Don!):

http://www.frontiernet.net/~face440/GMRPOCodes.pdf
vital49 is offline   Reply With Quote
Old 05-08-2006, 12:06 PM   #8
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Yes it does... And I saved it

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 05-08-2006, 07:11 PM   #9
Junior Member
Thread Starter

Join Date: Sep 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
jwakamud is on a distinguished road
Default

ty guys. so rpo decoded, no bites on carfax. i might have to bide my time on that one, eh.

did i miss paint color?
jwakamud is offline   Reply With Quote
Old 05-08-2006, 09:18 PM   #10
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Quote:
Originally Posted by jwakamud
ty guys. so rpo decoded, no bites on carfax. i might have to bide my time on that one, eh.

did i miss paint color?
Paint code'*----- Name (two in this case)--------------years avaliable
931L___68U___Glacier Blue Met / Blue Ice Met_____04-06


just a little side note, that is one of the hardest colours to paint
Peterg22000 is offline   Reply With Quote
