Mods and Admins, i dont know where this should really go so please move if needed

yes folks, rear heated seats are becoming a reality..

i grabbed a set of 00-03 Aurora and 03-05 Bonneville heated seats out of the junkyard with the modules and the switches

yes i ruined a perfect set of seats in the junkyard, but i dont care
Name:  RearHeatedSeats001.jpg
Views: 19
Size:  86.9 KB

Name:  RearHeatedSeats002.jpg
Views: 16
Size:  62.5 KB

Name:  RearHeatedSeats003.jpg
Views: 17
Size:  70.2 KB

and the Drivers and Passenger Modules
Name:  RearHeatedSeats004.jpg
Views: 21
Size:  47.1 KB

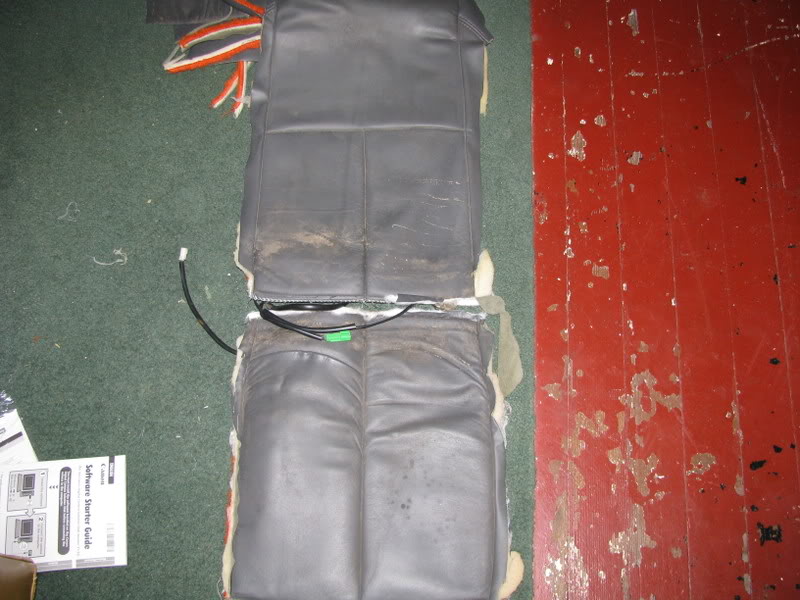

now i cut the seats apart, and cut the leather off of them, so they will fit better on the seat
Name:  RearHeatedSeats005.jpg
Views: 18
Size:  59.9 KB

Name:  RearHeatedSeats006.jpg
Views: 12
Size:  61.2 KB

Name:  RearHeatedSeats007.jpg
Views: 16
Size:  68.2 KB

Name:  RearHeatedSeats008.jpg
Views: 17
Size:  73.8 KB

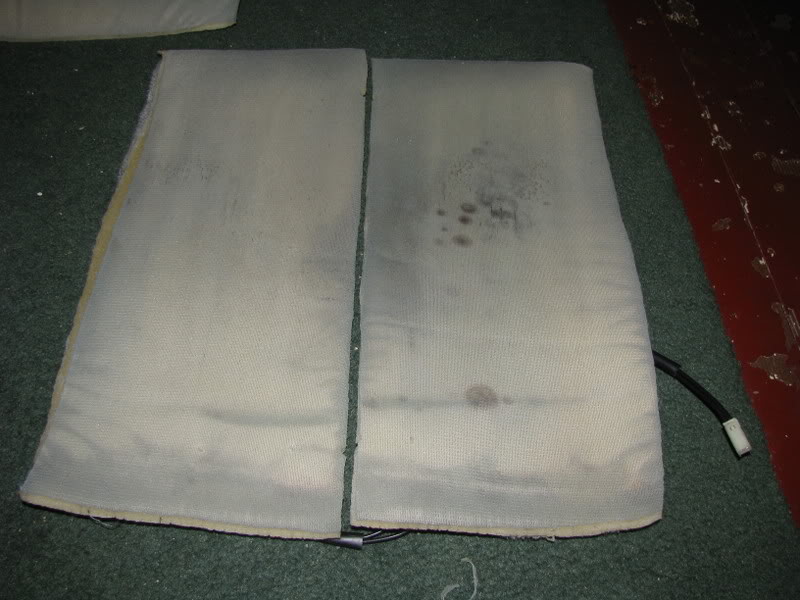

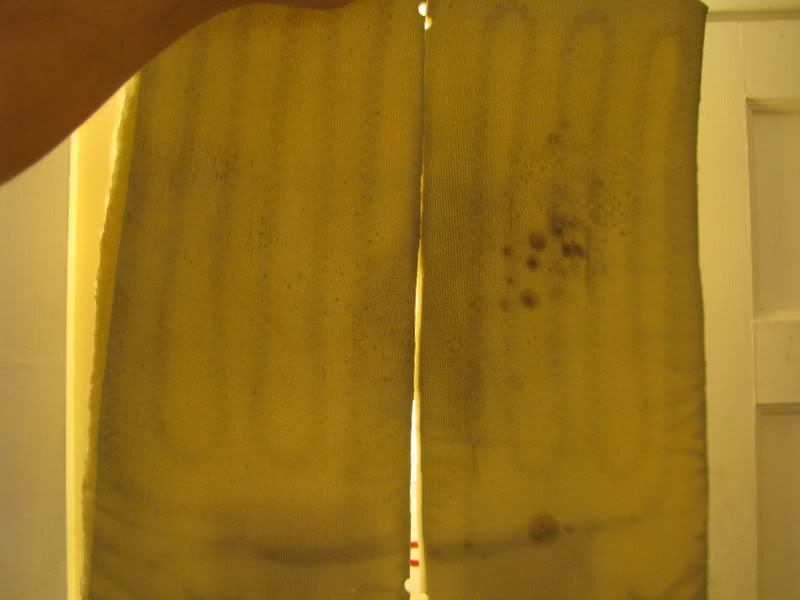

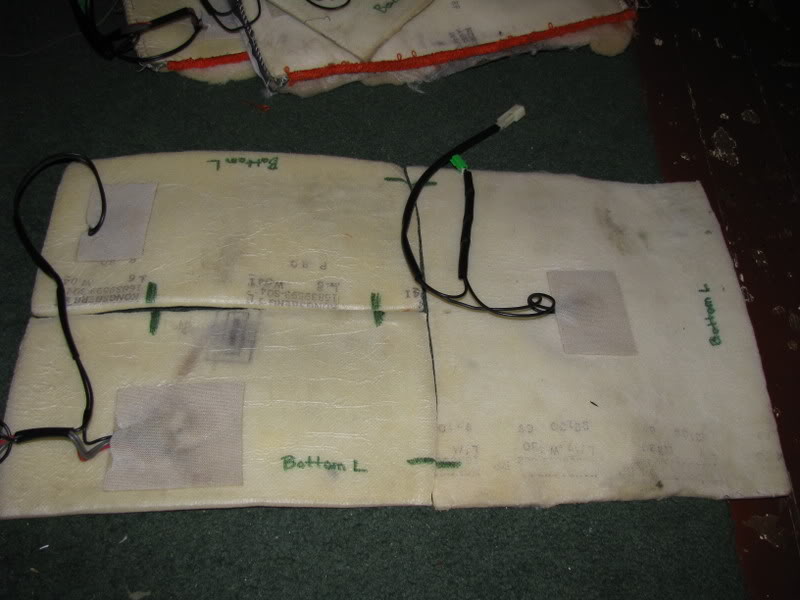

and here is the actuall elements inside the seat that make it nice and warm

Name:  RearHeatedSeats009.jpg
Views: 15
Size:  41.7 KB

Name:  RearHeatedSeats010.jpg
Views: 17
Size:  34.8 KB

Name:  RearHeatedSeats011.jpg
Views: 21
Size:  32.9 KB

still have to cut apart the other side of the seat, get gray heated seat switches, and then install

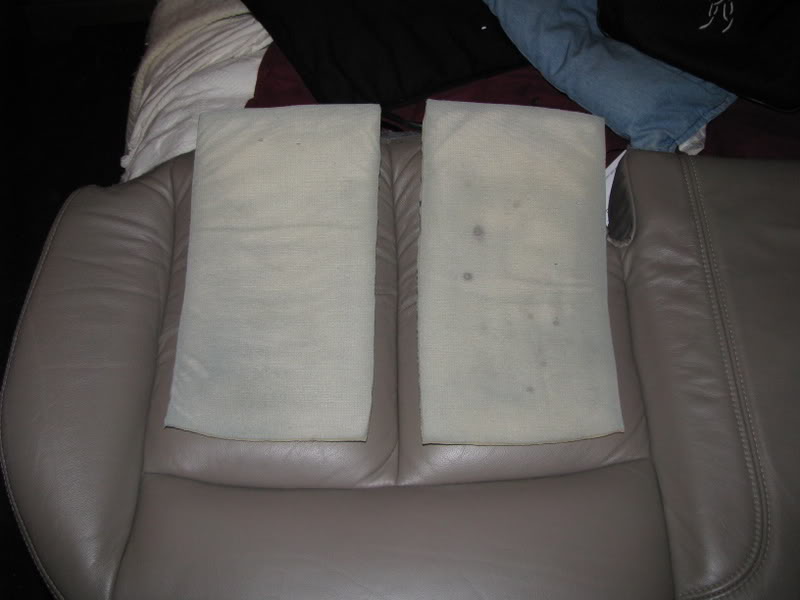

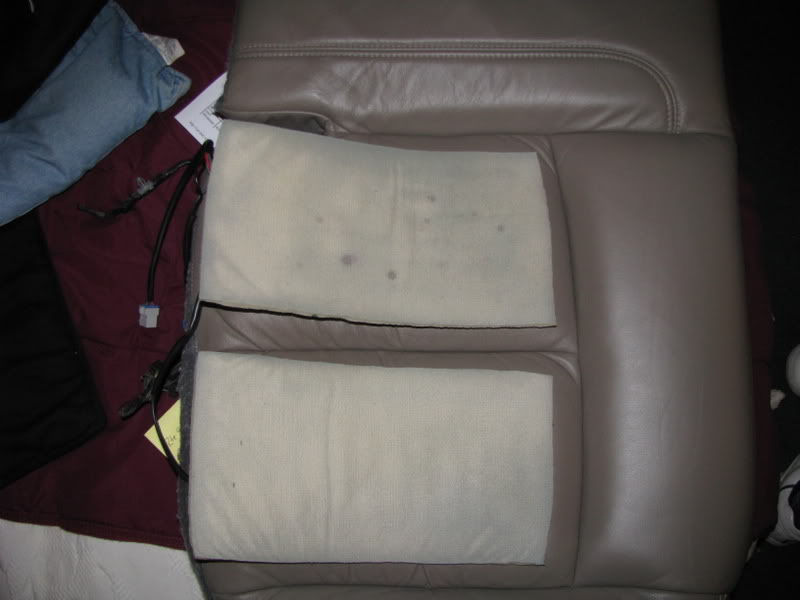

seat elements layed ontop of the leather for fitment

Name:  RearHeatedSeats012.jpg
Views: 18
Size:  42.6 KB

Name:  RearHeatedSeats013.jpg
Views: 14
Size:  42.5 KB

Name:  RearHeatedSeats014.jpg
Views: 15
Size:  43.4 KB

Name:  RearHeatedSeats016.jpg
Views: 14
Size:  35.9 KB

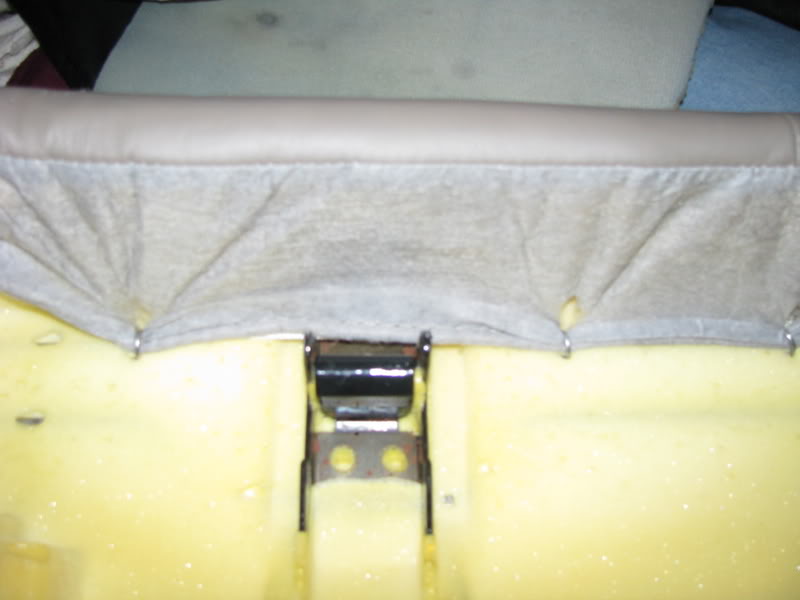

Bottom of the Seat....the best thing is that there are only 5 hog rings holding the leather on....
Name:  RearHeatedSeats017.jpg
Views: 13
Size:  44.3 KB

Name:  RearHeatedSeats018.jpg
Views: 16
Size:  37.6 KB

Name:  RearHeatedSeats019.jpg
Views: 14
Size:  40.0 KB

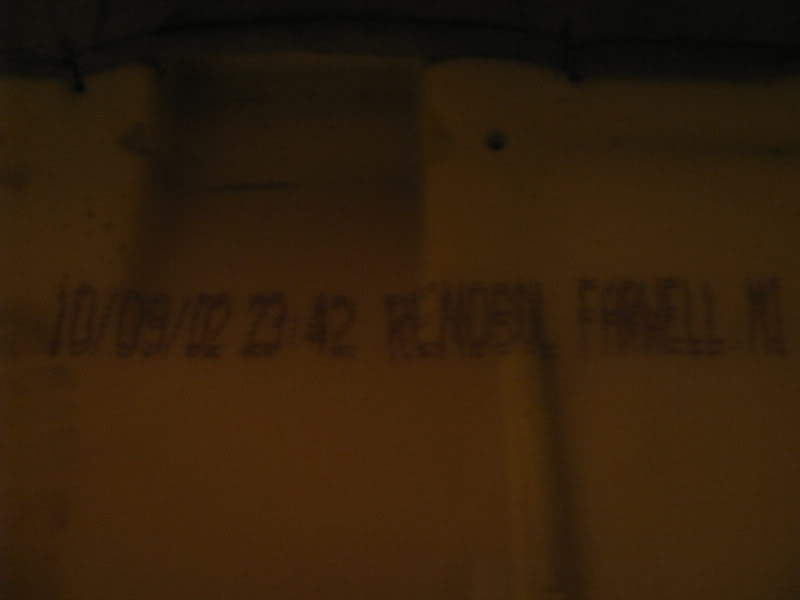

Manufacture Date of the seat
Name:  RearHeatedSeats021.jpg
Views: 15
Size:  16.9 KB

and now onto the install

testing in the car
Name:  RearHeatedSeats022.jpg
Views: 17
Size:  68.5 KB

current weather
Name:  RearHeatedSeats023.jpg
Views: 22
Size:  64.6 KB

hog rings removed
Name:  RearHeatedSeats024.jpg
Views: 15
Size:  41.9 KB

white string, pulls the leather tight around the bottom
Name:  RearHeatedSeats025.jpg
Views: 15
Size:  39.7 KB

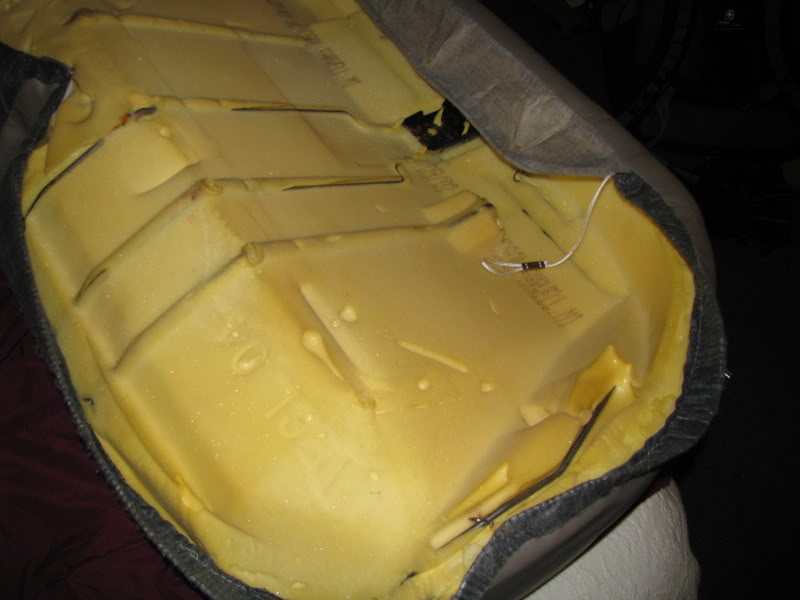

leather ready to come off
Name:  RearHeatedSeats026.jpg
Views: 17
Size:  45.5 KB

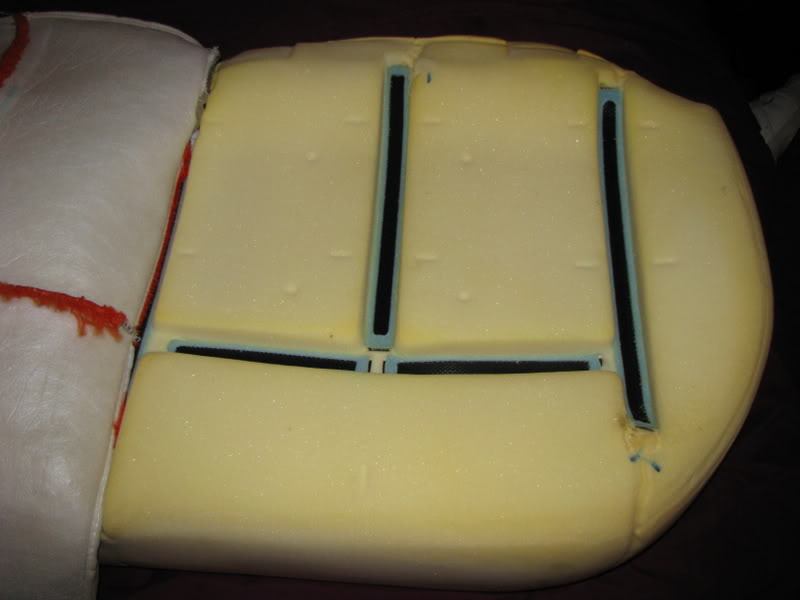

leather off to reveal the velcro that holds the leather on to the seat
Name:  RearHeatedSeats027.jpg
Views: 17
Size:  38.2 KB

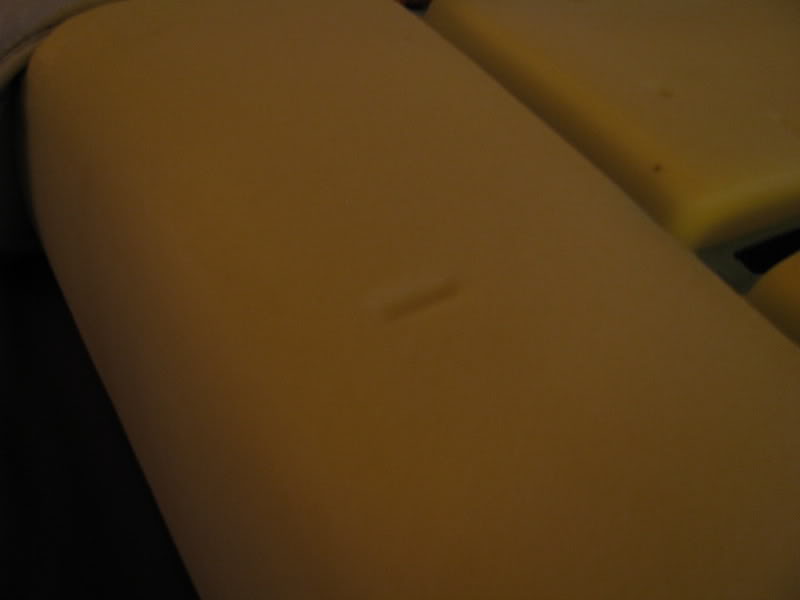

existing template for the element wires to pass thru
Name:  RearHeatedSeats028.jpg
Views: 14
Size:  18.3 KB

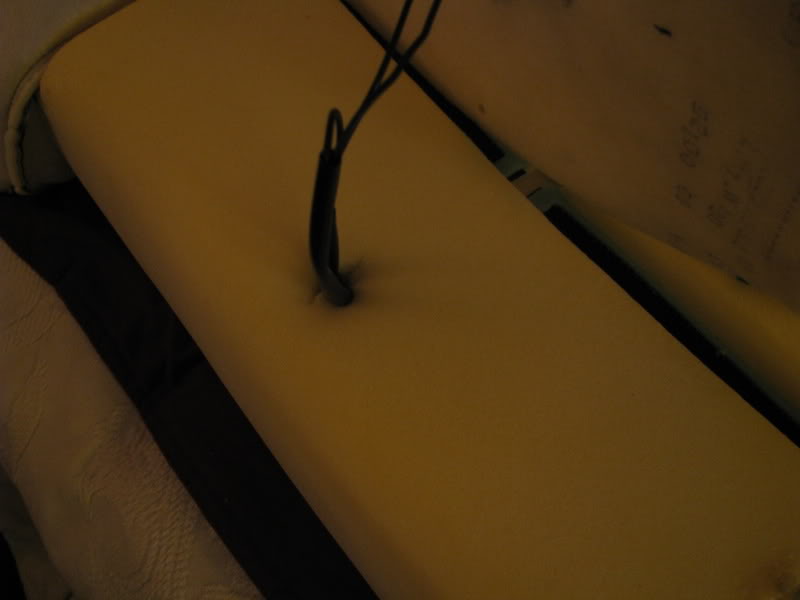

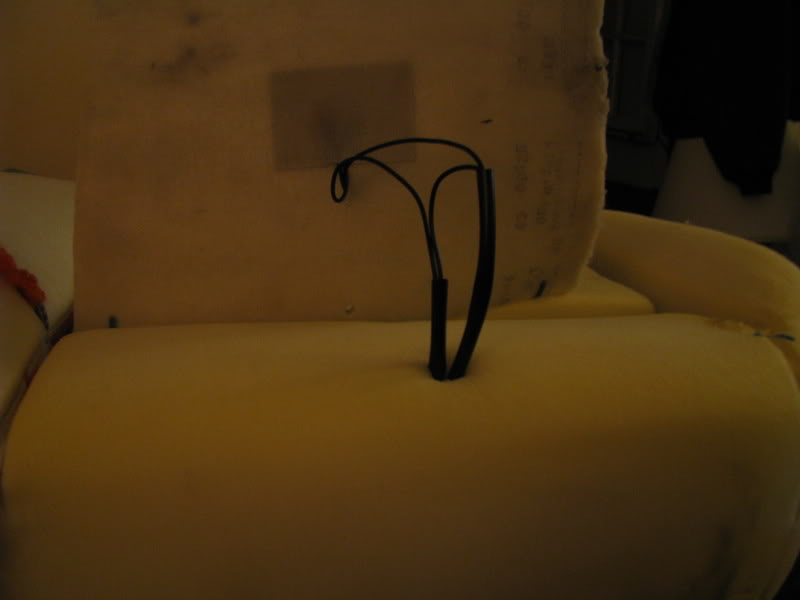

hole cut thru the foam
Name:  RearHeatedSeats029.jpg
Views: 19
Size:  24.2 KB

Name:  RearHeatedSeats030.jpg
Views: 13
Size:  27.4 KB

Name:  RearHeatedSeats031.jpg
Views: 17
Size:  54.0 KB

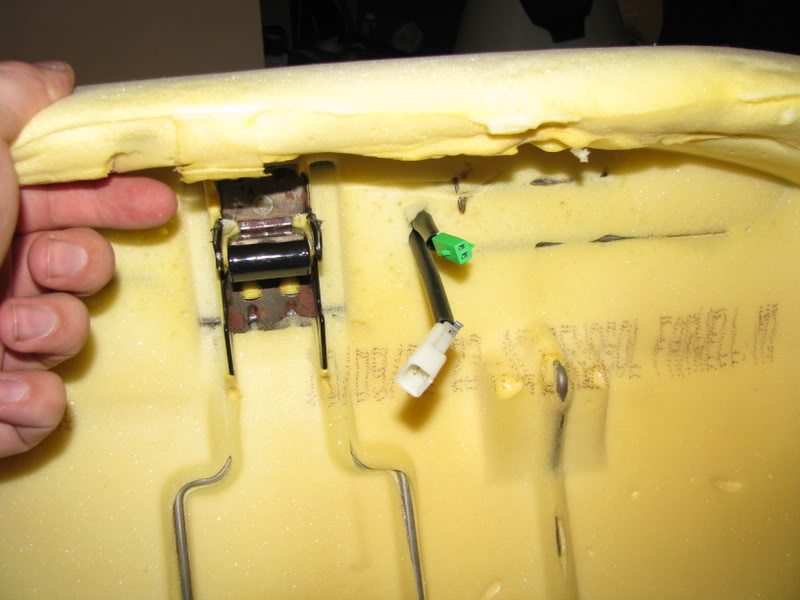

Rear locations marked for the rear wires
Name:  RearHeatedSeats032.jpg
Views: 17
Size:  36.2 KB

Name:  RearHeatedSeats033.jpg
Views: 16
Size:  43.6 KB

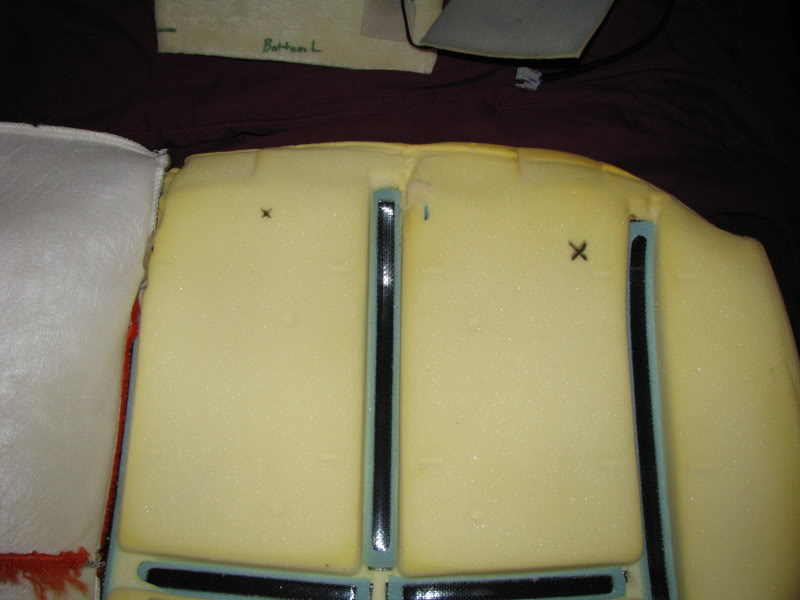

Element on the cusion...
Name:  RearHeatedSeats034.jpg
Views: 16
Size:  46.8 KB

Name:  RearHeatedSeats035.jpg
Views: 19
Size:  42.0 KB

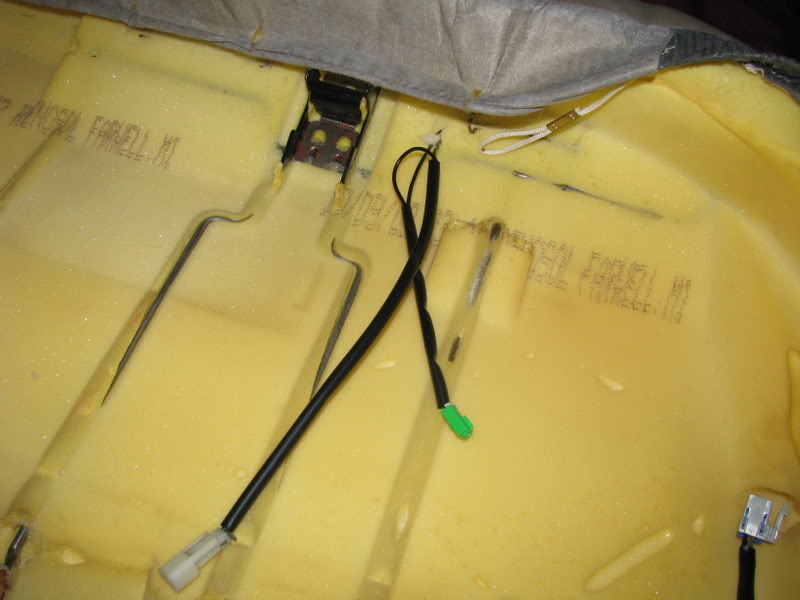

Underneath the cusion showing the wires
Name:  RearHeatedSeats036.jpg
Views: 12
Size:  56.2 KB

Name:  RearHeatedSeats037.jpg
Views: 13
Size:  51.2 KB

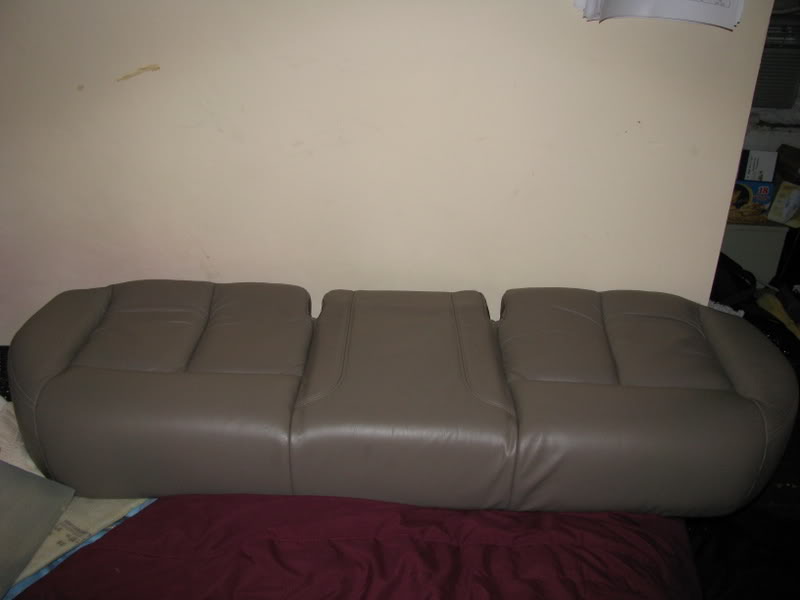

ok so which side has the elements and which dosent?
Name:  RearHeatedSeats039.jpg
Views: 16
Size:  28.0 KB

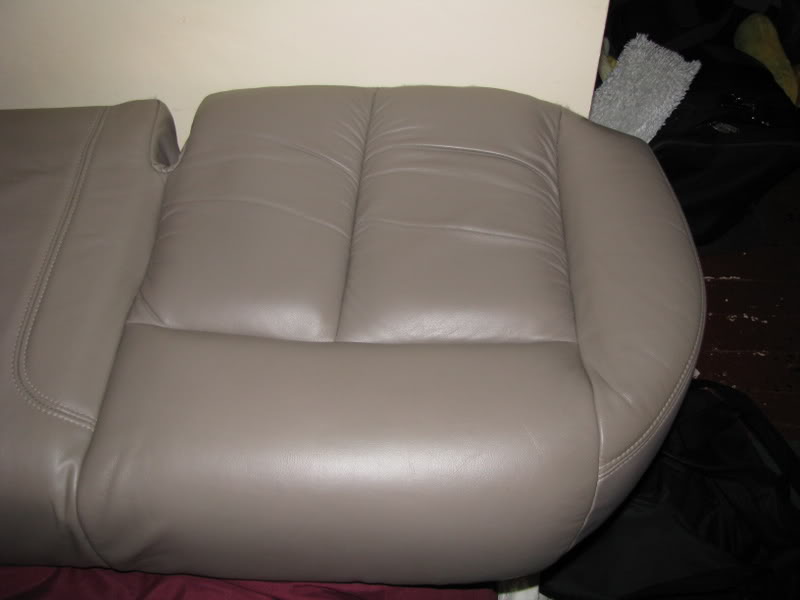

left
Name:  RearHeatedSeats040.jpg
Views: 17
Size:  32.5 KB

right
Name:  RearHeatedSeats041.jpg
Views: 17
Size:  29.8 KB

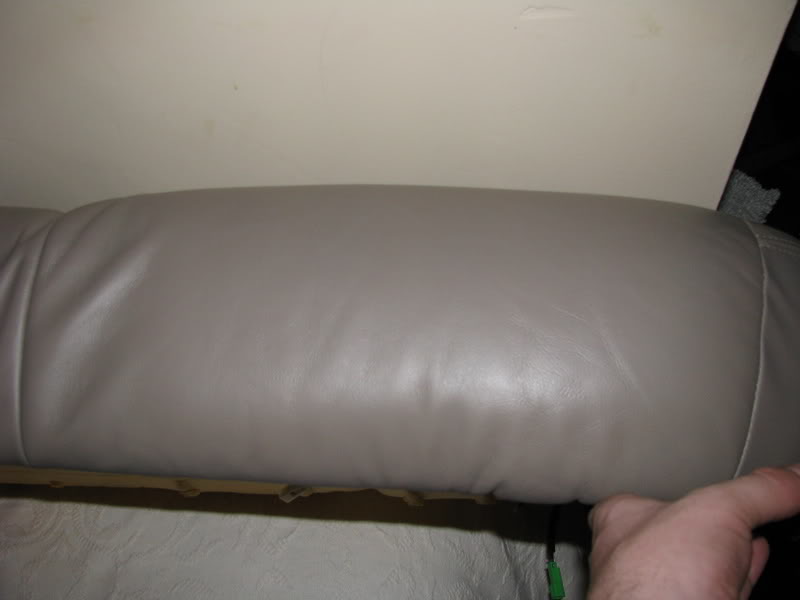

the only real evidence is the slightest bump where the element ends....and you can hardly see it
Name:  RearHeatedSeats042.jpg
Views: 20
Size:  28.8 KB
