Old 10-08-2007, 12:46 PM   #41
Senior Member
True Car Nut

Join Date: May 2003
Location: Holt, MI & Lima, OH
Posts: 3,022
Thanks: 0
Thanked 0 Times in 0 Posts
dbtk2 is on a distinguished road
Default

Quote:
Originally Posted by sandrock
Thanks alot guys! I still need numbers from 2000-up L36'*.
Why do you need 00+ L36'*. 99+ L67'* and L36'* all got the same MAF. So 00+ L36 is gonna be AFH50M-05, just like any L67 or L36 99+. 96-98 L36 & L67 were also all the same.

So

96-98 L36/L67: AFH50M-04
99-03 L36/L67: AFH50M-05

Not sure why you have to look at 100 different cars to find info that is common knowledge on clubgp...... The Series I'* I can understand though.
dbtk2 is offline   Reply With Quote
Old 10-08-2007, 01:23 PM   #42
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Y'know...you could have chimed in earlier with that info....that would have saved some post space And true...it may be common knowledge over there, but it isn't here...hence this posting. I for one, am not a member there, and I am sure there are many others on this forum that aren't members there either. If we aren't members, how are we to know it'* common knowledge?

It'* also true that this benefits the pre-S2 crowd the most. There seems to be alot more part numbers to look at, and it seems none of them are cross-compatible. In fact, the primary reason this post came about was because of a possible MAF failure and I wanted to see if there was ANY cross-compatibility. But when looking at the list, you can see when certain numbers got phased out. That'* helpful information as well.
sandrock is offline   Reply With Quote
Old 10-16-2007, 05:53 AM   #43
Senior Member
Posts like a Supercharger

Join Date: Jun 2006
Location: Moon of meepsorp
Posts: 183
Thanks: 0
Thanked 0 Times in 0 Posts
Roadrunner is on a distinguished road
Default

Here is the 92 L27 you were needing:
AFH50M-02C (A2218 stamped number)

FWIW this car has Delco coil set-up and no EGR
Roadrunner is offline   Reply With Quote
Old 10-17-2007, 09:03 AM   #44
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

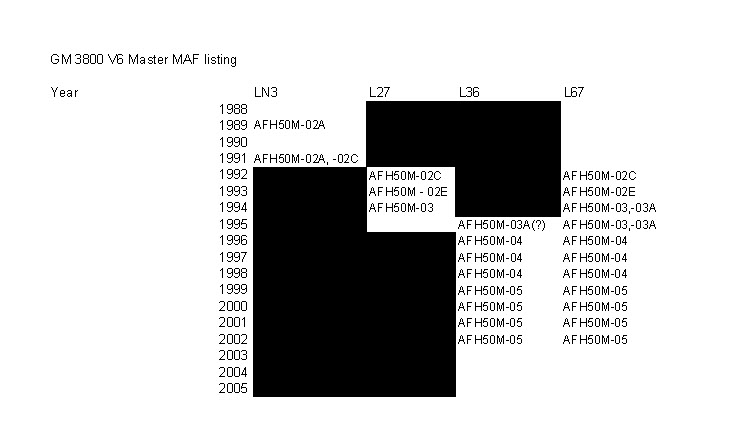

Here is the mostly complete spreadsheet for the numbers...

Name:  MAF.jpg
Views: 3
Size:  34.7 KB

Note I am still missing data on the earliest engines, which I figured that would happen. The 88-91 crowd, for all intents and purposes, are the minority of the group
sandrock is offline   Reply With Quote
Old 10-17-2007, 05:25 PM   #45
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

Quote:
Originally Posted by wjcollier07
Ok, found my original 89 MAF!

AFH50M - 02A
number below it is 8616 if that helps any also. maybe just a sequence number? my maf was number 8616?

1989 LE - LN3 - Built: early december 1988
umm? 1989 LN3? Not on there yet?
wjcollier07 is offline   Reply With Quote
Old 10-17-2007, 07:03 PM   #46
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Oh....er......oops

Corrected on the master sheet, I'll have to edit the .gif when I get the time
sandrock is offline   Reply With Quote
Old 10-23-2007, 08:53 PM   #47
Senior Member
Certified GM nut

Join Date: Jul 2003
Location: Charlotte, NC ________ SEBF 07 survivor
Posts: 2,128
Thanks: 0
Thanked 0 Times in 0 Posts
aviator327 is on a distinguished road
Default Re: Post your numbers for a master MAF list!

Quote:
Originally Posted by sandrock
I was talking with Don yesterday, and I brought up the idea of maybe putting together a master MAF sensor identification thread, and later posting in techinfo. I've seen several recent posts where info like this would come in very handy.

How does anyone else feel about it?
Maybe you can show me where my MAF sensor is when I get down there.
aviator327 is offline   Reply With Quote
Old 01-11-2008, 04:45 AM   #48
Senior Member
Posts like a Turbo

Join Date: Jul 2007
Location: Joplin, Missouri
Posts: 354
Thanks: 0
Thanked 0 Times in 0 Posts
Alibi is on a distinguished road
Default

I have the original MAF sensor on my T Type. Funny thing is that the motor came out of a 1990 Olds 88. I wonder if the T Type ECM is treating the Olds MAF incorrectly due to the model differences?

Anyway, I'll post up the number off it tomorrow when there'* light out :P
Alibi is offline   Reply With Quote
Old 01-17-2008, 10:25 PM   #49
Senior Member
Posts like a Northstar

Join Date: Sep 2006
Location: Dumfries, Virginia Member: #6887
Posts: 577
Thanks: 0
Thanked 0 Times in 0 Posts
whitecrystal1 is on a distinguished road
Default

Quote:
Originally Posted by sandrock
Here is the mostly complete spreadsheet for the numbers...



Note I am still missing data on the earliest engines, which I figured that would happen. The 88-91 crowd, for all intents and purposes, are the minority of the group
This should help confirm the question for the correct part number on the 95 L36. This list the same part as mine and is the same on the used throttle body I bought that was also off the same model year.
http://cgi.ebay.com/ebaymotors/1995-...spagenameZWDVW
whitecrystal1 is offline   Reply With Quote
Old 03-15-2008, 10:03 AM   #50
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

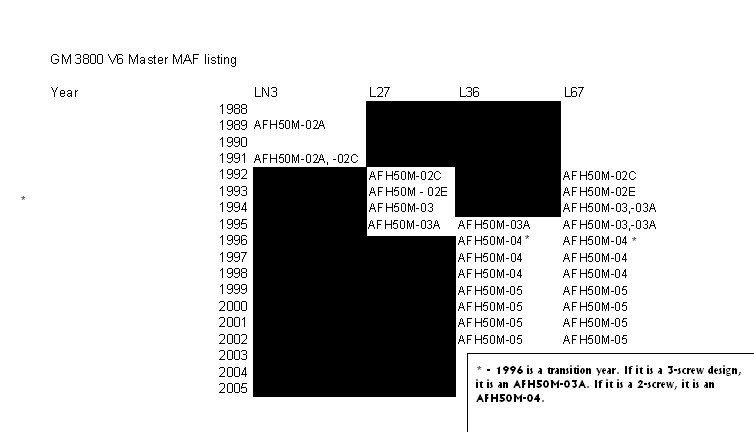

Alright, edited the list. Just missing two of the early years.
Name:  maflist-1.jpg
Views: 2
Size:  38.2 KB
Don't know if I mentioned it or not, at least in this thread, but 1996 was a transition year. It went from the 3-screw MAF to the 2-screw design sometime that year, along with the change in throttle bodies. Neither sensor is interchangeable with each other.
sandrock is offline   Reply With Quote
