Default PICS FROM UIM/LIM JOB NOT FOR DIAL UP

Did the job on Friday and Saturday

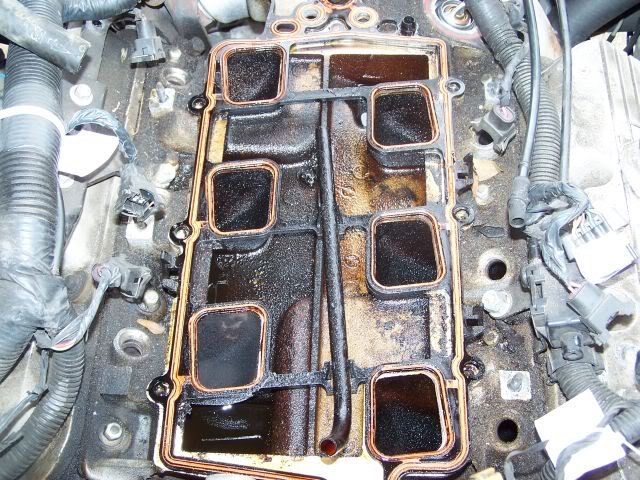

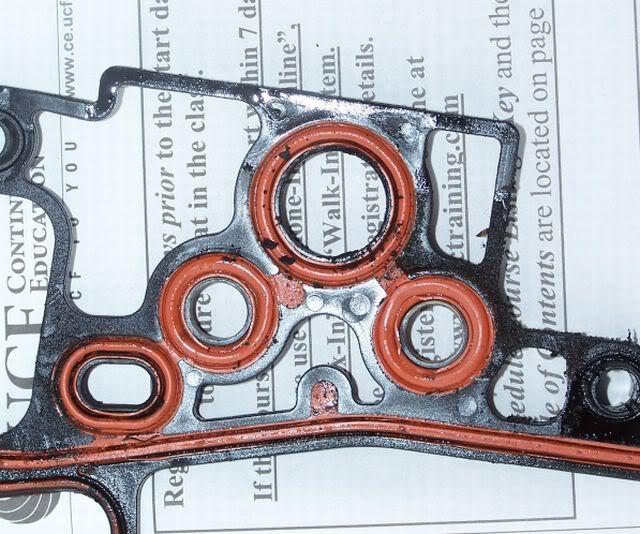

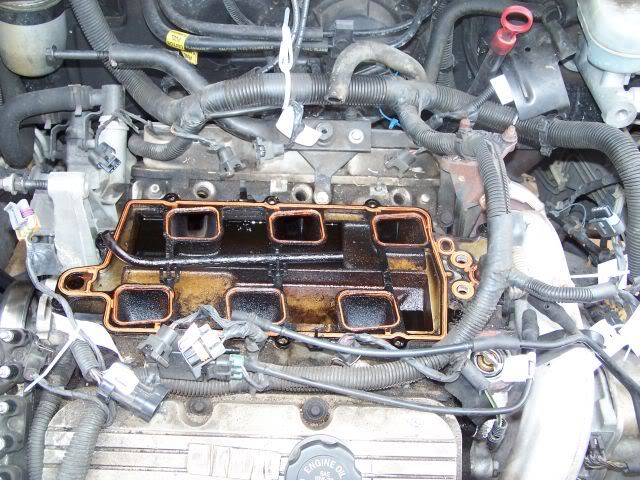

Here is what the whole thing started for...


Name:  UIM2.jpg
Views: 1
Size:  100.2 KB
Name:  UIMgasket.jpg
Views: 1
Size:  83.6 KB
Name:  UIM3.jpg
Views: 1
Size:  49.2 KB
Name:  egr.jpg
Views: 0
Size:  82.1 KB

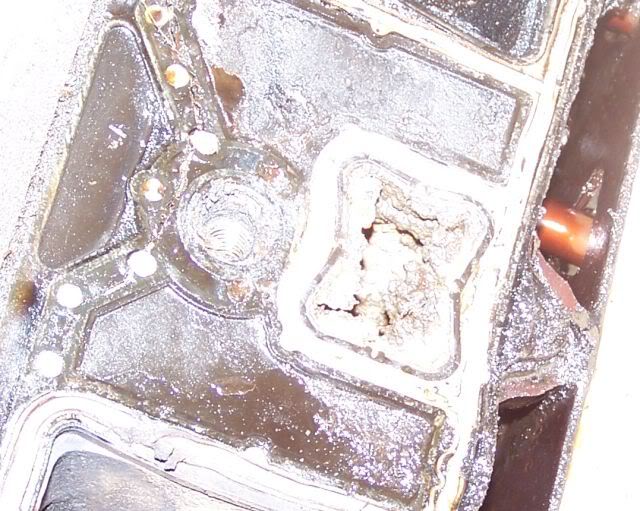

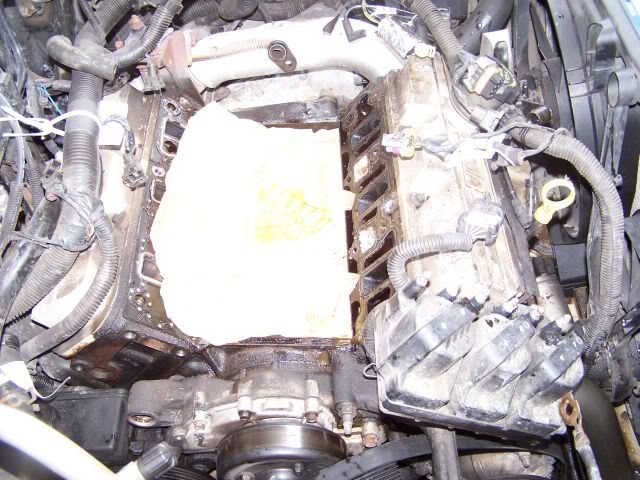

I found some blockage in the water channels..YUCK!!
Name:  blockage.jpg
Views: 0
Size:  93.7 KB
Name:  blockage3.jpg
Views: 0
Size:  83.8 KB
Name:  blockage2.jpg
Views: 1
Size:  76.8 KB


And some pitting in the metal in one side of the LIM
Name:  pitting.jpg
Views: 1
Size:  101.3 KB
Name:  closeuppit.jpg
Views: 0
Size:  64.7 KB

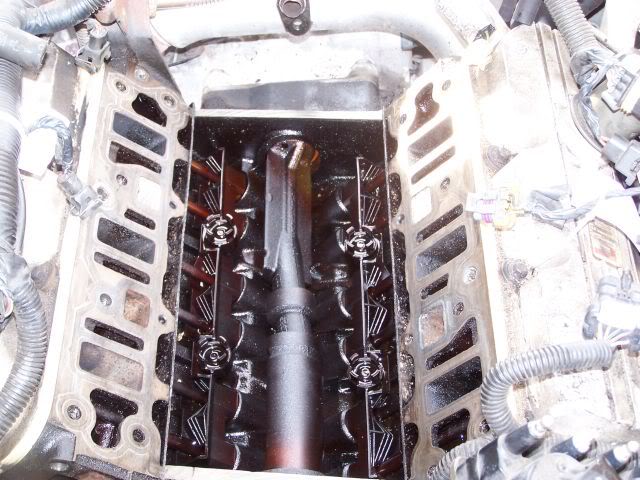

Got it all cleaned and rebuilt it
Name:  cleaned.jpg
Views: 0
Size:  72.7 KB

Then, I went to put my tensioned back on and found the bolt hole threads were stripped completely out so I got a new on of those and took it back apart and put it all back together..then i tried to start it and it SPEWED fuel out of the connection from the fuel rail to the injector. Somewhere along the way that got broken..but just on one.....ODD. Oh well dealer and Junk yards are closed till monday so I am down until then...



**SIGH**
lunchboxx is offline   Reply With Quote
Old 02-02-2008, 07:47 PM   #2
Member
Posts like a V-Tak

Join Date: Dec 2006
Posts: 57
Thanks: 0
Thanked 0 Times in 0 Posts
BIchselmnop is on a distinguished road
Default

Holy crap, that'* a major leak.
BIchselmnop is offline   Reply With Quote
Old 02-03-2008, 06:17 AM   #3
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

That is quite a lot of work. I'm impressed. Sorry about the fuel rail, but you can probably pay far too much at RiceZone for oversized rails and get it all done sooner. Your way is probably a whole lot better, though.
radomirthegreat is offline   Reply With Quote
Old 02-03-2008, 07:36 AM   #4
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

LKQ should be open, but these fuel lines can't be repaired that easily. From the looks of things, you may be a newbie here, but you've held a wrench or two for quite a while
sandrock is offline   Reply With Quote
Old 02-03-2008, 10:50 AM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jan 2008
Location: Orlando Florida
Posts: 182
Thanks: 0
Thanked 0 Times in 0 Posts
lunchboxx is on a distinguished road
Default

Thanks for the encouraging words. I was worried about the pitting in the LIM, but i probed it and it didnt go very deep. I cleaned it up really good and put it all back together. Before i did though, I put the new gassket on the LIM to make sure that the pitting didnt go all the way out to the new gasket surface...and it didnt so i sighed and put it back together. I only need this car to last 12K more miles and then it is time for a new Bonneville anyway..I cant wait for a newer 04..

Yeah this isnt my first intake manifold, but its my first bonneville intake.
lunchboxx is offline   Reply With Quote
Old 02-03-2008, 12:19 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Look at my Intercooler topic in Performance to see how to repair the pits.

That'* gotta be one of the worst I've seen. Maybe THE worst.
willwren is offline   Reply With Quote
Old 02-03-2008, 05:51 PM   #7
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Jan 2008
Location: Orlando Florida
Posts: 182
Thanks: 0
Thanked 0 Times in 0 Posts
lunchboxx is on a distinguished road
Default

So you just filled the pitting with JB weld and ground it flush? I was going to try that..i did put the new gasket over that spot and the pitting was all inside the gasketed area so i thought it would be alright for the ammount of time that I am planning on keeping this old bonny....since i have read all your posts I am having second thoughts...sigh
lunchboxx is offline   Reply With Quote
Old 02-07-2008, 05:26 PM   #8
Member
Posts like a V-Tak

Join Date: Feb 2003
Location: Hobart, Indiana
Posts: 54
Thanks: 0
Thanked 0 Times in 0 Posts
bobfather99 is on a distinguished road
Default

That little bit of pitting is just a little worse than mine was.

I just cleaned it up as best I could and put it back together with the new gaskets and APN upper. Good as gols so far 11000 miles in, with 163000 on the car!!!

Bob
bobfather99 is offline   Reply With Quote
Old 02-07-2008, 05:50 PM   #9
Senior Member
True Car Nut

Join Date: Apr 2004
Posts: 4,816
Thanks: 0
Thanked 0 Times in 0 Posts
GonneVille is on a distinguished road
Default

Yeegh!!! That'* NASTY! Yeah,you oughtta fill that....if you do it with the head on the block, make sure to mask the valley and slap some duct tape across all the exposed ports...
GonneVille is offline   Reply With Quote
Old 02-07-2008, 06:16 PM   #10
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: CT
Posts: 2,099
Thanks: 0
Thanked 1 Time in 1 Post
SSEBONNE4EVA is on a distinguished road
Default lower

I'd rather replace the lower with a JY unit. Shouldn't cost much and thats what the GM bulletin says, replace.
Whatever caused it to pit like that is bound to happen in other area'*.
If you plan on selling after 12k miles thats another thing.
SSEBONNE4EVA is offline   Reply With Quote
