Default Part Number Request Thread

I need part numbers for:

SSEi Tails...Inners and outers.


(single) Washer bottle for the 94+ bonnies.


Oil Pressure Sending Unit


please help me
Hans is offline   Reply With Quote
Old 04-17-2006, 11:38 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Tails:

Inners: R/L 5977646-5
Outers: R 5978042 - L 5978041

checking for others still..
bonnie94ssei is offline   Reply With Quote
Old 04-18-2006, 12:38 AM   #3
Senior Member
Posts like a Corvette

Join Date: Mar 2006
Posts: 1,356
Thanks: 0
Thanked 0 Times in 0 Posts
erics95se is on a distinguished road
Default

front 'oh **** handle'

'95 bonneville, SLE

grey int.
erics95se is offline   Reply With Quote
Old 04-18-2006, 12:02 PM   #4
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Hans, didn't I aready give you that P/N in the CAI thread yesterday?

Yeah, here it is:

Quote:
Originally Posted by lash
Quote:
Originally Posted by Hans
also clearance between the washer bottle and the radiator hose is like 1/4" on each side....was rubbing a bit on the washer bottle.

speaking of can anyone get the part number for the smaller washer bottle from the 94/95???
'95 washer reservoir P/N: 22122558
Also, is this what you're looking for?
ENGINE OIL LEVEL SENSOR
Part #: 25609555

Disclaimer: Part numbers are from GMPD.com, so accuracy may be questionable.
lash is offline   Reply With Quote
Old 04-18-2006, 03:15 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

Quote:
Originally Posted by lash
Hans, didn't I aready give you that P/N in the CAI thread yesterday?

Yeah, here it is:

Quote:
Originally Posted by lash
Quote:
Originally Posted by Hans
also clearance between the washer bottle and the radiator hose is like 1/4" on each side....was rubbing a bit on the washer bottle.

speaking of can anyone get the part number for the smaller washer bottle from the 94/95???
'95 washer reservoir P/N: 22122558
Also, is this what you're looking for?
ENGINE OIL LEVEL SENSOR
Part #: 25609555

Disclaimer: Part numbers are from GMPD.com, so accuracy may be questionable.

NO I need the part number for the sending unit. My gauge reads 20PSI at idle, 40 at WOT. and I think it is the sender.
Hans is offline   Reply With Quote
Old 04-18-2006, 03:20 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Hans..

If this has not been diagnosed already........Please take this very seriously.

How many miles on the oil currently in the car? If unknown or over 3,000 please change it asap and look for the pressure to return.

If the pressure does not return, please get a manual pressure gauge on this ASAP.

The reason is typically when senders fail..they fail on the high side, not low. A cluster could be at fault..but you want to know for sure. Your crankshaft and bearings may depend on it and time could be vital.
BillBoost37 is offline   Reply With Quote
Old 04-18-2006, 03:44 PM   #7
Senior Member
True Car Nut
Thread Starter

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Hans..

If this has not been diagnosed already........Please take this very seriously.

How many miles on the oil currently in the car? If unknown or over 3,000 please change it asap and look for the pressure to return.

If the pressure does not return, please get a manual pressure gauge on this ASAP.

The reason is typically when senders fail..they fail on the high side, not low. A cluster could be at fault..but you want to know for sure. Your crankshaft and bearings may depend on it and time could be vital.

fresh oil change, at idle it is around 30, at low idle it is around 20 or so, or just slightly above the red zone. at WOT it is just above the middle mark on the gauge. I am going to replace the unit either way, I understand they are cheap and easy to do. The sender HAS NOT FAILED but I think it is just giving inaccurate readings, just a guess, and heck the part cant be that much anyway. Going to throw it in the car when I order some other stuff from GMPD
Hans is offline   Reply With Quote
Old 04-18-2006, 06:07 PM   #8
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Hans..

If this has not been diagnosed already........Please take this very seriously.

How many miles on the oil currently in the car? If unknown or over 3,000 please change it asap and look for the pressure to return.

If the pressure does not return, please get a manual pressure gauge on this ASAP.

The reason is typically when senders fail..they fail on the high side, not low. A cluster could be at fault..but you want to know for sure. Your crankshaft and bearings may depend on it and time could be vital.
How abnormal are his readings that he should be worried. Only reason I'm confused is because my gauge reads in kPa, from like 0 (not sure what the low # is) to 830. I haven't seen an American gauge on a Bonne in over 2 years.

EDIT: Just read his post on where the needle is.
bonnie94ssei is offline   Reply With Quote
Old 04-18-2006, 06:11 PM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by bonnie94ssei
How abnormal are his readings that he should be worried. Only reason I'm confused is because my gauge reads in kPa, from like 0 (not sure what the low # is) to 830. I haven't seen an American gauge on a Bonne in over 2 years.

EDIT: Just read his post on where the needle is.

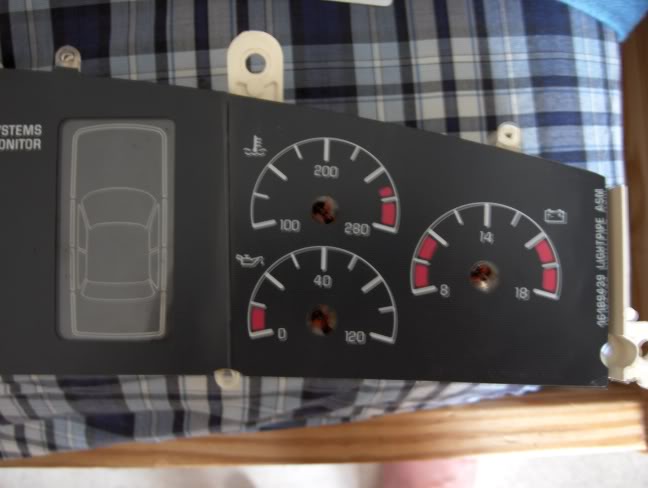

Name:  SEtoSSECluster002.jpg
Views: 2
Size:  36.0 KB

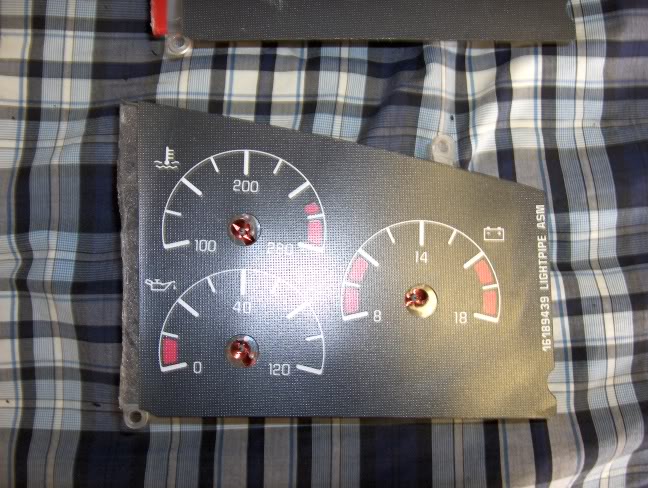

Name:  SEtoSSECluster005.jpg
Views: 0
Size:  85.7 KB
1993 SLE is offline   Reply With Quote
Old 04-18-2006, 10:15 PM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by bonnie94ssei
How abnormal are his readings that he should be worried. Only reason I'm confused is because my gauge reads in kPa, from like 0 (not sure what the low # is) to 830. I haven't seen an American gauge on a Bonne in over 2 years.

EDIT: Just read his post on where the needle is.


Ahhh, so nice to see a 'normal' cluster

My oil pressure is at one line below the half-way mark (40) at idle, and at most, one mark above the half-way mark. I just was curious as to how low he was.
bonnie94ssei is offline   Reply With Quote
