Default Part # for "Bright Molding" Chrome trim on bumpers

I need to replace both the front and rear trim (all the way around the bumpers... i think the people said there were three peices in the back)

I need the part numbers for the CHROME (NOT the plain black) trim.

Thanks!!!
bmsgaffer86 is offline   Reply With Quote
Old 04-01-2005, 10:39 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

http://www.bonnevilleclub.com/forum/...32&highlight=A

not exactlysure if the PN is in there, but anyway...
1993 SLE is offline   Reply With Quote
Old 04-02-2005, 06:51 AM   #3
Senior Member
Certified GM nut

Join Date: Jul 2003
Location: Charlotte, NC ________ SEBF 07 survivor
Posts: 2,128
Thanks: 0
Thanked 0 Times in 0 Posts
aviator327 is on a distinguished road
Default

Its a good thing I kept my paperwork. Installed the front bumper trim in Jul, 2003 and it is still in good shape with no flaking. Got it from GMpartsdirect. com. Dont have the part numbers for the rear ones. This one is for the front bumper.
GM part# Description Unit price *&H
25535917 MLDG-FASC $30.43 7.95 order total-38.38
aviator327 is offline   Reply With Quote
Old 04-02-2005, 09:26 PM   #4
Senior Member
Posts like a Corvette

Join Date: Sep 2004
Location: Pittsburgh PA
Posts: 1,539
Thanks: 0
Thanked 0 Times in 0 Posts
Puddy46 is on a distinguished road
Default

Curiosity calling....Will the chrome trim directly replace the black trim on the SSE/SSEi rear bumper? My rear bumper is kind of shot, and if that is possible, a trip to the junkyard may be in order over the summer to search for a replacement.
Puddy46 is offline   Reply With Quote
Old 04-03-2005, 11:31 AM   #5
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

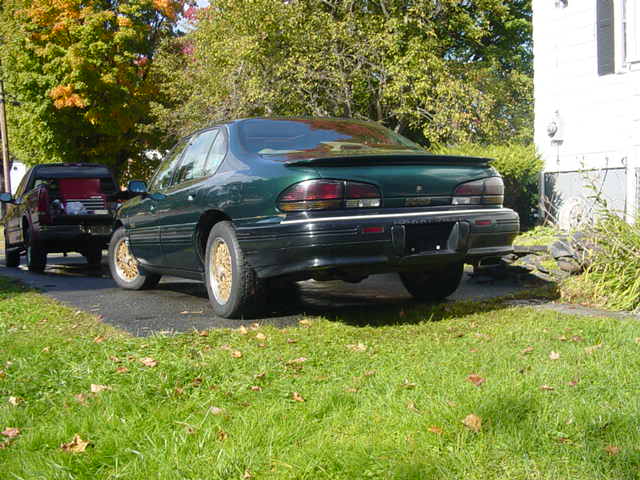

The SE bumper cover is quite different than the SSE/i cover. Here'* an SE bumper on my car:

Name:  DSC01053.jpg
Views: 46
Size:  55.1 KB

In the picture, you can see that the chrome strip that normally continues on the body behind the rear wheels is a separate part and omitted. The black strip on the SSE/i bumpers is not a separate part but a painted section. You can also see the height difference of the two bumper covers. The rust line is the top of the original bumper.
randman1 is offline   Reply With Quote
Old 04-03-2005, 09:58 PM   #6
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

i still really need the part numbers tonight if anyone has them (for the CHROME trim.. (mine goes all the way around countinuously (around the entire car) so i need the chrome for the rear and the two sides that go towards the tires.


If anyone has those... *cough* WILLWREN?... JR3800? *cough* could you send them my way? I would like to get those ordered tonight...
bmsgaffer86 is offline   Reply With Quote
Old 04-11-2005, 11:40 PM   #7
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

I only need the part numers for the rear bumper chrome trim peices that meet up to the fenderwell. The little short peices. I need them badly...and soon!
bmsgaffer86 is offline   Reply With Quote
Old 04-11-2005, 11:43 PM   #8
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

These are not listed in any of the collision parts pages that I have access to. Have you tried GMPD yet? Sometimes the part numbers are molded into the parts. Do you still have the old ones?
randman1 is offline   Reply With Quote
Old 04-12-2005, 12:21 AM   #9
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

Quote:
Originally Posted by randman1
These are not listed in any of the collision parts pages that I have access to. Have you tried GMPD yet? Sometimes the part numbers are molded into the parts. Do you still have the old ones?
Ditto, or my FSM. I have a good front one lol...
BonneMeMN is offline   Reply With Quote
Old 04-12-2005, 02:05 AM   #10
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Thank you all for looking! I found it after some hard searching (i.e. bribed a friend to have his chrome trim replaced on his bonneville, then tore his off, then told him it would be $50 to replace them Hey, i didnt know how much it would cost till i found the part numbers! Mine were tossed at teh dealer that painted it. so for future reference of all bonneville owners:

"Bright Molding Cover (Front): 25535917"
"Bright Molding Center Cover (Rear): 25606678"
"Bright Molding Outer Cover L (Left Rear): 25606677"
"Bright Molding Outer Cover R (Right Rear): 25606676"

Total shipped from GMPD: $122.87


Thank you insurance.
bmsgaffer86 is offline   Reply With Quote
