Default Oil pressure mod

After modding the engine enough you may want to consider upgrading your oil pressure bypass valve. It'* easy and cheap. Less then $4 and about a hour and a half.

Here'* what I had stock.
Name:  DSC02493.jpg
Views: 41
Size:  150.3 KB

Jack up the car and remove the passenger side wheel.
Name:  DSC02494.jpg
Views: 45
Size:  135.4 KB

Remove the splash shield.
Name:  DSC02495.jpg
Views: 44
Size:  183.5 KB

Drain the oil.
Name:  DSC02496.jpg
Views: 43
Size:  81.4 KB

Locate the oil filter adapter and unplug the oil pressure sender unit and remove the oil pressure sender.
Name:  DSC02497.jpg
Views: 42
Size:  115.9 KB

Then use a 13mm ratcheting style wrench, a socket wrench wont fit. Remove the 4 bolts holding the adapter on.
Name:  DSC02498.jpg
Views: 44
Size:  92.3 KB

This is what you need to buy. Dorman washers, part number 766-010.
Name:  DSC02500.jpg
Views: 46
Size:  91.6 KB

Remove the plunger from the spring and place one washer, and ONE washer ONLY! in to the plunger.
Name:  DSC02501.jpg
Views: 39
Size:  191.4 KB

You will also need a new gasket for the oil filter adapter. Be sure to put the side with the red line towards the adapter.
Name:  DSC02502.jpg
Views: 37
Size:  115.3 KB

Clean up the gasket surface real good and put back together. Torque to 29 foot pounds. Double check this to make sure your engine is the same setting.

Put a new filter on, fill with oil, and connect the oil pressure sender. Start engine and check oil pressure.

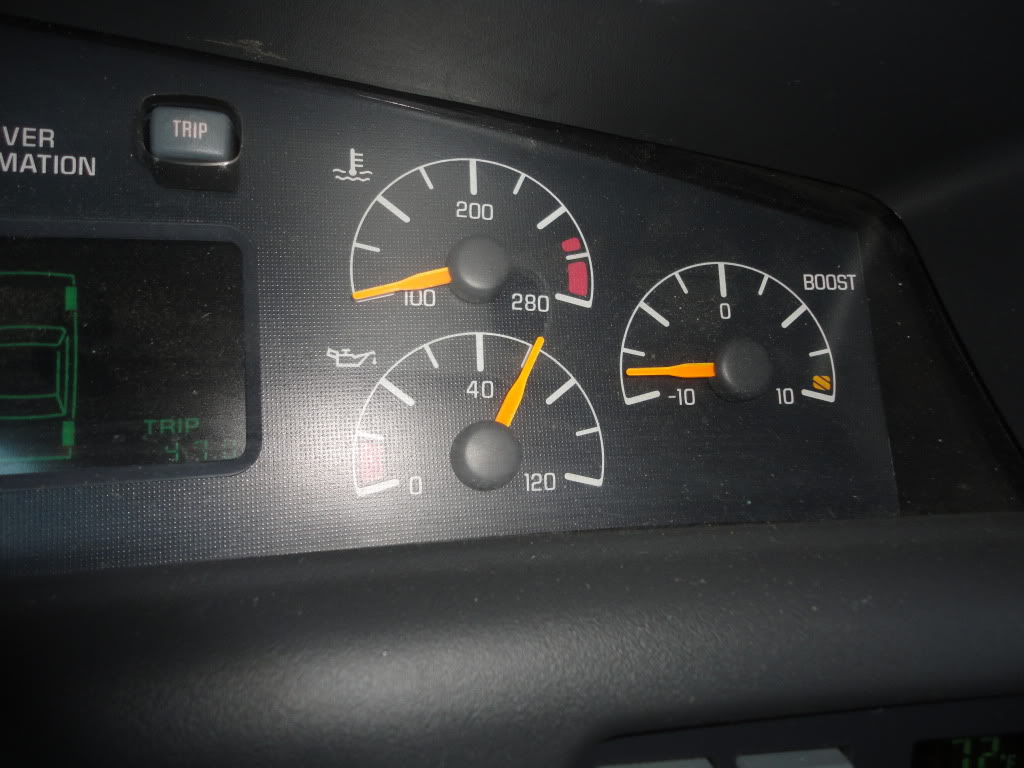

Name:  DSC02503.jpg
Views: 37
Size:  117.6 KB

A nice increase for less the $4.00
Danthurs is offline   Reply With Quote
Old 10-08-2010, 10:52 PM   #2
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Thanks a lot, Dan! By the way, how did you torque down the bolts if you couldn't reach them with a socket?
radomirthegreat is offline   Reply With Quote
Old 10-08-2010, 11:01 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That was a bit of a trick. I set my torque wrench to 29 foot pounds, then pulled till I got a click from a bolt I held in the vise. Then I used a wrench and did my best to get it the same.
Danthurs is offline   Reply With Quote
Old 10-08-2010, 11:10 PM   #4
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Not bad! I'll keep that in mind.
radomirthegreat is offline   Reply With Quote
Old 10-09-2010, 12:04 PM   #5
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

Nice mod Dan. A good one to keep in mind
Black Pearl is offline   Reply With Quote
Old 10-09-2010, 12:27 PM   #6
Senior Member
Posts like a Turbo

Join Date: Oct 2009
Posts: 291
Thanks: 0
Thanked 0 Times in 0 Posts
jdaniels is on a distinguished road
Default

My oil pressure is pretty much ALWAYS like your stock one. Is that bad?
jdaniels is offline   Reply With Quote
Old 10-09-2010, 12:36 PM   #7
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

That'* very good. As long as it stays in the middle, you're set. Having high performance mods leads you to want some higher oil pressure to oil things sooner and relatively better (for the circumstances you create by modding). A stock 3800 should last hundreds of thousands of miles on stock oil pressure, though more oil pressure is always more pleasing to look at on the dash.
radomirthegreat is offline   Reply With Quote
Old 10-09-2010, 01:02 PM   #8
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by jdaniels View Post
My oil pressure is pretty much ALWAYS like your stock one. Is that bad?
Your stock oil pressure is just fine. The mod Dan showed increases flow volume because you've increased pressure. Increases oil flow is essential in HO motors to insure good lubrication for all engine components.
Purplehazeir is offline   Reply With Quote
Old 10-09-2010, 02:18 PM   #9
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

nice mod i wont forget to do that in my build
sseidriver97 is offline   Reply With Quote
Old 10-10-2010, 08:13 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Yeah..that'* the part number I was close. Glad you got it. Most people see about 10psi hot from this mod.
