Default A normal Thursday evening

For the Boosted One and my Alien sidekick

Crankshaft Position Sensor replacement.

It'* not that bad since I got a new 1/2" airgun with 500lbs of torque.

Here'* some misc pics you folks might be interested in checking out

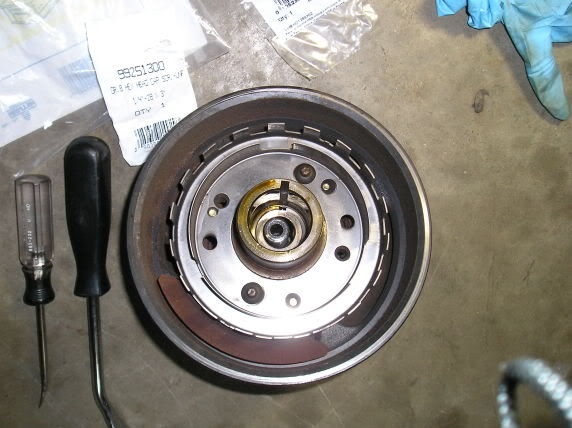

Balancer on ground (See the 18X and 3X rings? you can count the spaces)
Name:  P1010698.jpg
Views: 5
Size:  47.0 KB

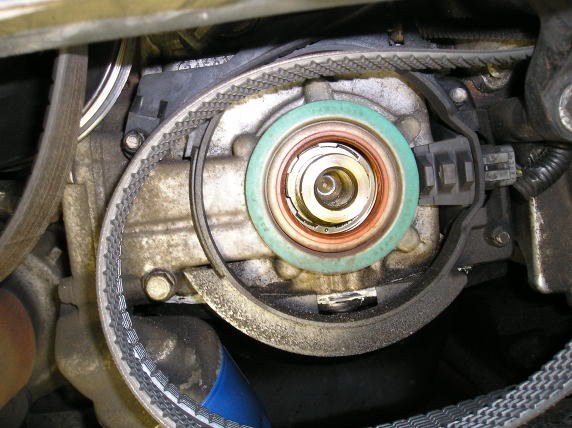

Balancer off, plastic dust ring still on, the ring makes it impossible to change the sensor wtih the balancer still on.
Name:  P1010699.jpg
Views: 11
Size:  52.2 KB

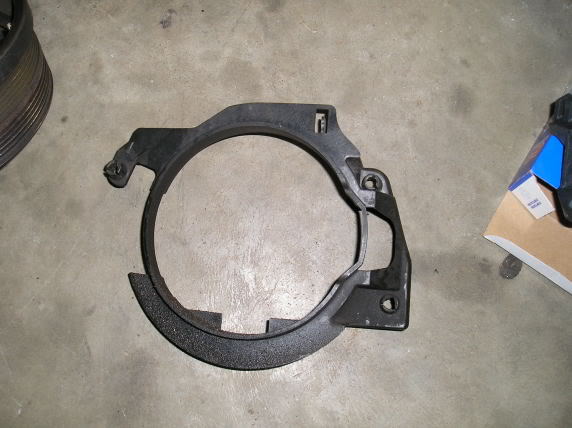

Pastic ring oriented the same way it goes on the motor
Name:  P1010701.jpg
Views: 5
Size:  36.8 KB

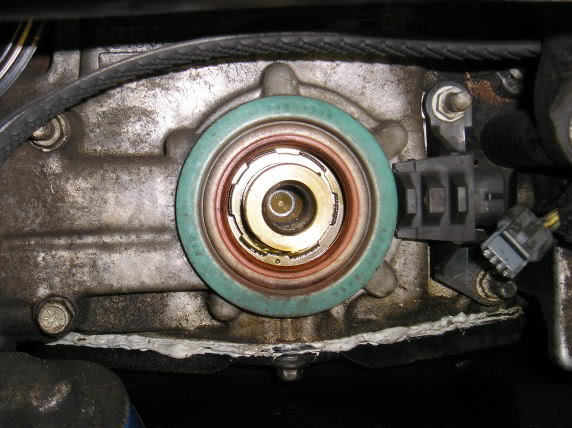

Close up with sensor still on block
Name:  P1010703.jpg
Views: 7
Size:  49.0 KB

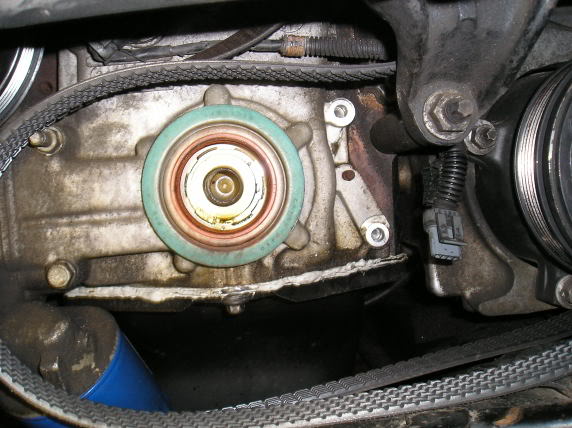

Sensor off
Name:  P1010704.jpg
Views: 9
Size:  53.1 KB
The sensor
Name:  P1010702.jpg
Views: 8
Size:  41.8 KB

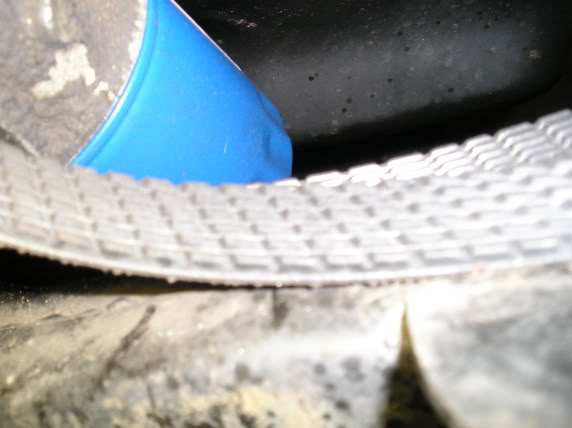

And a Dayco belt shot for Willwren... diagonal relief.
Name:  P1010705.jpg
Views: 8
Size:  28.6 KB

Last thursday evening..I did a transmission service.
Here'* the pan.. had one service in it'* life and is now receiving them yearly. I'm considering having the fluid flushed to get the rest of the dirt out instead of doing it yearly.... 153K on this trans and still running strong.

The transmission w/o pan
BillBoost37 is offline   Reply With Quote
Old 06-30-2006, 11:47 PM   #2
Senior Member
Posts like a Corvette

Join Date: Jan 2004
Location: Montréal, QC
Posts: 1,374
Thanks: 0
Thanked 0 Times in 0 Posts
Foghorn is on a distinguished road
Default

A nice quiet evening I see...

Nice shot here of that famous engine mount stud that needs to come out when changing the SC belt on a Series II;

Name:  P1010704.jpg
Views: 8
Size:  53.1 KB

I had to modify the steel spacer between the mount and the block on mine because I mounted an 04 style AC compressor, it has no brackets and mounts directly to the block...right where that spacer goes, had to turn it down the thickess of the mounting ear on the compressor.

Cheers,
Foghorn is offline   Reply With Quote
Old 07-01-2006, 08:31 AM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

One side note...the Bolts for the puller and NOT a common size found at the Local Parts Stores....the ones that we picked up at TSC were a little too short causing a stripped bolt.... an emergency run to the Advance at 9:15 ( after they were closed....gotta love having friends that are employees) got us the correct parts
1993 SLE is offline   Reply With Quote
Old 07-01-2006, 11:22 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Actually Pat...remember...

We put the call into Bob to look up Willwrens'* bolt size post and then picked those up. Yeah..one was short...we had to get a longer one after hours....lol
BillBoost37 is offline   Reply With Quote
Old 07-01-2006, 12:48 PM   #5
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Bill you have a freak of a trans...

And the amount of friction material in the pan is good for the milage on the car...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 07-01-2006, 09:36 PM   #6
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Yep, those are the interruptor rings for the CKP 18X and 3x sensors. Those are awesome pics, Bill. Schools out, take a nap, Bro.
markwb is offline   Reply With Quote
Old 07-02-2006, 02:32 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Oh..school is still in.. she'* running like a champ and I got it a CASE learn (crank position learn for the PCM) the very next morning.

Then called my buddy and told him of the good news. I'm sure he smiled.
BillBoost37 is offline   Reply With Quote
Old 07-02-2006, 06:06 AM   #8
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Oh, okay. I thought you got a case of beer, how silly of me. I guess it is required to have a case learn procedure accomplished with the new CKP sensor. How long does that take, Bill? And what is needed, a tech II?
markwb is offline   Reply With Quote
Old 07-02-2006, 06:51 AM   #9
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Thats looking well for the mileage and the mods done to the car, its held up REALLY well..
I could only hope mine makes it that far, but..who knows?
SSEimatt93 is offline   Reply With Quote
Old 07-02-2006, 09:18 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I was impressed with how simple the CASE learn is..

Being that this was my first time.. don't quote me that these are the only steps. However on a Snap On Scanner tool, equivalent of a Tech 2...

You simply select the learn process and follow the instructions.

Set brake
Leave in neutral or park
blah blah don't this or that
Ok..bring it up to fuel cut off..then let off pedal.
Vrrrrrrrrrrrrrrrrrrrrrrrrrrrooooooom splat (fuel cut off)
Screen says "successful"..

I holler to mechanic friend... "That'* it?" He looks over.. "yep"
