Default New Torque Convertor Installed.

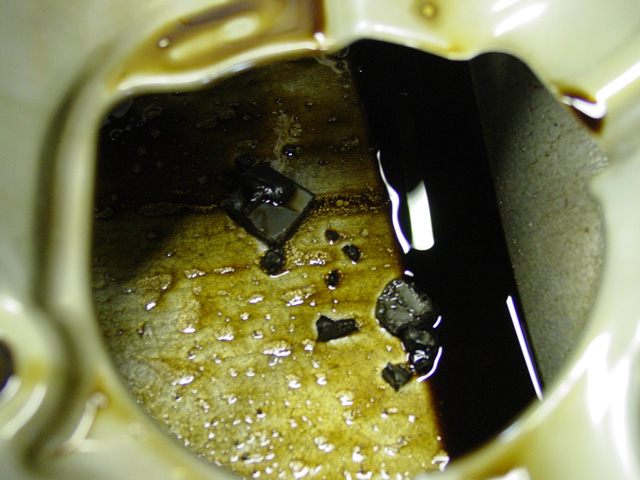

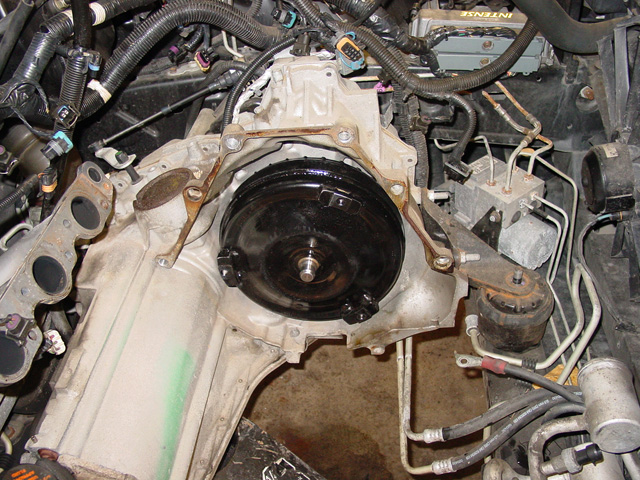

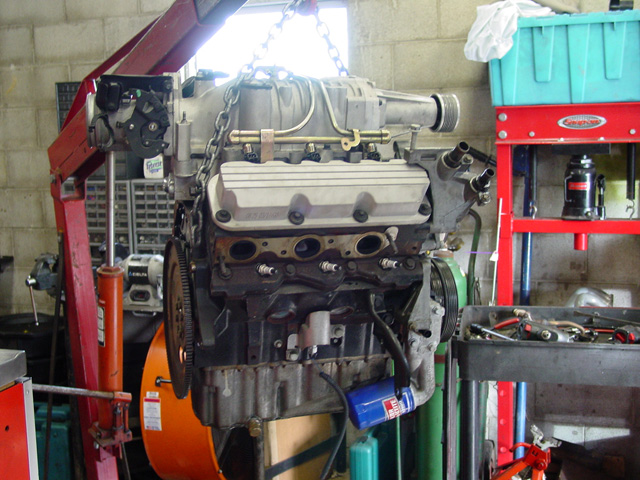

Had my INTENSE TCC-300 installed today. Big Jeff and I pulled the engine from good ole' 8Ball because I also had an oil leak from the oil pan gasket that occured when we did the cam shaft install. Good thing we dropped the pan and the removed the timing chain cover (I also hooked my balance shaft back up to get rid of my 1500 rpm vibration) as apparantly the timing chain tensioner had exploded and was sitting in the bottom of the oil pan. Car is smooth as butter now that the balance shaft is reconnected and the TCC-300 has really woken up the car on hard acceleration. Not much change at all from normal street driving but slam the gas and wow....

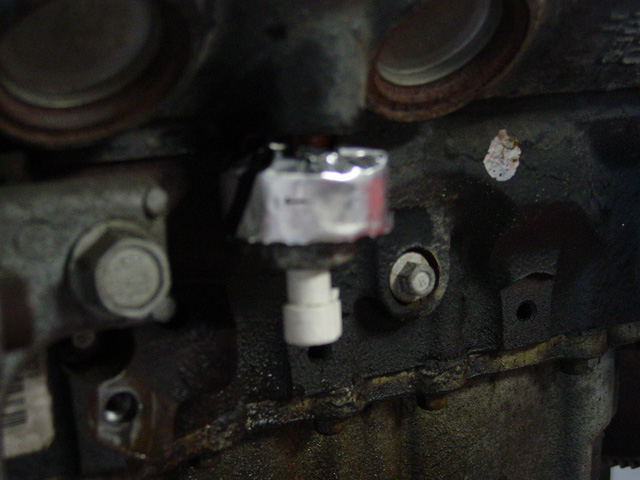

While we were at it we also installed some dynomat on the trans and front knock sensor to try to alleviate any false knock that may have been ocurring. I have yet to scan it but will get some numbers in the next week.

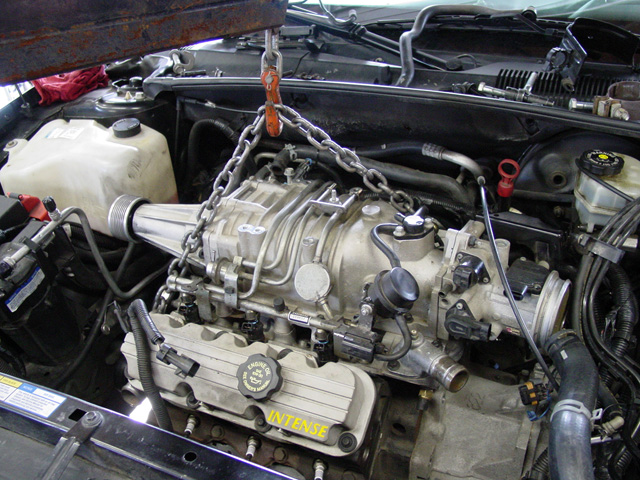

Here are some pics from the day.






Rogue is offline   Reply With Quote
Old 11-15-2004, 07:20 PM   #2
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Halifax, Canada 91SSE / 97SSEi
Posts: 5,857
Thanks: 0
Thanked 0 Times in 0 Posts
Merlin 91/97 is on a distinguished road
Default

Wow.... cool pix.....

I never knew our motors were that big... lol
Merlin 91/97 is offline   Reply With Quote
Old 11-15-2004, 07:25 PM   #3
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

Fun fun... I wish i had time on my hands to do things like pull motors etc.

What'* the dynamat rated temp wise ?
BonneMeMN is offline   Reply With Quote
Old 11-15-2004, 07:35 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Jul 2003
Location: Westerville, Ohio 2000 Black SSEi
Posts: 6,127
Thanks: 0
Thanked 0 Times in 0 Posts
Rogue is on a distinguished road
Default

Quote:
Originally Posted by BonneMeMN
Fun fun... I wish i had time on my hands to do things like pull motors etc.

What'* the dynamat rated temp wise ?
Not sure, but they have been seeling the anti-false knock kit for a few months now and nobody has exploded ina fireball Taylor may know....
Rogue is offline   Reply With Quote
Old 11-16-2004, 12:30 AM   #5
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Good pics.
Interesting to see. Wondered when you where going to reinstall that balance shaft. Good move.

Any idea why your tensioner exploded? Not compatible with the new chain?

How long did the total job take?
2000SilverBullet is offline   Reply With Quote
Old 11-16-2004, 07:57 AM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Jul 2003
Location: Westerville, Ohio 2000 Black SSEi
Posts: 6,127
Thanks: 0
Thanked 0 Times in 0 Posts
Rogue is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
Good pics.
Interesting to see. Wondered when you where going to reinstall that balance shaft. Good move.

Any idea why your tensioner exploded? Not compatible with the new chain?

How long did the total job take?
According to Scott and Jeff, this is very common in our engines with stronger vavle springs. However usually using the rollmaster timing chain alleviates this (which is why we put it in when we did the cam). Not sure why this one exploded, it may have just been defective.

Total job was about 7 hours.
Rogue is offline   Reply With Quote
Old 11-16-2004, 02:33 PM   #7
Senior Member
True Car Nut

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

cool pics
how much bread does it cost for you to do all of this???
GAMEOVER is offline   Reply With Quote
Old 11-16-2004, 11:45 PM   #8
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
According to Scott and Jeff, this is very common in our engines with stronger vavle springs.
Figures. Mods are usually a compromise in reliability.

This engine is not as bullet proof as I was led to believe. Maybe it is if you don't mod it or if NA but between all these issues and the weak trani....

I'm not planning to pull the engine for a long time, so this is all the proof I need to stop further modding and start saving for a ............Mercedes geared HEMI ???!!!!!

2000SilverBullet is offline   Reply With Quote
Old 11-16-2004, 11:51 PM   #9
Senior Member
True Car Nut
Thread Starter

Join Date: Jul 2003
Location: Westerville, Ohio 2000 Black SSEi
Posts: 6,127
Thanks: 0
Thanked 0 Times in 0 Posts
Rogue is on a distinguished road
Default

I think thats true for almost any engine. You can get the timing chain cover off without pulling the engine so it may not be as bad as it seems.
Rogue is offline   Reply With Quote
Old 11-16-2004, 11:52 PM   #10
Senior Member
True Car Nut
Thread Starter

Join Date: Jul 2003
Location: Westerville, Ohio 2000 Black SSEi
Posts: 6,127
Thanks: 0
Thanked 0 Times in 0 Posts
Rogue is on a distinguished road
Default

Quote:
Originally Posted by GAMEOVER
cool pics
how much bread does it cost for you to do all of this???
TC was about 400, misc stuff including gaskets, fluids, tensioner and dynomat were about another 100. Labor was calculated at about 600.00.
Rogue is offline   Reply With Quote
