Old 12-09-2009, 06:22 PM   #21
Senior Member
Posts like a Turbo

judgemikdredd's Avatar

Join Date: Mar 2009
Location: Clawson, Michigan
Posts: 478
Thanks: 0
Thanked 0 Times in 0 Posts
judgemikdredd is on a distinguished road
Default

those are lookin prety good!
judgemikdredd is offline   Reply With Quote
Old 12-09-2009, 07:48 PM   #22
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Looks good Dan! I like what you've done with these.
Purplehazeir is offline   Reply With Quote
Old 12-13-2009, 03:42 PM   #23
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

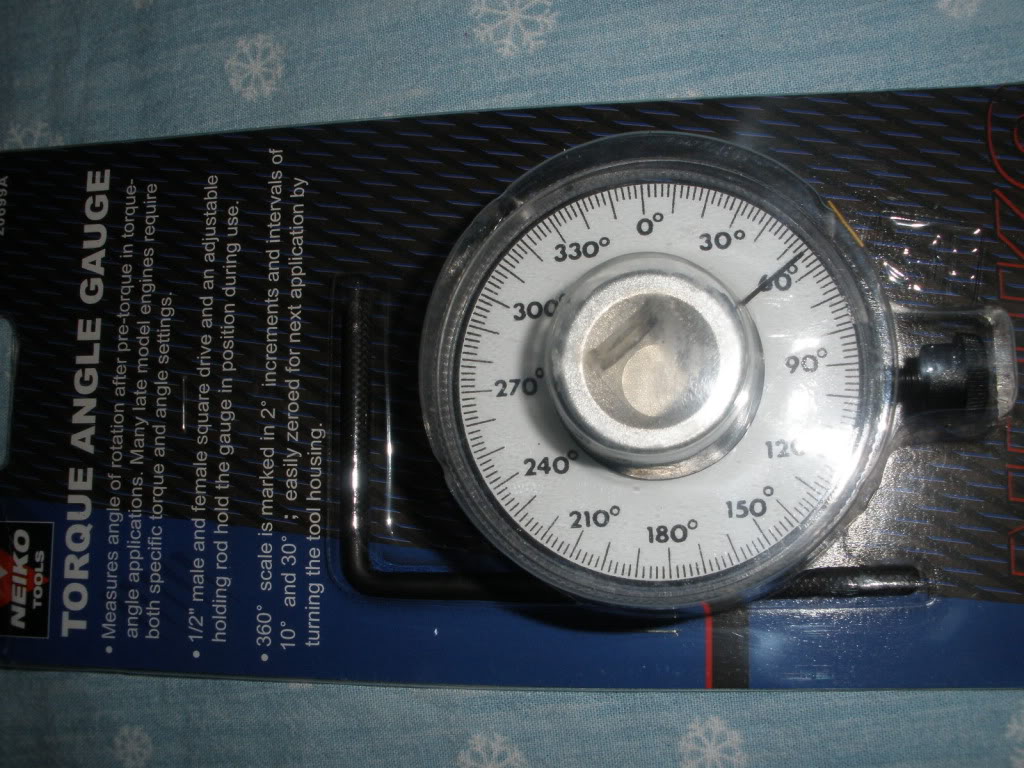

Picked up another tool for my build, it'* a torque to yield gauge. Got it on Ebay for the unheard of price of $7.99
Name:  PC130275.jpg
Views: 4
Size:  176.3 KB

My plan here is to take a stock throttle body and port it out.
Name:  PC130278.jpg
Views: 3
Size:  133.5 KB

Bye bye MAF post.
Name:  PC130279.jpg
Views: 2
Size:  142.5 KB

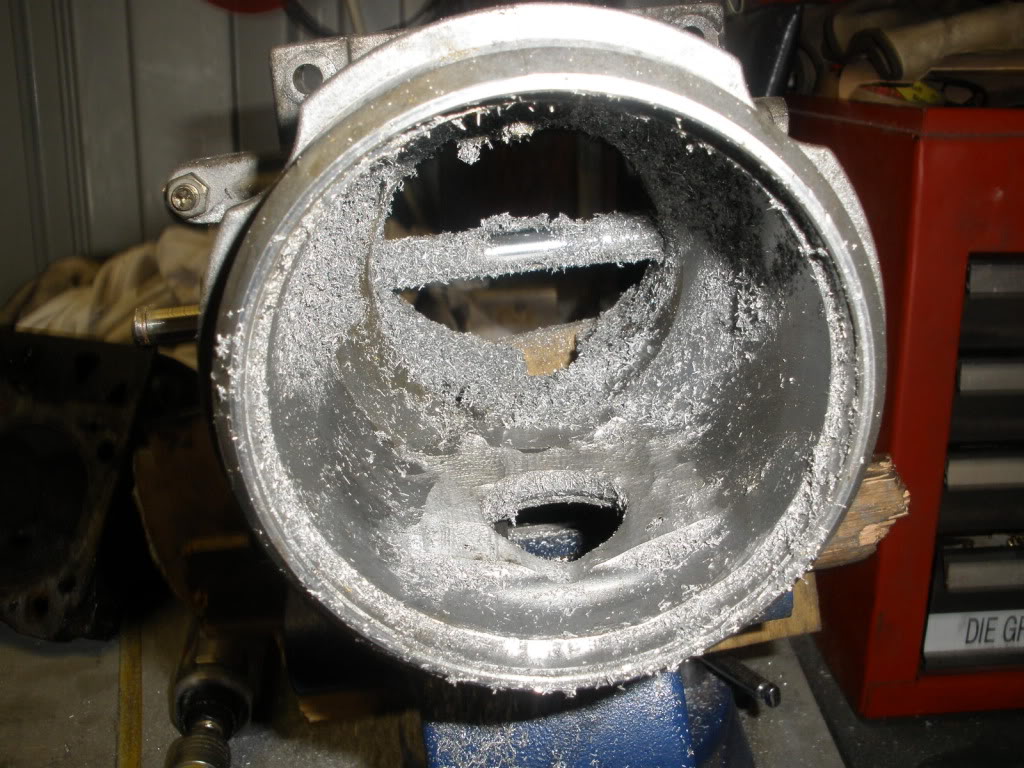

Took some time with a carbide bit to get it close.
Name:  PC130280.jpg
Views: 4
Size:  182.8 KB

Sanded it smooth. Now all I need to do is fill in the old MAF hole with JB weld. I'll make a aluminum plate to cover where the MAF went so it looks a little nicer.
Name:  PC130281.jpg
Views: 3
Size:  124.3 KB

I'm going with a LS1 MAF, that will be separate from the throttle body.
Danthurs is offline   Reply With Quote
Old 12-13-2009, 06:54 PM   #24
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Torque angle gauge. It tells you the proper degrees when tightening some of our torque to yield bolts.

Will you have any though? Head bolts, get the ARP stud kit. It'* the best and only way to go. Cam bolt, lol...best of luck getting the additional degrees on this. I use my gun. Same with crank. Rocker bolts, you have reusable already.

This is merely my experience talking. The one bolt I originally was concerned about was the cam. Pete stood on the engine stand and I lifted him, the stand and motor trying to get the additional amount past the 74lb spec.
BillBoost37 is offline   Reply With Quote
Old 12-13-2009, 06:57 PM   #25
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That would be what I wanted it for, guess I'll get what I get. Crank bolt is 111 foot pounds plus 76*, that should be a fun torque.
Danthurs is offline   Reply With Quote
Old 12-13-2009, 07:00 PM   #26
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Being that most of us took geometry, you can get the angles close by look w/o absolutely needing a gauge. Cam bolt is something like 74 ft lbs + 90 degrees. It'* an absurd total torque when you think about how much more that 90 degrees adds. Close to 150-200 ft lbs. I put the bolt in, then zip it a couple times with my large gun. Of course this is after trying to do a couple the right way.
BillBoost37 is offline   Reply With Quote
Old 12-17-2009, 05:23 PM   #27
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

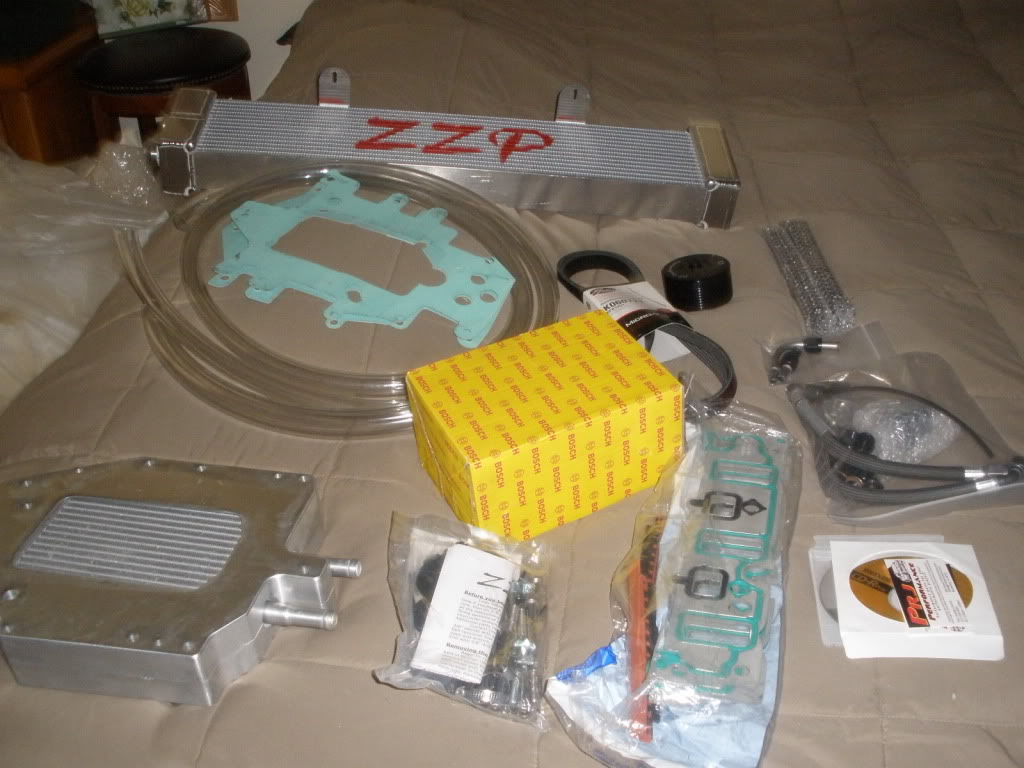

UPS dropped off a box today.
Name:  PC170292.jpg
Views: 4
Size:  128.9 KB

To bad it'* not for my car. Sad face.

However, this is.

I started with a stock throttle body, got this one from toddster several months ago.
Name:  PC130278.jpg
Views: 4
Size:  133.5 KB

After more work then I expected, here she is, all done.
Name:  PC170293.jpg
Views: 3
Size:  93.5 KB

Name:  PC170294.jpg
Views: 3
Size:  119.2 KB

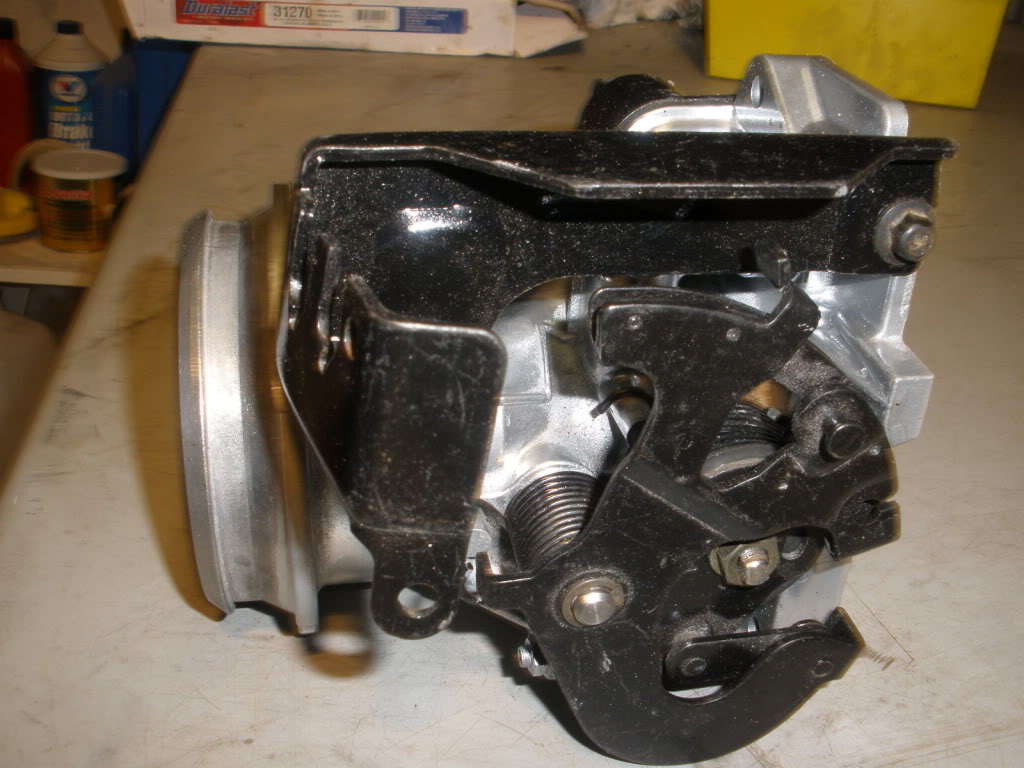

Name:  PC170295.jpg
Views: 5
Size:  133.3 KB

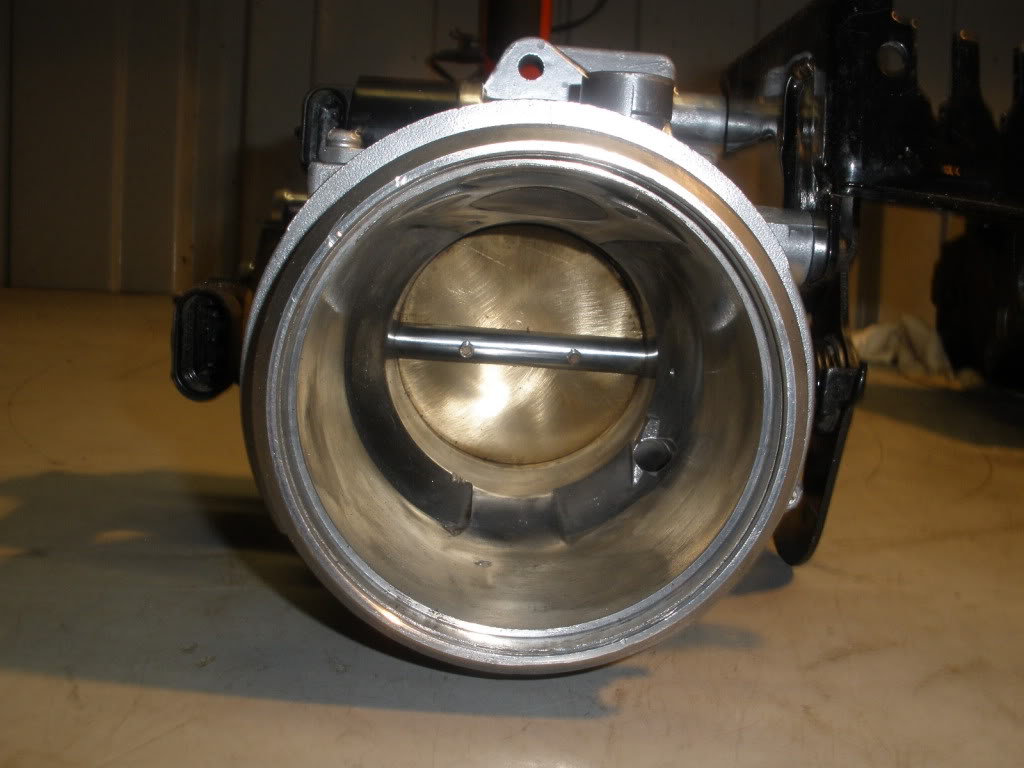

Name:  PC170296.jpg
Views: 3
Size:  106.3 KB

Name:  PC170297.jpg
Views: 5
Size:  121.2 KB



No more porting is possible, I've maxed out the stock throttle body. Even the MAF sensor has been removed. That'* right, no MAF. I will be running that external to the throttle body. I've got a LS1 MAF that will be mounted on the front of the throttle body.
Danthurs is offline   Reply With Quote
Old 12-17-2009, 06:13 PM   #28
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

looks nice dan good work on the clean up and milling
sawgunner is offline   Reply With Quote
Old 12-17-2009, 06:39 PM   #29
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

looks like yet another great build Dan...great job so far
Toddster is offline   Reply With Quote
Old 12-17-2009, 08:13 PM   #30
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

WOW! Way to gut a TB Dan. Purty.
