Old 02-07-2011, 12:35 PM   #11
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default Pics

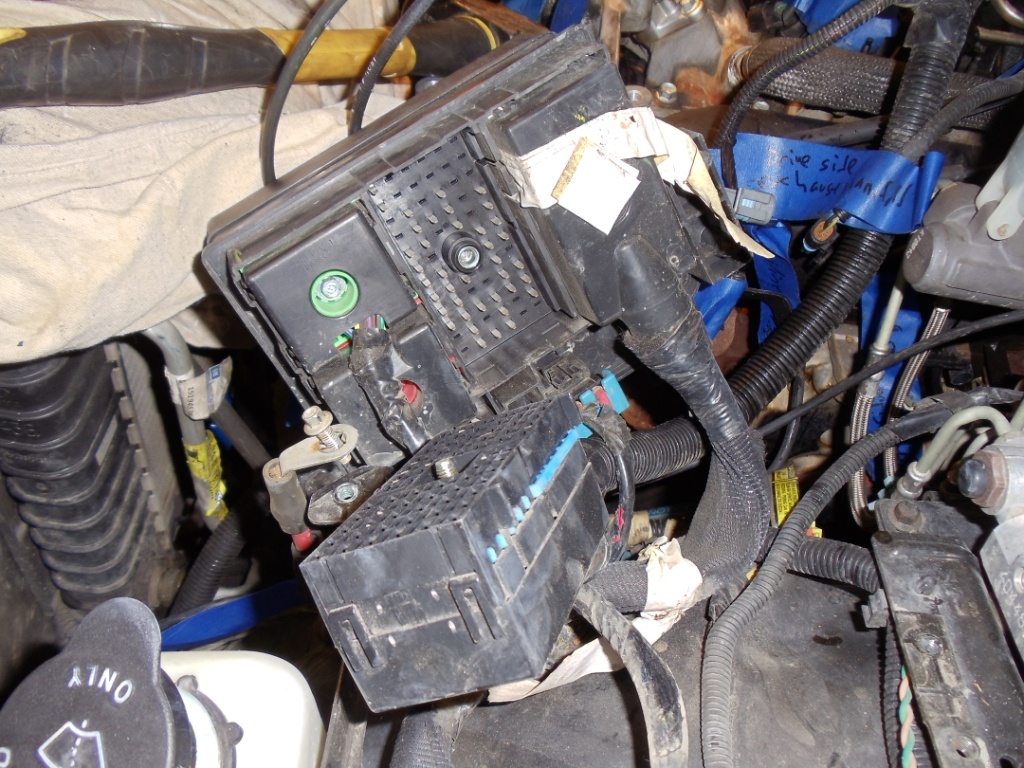

Here are the pics. Want to mention that no manual states you have to move the main wiring harness, but it is a required step. fairly easy to do.
Attached Thumbnails

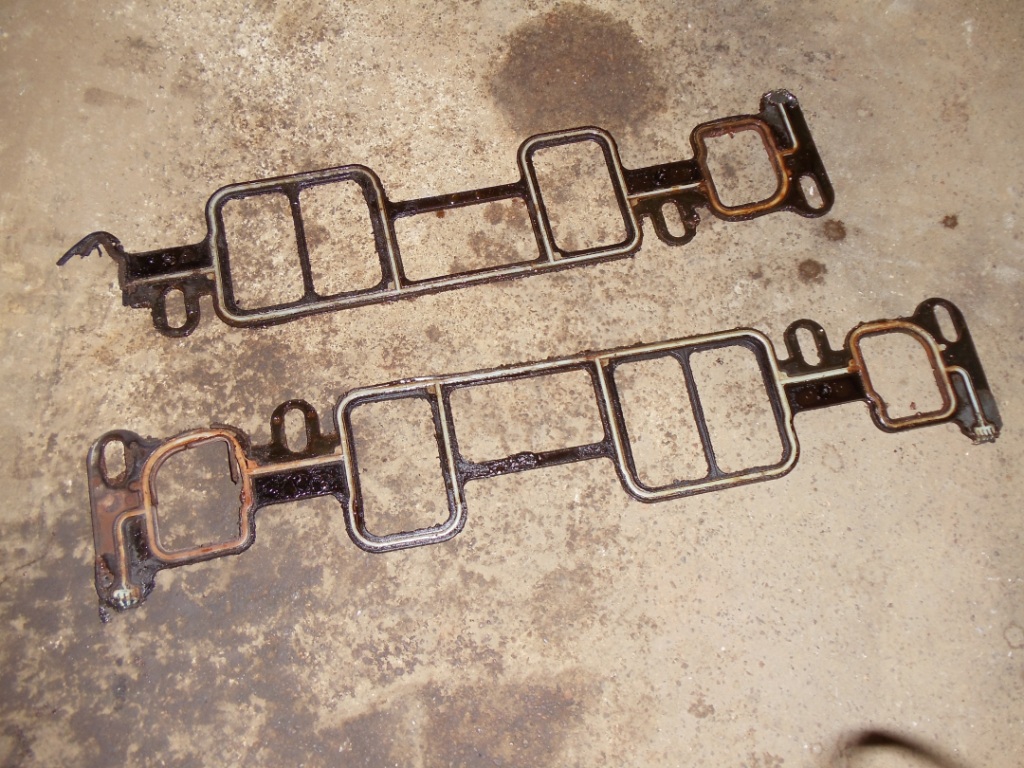

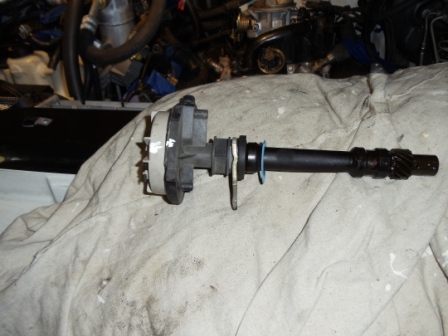

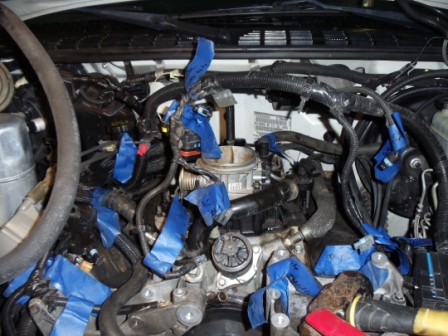

LIM Gasket install, likely huge screw up-distrib-gasket.jpg   LIM Gasket install, likely huge screw up-blue-tape.jpg   LIM Gasket install, likely huge screw up-main-harness.jpg   LIM Gasket install, likely huge screw up-43-rev-1.jpg

Last edited by GunsOfNavarone; 02-07-2011 at 12:37 PM. Reason: pic error
GunsOfNavarone is offline   Reply With Quote
Old 02-07-2011, 03:34 PM   #12
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

A few more comments/ lessons learned. Research uncovered that most installers complain FelPro does not ship enough RTV with the set. I imagine they are not only trying to save money, but reduce the risk of an installer using to much and causing other problems (as I might of).

Victor Reinz sells a very good LIM gasket through RockAuto that does not require you to buy the other gaskets that FelPro sells and cuts the cost down over 50%. I also like the overtorque protection technology VR claims to have built in their gasket (claims can't be overtorqued within reason).

I think I may be doing this a third time, so I ordered in the VR set, hopefully I they will sit on a shelf.
