Default Let'* play a game

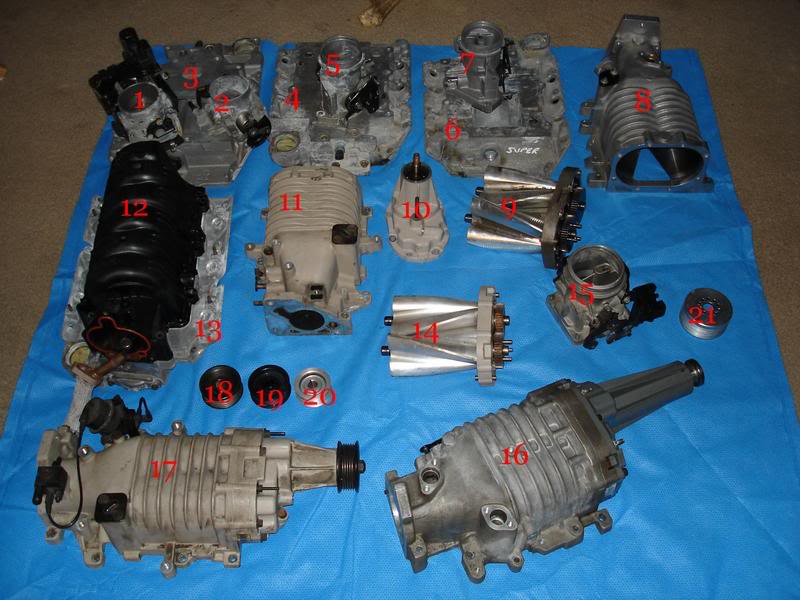

In the pic below, how many things can you identify? Try to be as specific as possible Guess if you have to, and even take a stab at why I have them, or where they came from. I'll let it play out for awhile, then post the answers:

Name:  game.jpg
Views: 3
Size:  76.9 KB
willwren is offline   Reply With Quote
Old 10-18-2006, 01:17 PM   #2
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

I know what most of it is, but I can not be specific as in years.

Boosty and Pat should be banned from playing LOL
BLACK94SSEi is offline   Reply With Quote
Old 10-18-2006, 01:27 PM   #3
Senior Member
Posts like a Turbo

Join Date: Feb 2006
Posts: 220
Thanks: 0
Thanked 0 Times in 0 Posts
NCCamper is on a distinguished road
Default

Ok...I'll bite, though I am not yet that schooled in all these parts:

1. Throttle body??
2. Throttle body??
3. Intake manifold
4. Intake manifold - carbureted engine.
5. Carburetor..2 BBL perhaps
6. Intake manifold, perhaps a rear view of #4
7. Carburetor, perhaps another view of #5
8. Supercharger body
9. Supercharger impeller
10. Supercharger pulley nosecone assembly
11. Supercharger body, another view
12. Upper intake plenum
13. Lower intake
14. Another SC impeller
15. Throttle body??
16. SC partially assembled
17. SC assembly, looks to be complete
18-20, SC pulleys, various sizes.

I am not sure why you have them, or where they came from. Many parts look familiar as in a 3800, can't say which series - both NA and SC. It looks almost like a comparison of different fuel delivery systems over a period of time.

Thanks,
NCC
NCCamper is offline   Reply With Quote
Old 10-18-2006, 01:32 PM   #4
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default Re: Let'* play a game

1 L36 TB
2 TB
3 M90 LIM
4 M62 LIM
5 M62 Tb
6 M90 LIM
7M90 TB
8 M90 case
9 M90 rotors
10M62 nose drive
11M62 case
12 L36 UIM
13 L36 LIM
14 M62 rotors
15 M62 TB
16 M90 put together like it should be
17 M62 assembled
18 big pulley
19 smaller pulley
20 even smaller pulley
21 MPS pulley

let me just say, your picutre is too small and the red front is the wrong color to make it easy to read.
corvettecrazy is offline   Reply With Quote
Old 10-18-2006, 01:37 PM   #5
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Winnipeg, Manitoba, Canada
Posts: 1,445
Thanks: 0
Thanked 0 Times in 0 Posts
captainmiller is on a distinguished road
Default

Without looking at the answers above:

1. Some throttle body
2. Another throttle body
3. lower intake for something...
4. lower intake
5. Another throttle body
6. lower intake
7. Yet another throttle body\
8. Eaton M90 housing with TB attached.
9. Supercharger rotors.
10. Eaton M62 nosedrive without pulley.
11. Eaton M62 housing
12. L36 Upper Intake Manifold
13. L36 Lower Intake Manifold
14. Supercharger Rotors
15. Another throttle body.
16. Eaton M90 Supercharger.
17. Eaton M62 Supercharger.
18. A pulley of some size.
19. A pulley of some size.
20. A pulley of some size.
21. A pulley of some size.

I would have got zero on this quiz if I didn't belong to BC.
captainmiller is offline   Reply With Quote
Old 10-18-2006, 01:42 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

cough Gen V cough...
BillBoost37 is offline   Reply With Quote
Old 10-18-2006, 01:57 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Take a stab at it, Boost. I think you'll do pretty well with it. Try to nail down the different Gen parts.
willwren is offline   Reply With Quote
Old 10-18-2006, 01:57 PM   #8
Senior Member
True Car Nut

Join Date: Feb 2005
Location: Brampton, Ontario
Posts: 3,014
Thanks: 0
Thanked 0 Times in 0 Posts
Maymybonnieliveforevr is on a distinguished road
Default

3.8 ltr, engine parts.............Yeeeehaaaa
Maymybonnieliveforevr is offline   Reply With Quote
Old 10-18-2006, 02:22 PM   #9
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Maymybonneliveforever is clearly the winner and has my vote as most correct answer Sorry, I just had to say that Back to my refreshing lunch of Hops.
GXP Venom is offline   Reply With Quote
Old 10-18-2006, 02:30 PM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ill play

1 L36 TB
2 N* TB
3 L32 LIM
4 94-95 LIM
5 L67 TB
6 94-95 LIM
7 L32 TB
8 Gen V case
9 Gen V rotors
10 M62 nose
11Gen 3 m62 case
12 L36 UIM
13 L36 LIM
14 gen 3 M62 rotors
15 TB??
16 Gen 3 M90
17 gen 3 M62
18 2.85 pulley
19 2.55 pulley
20 2.0 pulley
21 3.2 pulley
