L32 vs L67 injectors = Same? - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


General GM Chat When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made. Chat about all things GM (and related cars). Off-topic stuff should be in the Lounge, and all Model specific mechanical problems should be posted in the proper forum.

Reply



Thread Tools Search this Thread
Old 03-27-2008, 02:55 PM   #1
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default L32 vs L67 injectors = Same?

Someone on ClubGP asked if the L32 injectors will work with a stock L67, will they?
harofreak00 is offline   Reply With Quote
Old 03-27-2008, 03:01 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I BELIEVE they are the same, but I don't recall where I read that.

(moved topic ownage......this is parts compatibility, not Performance related)
willwren is offline   Reply With Quote
Old 03-27-2008, 03:09 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

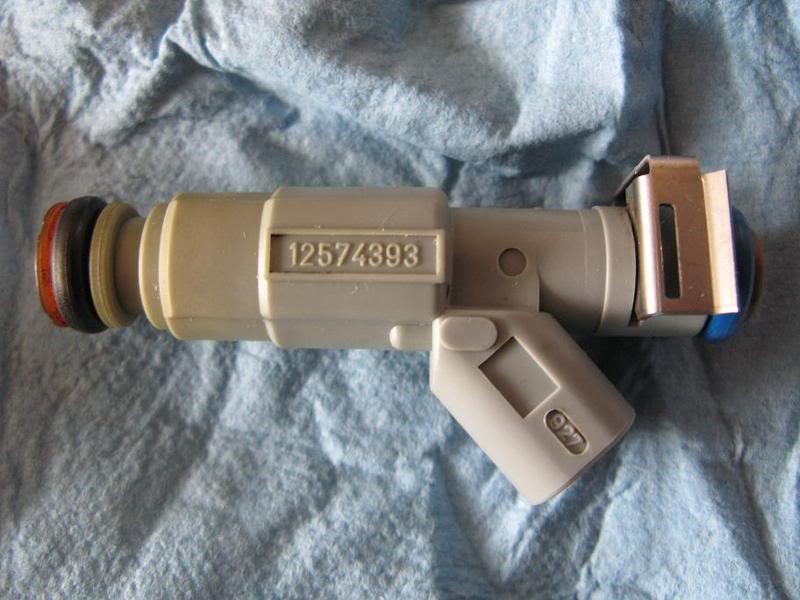

L32 reference pics
Name:  IMG_4267.jpg
Views: 57
Size:  68.7 KB
Name:  IMG_4268.jpg
Views: 57
Size:  65.6 KB
harofreak00 is offline   Reply With Quote
Old 03-27-2008, 06:59 PM   #4
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

No the L32 injectors are rated for 31.5 lbs/hr while the L67 injectors are 36.5lbs/hr. I don't know why GM would stick a more efficient charger on a car and then down grade the fuel injectors.


I still have a low mileage set of L32 injectors from the Morad L32 I bought; no one seemed interested in them in the slightest when I tried to sell them.

Ed
McGrath is offline   Reply With Quote
Old 03-27-2008, 07:01 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Thanks Ed. I should probably lower the price drastically if that is the case.
harofreak00 is offline   Reply With Quote
Old 03-27-2008, 07:44 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Same reason GM downgraded the fuel pumps when the L67 S2 came out in 96.
willwren is offline   Reply With Quote
Old 03-27-2008, 07:58 PM   #7
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by McGrath
No the L32 injectors are rated for 31.5 lbs/hr while the L67 injectors are 36.5lbs/hr. I don't know why GM would stick a more efficient charger on a car and then down grade the fuel injectors.

Ed
the L32'* run at 60 PSI instead of the 47-52 that the L67 run at....you just cant look at the injector flow..
1993 SLE is offline   Reply With Quote
Old 03-27-2008, 08:02 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by McGrath
No the L32 injectors are rated for 31.5 lbs/hr while the L67 injectors are 36.5lbs/hr. I don't know why GM would stick a more efficient charger on a car and then down grade the fuel injectors.

Ed
the L32'* run at 60 PSI instead of the 47-52 that the L67 run at....you just cant look at the injector flow..
Smart. Better fuel atomization with smaller injectors and higher fuel pressure. That'* exactly why I'm running 32lb injectors at a higher pressure instead of 36'* which I could have gotten for alot cheaper.
willwren is offline   Reply With Quote
Old 03-27-2008, 08:40 PM   #9
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
the L32'* run at 60 PSI instead of the 47-52 that the L67 run at....you just cant look at the injector flow..
Although they run 58-60psi it'* a returnless system with the L32s so that'* all they see all the time, they are still rated at ~31lbs/hr. While on L67s static fuel pressure should be 48-55psi at idle + 6-10psi (on most modded L67s) = 54-65psi @ WOT. The L32 injectors still flow less and can't support as much power, on paper they my be close but in practice it'* a differenet story.

When is it time for Larger Fuel Injectors?


Ed
McGrath is offline   Reply With Quote
Old 03-27-2008, 09:25 PM   #10
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

No one mentioned that the L32 injectors are EV6 connector, while L67 are EV1 (though adapter harnesses are available).
agrazela is offline   Reply With Quote
