Default keyless enrty Transmittery BINGO

so thru my travles i have acquired a few different key fobs, and talking to Mr keyless entry (Don) we both have learned a thing or 2 about the keyless entry systems in the Bonnevilles

in the early years of the Bonneville 90-91 GM used a 103T or a 104T transmitter
this Transmitter had Plastic buttons

from the years 92-95 GM used either a 302T or a 303T transmitter for the Bonnevilles
this trans mitter had rubber buttons (which suck)

my GOAL was to change my Pontiac 303T to the plastic buttons

so i came across a Buick regal with the key Fob on the junkyard....i comapared this to a 303T Transmiitter that i had found from a Park Avenue......

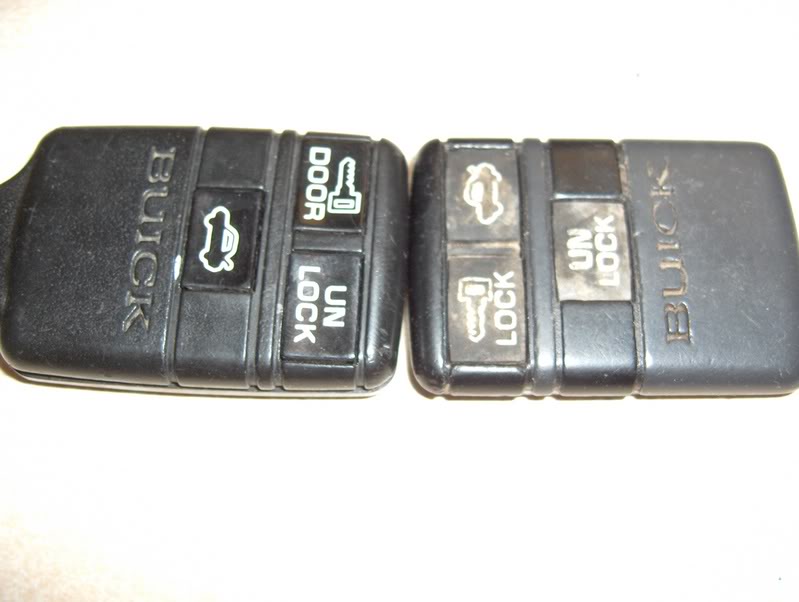

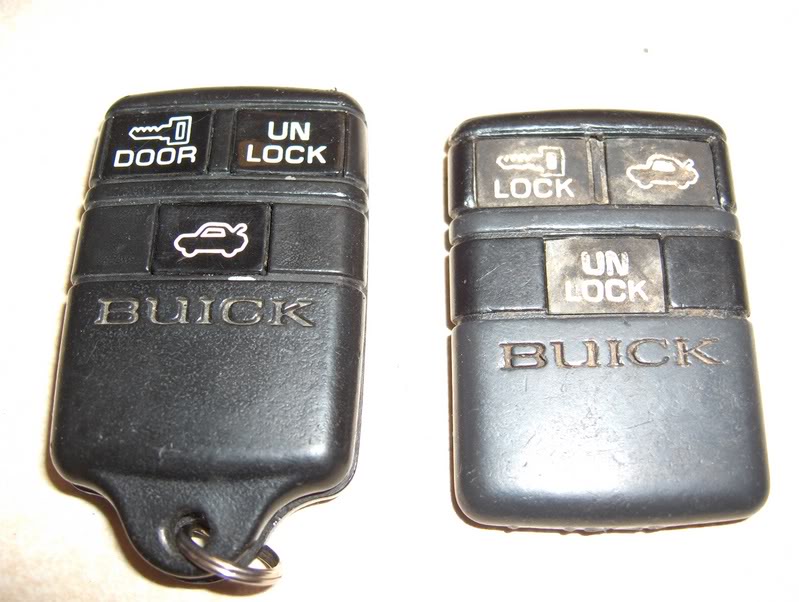

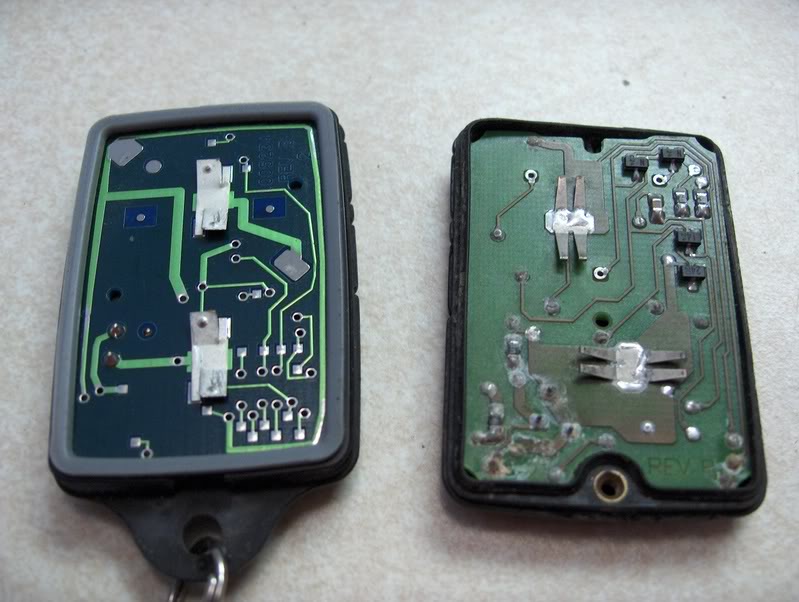

here is the 104 on the left, and the 303 on the right
Name:  keyfobBingo001.jpg
Views: 1
Size:  81.8 KB

Name:  keyfobBingo002.jpg
Views: 1
Size:  48.6 KB

Name:  keyfobBingo004.jpg
Views: 1
Size:  75.3 KB

Name:  keyfobBingo005.jpg
Views: 1
Size:  65.3 KB

Name:  keyfobBingo006.jpg
Views: 1
Size:  72.8 KB

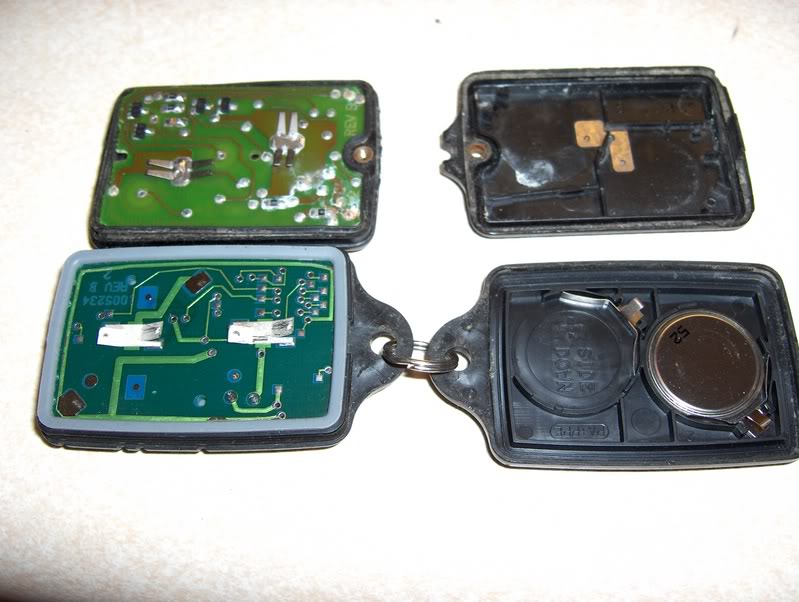

104 on the bottom 303 on the top
Name:  keyfobBingo003.jpg
Views: 1
Size:  74.3 KB

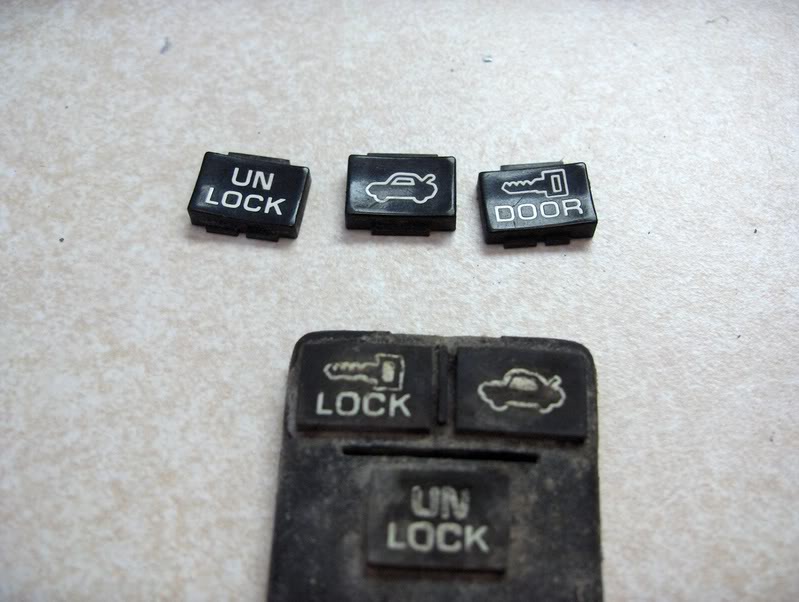

now here you can see the difference in the buttons
Name:  keyfobBingo007.jpg
Views: 1
Size:  67.3 KB

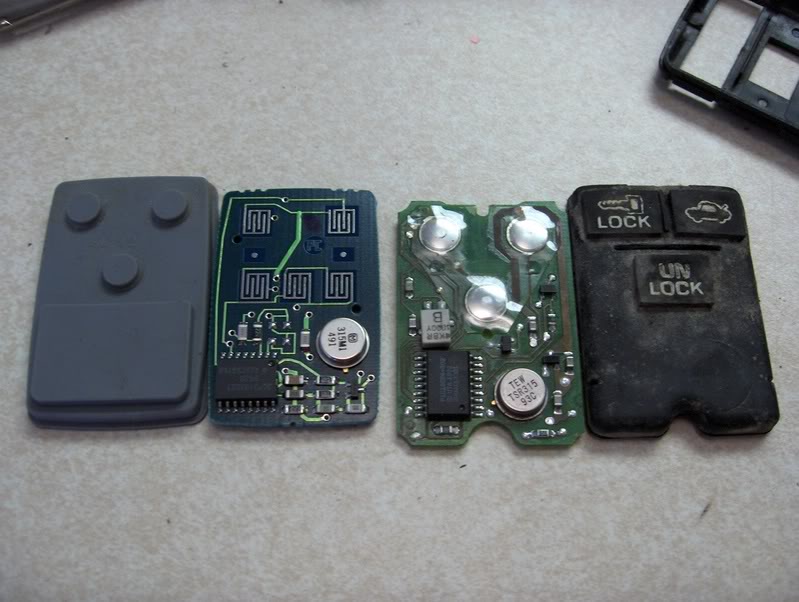

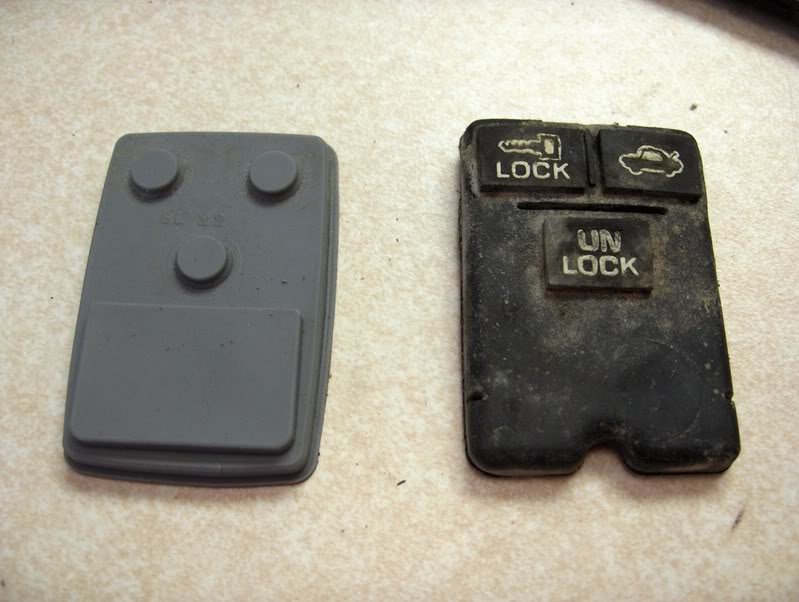

the only modification to the Pad that is needed to adapt the newer buttons. you need to cut out the pad so it will clear the screw hole in the Fob


assembled and ready to go


now i went out to the car to test....OMFG the plastic buttons are SOOOOO much better than the orignal rubber, you can feel the actuall click as apposed to the soft mush feel....

i recommend if you can find a key fob with the plastic buttons you make the swap
1993 SLE is offline   Reply With Quote
Old 02-11-2007, 08:17 PM   #2
Junior Member

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Custom88 is on a distinguished road
Default

That'* a good idea. You're right, the rubber buttons make it feel a lot cheaper. You're not always sure if your pushed the button correctly for it to do anything.
Custom88 is offline   Reply With Quote
Old 02-11-2007, 08:48 PM   #3
Senior Member
True Car Nut

Join Date: Nov 2005
Location: Elberton, GA
Posts: 5,242
Thanks: 0
Thanked 0 Times in 0 Posts
ga93sle is on a distinguished road
Default

I can feel the click on my FOB, FTW.
ga93sle is offline   Reply With Quote
Old 02-11-2007, 08:54 PM   #4
Senior Member
Posts like a Turbo

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

just yesterday i got one from a early sabre will it work for my new sabre i dont know the year of the sabre but it had the remote that you can feel the clicks...i like the look better than my 97 remote can i just put batts in it and get it to work?
rogers is offline   Reply With Quote
Old 02-12-2007, 04:18 PM   #5
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by rogers
just yesterday i got one from a early sabre will it work for my new sabre i dont know the year of the sabre but it had the remote that you can feel the clicks...i like the look better than my 97 remote can i just put batts in it and get it to work?
If it says ABO0103T, ABO0104T, ABO0302T or ABO0303T then it willl not work with you Le Sabre

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 02-12-2007, 09:15 PM   #6
Senior Member
Posts like a Turbo

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

shame thanks for that info 302T so its not going to work what ones WILL work
rogers is offline   Reply With Quote
Old 02-12-2007, 10:45 PM   #7
Senior Member
Posts like a Camaro

Join Date: Jan 2007
Location: Detroit MI,
Posts: 926
Thanks: 0
Thanked 0 Times in 0 Posts
BonnevilleLErocks is on a distinguished road
Default Remote Keyless Entry in a '90?

If I buy the correct key fob will my bonnie recognize it or is there more to it? Because I'm reading my 1990 brochure and I see remote keyless entry was an option back then.
BonnevilleLErocks is offline   Reply With Quote
Old 02-12-2007, 10:48 PM   #8
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default Re: Remote Keyless Entry in a '90?

Quote:
Originally Posted by BonnevilleLErocks
If I buy the correct key fob will my bonnie recognize it or is there more to it? Because I'm reading my 1990 brochure and I see remote keyless entry was an option back then.
you MUST have the AU0 option code on your RPO sticker that is found in your trunk

with out that its not going to work
1993 SLE is offline   Reply With Quote
Old 02-12-2007, 11:15 PM   #9
Senior Member
Posts like a Camaro

Join Date: Jan 2007
Location: Detroit MI,
Posts: 926
Thanks: 0
Thanked 0 Times in 0 Posts
BonnevilleLErocks is on a distinguished road
Default Re: Remote Keyless Entry in a '90?

*Get'* a pen and paper*

*writes down AU0 option code and RPO sticker in trunk*

Thanks!
BonnevilleLErocks is offline   Reply With Quote
Old 02-13-2007, 04:13 PM   #10
Senior Member
Posts like a Turbo

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

any one know what ones will work with my car?
