Default Key FOB quit working & Quick Fix

Do others also have their Key fobs suddenly quit working?

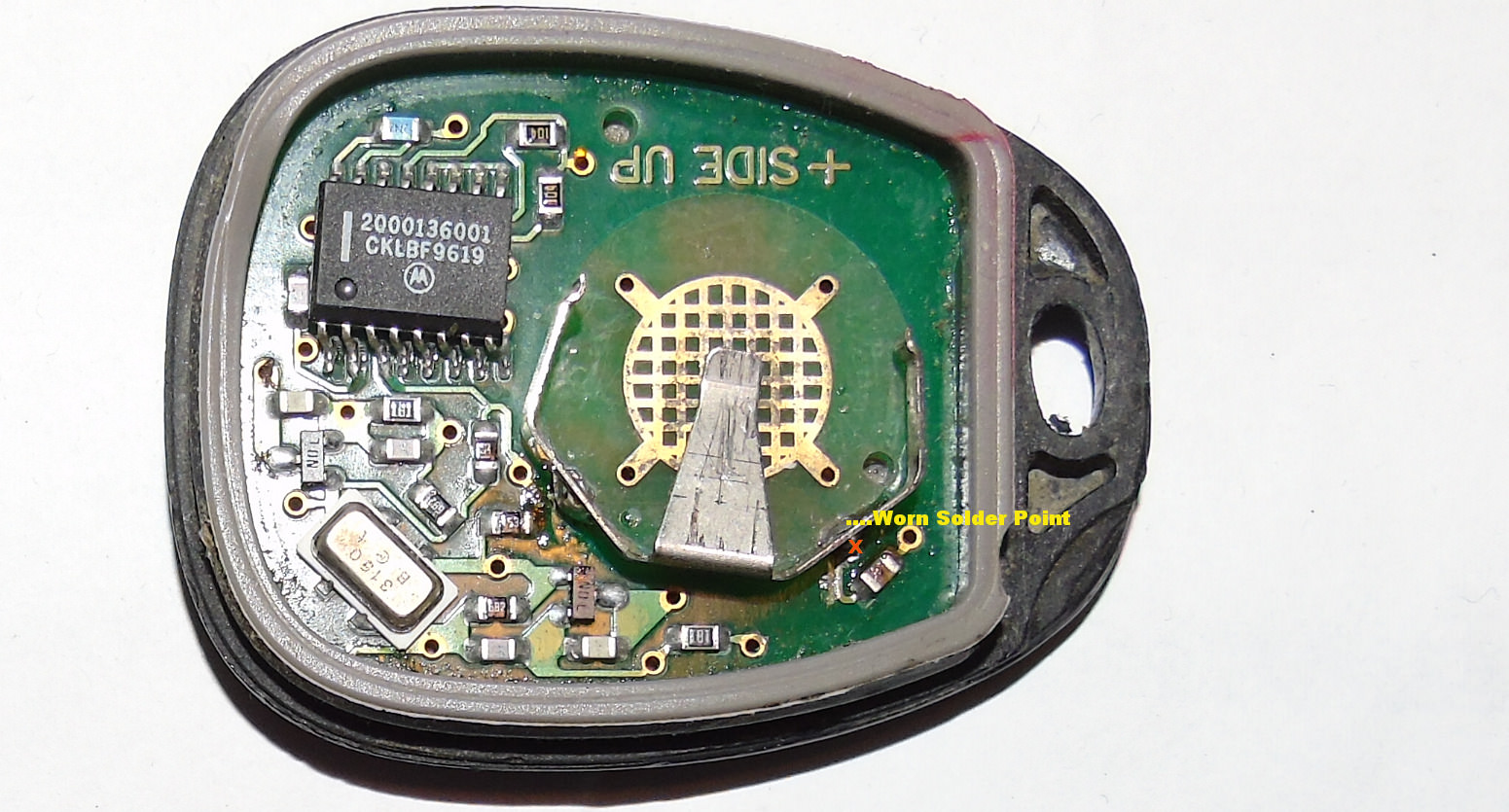

My situation is that the battery hold in clip is lifting out of circuit board at one solder point. This will be the 2nd time it needs soldering again.
Name:  MCApvPH.jpg
Views: 205
Size:  322.9 KB

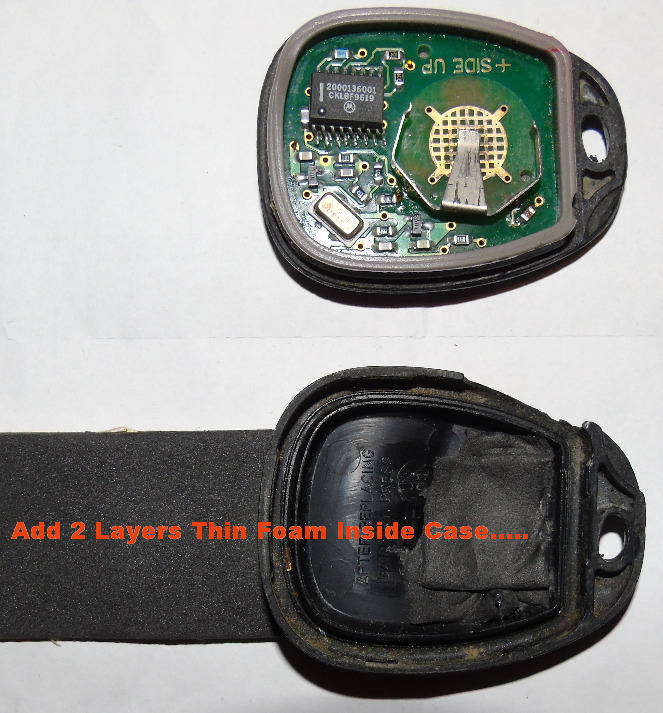

Added a few layers of self adhesive thin foam inside the rear of cap to get more pressure on the battery.
There is enough room in there to add the foam.
Name:  hGpj6rA.jpg
Views: 124
Size:  148.3 KB

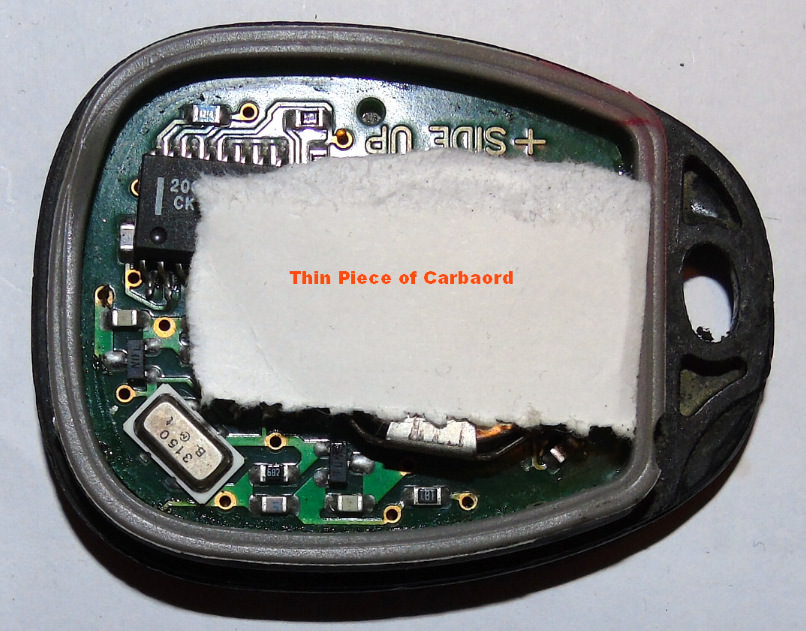

Also Added carboard ... Name:  k949koQ.jpg
Views: 117
Size:  132.9 KB
Which got slid down to cover battery!
Back together..
Name:  k4aUjlj.jpg
Views: 131
Size:  92.2 KB
I don't know how long this will work for, but so far so good.
Does anyone know if any new aftermarket solutions exist for the GM replacement key fobs?
Knowing my luck I would get a used one and have the same problem again.
You have to be very careful about holding that clip down, when replacing the battery!
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
__________________
1997 Buick Pk Ave (Soft Ride) Suspension!

Last edited by Soft Ride; Dec 9, 2017 at 12:35 AM. Reason: re-size pics
Reply
Old Dec 9, 2017 | 07:45 AM
  #2
Mike's Avatar
Retired
Certified Car Nut

Joined: Jul 2003
Posts: 17,960
Likes: 1,839
From: Dark Side, AZ
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

It also helps to clean the contacts on the buttons and the circuit board with a pencil eraser. That way your not pushing hard on the buttons.
Reply
Old Dec 11, 2017 | 03:58 PM
  #3
CathedralCub's Avatar
Senior Member


True Car Nut

Joined: Feb 2015
Posts: 6,832
Likes: 1,011
From: Earth
CathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to behold
Default

Great post! Also, I always "spin" the battery at least a quarter turn when I put one in, to clear any skin oils/dust/etc. off the contact points. The outer isn't a big deal, but the center point is.
Reply
