Default Just changed upper and lower intake gaskets on a Lumina

Just finished, and my toes are cold. My heater ran out of kerosene, I need to watch that closer. Took a lot of pictures so I will do a write up on doing uppers on a L36. I'll post up some pictures in a bit.
Danthurs is offline   Reply With Quote
Old 02-03-2011, 03:53 PM   #2
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Look forward to seeing it Dan. What color gasket sealer did you use (red or black)?
GunsOfNavarone is offline   Reply With Quote
Old 02-03-2011, 03:55 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I used the black that comes with the gaskets. I had her pick up the parts. Shame she got the plastic LIM gaskets. But she will be fine for a long time.
Danthurs is offline   Reply With Quote
Old 02-03-2011, 03:55 PM   #4
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

It'* a GM, this belongs in Chat. LOL! Mooooooo'ved.
GXP Venom is offline   Reply With Quote
Old 02-03-2011, 03:56 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Ack, I clicked the wrong area. My bad.
Danthurs is offline   Reply With Quote
Old 02-03-2011, 03:58 PM   #6
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

.... gotcha. Pics, pics, pics.
GXP Venom is offline   Reply With Quote
Old 02-03-2011, 04:01 PM   #7
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Dan (and other MasterMinds), if you get a chance please take a look at this gasket tech tip article and share your thoughts:

http://www.atvconnection.com/Departm...ket-Sealer.cfm
GunsOfNavarone is offline   Reply With Quote
Old 02-03-2011, 04:31 PM   #8
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Interesting read.
Danthurs is offline   Reply With Quote
Old 02-03-2011, 04:56 PM   #9
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

First is was off with the fuel rails.


After the fuel rails and injectors were all out of the way I removed the throttle body.


The UIM has 8mm bolts,


had to take the alternator and move it out of the way.


Because someone decided it would be fun to hide a bolt under it.

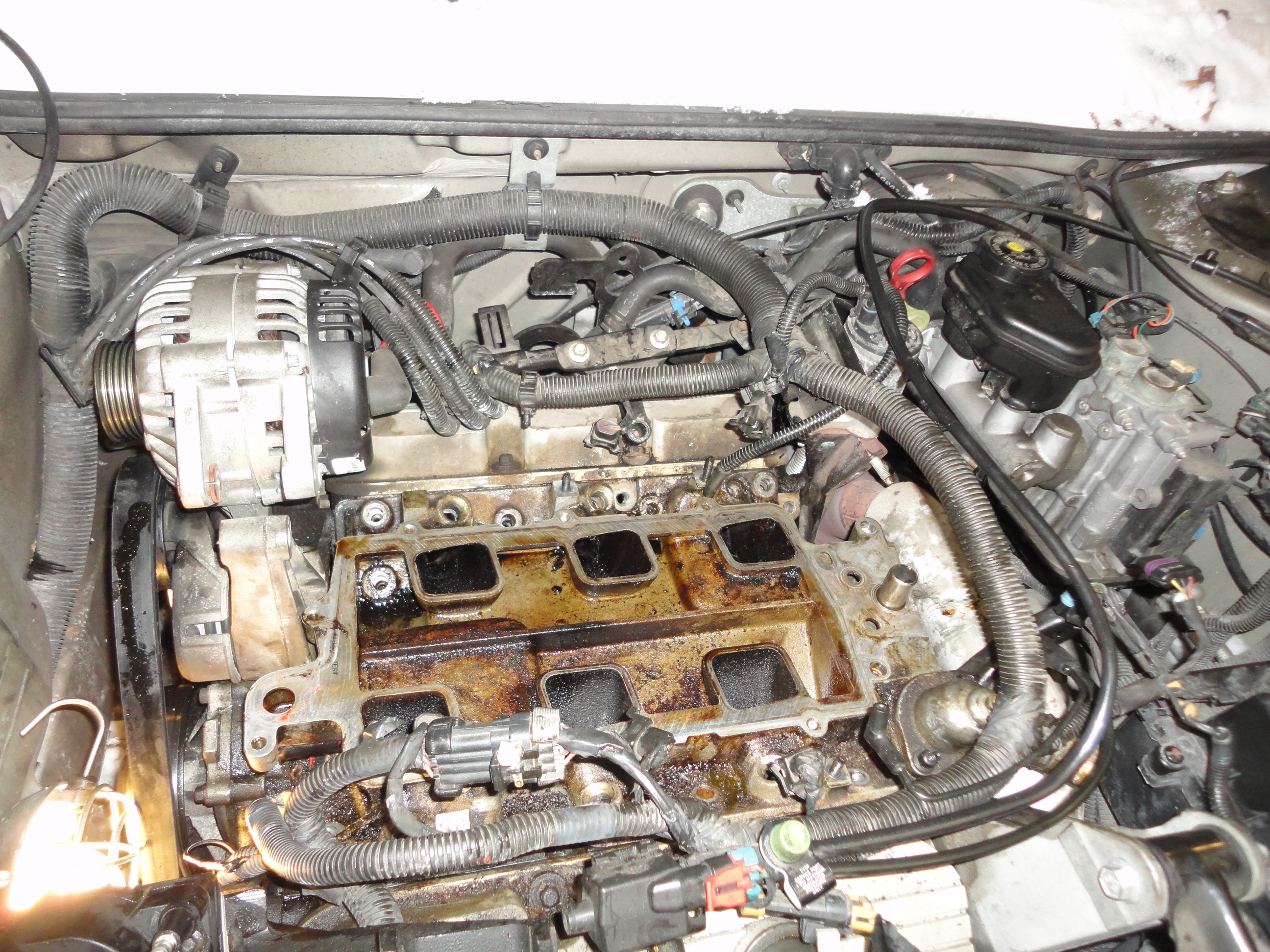

And off it came.


I convinced her it'* worth doing the LIM gaskets as well.


Let'* hide 2 bolts inside the LIM.


And it'* all off.


No mater how hard you try, coolant still gets in to the lifter valley. A prime reason why I like green.


All cleaned up and going back together.
Danthurs is offline   Reply With Quote
Old 02-03-2011, 05:03 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Looks good Dan. We should probably mention the different sized EGR stovepipes and point out the common failure point in the UIM where the stovepipe passes through. I like to emphasize the importance of step torquing the UIM bolts to their 89in lbs total torque. Not stepping can sometimes result in the ears breaking off the new UIM.
